Summary of Contents for Extech Instruments EX205T

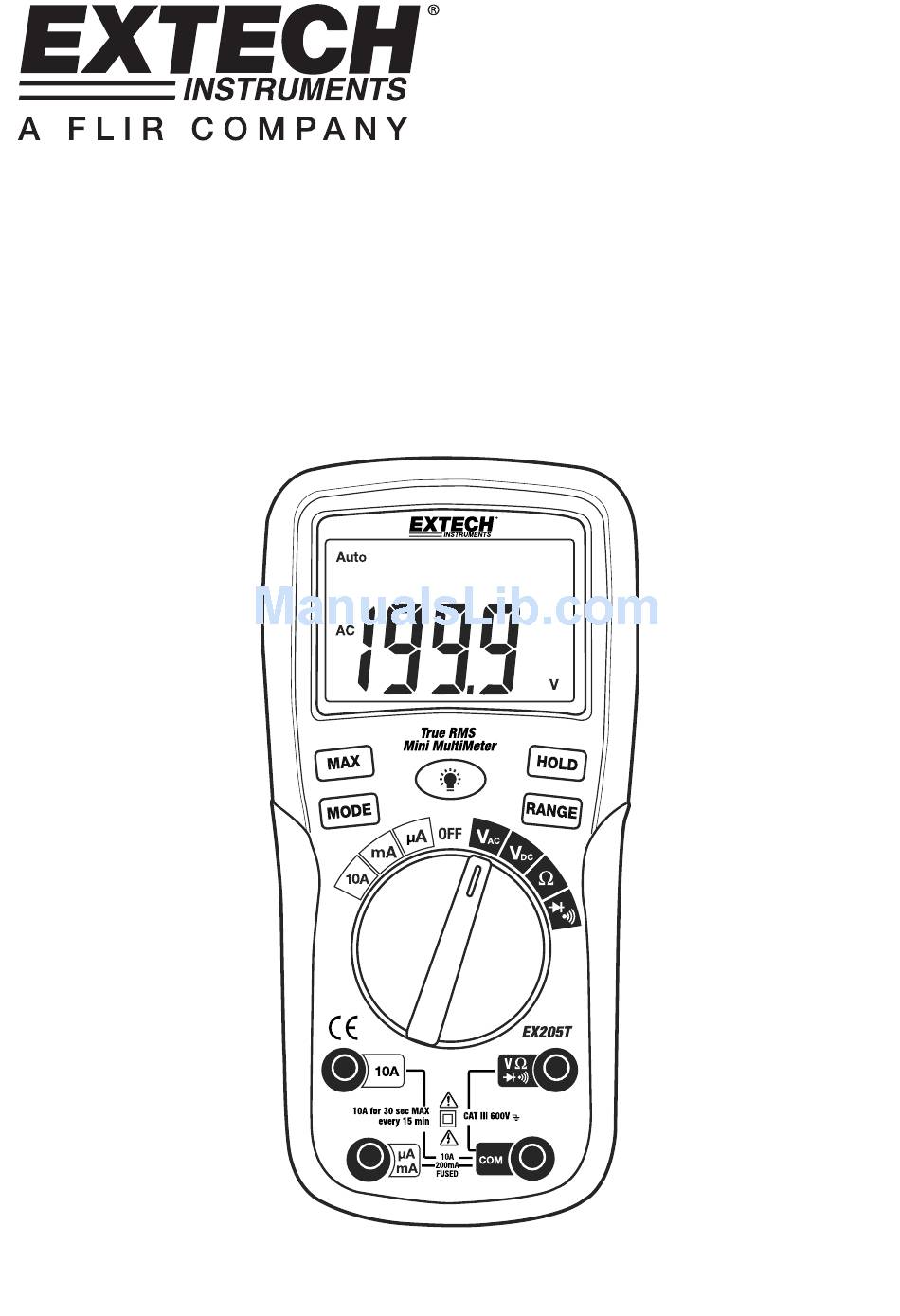

- Page 1 User Guide True RMS Multimeter Extech EX205T...
- Page 2 AC/DC Voltage, AC/DC Current, Resistance, Diode Test, and Continuity. Proper use and care of this meter will provide many years of reliable service. Please visit the Extech Instruments website (www.extech.com) to check for the latest version of this User Guide. Extech Instruments is an ISO- 9001 certified company.
- Page 3 Expired or damaged batteries can be hazardous to skin. Use suitable hand gloves in such cases. Do not short-circuit the battery. Never dispose of batteries in a fire. Batteries may explode or leak. Never mix battery types. Always install new batteries of the same type. EX205T-EU-EN V1.0 8/12...
-
Page 4: Safety Instructions
NEVER operate the meter unless the back cover and the battery and fuse covers are in place and fastened securely. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. EX205T-EU-EN V1.0 8/12... -
Page 5: Controls And Jacks
Symbols and Enunciators Continuity Diode test µ micro (10 ) (amps) milli (10 ) (volts, amps) Amps kilo (10 ) (ohms) mega (10 ) (ohms) Ohms Volts Alternating current Direct current Maximum AUTO Auto-ranging HOLD Display hold EX205T-EU-EN V1.0 8/12... -
Page 6: Ac/Dc Voltage Measurements
10A jack. 6. Connect the test leads in series with the circuit under test. 7. Apply power to the circuit. 8. Read the current in the display. EX205T-EU-EN V1.0 8/12... -
Page 7: Resistance Measurements
4. Touch the test probes to the diode under test. Forward voltage will typically indicate 0.400 to 0.700V. Reverse voltage will indicate “OL”. Shorted devices will indicate near 0V and an open device will indicate “OL” in both polarities. EX205T-EU-EN V1.0 8/12... -
Page 8: Autoranging/Manual Range Selection
If no button is pressed the auto sleep feature will place the meter in sleep mode after approximately 15 minutes of operation. If this happens, press any button to wake the meter or switch the meter to OFF if it no longer in use. EX205T-EU-EN V1.0 8/12... -
Page 9: Maintenance
/ accumulators are sold! Disposal in household trash or refuse is prohibited! Disposal: Follow the valid legal stipulations in respect of the disposal of the device at the end of its lifecycle EX205T-EU-EN V1.0 8/12... -
Page 10: Specifications
200 k 0.1 k 2 M 0.001 M (2.5% reading + 8 digits) 20 M 0.01 M NOTE: Accuracy is stated at 18 C to 28 C (65 F to 83 F) and less than 75% RH. EX205T-EU-EN V1.0 8/12... - Page 11 IEC/EN 61010-1:2001 and IEC/EN 61010-031:2002 to Category III 600V; Pollution Degree 2. Approvals Copyright © 2012 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form. ISO-9001 Certified www.extech.com...
