_ iNSTALLiNG THE CONCOrD TrANSFOrMEr WiTH TWiNFiX

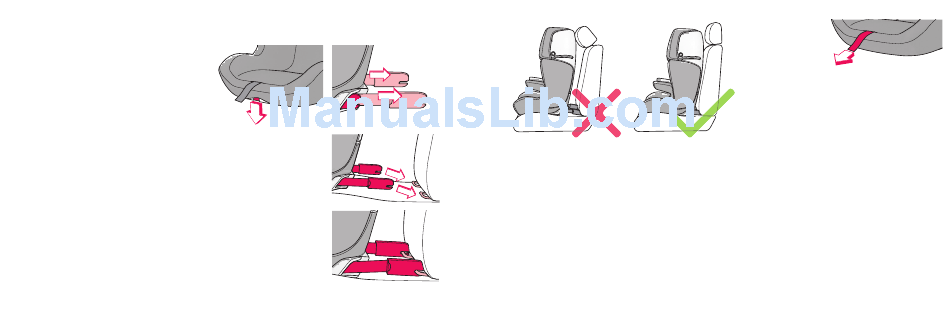

Push the TWINFIX button (09) down
and simultaneously pull out the
TWINFIX adapters (10) on the back of
the child seat to their full extent.
Position the CONCORD TRANSFORMER facing forwards on
the vehicle seat or bench fitted with ISOFIX points.
Push both TWINFIX adapters (10) on to the ISOFIX points
in the vehicle until the locking mechanisms have clicked
audibly into place.
34
In cars with standard headrests, these may be adjusted or removed to make it easier
to install the child car seat. Please note that the car headrests must be replaced and
re-positioned correctly when an adult is travelling in the car.
ATTENTiON!
• TWINFIX is an additional fitting system for securing the CONCORD
TRANSFORMER and is not suitable for securing a child.
• Children must always be secured by means of the car's three-point safety belt.
Pull the TWINFIX central strap (08)
forwards and guide the CONCORD
TRANSFORMER back until it lies as
close/flush as possible to the car seat
backrest.
35
