_ SECUriNG THE CHiLD WiTH THE THrEE-POiNT bELT

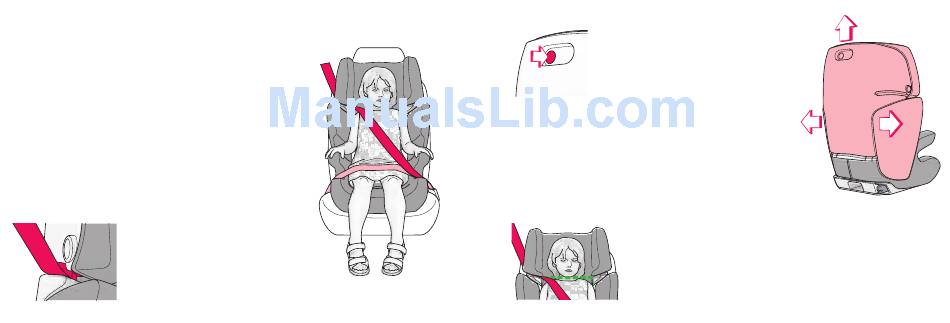

Seat your child well back in the seating area. Pass the
three-point belt across the front of the child to the seat
belt lock, and fasten it in the same way as for an adult.
(There must be an audible click.)
Now position the belts. Pass the lap belt across both
sides and the diagonal belt on the side of the seat belt
lock through the lap belt guide (03).
Finally, pass the diagonal belt through the provided
shoulder belt guide (06).
Make sure the belt passes
inside the securing hook.
38
The CONCORD TRANSFORMER
has 20 settings to adjust to the
size of the child. Press the size
adjustment control knob (04)
at the rear of the CONCORD
TRANSFORMER's backrest, and
move the head rest (01) into the correct position,
while pressing and holding control knob (04).
The CONCORD TRANSFORMER is arrested in
place, when you release control knob (04).
The shoulder belt guide (06) should be slightly above the top
of the child's shoulder. At the same time, the shoulder belt
should pass centrally between the child's neck and the outer
edge of the shoulder.
