Page 1: User Manual

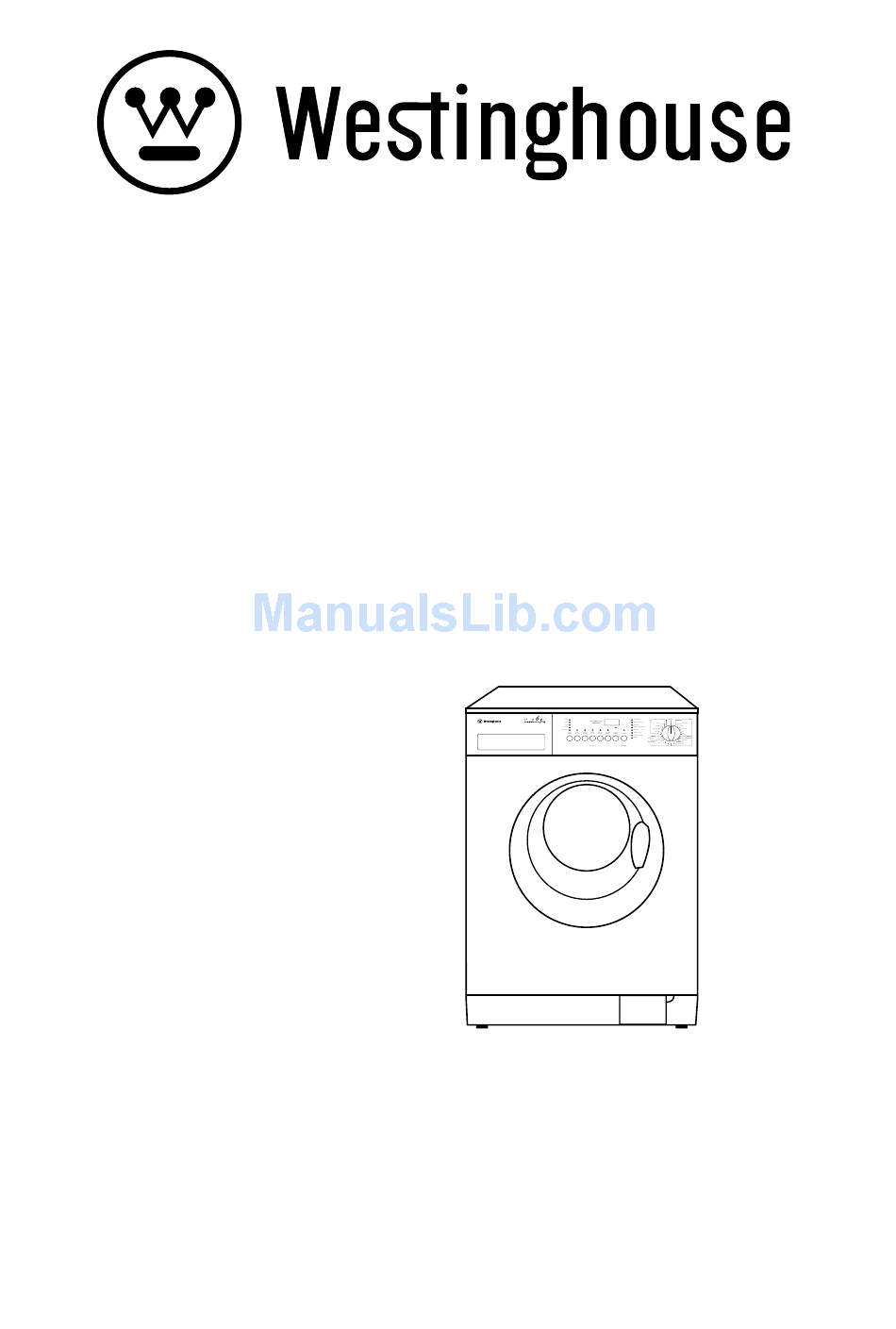

FRONT LOADING WASHING MACHINE USER MANUAL LF 652 D 6 5 2 132 990 940... -
Page 2: Table Of Contents
Contents Warnings Operating sequence 14-15 Washing programs 16-18 Disposal International wash code symbols Tips for environmental protection Maintenance After each wash Technical specifications Maintenance wash Installation Door seal Cabinet Unpacking Detergent dispenser drawer Positioning Drain pump Water inlet Water inlet filter Water drainage Emergency emptying out Electrical connection... -
Page 3: Warnings
Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated below. We recommend that you keep this instruction manual for future reference and pass it on to future owners. Warnings The following warnings are provides in the interest of overall safety. You must read them carefully before installing or using the appliance. -
Page 4: Disposal
• Make sure children or pets do not climb into the Disposal drum. To avoid this the machine incorporates a safety device. To activate this device, rotate the button (without pressing) inside the door clockwise Packaging materials until the groove is horizontal. If necessary use a coin. -
Page 5: Installation
Installation Unpacking 5. Set the machine upright and remove the remaining rear screw. Slide out the relevant pin. 6. Plug all the holes with the plugs which you will All transit bolts and packing must be removed find in the envelope containing the instruction before using the appliance. -
Page 6: Water Drainage
The inlet hose must not be lengthened. If it is too The drain hose must not be kinked. Run it along the short and you do not wish to move the tap, you will floor; only the part near the drainage point must be have to purchase a new, longer hose specially raised. -
Page 7: Your New Washing Machine
Your new washing machine The LF652D washing machine meets all modern needs for effective treatment of laundry with low water, energy and detergent consumption. • By selecting the temperature, spin speed and options offered on this washing machine, you truly get a customised wash result. -
Page 8: Use
Control panel 6 5 2 3 PREWASH button 1 Detergent dispenser drawer Select this option if you require your laundry to be prewashed before the main wash cycle. 2 SPIN SPEED button The prewash cycle ends with a short spin at 650 r.p.m. Press this button to reduce the maximum speed of the in programs for cotton and synthetics, and with final spin proposed by the machine for the selected... -
Page 9: Super Rinse Button
To complete the cycle there are two possibilities to 9 TIME SELECTING / REMAINING choose from: (Display) Select the DRAIN program : The display shows the following information: the water is emptied out without spinning. Cancelling – Duration of the program – Delayed Select SPIN or DELICATE SPIN programs. -
Page 10: Programme Progress Display
10 START/PAUSE button Incorrect option selection If an option which is not compatible with the set wash program is selected, the message “Err” is displayed for 2 seconds. This button has two functions: Start – Pause. Start When selected the required program, press this Alarm code button to start the machine, the corresponding light stops flashing. -
Page 11: Programme Selector Dial
E10 = the machine does not fill DRAIN E20 = the machine does not empty For emptying out of the water of the last rinse when the RINSE HOLD option is selected, turn first the E40 = the door has not been closed program selector dial to OFF then select program To eliminate the problem, see paragraph “Trouble- DRAIN and depress that START/PAUSE button. -
Page 12: Washing Hints
Maximum loads Washing hints Recommended loads are indicated in the program charts. Sorting the laundry General rules: Follow the wash code symbols on each garment Cotton, linen: drum full but not too tightly packed; label and the manufacturer’s washing instructions. Synthetics: drum no more than half full;... -
Page 13: Detergents And Additives
Rust: use oxalic acid dissolved in hot water or rust If using compact (concentrate) detergents, do not removing product cold. Be careful with rust stains select a prewash program. which are not recent since the cellulose structure will If a dosage ball/device is supplied with your already have been damaged and the fabric tends to concentrate detergent, measure the detergent into hole. -
Page 14: Operating Sequence
Operating sequence Before the first wash we recommend that you pour 2 4. Switch the machine on litres of water into the main wash compartment of the detergent drawer in order to activate the ECO Turn the selector dial to the desired program to valve. -
Page 15: Interrupting A Program
11. Interrupting a program 7. Select the desired options Depress the START/PAUSE button to interrupt the The light corresponding to the depressed button running program, the corresponding light will flash, illuminates. press the START/PAUSE button again to restart the program. 12. -
Page 16: Washing Programs
Washing Programmes Washing programs for cotton, linen and synthetics Programme/ Programme Additional Dispenser- Type of fabric description functions Temperature washing agents COTTON 95° White cotton Wash at 95°C Prewash Quick wash 3 rinses Rinse Hold Long spin Super rinse Easy iron Spin/ NO SPIN Wash at 60°C COTTON 60°... -
Page 17: Special Programs
Washing programs for delicates and wool Programme Additional Programme/ Dispenser- Type of fabric description functions Temperature washing agents Wash at 40°-30°C Prewash DELICATE 40°- 30° Delicate fabrics Quick wash 3 rinses Rinse Hold Short spin Super rinse Spin/NO SPIN Wool WOOL Wash at 40°-30°C -Cold Rinse Hold... -
Page 18: International Wash Code Symbols
International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C 40°C 30°C Hand wash Do not... -
Page 19: Maintenance
Maintenance Detergent dispenser drawer Before any maintenance or cleaning is carried out you must DISCONNECT the appliance After a while, detergents and fabric softeners leave from the electricity supply. deposits in the drawer. Inspect the drawer regularly. To remove the drawer from the machine, press the After each wash button in the rear left-hand corner. -
Page 20: Drain Pump
Drain pump • Put the cap back on the emergency emptying hose and place the latter back in its seat. The pump should be inspected if • the machine does not empty and/or spin • the machine makes an unusual noise during draining due to objects such as safety pins, coins etc. -
Page 21: Emergency Emptying Out
Emergency emptying out If the water is not discharged, proceed as follows to empty out the machine: • pull out the plug from the power socket; • close the water tap; • if necessary, wait until the water has cooled down; •... -
Page 22: Trouble-Shooting Guide
Trouble-Shooting Guide Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out a service technician. Before contacting your local Service Centre, please carry out the checks listed below. During machine’s operation it is possible that one of the following alarm codes will appear on the display. •... -
Page 23: The Door Will Not Open
Problem Possible cause • The program is still running, the drum is turning. • The door will not open: • The door lock has not yet released. • The water level is above the bottom edge of the door. • The machine is heating the water. •... -
Page 24: New Zealand
WESTINGHOUSE APPLIANCE WARRANTY – NEW ZEALAND This appliance is warranted by Electrolux Home Products (NZ) Ltd (“the Company”) from the date of purchase. The following terms and conditions apply: The Company or its Authorised Service Centre will pay the cost of repairing or replacing all parts of the appliance which the Company or its Authorised Service Centre find defective for a period of 24 months following the date of purchase (the “Warranty Period”). -
Page 25: Australia
WESTINGHOUSE WARRANTY AUSTRALIA Nothing in this warranty, limits any rights you may have under the Trade Practices Act or any other Commonwealth or State legislation. Such rights cannot be changed by the conditions in this warranty. Subject to the conditions below, this appliance is warranted by Electrolux Home Products Pty. Ltd. A.B.N. 51 004 762 341, (the “Company”), to be free from defects in materials and workmanship for a period of 24...
