Summary of Contents for Westinghouse WWW9024M5SA

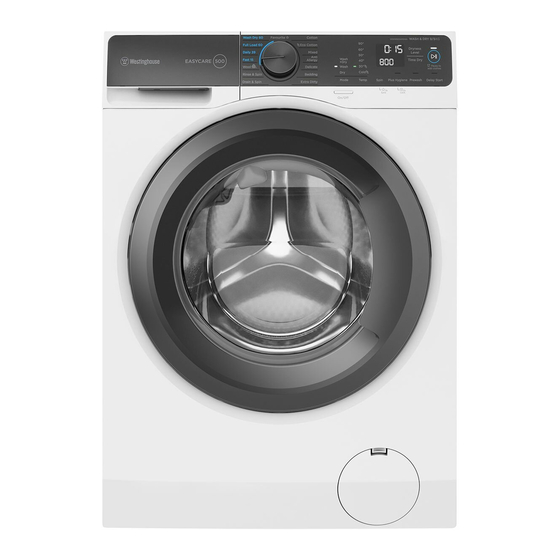

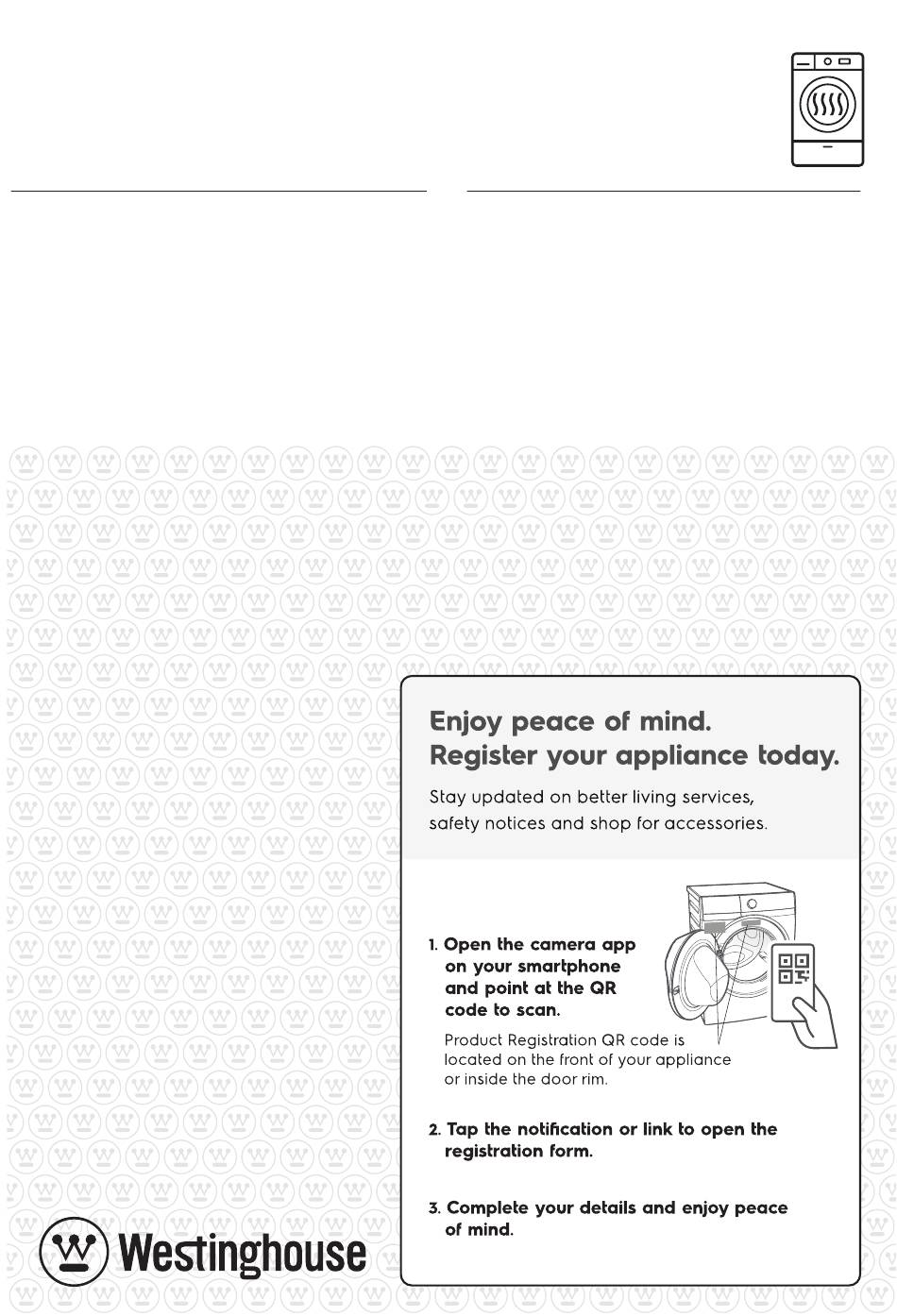

- Page 1 WWW9024M5WA WWW9024M5SA Washing Machine User Manual...
-
Page 2: Table Of Contents
Failure to strictly adhere to the requirements in this manual may result in personal injury, property damage and affect your ability to make a claim under the Westinghouse manufacturer’s warranty provided with your product. Products must be used, installed and operated in accordance with this manual. - Page 3 5. DAILY USE - WASHING (Only) 11. CARE AND CLEANING Loading The Laundry 11.1 External Cleaning ....18 ......28 Using Detergent And Additives 11.2 Descaling ... 18 ........28 Options Setting 11.3 After Each Wash ......19 ......28 Starting A Cycle ( ....
-
Page 4: Safety Information
/ www.westinghouse.co.nz SAFETY INFORMATION 1.1 Conditions Of Use This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working ● environtment; farm houses; ● by clients in hotels, motels, and other residential type ●... -
Page 5: Child Safety
1.2 Child Safety This Washer-Dryer is not intended for use by young ● children or infirm persons without supervision. Young children should be supervised to ensure that ● they do not play with the appliance. The packaging components (e.g. plastic film, ●... -
Page 6: Installation
/ www.westinghouse.co.nz ● Under no circumstances should you For safety reasons do not use attempt to repair the machine double adaptors, extension yourself. Repairs carried out by cords and multi-plug adapters. inexperienced persons may cause injury or serious malfunctioning. - Page 7 ● ● The users should always check that If it is unavoidable that fabrics contain they have not left their gas lighters vegetable or cooking oil or have been (disposable or otherwise) in their contaminated by hair care products clothing. be placed in washer-dryer, it should first be washed in hot water with extra ●...
-
Page 8: Product Description
/ www.westinghouse.co.nz PRODUCT DESCRIPTION 2.1 Parts Worktop Detergent/Softener Control Panel Dispenser (see page 10) (see page 18) Cabinet Door Drain Pump Filter Front Panel (see page 29) Level Adjustment Feet (Front) Mains Cable Transit Bolts Transit Bolts & Hose Support... -
Page 9: Accessories
Detergent/Softener Dispenser (For more informations, see page 18, 28) Transit Bolt (when remove) Softener Main Wash Prewash Door (when open) (for more informations, see page 18) Drum Lifter Transit bolts must be removed before using the appliance. Stainless Steel Washing Drum 2.2 Accessories Plastic Caps To close the holes on... -
Page 10: Control Panel
/ www.westinghouse.co.nz CONTROL PANEL 3.1 Control Panel Description Program knob Display Mode Selection touchpad Time Dry touchpad On/Off button Dryness Level touchpad Temp touchpad Pause to add Clothes option Spin touchpad Start/Pause touchpad Plus Hygiene touchpad Favourite program save option... -
Page 11: Program Chart
3.2 Program Chart Program; Max. Max. Load Type of load and soil level Spin (Dry Clothes) Temperature range Speed Wash Cotton; 1200 9 kg 5 kg White and coloured cotton. Cold to 90°C Eco Cotton; 1200 9 kg 5 kg White and colourfast cotton. - Page 12 / www.westinghouse.co.nz Program; Max. Max. Load Type of load and soil level Temperature Spin (Dry Clothes) range Speed Wash 1200 9 kg 5 kg Daily wear coloured cotton clothes such as Full Wash 60; shirts, blouses, towels and undergarments.
-
Page 13: Program Options Compatibility
3.3 Program Options Compatibility Option Program Rinse Dryness Time Delay Prewash Plus Extra Spin Hold Level Start Hygiene Rinse Cotton Eco Cotton Mixed Anti Allergy Delicates Bedding Extra Dirty Drain & Spin Rinse & Spin Wool Fast 15 Daily 39 Full Wash 60 WashDry 60 Favourite... - Page 14 / www.westinghouse.co.nz Prewash Touchpad No Spin ( No spin option eliminates all the spin Select this option if you wish your laundry to phases and increase the number of be pre-washed before the main wash. Use rinses. this option for heavy soil. The indicator of this option will be on.
- Page 15 Dry Time Option Guidelines: Load Spin Speed Suggested Type of fabric (kg) (rpm) Times (Hrs) Max. 1200 3 - 4 Cotton and linen 2.5 - 4.5 1200 2 - 3 (bathrobes, bath towels, etc.). 1200 1 - 2 Synthetic or mixed fabric items 1200 2 - 3 ( jumpers, blouses, underwear,...
-
Page 16: Settings
/ www.westinghouse.co.nz Additional drying To set “Child Lock” option: To activate the function, press and Should the laundry still be too wet at the hold “Prewash” and “Delay Start” end of the program, set another short touchpads about 3 seconds until the drying cycle. -
Page 17: Start/Pause ( ) And Add Clothes ( ) Touchpad
Error warning beeps such as critical If you have selected a “Delay Start” faults are not disabled. option, the countdown will begin and will be shown on the display. To disable the buzzer sound, press “Temp” and “Spin” touchpads at the To interrupt a program which is same time about 3 seconds, running, press this touchpad to pause... -
Page 18: Daily Use - Washing (Only)
/ www.westinghouse.co.nz DAILY USE - WASHING (Only) 5.1 Loading The Laundry 5.2 Using Detergent And Additives Turn the water tap on. Please read “Detergents Type Connect the main plug to the main and Quantity of Detergent”on socket. page 25 before use. -
Page 19: Options Setting
When you use the liquid Close the drawer gently. detergent NOTE Do not use gelatinous or thick liquid detergents. The softener amount used must not exceed the “MAX” mark in the Do not put more liquid than the drawer. maximum level. If you use thick softeners it is Do not set the “Prewash”... -
Page 20: Starting A Cycle ( )
/ www.westinghouse.co.nz 5.4 Starting A Cycle ( 5.7 Changing The Options To start a program, press the Start/Pause It may be possible to change some of the touchpad. The corresponding pilot light options after a program has started. will stop flashing and a default program Press the touchpad Start/Pause. -
Page 21: When The Washing Program Is Completed, But There Is Water In The Drum
NOTE NOTE After approximately 18 hours, if you do At the end of the program, the time not press Start/Pause touchpad, the remaining can suddenly decrease from appliance will drain and spin automatically 7 minutes or less to 0 due to the (except for “Wool”... -
Page 22: Daily Use - Drying (Only)
/ www.westinghouse.co.nz DAILY USE - DRYING (Only) Press the On/Off button to turn on the At the end of the program : machine. The acoustic signal will operate. The water tap must be open The display will show “... -
Page 23: Washing Program + "Time Dry " Option
At the end of the program press the When “Iron Dry ” option is selected, On/Off button to switch the machine off. the display time will be adjusted after approximately 15 minutes from the At the end of each drying cycle, start of the program, based on the the temperature of your clothing laundry type and load size. -
Page 24: Sorting The Laundry
/ www.westinghouse.co.nz WASHING HINTS 8.1 Sorting The Laundry Wash bras, pantyhose and other delicates in a Follow the wash code symbols on each mesh laundry bag, garment label and the manufacturer’s which you can purchase washing instructions. Sort the laundry as from your supermarket. -
Page 25: Detergents Type And Quantity Of Detergent
Oil based paint: moisten with benzine Low sudsing detergents designed for stain remover, lay the garment on a soft front load washing machines are labelled cloth and dab the stain; treat several “Front Loading”, “high efficiency”, “HE”, times. such as Cold Power for Front Loaders or “Matic”. -
Page 26: Drying Hints
/ www.westinghouse.co.nz Use less detergent if: Not enough detergent causes: the washload to turn grey, you are washing a small load, greasy clothes. the laundry is lightly soiled, large amounts of foam during washing. Too much detergent causes: oversudsing, reduced washing effect, inadequate rinsing. -
Page 27: Additional Drying
9.5 Additional Drying If the laundry is still damp at the end of the drying program, select a short drying cycle again. WARNING! Do not over dry the laundry in order to avoid creasing of fabrics or garments shrinking. 10. INTERNATIONAL WASH CODE SYMBOLS These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. -
Page 28: Care And Cleaning
/ www.westinghouse.co.nz CARE AND CLEANING WARNING! To run a maintenance wash: The drum should be empty of laundry. You must DISCONNECT the appliance Select the “Contton 90ºC” program. from the electricity supply, before you can carry out any cleaning or maintenance Press Start/Pause to start the program. -
Page 29: Cleaning The Drawer Recess
Flush it out under a tap to remove any WARNING! traces of accumulated powder. 1. Disconnect the mains plug from the mains socket. 2. Do not remove the filter while the appliance is operating. Do not clean the drain pump if the water in the appliance is hot. - Page 30 / www.westinghouse.co.nz 3. When the container is full of water, 5. Remove fluff and objects from the put the drainage duct back again and pump (if there are any). empty the container. Do step 2, 3 again and again until no more water flows out from the drain pump.
-
Page 31: Cleaning The Water Inlet Filter
Put the filter back into the housing Clean the filter in the inlet hose with with exposed section facing up. a stiff brush. Make sure that you correctly tighten the filter to prevent leakages. Guide Remove the inlet hose behind the appliance. -
Page 32: Frost Precautions
/ www.westinghouse.co.nz 11.9 Frost Precautions If the appliance is installed in an area where the temperature can be less than 0 °C, remove the remaining water from the inlet hose and the drain pump. Emergency Drain Disconnect the main plug from the main socket. -
Page 33: Troubleshooting
12. TROUBLESHOOTING 12.1 Possible Failures Alarm Code: Certain problems are due to lack of The appliance does not fill simple maintenance or oversights, which with water properly. can be solved easily without calling out The appliance does not drain an engineer. Before contacting your local the water. - Page 34 / www.westinghouse.co.nz Malfunction Possible cause Solution The drain hose is squashed or Check the drain hose kinked. (Error code: connection. The drain pump is clogged. Clean the drain filter. Machine (Error code: does not empty and/or The option “Rinse Hold”...
- Page 35 Malfunction Possible cause Solution The laundry is not evenly Pause the machine and distributed in the drum. redistribute laundry manually. Machine vibrates or is There is very little laundry in the Load more laundry. noisy: drum. Unstable floors eg. wooden floors. Refer to relevant paragraph in “Positioning”...
- Page 36 / www.westinghouse.co.nz Malfunction Possible cause Solution The “Time Dry” or the “Dryness Select the drying time or Level” degree has not been the dryness level degree. selected. The water tap is not turned on. Open the water tap. (Error code:...
-
Page 37: Emergency Door Opening
12.2 Emergency Door Opening In case of power failure or appliance failure, the appliance door remains locked. The wash program continues when power is restored. If the door remains locked in case of failure, it is possible to open it using the emergency unlock feature. -
Page 38: Technical Data
/ www.westinghouse.co.nz 850 x 600 x 659 mm Dimensions (Height / Width / Depth) Power supply (Voltage / Frequency) Total power absorbed Water supply pressure (Maximum / Minimum) Program Washing Drying Maximum dry clothes capacity Spin speed (Maximum / Minimum) 14. - Page 39 Remove the cardboard top. Put one of the polystyrene packaging elements on the floor behind the Remove the polystyrene packaging appliance. Carefully put down the materials. appliance with the rear side on it. Remove the plastic bag which cover Make sure not to damage the hoses. the machine.
-
Page 40: Positioning
/ www.westinghouse.co.nz Remove the three transit bolts. 11. Pull out the plastic spacers. 14.2 Positioning It is important that your machine stands firm and leveled on the floor to ensure correct operation. The appliance must not be installed behind a lockable door, a... -
Page 41: Water Inlet
14.3 Water Inlet Loosen or tighten the feet to adjust the level. A correct adjustment of the Connect the water inlet hose to a tap appliance level prevents vibration, noise with 3/4” BSP thread. and the movement of the appliance when in operation. - Page 42 / www.westinghouse.co.nz In a sink, drain pipe branch. Fitting Hose Guide This branch must be above the trap so that the bend is at least 60 cm above Pull apart to the ground. Hose bend insert hose. Guide hose Max.
-
Page 43: Electrical Connection
14.5 Electrical Connection This machine is designed to operate on CAUTION! a 220 - 240 V, single-phase, 50 Hz Connect the machine to an earthed socket outlet. supply. The manufacturer declines any “An incorrect power supply may void responsibility for damage or your warranty.”... -
Page 44: Packaging Materials
/ www.westinghouse.co.nz ENVIRONMENT CONCERNS 15.1 Packaging Materials For more detailed information about recycling of this product, please contact The materials marked with the your local city office, your household symbol are recyclable. waste disposal service or the shop where >PE<=polyethylene... - Page 45 NOTE...
- Page 46 / www.westinghouse.co.nz NOTE...
-
Page 47: Warranty
This document sets out the terms and conditions of the product damage to the Appliance caused by: warranties for Westinghouse Appliances. It is an important document. (i) negligence or accident; Please keep it with your proof of purchase documents in a safe place (ii) misuse or abuse, including failure to properly maintain or service;... - Page 48 www.westinghouse.co.nz...
