SoundMax SM-2604 Instruction Manual

Portable radio receiver

Table of Contents

Download this manual

SM-2604

PORTABLE

RADIO RECEIVER

Instruction manual

Table of Contents

Need help?

Do you have a question about the SM-2604 and is the answer not in the manual?

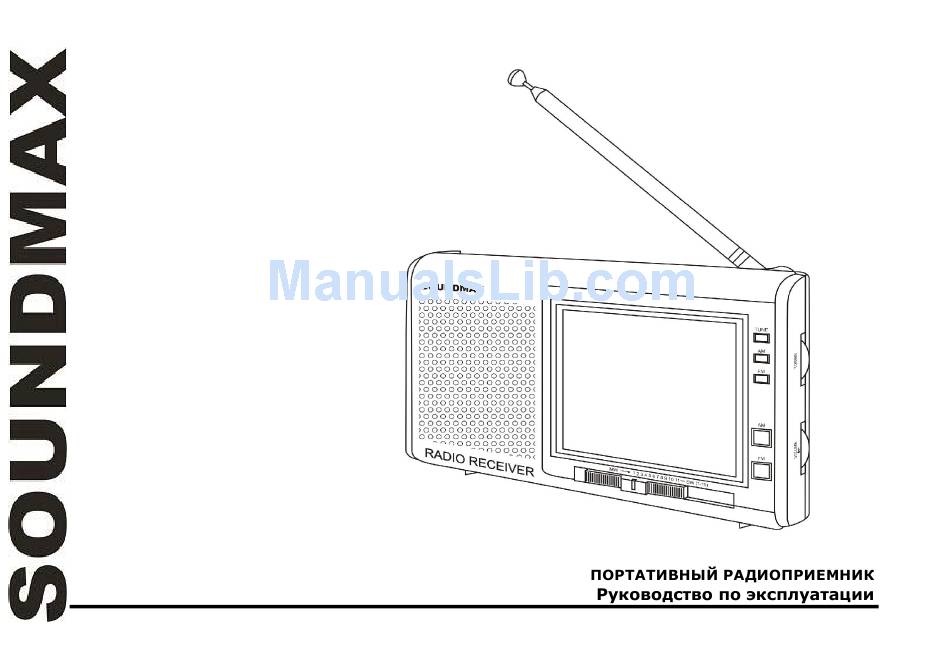

Page 1 SM-2604 PORTABLE RADIO RECEIVER Instruction manual...
Page 2: Important Safeguards
Description Control elements Telescopic antenna Dial scale Tune indicator AM band indicator Tuning knob FM band indicator AM button Power switch/volume knob FM button 10. MW/SW band switch 11. Battery compartment (rear of the unit) 12. DC jack 13. Earphone jack 14.
Page 3: Power Supply
Power supply Battery operation Open the battery compartment cover. Insert 3 AA batteries. Please observe correct battery polarities or the unit will not work. Close the battery compartment cover. When the batteries are exhausted, they should be replaced. Do not use new and old batteries together. External power Use output DC 4.5V 300 mA regulating external direct current power.
Page 4: Maintenance And Care
Maintenance and care If necessary, clean the unit with a piece of cloth dampened with water only (be sure batteries are not inserted into the battery compartment). Accessories Receiver 1 pc Earphones 1 pc Soft pouch 1 pc Instruction manual 1 pc Warranty card 1 pc...
Page 5 MW/SW (LOW) (HI)
Page 6 (4,5 , 300 MW/SW, MW/SW.
Page 7 FM: 70-108 MW: 526-1610 SW: 2,60-21,85 AA 1,5 : 4,5 /300 0,42 /0,56 184 x 116x 33 124 x 45...
