SoundMax SM-CMD3015 Instruction Manual

Multimedia dvd/cd/mp3 receiver with built-in 3.5” tft display and tv tuner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

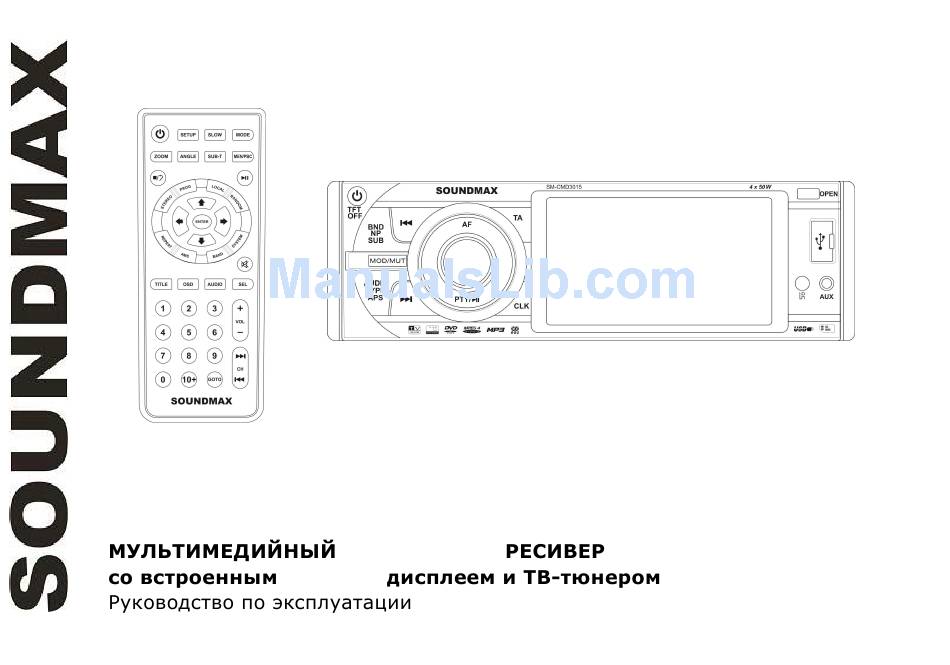

SM-CMD3015
MULTIMEDIA DVD/CD/MP3 RECEIVER with built-in 3.5" TFT display
and TV tuner
Instruction manual
DVD/CD/MP3-
3.5" TFT-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-CMD3015 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SoundMax SM-CMD3015

Summary of Contents for SoundMax SM-CMD3015

  • Page 1 SM-CMD3015 MULTIMEDIA DVD/CD/MP3 RECEIVER with built-in 3.5” TFT display and TV tuner Instruction manual DVD/CD/MP3- 3.5” TFT-...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ....................2 Important safeguards ..................

  • Page 3: Important Safeguards

    Important safeguards Read carefully through the manual to familiarize yourselves with this unit. Keep this manual handy as a reference for operating procedures and precautions. Do not allow persons who have not read through this manual to use this unit. “CLASS 1 LASER PRODUCT”.

  • Page 4: Accessories

    Accessories Receiver 1 pc Front panel 1 pc Remote controller 1 pc Front panel protective case 1 pc ISO cable 1 pc Installation parts: Release keys 2 pcs Screw 1 pc Screw 1 pc Flat washer 2 pcs Spring washer 2 pcs Metal strap 1 pc...

  • Page 5: Installation/Connection

    Installation/connection Choose the mounting location where the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect the wiring and make sure that the unit works properly. Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
  • Page 6 1. Install the sleeve into the dashboard; ensure it is installed with the correct side and there are no obstacles (wires, dashboard elements, etc) for the unit installation. 2. After installing the sleeve into the dashboard, bend tabs fitting to the size of the dashboard to fix the sleeve in place.
  • Page 7 2. DIN REAR-MOUNT (Method B) For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the help of the factory radio mounting brackets. 1. Select a position in which the screw holes of the brackets (3) are aligned with the screw holes in the unit body, and screw in two screws (2) in each side.
  • Page 8 Electrical Connection Connector A Connector B 1. - 1. Rear right speaker (+) 2. - 2. Rear right speaker (-) 3. - 3. Front right speaker (+) 4. Memory +12V 4. Front right speaker (-) 5. Auto antenna output 5. Front left speaker (+) 6.
  • Page 9 ISO Connection table Location Function Connector A Connector B Rear right (+) - Blue Rear right (-) - Blue/White Front right (+) - Grey Battery +12V/Yellow Front right (-) - Grey/White Auto Antenna/Orange Front left (+) - Green Front left (-) - Green/White Ignition/Red Rear left (+) - Brown Ground/Black...
  • Page 10 Reverse driving cable connection If the rear view video camera is connected, the unit automatically switches to camera picture during reverse driving. The unit returns to the original work mode after the reverse driving is done.

  • Page 11: Unit Controls

    Unit controls Front panel 1. POWER/TFT OFF button 2. BND/NP/SUB button 3. PREVIOUS button 4. AF button 5. TA button 6. Display 7. OPEN button 8. USB port 9. AUDIO/TYPE/APS button 10. MOD/MUT button 11. NEXT button 12. PTY/PLAY/PAUSE button 13.
  • Page 12 Inner panel 1. Disc loading slot 2. SD/MMC memory card slot 3. RESET button (hole) 4. Panel status indicator 5. EJECT button Pressing RESET hole will erase the clock setting and stored stations. Panel status indicator lights up when you flip down the panel and flashes when you remove the panel.
  • Page 13 Remote controller (RC) 1. SETUP button 2. POWER button 3. ANGLE button 4. ZOOM button 5. STOP button 6. PROG button 7. STEREO button 8. Cursor (UP/DOWN/LEFT/RIGHT) buttons 9. REPEAT button 10. AMS button 11. TITLE button 12. OSD button 13.
  • Page 14 Changing the battery 1. Press the catch and at the same time pull out the battery tray (pic. 1). 2. Insert the 1 lithium battery, type CR2025 (3V) battery with the stamped (+) mark facing upward. Insert the battery tray into the remote controller (pic.2).

  • Page 15: General Operations

    General operations Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press RESET button (hole) with a pointed object, such as a ballpoint pen, to set the unit to initial state. Note: When some errors occur, you can also press RESET button to resume to normal, and it will erase some memorized functions.
  • Page 16 Mute function Press MUTE button on the RC or press and hold MOD/MUT button on the panel to turn off the sound. Or touch MUTE icon available in SOUND page or in Radio interface. “MUTE ON” appears on the display. Press the button again or adjust volume to resume the sound output.
  • Page 17 Clock setting Press CLK button on the panel to show the time on the display. Press and hold it, the hour will be in yellow. Rotate VOLUME regulator on the panel or press VOL+/VOL- buttons on the RC to adjust the hour. Press SEL button on the RC or SELECT button on the panel, the minute will be in yellow.
  • Page 18 ON/SUB OFF. Or press and hold BND/NP/SUB button on the panel to switch on or off the subwoofer output. After you have reached your desired effect, leave the unit idle in order for the new setting to take effect. Note: An external amplifier is required to operate the subwoofer. AUX in jack AUX-in jack is intended for connecting external audio equipment to amplify the sound.

  • Page 19: Radio Operations

    Radio operations Touch screen In Radio mode touchable interface is available enabling you to perform various operations. The touch menu consists of two pages. Touch icon in the right bottom part of the screen to switch between two pages. Band select Press repeatedly BND/NP/SUB button on the panel or BAND button on the RC or touch repeatedly BND icon on the screen to select your desired radio band in Radio mode: FM1, FM2, FM3, AM1 (MW1), AM2 (MW2).
  • Page 20 Mono/Stereo control (in FM radio mode) Press repeatedly SELECT button on the panel or SEL button on the RC until the display shows ST ON (ST OFF). Press VOL+/VOL- buttons on the RC or rotate VOLUME regulator on the panel to select between ST ON/OFF.
  • Page 21 In TA mode traffic program will be automatically searched, until the program is received. When traffic announcement is received the unit will temporarily switch to the tuner mode (regardless of the current mode) and begin broadcasting the announcement. After the traffic announcement is over, it will return to the previous mode and volume level.
  • Page 22 RC or rotate VOLUME regulator on the panel to choose the needed option. After choosing, please leave the unit idle to activate. TA ALARM/TA SEEK: In TA SEEK mode, the unit will seek for traffic announcement program; in TA ALARM mode, the alarm is set off. Or you can touch TASET icon on the screen to switch between TA ALARM/TA SEEK.

  • Page 23: Tv-Tuner Operation

    TV-tuner operation Touch screen In TV mode touchable interface is available enabling you to perform various operations. Full-screen mode When the TV image is in full-screen format, touch the screen to go to TV touchable interface. When in the interface, touch ENTER button on the screen to go to full-screen mode. TV and audio system Touch SYS button on the screen to select one of the available TV systems.

  • Page 24: Disc Operations

    Disc operations Touch screen In Disc/USB/Card mode touchable interface is available enabling you to perform various operations. The touchable menu is available if during playback you touch the screen in the bottom. The menu is displayed in the bottom part of the screen and consists of three pages. For details please see the table below: Icon Operation Icon...
  • Page 25 MP3/DivX/JPEG file playback When you insert a storage containing MP3/DivX/JPEG files, the screen will show following interface: 1. Folder list 2. Audio file icon 3. Current file info 4. Photo file icon 5. Video file icon 6. File list You can select the needed folder or file by pressing cursor buttons. Press ENTER button on the RC or touch OK icon on the screen to confirm your selection.
  • Page 26 will increase as follows: x2 => x4 => x8 => x20 => Normal. While fast playback, press PLAY/PAUSE button on the RC or touch Play/pause icon to resume normal speed. Repeat playback Press REPEAT button on the RC repeatedly or touch Repeat icon for repeat playing in different modes: track/chapter repeat, folder repeat, disc repeat, repeat cancel (depending on the format used).
  • Page 27 Zooming in/out During playback of video or images, press repeatedly ZOOM button on the RC or touch Zoom icon, the picture will be zoomed in the sequence: X2 =>X3 =>X4 =>X1/2 => X1/3 => X1/4 => Normal. When the image is zoomed in, you can move it by pressing cursor buttons. Slow playback During playback press repeatedly SLOW button on the RC to select the speed of slow playback: 1/2 =>...
  • Page 28 Menu navigation Press MEN/PBC button on the RC or touch Menu icon to activate the disc menu list on the screen. Choose the desired item with cursor buttons. Press ENTER button on the RC or touch OK icon to confirm the selected item and start playing.

  • Page 29: Usb/Sd/Mmc Operation

    USB/SD/MMC operation USB/SD/MMC notes USB format supports 2.0. Capacity: up to 32 Gb. For correct and satisfactory operation, licensed SD/MMC memory cards of famous brands should be used with this unit. Avoid using memory cards of unknown brands. Capacity: up to 32 Gb. Inserting SD/MMC card/USB device Insert an MMC/SD card or a USB device into MMC/SD slot or USB slot.

  • Page 30: Setup Menu

    Setup menu Press SETUP button on the RC to display setup screen, use LEFT/RIGHT cursor buttons and ENTER button to select the desired setup page: System, Language, Audio, Video. In the selected page select an option using UP/DOWN cursor buttons, then press RIGHT cursor button to go to setting list. Use UP/DOWN cursor buttons to select the needed setting.
  • Page 31 Language setup OSD language: Select the language to be used for the on-screen display. Audio language: Select the language to be used for the audio. You can select a preferred audio from those included on the DVD video disk. Subtitle language: Select the language to be used for the subtitles. You can select a preferred subtitle from those included in the DVD video disk.

  • Page 32: Handling And Cleaning Discs

    Handling and cleaning discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust.

  • Page 33: Troubleshooting Guide

    Troubleshooting guide Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer. Symptom Cause Solution...

  • Page 34: Specification

    Specification General Power supply: 12 V DC Maximum power output: 4 x 50 W Storage support: DVD/DVD±R/DVD±RW, CD/CD-R/CD-RW, USB, SD/MMC Compatible formats: DVD-video/DVD-audio/SVCD/VCD/CDDA/HDCD/MP3/Picture- CD/Photo-CD/JPEG/MPEG4 (DivX/XviD) Unit dimensions/Net weight: 178 x 178 x 51 mm/2.1 kg Gift box dimensions/Gross weight: 220 x 294 x 100 mm/2.35 kg ESP function: 8 sec.
  • Page 35 ....................35 ...................36 ..................37 ...................38 ..................45 .....................49 ....................53 ...................58 ..................59 USB- SD/MMC ........64 ................65 ..................67 ............68 ................70...
  • Page 38 30°, « » « » « » ( « » ( DIN,...
  • Page 39 « » (...
  • Page 40 – – – « » (...
  • Page 41 OPEN,...
  • Page 42 1. - 2. - 3. - 6. - 7. +12...
  • Page 43 (+) - (-) - (+) - (-) - (+) – (-) - (+) - (-) - “Warning! Please stop watch video player” (“ “),...
  • Page 45 POWER/TFT OFF BND/NP/SUB PREVIOUS OPEN 8. USB- AUDIO/TYPE/APS MOD/MUT NEXT PTY/PLAY/PAUSE VOLUME/ SELECT...
  • Page 46 SD/MMC ) RESET EJECT RESET...
  • Page 47 SETUP POWER ANGLE ZOOM STOP PROG STEREO REPEAT TITLE SLOW MODE SUB-T MEN/PBC PLAY/PAUSE LOCAL RANDOM ENTER SYSTEM BAND MUTE AUDIO VOL+/VOL- PREVIOUS/NEXT GOTO...
  • Page 48 (CR 2025 3V), – 6...
  • Page 49 ) RESET RESET OPEN), POWER/TFT OFF POWER MODE MOD/MUT => AUX => => => USB => (Main) Bluetooth SETTINGS SOUND SETTINGS SETUP SETTINGS , TV Aux.
  • Page 50 SOUND page SOUND Radio, TV Aux. MOD/MUT MUTE MUTE SOUND MUTE ON. VOL+/VOL- VOLUME –, SOUND. SELECT BAS ( ) =>TRE ( ) => BAL ( => FAD ( VOL+/VOL- VOLUME –, SOUND. SELECT OFF. VOL+/VOL- VOLUME : POP => ROCK => CLASS => FLAT => EQ OFF ( SOUND.
  • Page 51 SELECT LOUD ON (OFF). VOL+/VOL- VOLUME (ON) (OFF) LOUD SOUND. BMP (Best Music Position) Double Bass SOUND MBP, DBAS Double bass ( VOLUME VOL+/VOL- SELECT VOLUME VOL+/VOL- –, HOUR ( SOUND, Beep BEEP ON (OFF). VOL+/VOL- BEEP ON ( BEEP OFF ( BEEP SOUND Beep.
  • Page 52 POWER/TFT OFF SETTINGS –, Brightness Contrast Color SELECT ON (SUB OFF). VOLUME VOL+/VOL- SUB ON ( )/SUB OFF ( BND/NP/SUB MP3-...
  • Page 53 BND/NP/SUB BAND 3 FM- : FM1, FM2, FM3 W (AM) : MW1 (AM1), MW2 (AM2). PREVIOUS/NEXT CH+/CH- PREVIOUS/NEXT CH+/CH- (1 - 6), (P1 – P6), AUDIO/TYPE/APS AMS. SCAN. 6...
  • Page 54 1~6. AUDIO/TYPE/APS AMS. INTRO. SELECT ON (ST OFF). VOLUME VOL+/VOL- (ST ON) (ST OFF). STEREO MO/ST. SELECT ON (LOC OFF). VOLUME VOL+/VOL- LOC ON ( OFF ( LOCAL LOC/DX. RDS ( AF (...
  • Page 55 TA ( PTY ( RDS, PTY/PLAY/PAUSE PTY, 1-6, PTY/PLAY/PAUSE PTY, 1-6, Pop, Rock News, Affairs, Info Easy, Sport, Educate, Light Drama Classics Culture, Science, Varied...
  • Page 56 Jazz, Weather, Country Finance, Children Nation, Social, Religion, Oldies Phone IN Folk Travel, Leisure, Document SELECT VOLUME VOL+/VOL- TA SEEK/TA ALARM: TA SEEK ALARM: TA ALARM TA SEEK TASET. PI SOUND/MUTE: PI sound:...
  • Page 57 . PI mute: RETUNE L/RETUNE S: «RETUNE» . «S» ; «L» RETUNE L RETUNE S RETUNE. Retune TA SEEK. MASK DPI/MASK ALL: AF ( MASK DPI. MASK MASK ALL RDS. MASK DPI MASK ALL MASK.
  • Page 58 ENTER. AUDI SCAN AUDIO/TYPE/APS PREVIOUS/NEXT...
  • Page 59 /USB/ Play/pause Audio Menu Stop Angle Rewind Repeat Fast forward Title Previous Subtitle Next NUM ( OK ( Zoom...
  • Page 60 EJECT. MP3/DivX/JPEG MP3/DivX/JPEG, ENTER ENTER AVI- PLAY/PAUSE Play/pause, STOP Stop.
  • Page 61 PREVIOUS Previous NEXT Next (0-9) PREVIOUS NEXT Rewind Fast Forward PREVIOUS NEXT : x2 => x4 => x8 => x20 => PLAY/PAUSE Play/Pause REPEAT Repeat, RANDOM GOTO; ENTER PROG,...
  • Page 62 PLAY/PAUSE, « » ENTER « », ENTER PROG, ZOOM Zoom : X2 => X3 => X4 => X1/2 => X1/3 => X1/4 => SLOW : 1/2 => 1/3 => 1/4 => 1/5 => 1/6 => 1/7 => PLAY/PAUSE Play/Pause PBC ( VCD) VCD- PBC.
  • Page 63 DVD) AUDIO Audio DVD) SUB-T Subtitle AUDIO Audio => => SYSTEM BND/NP/SUB (NTSC/PAL/PAL60/ DVD) MEN/PBC Menu, ENTER TITLE Title ID3- ID3-tag,...
  • Page 64 USB- SD/MMC USB/SD/MMC- USB: USB 2.0. SD/MMC: USB/SD/MMC- SD/MMC MOD/MUT MODE USB- « ».
  • Page 65 SETUP ENTER ENTER (NTSC, PAL, 4:3 PS: 4:3. 4:3 LB: 4:3, 16:9: 16:9. 0000. 0000...
  • Page 66 SPDIF/RAW: Dolby Digital, DTS MPEG. SPDIF/PCM:...
  • Page 68 “ ”.
  • Page 69 RESET.
  • Page 70 DVD/DVD±R/DVD±RW, CD/CD-R/CD-RW, USB, SD/MMC DVD-video/DVD-audio/SVCD/VCD/CDDA/HDCD/MP3/Picture- CD/Photo-CD/JPEG/MPEG4 (DivX/XviD) /2,1 /2,35 DVD, 40 CD, 120 C - +60 “Touch screen” 960 x 240 16:9 400:1 , 120 SECAM/DK 87,5 – 108 522 – 1620...
