SoundMax SM-2601 Instruction Manual

Portable radio receiver

SM-2601

PORTABLE RADIO RECEIVER

Instruction manual

Table of Contents

Need help?

Do you have a question about the SM-2601 and is the answer not in the manual?

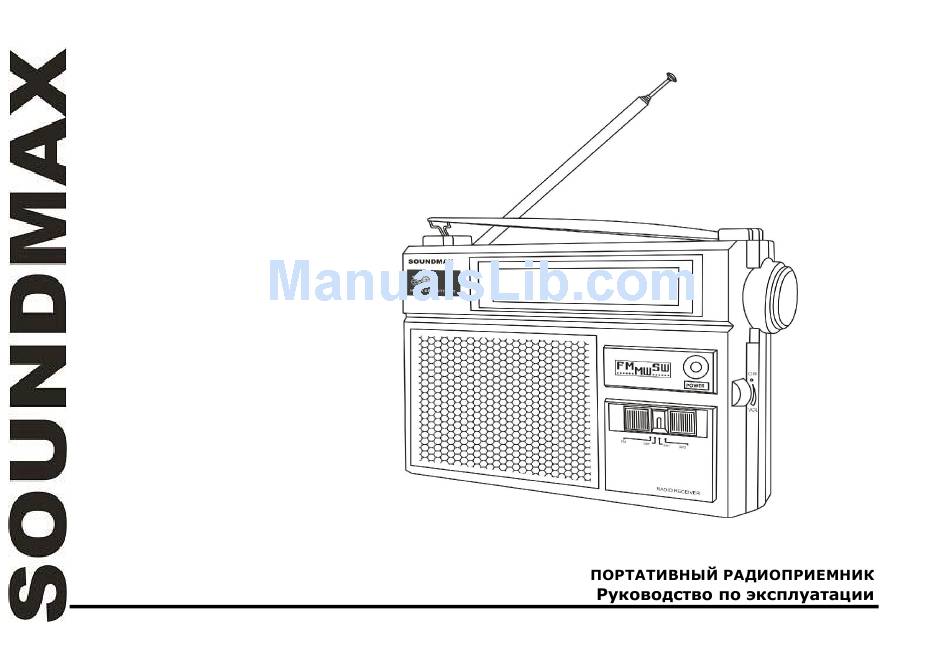

Page 1 SM-2601 PORTABLE RADIO RECEIVER Instruction manual...
Page 2: Important Safeguards
Description Control elements Hand belt Telescopic antenna Dial scale Tuning knob Power indicator Power switch/Volume knob Band selector Battery compartment (back of the unit) Earphone socket 10. AC power socket Important safeguards The Instruction manual contains important operating and maintenance instructions. For your safety, it is necessary to refer the manual.
Page 3: Power Supply
Power supply AC power Before the first connecting of the appliance check that voltage indicated on the rating label corresponds to the mains voltage in your home. Connect the AC cord to the unit inlet. Insert the plug into the power supply. Battery operation Open the battery compartment cover.
Page 4: Specification
Accessories Receiver 1 pc Power cord 1 pc Instruction manual 1 pc Warranty card 1 pc Consumer information 1 pc Specification Radio frequency range FM: 64-108 MHz MW: 530-1600 KHz SW: 5.80-22.00 MHz 100 mW Power supply DC: 3V (UM1 x 2) Net / Gross weight 0.52 kg/0.61 kg Unit dimension (L x W x H)
Page 6 UM-1 FM/MW/SW1/SW2.
Page 7 FM: 64-108 MW: 526-1606 SW1: 5,80-22,00 DC: 3 (UM1 x 2) 0.52 /0.61 180 x 140x 51 65 x 170...
