SoundMax SM-CMD5003 Instruction Manual

2 din multimedia dvd receiver with motorized 7” tft display and tv tuner
Hide thumbs Also See for SM-CMD5003:
Table of Contents

Advertisement

Quick Links

Download this manual
SM-CMD5003
DVD-
2 DIN
7" TFT-
2 DIN Multimedia DVD receiver with motorized 7" TFT display and TV
tuner
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-CMD5003 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SoundMax SM-CMD5003

Summary of Contents for SoundMax SM-CMD5003

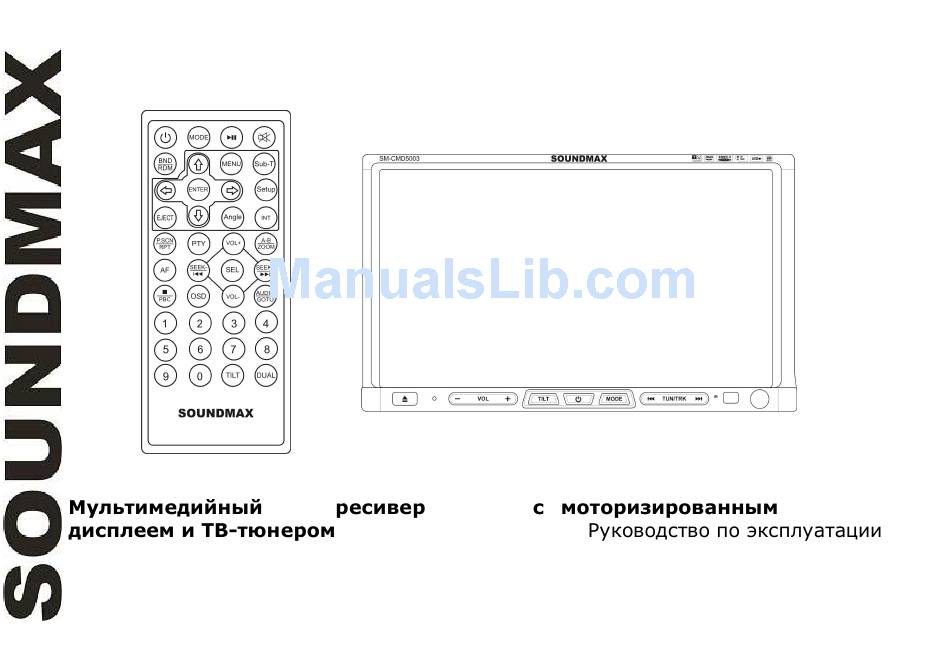

  • Page 1 SM-CMD5003 DVD- 2 DIN 7” TFT- 2 DIN Multimedia DVD receiver with motorized 7” TFT display and TV tuner Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents TABLE OF CONTENTS .............................. 2 IMPORTANT SAFEGUARDS.............................

  • Page 3: Important Safeguards

    Important safeguards Read carefully through the manual to familiarize yourself with this unit. Keep this manual handy as a reference for operating procedures and precautions. Do not allow persons who have not read through this manual to use this unit. “CLASS 1 LASER PRODUCT”...

  • Page 4: Accessories

    Accessories 1. Receiver 1 pc 2. Front panel 1 pc 3. Protective bag 1 pc 4. Remote controller 1 pc 5. ISO connector 1 pc 6. Audio-video connector 1 pc 7. Mounting parts: Mounting sleeve 1 pc Outer trim ring 1 pc Steel bar 1 pc...

  • Page 5: Installation/Connections

    Installation/Connections Choose the mounting location where the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect the wiring and make sure that the unit works properly. Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
  • Page 6 Place the trim ring (5) over the unit and the installation is completed. (Some vehicles may not need a trim ring). The device is distinguished by a high degree of output. During operation, this results in a strong heat generation. Therefore no cables or other parts may adjoin the device. If their insulation melts, there is the risk of a short circuit or fire.
  • Page 7 Connection diagram...
  • Page 8 Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated. 2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit.
  • Page 9 Parking wire connection If Parking cable is connected to hand brake switch, the video display of the TFT monitor will be controlled by driving status, system setup and input video sources. When the car is moving ahead, if the video disc is played, the screen shows “ATTENTION!! You cannot use this function while driving”, and blank screen.

  • Page 10: Panel Controls

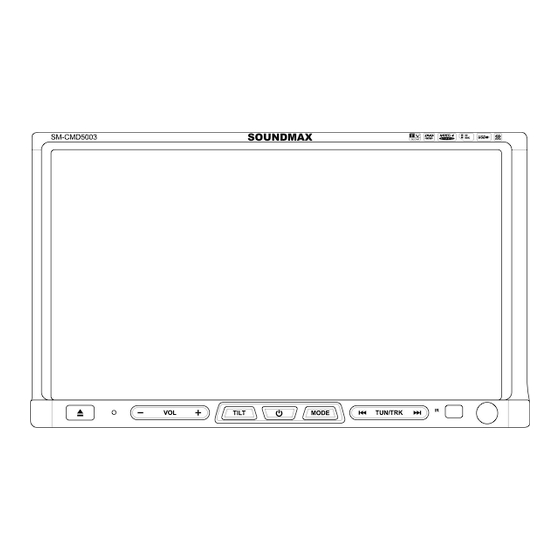

    Panel controls Front panel 1. EJECT button 2. Reset button (hole) 3. VOL- button 4. Display 5. VOL+ button 6. TILT button 7. POWER button 8. MODE button 9. TUN/TRK button 10. TUN/TRK button 11. IR sensor...
  • Page 11 Inner panel 1. Memory card slot 2. Panel status indicator 3. Disc slot Panel status indicator lights up when you slide the panel down, flashes when you remove the panel.
  • Page 12 Remote controller 1. MODE button 2. POWER button 3. UP cursor button 4. BND/RDM button 5. ENTER button 6. LEFT cursor button 7. DOWN cursor button 8. EJECT button 9. PTY button 10. P.SCN/RPT button 11. SEEK-/ button 12. AF button 13.
  • Page 13 Changing the battery 1. Press the catch and at the same time pull out the battery tray (pic. 1). 2. Insert the 1 lithium battery, type CR2025 (3V) battery with the stamped (+) mark facing upward. Insert the battery tray into the remote controller (pic.2).

  • Page 14: General Operations

    General operations Touch screen Due to the touch screen, you can fulfill most functions not only by pressing buttons but also by touching the options you need. Turning the unit on/off Press any button (except EJECT button on the RC) to switch the unit on. Press and hold POWER button on the panel or PWR button on the RC to turn off the power.
  • Page 15 Mode selection Repeatedly press MODE button on the RC or on the panel to select a mode: Radio => Disc => USB => SD => TV => AV-in. In any mode touch right top corner of the screen or press MENU button to display the Main menu as follows: In the menu, touch the item of the mode you need to select the corresponding mode.

  • Page 16: System Setup

    System setup When you select SETTING mode or press SETUP button on the RC, the menu will be displayed, in which you can touch any item to perform operations as follows: 1. Menu page list. Touch any page icon to go to corresponding menu page.
  • Page 17 Backlight: select LOW, MID or HIGH display backlight level. RDS and Radio page Stereo: Select ON (stereo reception mode) or OFF (mono reception). When the received stereo signal is weak, switch to mono mode to improve the signal. The function is available only in FM bands. Local: Select ON (only local station reception) or OFF (local and distant station reception).
  • Page 18 Clock setting: A touchable keyboard is displayed. Input the current time and touch OK to confirm. DVD page OSD lang: Select on-screen display language. Subtitle lang: Select a DVD subtitle language. Audio lang: select a language of the DVD audio. DVD menu lang: Select a language of the DVD menu.

  • Page 19: Radio Operations

    Radio operations User interface of Radio mode When the unit is switched to Radio mode, the below touchable user interface will be displayed on the display: 1. PTY button. Touch to enable/disable PTY function. In the PTY list, touch a program type to start its search. 2.
  • Page 20 Manual/automatic tuning Manual tuning: press TUN/TRK buttons on the panel or SEEK-/ and SEEK+/ on the RC and hold for 2 seconds to enter the manual tuning mode. Press these buttons repeatedly to select a frequency downward or upward step by step. Automatic tuning: press TUN/TRK buttons on the panel or SEEK-/ and SEEK+/...
  • Page 21 TA (Traffic alarm) function Touch TA button on the screen to switch on the TA function. When TA is on, the TA displays on TFT, or else, if there is no TP information, the mode will search TP station automatically. When TA is playing, the volume will be adjusted to a TA level automatically.

  • Page 22: Tv Operations

    TV operations Connect a TV antenna to the TV antenna jack of the unit. Select TV mode. To access the TV mode menu, press MODE button on front panel or remote to select TV mode or tap TV icon on main menu screen to enter TV mode, then press PLAY/PAUSE button on the RC. To select a menu page (Auto Program or Manual Program) press UP/DOWN cursor buttons on the RC or touch these items on the screen.

  • Page 23: Disc/Usb/Sd/Mmc Operations

    Disc/USB/SD/MMC operations USB/SD/MMC notes USB format supports 1.1. Capacity: up to 8 Gb. For correct and satisfactory operation, licensed SD/MMC memory cards of famous brands should be used with this unit. Avoid using memory cards of unknown brands. Capacity: up to 8 Gb. Insert/Eject disc Insert a disc into the disc slot with label side up.
  • Page 24 8. REPEAT button. Touch repeatedly to select repeat playback mode. 9. SUBT button. Touch to select disc subtitle language. 10. AUD button. Touch to select disc audio language. 11. MENU button. Touch to go to the disc root menu. VCD touch interface When a VCD is played, touch the center of the screen;...
  • Page 25 10. Volume down button. Touch to decrease volume. 11. Volume level. 12. Volume up button. Touch to increase volume. 13. STOP button. Touch to stop playback. 14. PLAY/PAUSE button. Touch to pause or resume playback. 15. Touch the button to go to the previous file/track. 16.
  • Page 26 Press long repeatedly SEEK-/ or SEEK+/ buttons on the RC or press repeatedly TUN/TRK buttons on the panel or corresponding buttons on the screen for fast backward or forward playing correspondingly. With each pressing playback speed will increase. While fast playback, press PLAY/PAUSE button on the RC to resume normal speed.
  • Page 27 Zooming in/out During playback of video or images on disc/USB/SD/MMC, press and hold repeatedly A-B/ZOOM button on the RC, the picture will be zoomed in the sequence: Zoom2 =>Zoom3 =>Zoom4 =>Zoom1/2 => Zoom1/3 => Zoom1/4 => Normal. PBC (Playback Control) (for VCD only) This function is only available for the VCD with PBC function.
  • Page 28 ID3 Tag function If a MP3 file has ID3 tag information in the supported ID3 format, such information will be displayed on the LCD while playback.

  • Page 29: Handling Compact Discs

    Handling compact discs Do not insert anything other than a CD into the CD loading slot. Do not use cracked, chipped, warped, or otherwise damaged discs as they may cause skipping or noise damage the player. Handle the disc only by the edges (as shown in the picture). To keep discs clean do not touch its surface. Store discs in their cases when not in use.

  • Page 30: Troubleshooting Guide

    Troubleshooting guide Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer. Symptom Cause Solution...
  • Page 31 Temperature inside the car is too Cool off until the ambient temperature returns to high. normal. Buttons do not The built-in microcomputer is not Reset the unit with the help of RESET button. work operating properly. Front panel is not properly fix into its Install the front panel properly.

  • Page 32: Specification

    Specification General Power supply: 12 V DC Maximum power output: 4 x 50 W Dimensions 165 x 100 x 178 mm Mounting angle 0 to +/-30 Working temperature range - +60 Display Display Motorized 7” TFT Resolution: 480 (RGB) x 234 Aspect ratio: 16:9 Contrast ratio:...
  • Page 33 ................................33 ..........................34 ............................36 ..........................37 ............................43 ..............................47 ............................50 ............................... 54 ..........................57 /USB/ SD/MMC ................ 58 ......................... 64 ............................... 64 ................. 65 ........................66...
  • Page 36 5. ISO- 15 6...
  • Page 37 30°, 2-DIN (2). (3).
  • Page 38 (4).
  • Page 41 ISO, (+)--- (-)--- (+)--- 12 (+)/ (-)--- (+)--- ((-)--- (+)--- (-)---...
  • Page 42 “ATTENTION!! You cannot use this function while driving” (“ “), (illumination)
  • Page 43 EJECT ) reset VOL- VOL+ TILT POWER MODE TUN/TRK TUN/TRK...
  • Page 45 MODE POWER BND/RDM ENTER EJECT P.SCN/RPT SEEK-/ STOP/PBC PLAY/PAUSE MUTE MENU SUB-T SETUP ANGLE VOL+ VOL- A-B/ZOOM AUDIO/GOTO DUAL SEEK+/ TILT...
  • Page 46 (CR 2025 3V), – 6...
  • Page 47 EJECT POWER reset reset VOL+/VOL-...
  • Page 48 MUTE MODE : Radio ( ) => Disc ( ) => USB => SD ) => TV ( ) => AV-in. MENU , USB USB- TILT DUAL - , USB...
  • Page 49 DUAL C-DUAL ( D-DUAL (...
  • Page 50 SETTING SETUP ENTER (Sound) Flat, Classic, Pop, Rock User Bass ( Treble ( Balance ( Fader ( Volume ( Beep ( ALL ( ), 2ND ( OFF ( Loud ( ON (“ ”) Subwoofer (...
  • Page 51 (Display) Screen ( 16:9, 4:3 FULL (“ ”). Backlight ( LOW (“ ”), MID (“ ”) HIGH (“ ”). (RDS and Radio) Stereo: ON ( OFF ( Local: ON ( OFF ( TA volume: Retune: Retune-S Retune-L – Seek. Retune S: TA SEEK 30 Retune L: TA SEEK 90...
  • Page 52 EON TA DX ( (EON TA), TA: Seek/Alarm. TA SEEK, TA ALARM, (General) Dual ( (ON) (OFF) Key ( CURRENT ( DVD ( DUAL. Tilt angle ( Tilt IN/OUT ( Clock display ( (ON)/ (OFF) Clock hour ( Clock setting ( DVD (DVD) DVD.
  • Page 53 4:3PS: ( ); 4:3LB: ( ); 16:9: ( NTSC/PAL: NTSC PAL. (System info) Calibration ( : “Carefully press and briefly hold stylus on the center of the target longer than 1 second” (« »).
  • Page 54 PTY. PTY. LOC. MUTE; BAND. AS/PS.
  • Page 55 BAND/RDM : FM1 - FM2 - FM3 – MW1 (AM2) - MW2 (AM2). SEEK-/ SEEK+/ TUN/TRK SEEK-/ SEEK+/ TUN/TRK (18 FM, 12 AM (MW)). P.SCN/RPT P.SCN/RPT...
  • Page 56 RDS ( AF ( RDS. TA (Traffic Alarm) TP ( PTY ( (PTY),...
  • Page 57 MODE PLAY/PAUSE (Auto Program Manual Program) ENTER ENTER BACK PLAY/PAUSE AUTO PROGRAM ( System: (SECAM/PAL). Audio: (DK/BG/I). Search: MANUAL PROGRAM ( Storage: System: (SECAM/PAL). Audio: (DK/BG/I). Channel: Fine: Memory: ON ( OFF (...
  • Page 58 /USB/ SD/MMC USB/SD/MMC USB: USB 1.1. . SD/MMC: EJECT. SD/MMC/USB- SD/MMC USB- USB- USB. DVD- PLAY/PAUSE. STOP.
  • Page 59 REPEAT. SUBT. AUD. MENU. VCD- PLAY/PAUSE. STOP. REPEAT. AUD. PBC. BPC. MP3/DivX/JPEG MP3/DivX/JPEG, RDM. RPT. INT. ID3-...
  • Page 60 MDC. Mute; STOP. PLAY/PAUSE. ENTER AVI- /USB). PLAY/PAUSE...
  • Page 61 /USB/ STOP/PBC PLAY/PAUSE STOP/PBC SEEK-/ TUN/TRK SEEK+/ TUN/TRK (0-9) 0001. SEEK-/ SEEK+/ TUN/TRK DVD/VCD PLAY/PAUSE A-B/ZOOM, P.SCAN/RPT,...
  • Page 62 BND/RDM, DVD) PBC ( VCD) VCD- PBC. STOP/PBC PBC. B/ZOOM : X2 => X3 => X4 => X1/2 => X1/3 => X1/4 => AUDIO/GOTO; ENTER...
  • Page 63 DVD) ANGLE DVD) AUDIO/GOTO DVD) SUB-T VCD) AUDIO/GOTO => => DVD) MENU ENTER PLAY/PAUSE ID3- ID3-tag,...
  • Page 65 “ ”.
  • Page 66 RESET. +/- 30 - +60 TFT- 234 (RGB) 16:9 500:1...
  • Page 67 – 74 /87,5 – 108 AM (MW) 522 – 1620 PAL/SECAM 48,25 – 863,25 DVD/DVD±R/±RW, CD-R/-RW, USB/SD/MMC DVD-video/DVD-audio/SVCD/VCD/HDCD/MP3/CDDA/JPEG/ MPEG4 (DivX/XviD) DVD/40 CD/120 c 2010 – 2019) (2011) R31982101-01792...
