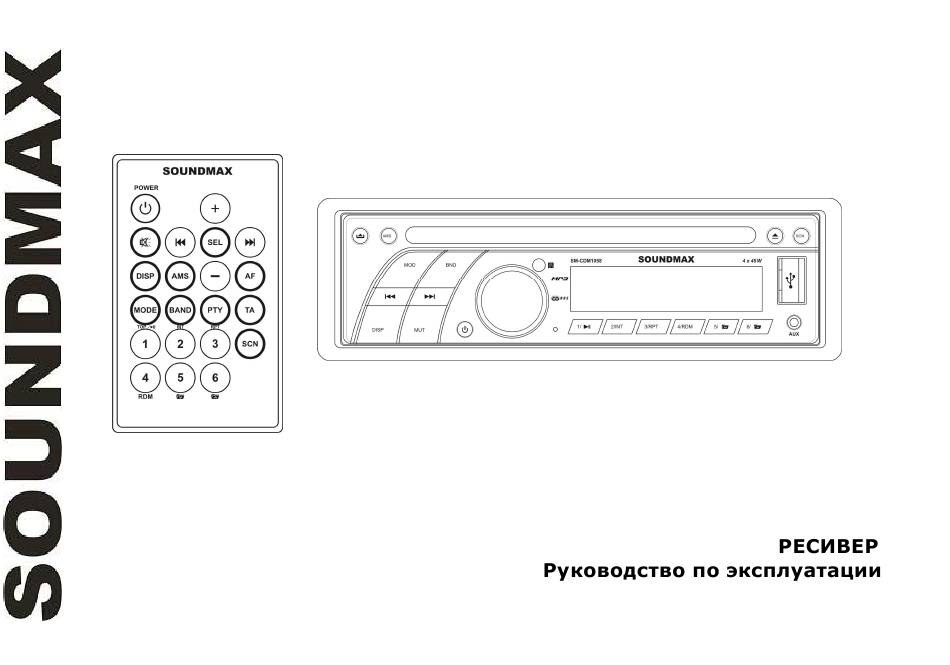

  • Page 1 SM-CDM1058 CD/MP3 RECEIVER CD/MP3- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents TABLE OF CONTENTS .............................. 2 UTILIZATION OF THE PRODUCT...........................

  • Page 3: Utilization Of The Product

    Utilization of the product If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. Please contact your local authorities for the correct method of disposal. By doing so, you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

  • Page 4: Accessories

    Accessories Receiver 1 pc Front panel 1 pc Carrying case 1 pc ISO connector harness 1 pc Remote controller 1 pc Mounting parts: Hexagon nut M5 T 1 pc Mounting box 1 pc Release keys 2 pcs Metal bar 1 pc Outer trim ring 1 pc Screw (5X25 mm)

  • Page 5: Installation/Connections

    Installation/Connections Choose the mounting location where the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect the wiring and make sure that the unit works properly. Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
  • Page 6 2. After installing the sleeve into the dashboard, bend tabs fitting to the size of the dashboard to fix the sleeve in place. 3. Use the metal strap to fix the rear side of the unit. Determine a place for fixing and install the strap as shown in the picture.
  • Page 7 2. DIN REAR-MOUNT (Method B) For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the help of the factory radio mounting brackets. 1. Select a position in which the screw holes of the brackets (3) are aligned with the screw holes in the unit body, and screw in two screws (2) in each side.
  • Page 8 Connection diagram Notes: In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. Prohibit to make the conductors of auto antenna and ground touch with each other.
  • Page 9 Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated. 2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit. Cut the connector, connect the colored leads of the power cord to the car battery as shown in the colour code table below for speaker and power cable connections.

  • Page 10: Panel Controls

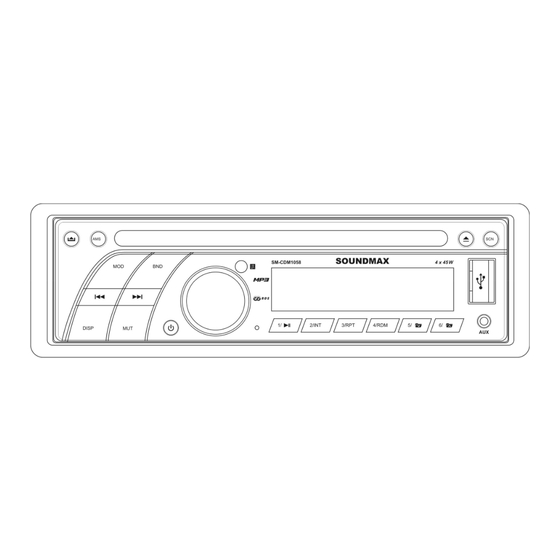

    Panel controls Front panel 1. RELEASE button 2. AMS button 3. MOD button buttons 5. BND button 6. IR sensor 7. Disc slot 8. Display 9. EJECT button 10. SCN button 11. DISP button 12. MUT button 13. POWER button 14.
  • Page 11 Inner panel Press RELEASE button on the front panel to detach it. 1. RESET button (hole) 2. Panel status indicator 3. SD/MMC slot Pressing RESET hole will erase the clock setting and stored stations.
  • Page 12 Remote controller 1. POWER button button 3. MUTE button 4. AMS button 5. DISP button 6. MODE button 7. BAND button 8. TOP/PLAY/PAUSE/1 button 9. INT/2 button 10. 5/ button 11. VOL+ button 12. SEL button button 14. AF button 15.
  • Page 13 Changing the battery Pull out the battery tray. Insert the 1 x lithium battery, type CR 2025 3V battery with the stamped (+) mark facing upward. Insert the battery tray into the remote control. Warning: Store the battery where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

  • Page 14: Lcd Layout

    LCD layout 1. Track play indicator 2. Song name ON 3. Track number display/current band 4. File format indicator 5. Repeat playback indicator 6. Folder name ON 7. File format indicator 8. File name ON 9. Album name ON 10. Not active 11.

  • Page 15: General Operations

    General operations Power button Press any button (except RELEASE and EJECT) on the panel or insert a disc to switch the unit on. Press POWER button to switch the unit off. When you switch off the unit, volume and radio settings are memorized and will be active when you switch on the unit again.
  • Page 16 BEEP function Press SEL button repeatedly until BEEP OFF (BEEP ON) is displayed. Rotate VOL regulator on the front panel or press VOL+/VOL- buttons on the RC to select one of the following: BEEP OFF – beep sound is not heard when a button is pressed;...

  • Page 17: Radio Operations

    Radio operations Band selection Press repeatedly BAND button on the RC or BND button on the panel to select your desired radio band in radio mode: FM1, FM2, FM3, FM4 (OIRT), MW1 (AM1), MW2 (AM2). Each band can store 6 preset stations, for a total of 36 preset memory stations.
  • Page 18 Press SEL button repeatedly to choose LOCAL (DX). Rotate VOL regulator or press VOL+/- buttons on the RC to switch between LOCAL and DX. When the LOCAL function is on, the local stations (stations with weak radio signal) can be played. When the DX function is on both local and distant stations (stations with strong radio signal) can be played.
  • Page 19 Press TA button to turn TA function on or off. Or press and hold SEL button, then press it repeatedly until the display shows TA ON (OFF), then rotate VOL regulator or press VOL+/- buttons on the RC to switch TA function ON or OFF.
  • Page 20 Jazz, Country Weather, Finance, Children Nation, Oldies Social, Religion, Phone IN Folk Travel, Leisure, Document When PTY is selected, the radio starts to search corresponding PTY information, and stops if the corresponding PTY information is detected. If no buttons are pressed within several seconds, previously selected PTY is searched.
  • Page 21 RETURN S/L - SHORT/LONG “RETURN” refers to the time period the unit allows for radio scan when reception is interrupted. “S” represents a time period of 30 seconds and “L” represents a time period of 90 seconds. TA VOL You can set the default volume of TA announcement. AREA Select radio broadcasting area Europe or USA.

  • Page 22: Disc/Usb/Sd/Mmc Operations

    Disc/USB/SD/MMC operations Loading and ejecting a disc Turn the power on. Insert the disc with the printed side facing upward into the slot. Press EJECT button to eject the disc. MMC/SD card slot Detach the front panel. Carefully insert an SD/MMC card into the card slot on the inner panel. Attach the panel.
  • Page 23 Intro playback When INT/2 button is pressed, the first several seconds of each track of the disc is played. Press again to stop intro and listen to track. Repeat playback When RPT/3 button is pressed, playback of the selected track will be continually repeated until the track repeat mode is cancelled by pressing RPT/3 button again.

  • Page 24: Handling Compact Discs

    Handling compact discs Do not insert anything other than a CD into the CD loading slot. Do not use cracked, chipped, warped, or otherwise damaged discs as they may cause skipping or noise damage the player. Handle the disc only by the edges (as shown in the picture). To keep discs clean do not touch its surface. Store discs in their cases when not in use.

  • Page 25: Troubleshooting Guide

    Troubleshooting guide Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer. Symptom Cause Solution...

  • Page 26: Specification

    Specification General Power supply 12 V DC Current consumption Maximum power output 4 x 45 W Dimensions of the unit/Net weight 178 x 50 x 163 mm/1.47 kg FM stereo radio Frequency range 65.0 – 74.0/87.5 - 108.0 MHz Usable sensitivity 12 dBu I.F.
  • Page 27 ................................27 ............................28 ..........................28 ............................29 ..........................30 ............................36 ..........................40 ..............................41 ............................... 44 /USB/ SD/MMC ................ 49 ......................... 52 ............................... 52 ................. 53 ........................54...
  • Page 29 4. ISO M5 T (5X25...
  • Page 30 30°, « » « » « » ( « » ( DIN,...
  • Page 31 « » (...
  • Page 32 – – – « » (...
  • Page 33 RELEASE;...
  • Page 35 ISO, (+)--- (-)--- (+)--- 12 (+)/ (-)--- (+)--- ((-)--- (+)--- (-)---...
  • Page 36 RELEASE EJECT DISP POWER SEL/ TOP/PLAY/PAUSE/1 INT/2 RPT/3 RDM/4 22. USB-...
  • Page 37 RELEASE, ) RESET SD/MMC RESET...
  • Page 38 POWER MUTE DISP MODE BAND TOP/PLAY/PAUSE/1 INT/2 VOL+ VOL- RPT/3...
  • Page 39 CR 2025 3 – 6...
  • Page 40 ROCK CLASS FLAT...
  • Page 41 RELEASE EJECT) POWER, VOL+/VOL-, MUTE : BAS ( ) => TRE ) => BAL ( ) => FAD ( VOL+/VOL-, MODE => CD ( ) => USB => => AUX ( , USB...
  • Page 42 EQ OFF (EQ ON). VOL+/VOL- : POP => ROCK => CLASSICS => FLAT => EQ OFF ( BEEP ( BEEP OFF (BEEP ON). VOL+/VOL- BEEP OFF – BEEP ON – LOUD ON (OFF). VOL+/VOL- LOUD ON ( OFF ( DISP DISP VOL+/VOL- SEL;...
  • Page 43 MP3-...
  • Page 44 BAND FM1, FM2, FM3, FM4 (OIRT), MW1 (AM1), MW2 (AM2). MANUAL). AMS; AMS, OIRT- SEL, STEREO MONO. VOL+/-, (STEREO) (MONO)
  • Page 45 LOCAL (DX). VOL+/- LOCAL ( DX ( RDS ( AF ( AF ON (OFF); VOL+/-, (ON) (OFF) RDS. REGIONAL REGIONAL. REG ON (OFF). ON ( OFF (...
  • Page 46 SEL, REG ON (OFF); VOL+/-, (ON) (OFF) REG. REG ON ( , PI- REG OFF ( ): PI- TA ( SEL, TA ON (OFF); VOL+/-, (ON) (OFF) EON. SEL, EON LOC (DX); VOL+/-, EON DX ( EON TA DX/LOCAL: EON TA LOCAL ( PTY ( RDS, PTY,...
  • Page 47 Pop, Rock News, Affairs, Info Easy, Light Sport, Educate, Drama Classics, Culture, Science, Other Varied Jazz, Weather, Finance, Country Children Nation, Social, Religion, Oldies Phone IN Folk Travel, Leis ure, Document VOL+/VOL-, TA SEEK/TA ALARM TP (Traffic Program – (RETUNE), PI ( TA SEEK...
  • Page 48 TA ALARM: PI SOUND/MUTE PI sound: . PI mute: MASK DPI/MASK ALL AF ( MASK DPI. MASK DPI MASK ALL RDS. RETURN S/L - SHORT/LONG «RETURN» . «S» , «L» TA VOL AREA (EUR) (USA).
  • Page 49 /USB/ SD/MMC EJECT, SD/MMC SD/MMC USB- USB- USB/SD/MMC USB: USB 2.0. USB- FAT12, FAT16 FAT32. USB- ID3- MP3- . ID3- TOP/PLAY/PAUSE/1...
  • Page 50 MP3- 6/ , TOP/PLAY/PAUSE/1, INT/2, RPT/3, RDM/4, MP3- TRK SCH. VOL+/VOL-, SEL, FILE SCH. SEL, VOL+/VOL-, VOL+/VOL-,...
  • Page 51 SEL, CHAR SCH. SEL, VOL+/VOL-, VOL+/VOL-, SEL,...
  • Page 53 ”. POWER...
  • Page 54 12 , /1,47 65,0 – 74,0/87,5 – 108,0 10,7 522 – 1620 D/CD-R/CD-RW/USB/SD/MMC CDDA/MP3 – 20...
  • Page 55 CD, 120 >60 RCA (2 ) 2010 – 2019) (2011) R31982101-01792...
