SoundMax SM-CDM1048 Instruction Manual

Cd/mp3 receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

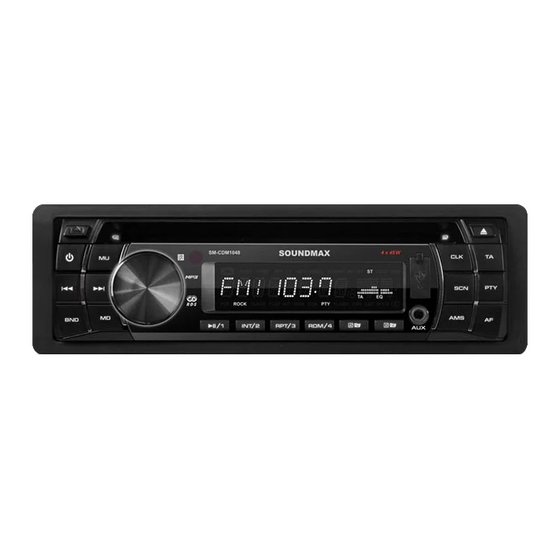

SM-CDM1048
CD/MP3 RECEIVER
CD/MP3-
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-CDM1048 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SoundMax SM-CDM1048

Summary of Contents for SoundMax SM-CDM1048

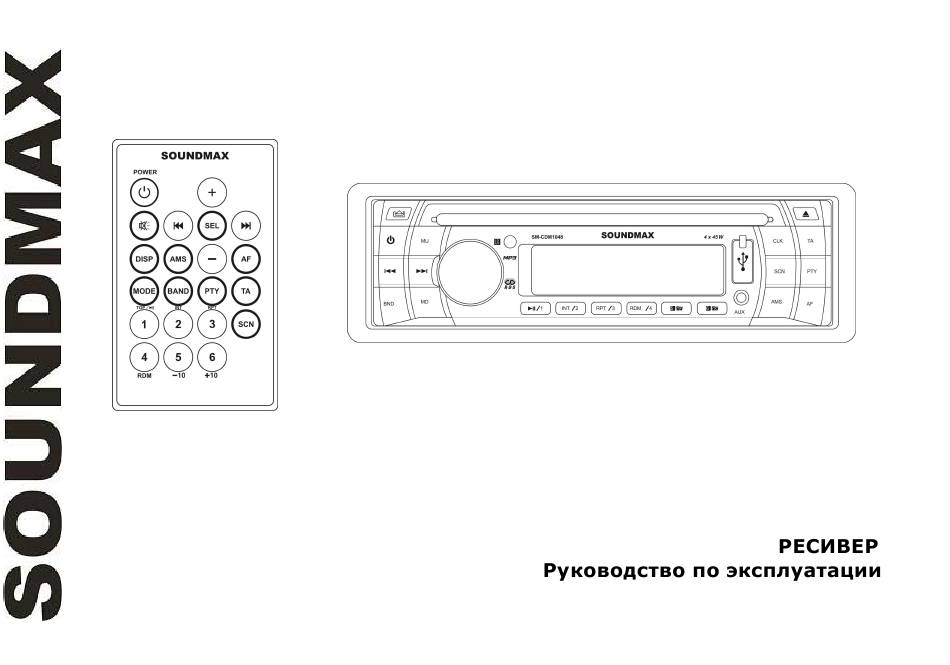

  • Page 1 SM-CDM1048 CD/MP3 RECEIVER CD/MP3- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents TABLE OF CONTENTS .............................. 2 IMPORTANT SAFEGUARDS.............................

  • Page 3: Important Safeguards

    Important safeguards Read carefully through this manual to familiarize yourself with this high-quality sound system. The beginning of operation is the moment of the unit installation. Before use the device in winter it is recommended to heat up the passenger compartment during 20 seconds or to the operation temperature. Use the unit with the temperature that goes beyond the operation temperature greatly decreases the operation resource of the screen and other components of device and can result an outage.

  • Page 4: Accessories

    Accessories Receiver 1 pc Front panel 1 pc Carrying case 1 pc ISO connector harness 1 pc Remote controller 1 pc MiniUSB-USB connection cable 1 pc Mounting parts: Hexagon nut M5 T 1 pc Mounting box 1 pc Release keys 2 pcs Metal bar 1 pc...

  • Page 5: Installation/Connections

    Installation/Connections Choose the mounting location where the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect the wiring and make sure that the unit works properly. Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
  • Page 6 2. After installing the sleeve into the dashboard, bend tabs fitting to the size of the dashboard to fix the sleeve in place. 3. Use the metal strap to fix the rear side of the unit. Determine a place for fixing and install the strap as shown in the picture.
  • Page 7 2. DIN REAR-MOUNT (Method B) For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the help of the factory radio mounting brackets. 1. Select a position in which the screw holes of the brackets (3) are aligned with the screw holes in the unit body, and screw in two screws (2) in each side.
  • Page 8 Connection diagram Notes: In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. Prohibit to make the conductors of auto antenna and ground touch with each other.
  • Page 9 Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated. 2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit. Cut the connector, connect the colored leads of the power cord to the car battery as shown in the colour code table below for speaker and power cable connections.

  • Page 10: Panel Controls

    Panel controls Front panel 1. POWER button 2. RELEASE button 3. MU button 4. SEL button/VOL regulator 5. IR sensor 6. Disc slot 7. Display 8. USB port 9. CLK button 10. EJECT button 11. TA button buttons 13. BND button 14.
  • Page 11 Inner panel Press RELEASE button on the front panel to detach it. 1. SD/MMC slot 2. Panel status indicator 3. RESET button (hole) Pressing RESET hole will erase the clock setting and stored stations.
  • Page 12 Remote controller 1. POWER button button 3. MUTE button 4. AMS button 5. DISP button 6. MODE button 7. BAND button 8. PLAY/PAUSE/1 button 9. INT/2 button 10. -10/5 button 11. VOL+ button 12. SEL button button 14. AF button 15.
  • Page 13 Changing the battery Pull out the battery tray. Insert the 1 x lithium battery, type CR 2025 3V battery with the stamped (+) mark facing upward. Insert the battery tray into the remote control. Warning: Store the battery where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

  • Page 14: Lcd Layout

    LCD layout 1. Track play indicator 2. Song name ON 3. Track number display/current band 4. File format indicator 5. Repeat playback indicator 6. Folder name ON 7. File format indicator 8. File name ON 9. Album name ON 10. Not active 11.

  • Page 15: General Operations

    General operations Power button Press any button (except RELEASE and EJECT) on the panel or insert a disc to switch the unit on. Press POWER button to switch the unit off. When you switch off the unit, volume and radio settings are memorized and will be active when you switch on the unit again.
  • Page 16 BEEP function Press SEL button repeatedly until BEEP OFF (BEEP ON) is displayed. Rotate VOL regulator on the front panel or press VOL+/VOL- buttons on the RC to select one of the following: BEEP OFF – beep sound is not heard when a button is pressed BEEP ON –...

  • Page 17: Radio Operations

    Radio operations Band selection Press repeatedly BAND button to select your desired radio band in radio mode: FM1, FM2, FM3, FM4 (OIRT), MW1 (AM1), MW2 (AM2). Each band can store 6 preset stations, for a total of 36 preset memory stations. Tuning Press button;...
  • Page 18 signal) can be played. When the DX function is on both local and distant stations (stations with strong radio signal) can be played. RDS service Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either.
  • Page 19 In TA mode traffic program will be automatically searched, until the program is received. When traffic announcement is received the unit will temporarily switch to the tuner mode (regardless of the current mode) and begin broadcasting the announcement. After the traffic announcement is over, it will return to the previous mode and volume level.
  • Page 20 EON TA DX/LOCAL: EON (Enhanced Other Networks) This unit is equipped with the technology of EON control, so that when you are listening to Radio or CD, if there is any travel announcement from a nearby local station, the radio will already know the frequency of that radio station.

  • Page 21: Disc/Usb/Sd/Mmc Operations

    Disc/USB/SD/MMC operations Loading and ejecting a disc Turn the power on. Insert the disc with the printed side facing upward into the slot. Press EJECT button to eject the disc. MMC/SD card slot Detach the front panel. Carefully insert an SD/MMC card into the card slot on the inner panel. Attach the panel.
  • Page 22 Play/Pause Press PLAY/PAUSE/1 button to pause the playback, press one more time to resume the normal playback. Intro playback When INT/2 button is pressed, the first several seconds of each track of the disc is played. Press again to stop intro and listen to track.
  • Page 23 Searching Character: Press AMS button four times, then character search mode is activated; CHAR SCH is displayed. Press SEL button, then * symbol is displayed. Turn VOL regulator on the front panel or press VOL+/VOL- buttons on the RC, you can select the letter you want. Press and hold SEL button. The song which has same character you selected is displayed.

  • Page 24: Handling Compact Discs

    Handling compact discs Do not insert anything other than a CD into the CD loading slot. Do not use cracked, chipped, warped, or otherwise damaged discs as they may cause skipping or noise damage the player. Handle the disc only by the edges (as shown in the picture). To keep discs clean do not touch its surface. Store discs in their cases when not in use.

  • Page 25: Troubleshooting Guide

    Troubleshooting guide Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer. Symptom Cause Solution...

  • Page 26: Specification

    Specification General Power supply 12 V DC Current consumption Maximum power output 4 x 45 W Dimensions of the unit/Net weight 178 x 50 x 163 mm/1.47 kg FM stereo radio Frequency range 65.0 – 74.0/87.5 - 108.0 MHz Usable sensitivity 12 dBu I.F.
  • Page 27 ................................27 ..........................28 ............................29 ..........................30 ............................36 ..........................40 ..............................41 ............................... 44 /USB/ SD/MMC ................ 49 ......................... 52 ............................... 52 ................. 53 ........................54...
  • Page 29 4. ISO miniUSB-USB M5 T (5X25...
  • Page 30 30°, « » « » « » ( « » ( DIN,...
  • Page 31 « » (...
  • Page 32 – – – « » (...
  • Page 33 RELEASE;...
  • Page 35 ISO, (+)--- (-)--- (+)--- 12 (+)/ (-)--- (+)--- ((-)--- (+)--- (-)---...
  • Page 36 POWER RELEASE SEL/ 8. USB- EJECT PLAY/PAUSE/1 INT/2 RPT/3 RDM/4...
  • Page 37 RELEASE, SD/MMC ) RESET RESET...
  • Page 38 POWER MUTE DISP MODE BAND PLAY/PAUSE/1 INT/2 -10/5 VOL+ VOL- RPT/3 +10/6...
  • Page 39 CR 2025 3 – 6...
  • Page 40 ROCK CLASS FLAT...
  • Page 41 RELEASE EJECT) PWR (POWER), VOL+/VOL-, MUTE : BAS ( ) => TRE ) => BAL ( ) => FAD ( VOL+/VOL-, MODE => CD ( ) => USB => => AUX ( , USB...
  • Page 42 EQ OFF (EQ ON). VOL+/VOL- : POP => ROCK => CLASSICS => FLAT => EQ OFF ( BEEP ( BEEP OFF (BEEP ON). VOL+/VOL- BEEP OFF – BEEP ON – LOUD ON (OFF). VOL+/VOL- LOUD ON ( OFF ( DISP DISP VOL+/VOL- SEL;...
  • Page 43 MP3-...
  • Page 44 BAND, : FM1, FM2, FM3, FM4 (OIRT), MW1 (AM1), MW2 (AM2). MANUAL). AMS; AMS, OIRT- SEL, STEREO MONO. VOL+/-, (STEREO) (MONO)
  • Page 45 LOCAL (DX). VOL+/- LOCAL ( DX ( RDS ( AF ( AF ON (OFF); VOL+/-, (ON) (OFF) RDS. REGIONAL REGIONAL. REG ON (OFF). ON ( OFF (...
  • Page 46 SEL, REG ON (OFF); VOL+/-, (ON) (OFF) REG. REG ON ( , PI- REG OFF ( ): PI- TA ( SEL, TA ON (OFF); VOL+/-, (ON) (OFF) PTY ( RDS, PTY, 1-6, 1-6, Pop, Rock News, Affairs, Info Easy, Light Sport, Educate, Drama Classics,...
  • Page 47 Country Children Nation, Social, Religion, Oldies Phone IN Folk Travel, Leis ure, Document VOL+/VOL-, EON TA DX/LOCAL EON TA LOCAL ( EON TA DX ( (EON TA), TA SEEK/TA ALARM TP (Traffic Program – (RETUNE), PI ( TA SEEK TA ALARM:...
  • Page 48 PI SOUND/MUTE PI sound: . PI mute: MASK DPI/MASK ALL AF ( MASK DPI. MASK DPI MASK ALL RDS. RETUNE S/L - SHORT/LONG «RETUNE» . «S» , «L» TA VOL AREA (EUR) (USA).
  • Page 49 /USB/ SD/MMC EJECT, SD/MMC SD/MMC USB- USB- USB/SD/MMC USB: USB 2.0. USB- FAT12, FAT16 FAT32. USB- ID3- MP3- . ID3-...
  • Page 50 MP3- 6/ , PLAY/PAUSE/1, PLAY/PAUSE/1 INT/2, RPT/3, RDM/4, MP3- AMS, TIME SCH. VOL+/- SEL; TRK SCH. VOL+/VOL-, SEL,...
  • Page 51 FILE SCH. SEL, VOL+/VOL-, VOL+/VOL-, SEL, CHAR SCH. SEL, VOL+/VOL-, VOL+/VOL-, SEL,...
  • Page 53 ”. POWER...
  • Page 54 12 , /1,47 65,0 – 74,0/87,5 – 108,0 10,7 522 – 1620 D/CD-R/CD-RW/USB/SD/MMC CDDA/MP3 – 20...
  • Page 55 CD, 120 >60 RCA (2 ) 2010 – 2019) (2011) R31982101-01792...
