AL003 Tilt N Tote

Advertisement

loading

Related Manuals for Harmar Mobility AL003

Summary of Contents for Harmar Mobility AL003

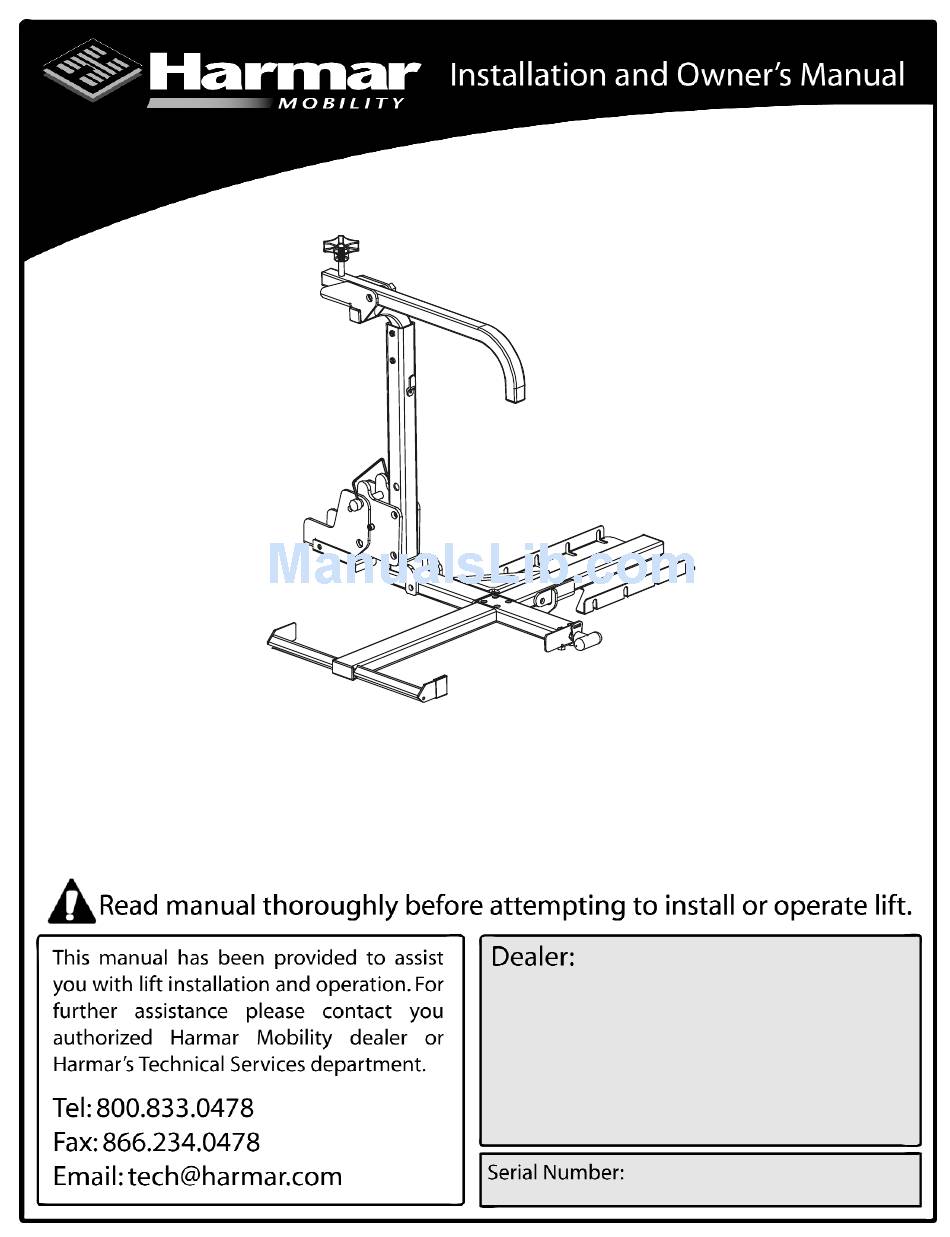

  • Page 1 AL003 Tilt N Tote...
  • Page 2 Unpacking the Lift HOLD DOWN CARRIER ASSEMBLY CLASS 1 STABILIZER Each Tilt and Tote is packaged with a Class 1 Hitch Adapter and Stabilizer. If a Class 2 or Class 3 hitch adapter is required, separate parts must be ordered. Be sure and check the contents of the box against the package check list to be sure that all parts are included with the carrier that are required for proper installation.
  • Page 3 Bumper Mount ( Be sure to comply with vehicle's bumper rating ) Do not attempt to mount up from under DETERMINE BEST MOUNTING HEIGHT Harmar recommends maintaining 8-12" of ground clearance from the bottom of the unfolded platform, while not exceeding 45 degrees of tilt ( 12" off the ground ) To achieve this, a number of mounting options are available.
  • Page 4 Hold-Down Arm Installation INSTALL HOLD DOWN ADJUST TO DESIRED HEIGHT TIGHTEN SCREWS Tilt Away Feature REMOVE HITCH PIN WHILE BRACING TILT AND TOTE UPRIGHT HOLD DOWN ARM HEIGHT CAN BE ADJUSTED SO THAT WHEELCHAIR's ARMRESTS CLEAR ARM WHEN LOAD- ING ONTO A TILTED PLATFORM. HOLD DOWN ARM HEIGHT CAN WHEN PLATFORM IS TILTED UPRIGHT, BE ADJUSTED SO THAT WHEELCHAIR's...
  • Page 5 PULL UP ON RED HANDLE HOLD YELLOW HANDLE FLIP THE HOLD DOWN ARM UPRIGHT ONCE LARGER WHEELS ARE SEATED IN THE PLATFORM CRADDLE, PULL UP ONTO WHEELCHAIR HANDLES. ONCE LEVEL, PLATFORM WILL AUTOMATICALLY LATCH INTO PLACE. ROTATE PLATFORM DOWN WITH YELLOW HANDLE CONTINUE TO...
  • Page 6 Unloading Wheelchair RELEASE PRESSURE OFF HOLD DOWN ARM BY TURNING RED HANDLE COUNTER-CLOCKWISE PUSH DOWN ON WHEELCHAIR HANDLES, TILTING SMALLER FRONT WHEELS OFF THE GROUND. ROLL WHEELCHAIR OFF PLATFORM. PUSH DOWN ON FRONT OF PLATFORM PULL UP ON YELLOW HANDLE TO ROTATE PLATFORM LEVEL HOLD / GUIDE WHEELCHAIR...

  • Page 7: Maintenance

    Inspect the condition of your Tilt and Tote often. If any parts are worn or damaged DO NOT USE THE TILT and TOTE. Immediately contact your Harmar Mobility Authorized Dealer. Caution: Keep hands, feet and any other objects away from the platform as it lowers.
  • Page 8 AL003 Tilt N Tote...
