Hybrid Platform Lift (HPL)
Installation Guide & Owner's Manual
Congratulations on your new lift purchase. The AL600 Pioneer is one of the easiest
and most trouble free ways to transport your chair or scooter. This manual is written
to be used both as an installation guide as well as an operation guide for the end user
Refer to the index below for the sections that apply to your lift and options.
Please read the manual thoroughly BEFORE attempting any installation,
adjustment or use of the lift.
Both installers and operators should familiarize themselves with this entire manual.
If you have any questions or comments concerning the installation or operation of your
scooter/chair lift, please contact your local distributor for additional technical information.
Only authorized dealers should install this lift.
Caution: Some scooters and chairs may be unsuitable for transport in or on a
motor vehicle. Please contact the manufacturer of your mobility device to
determine its transportability.

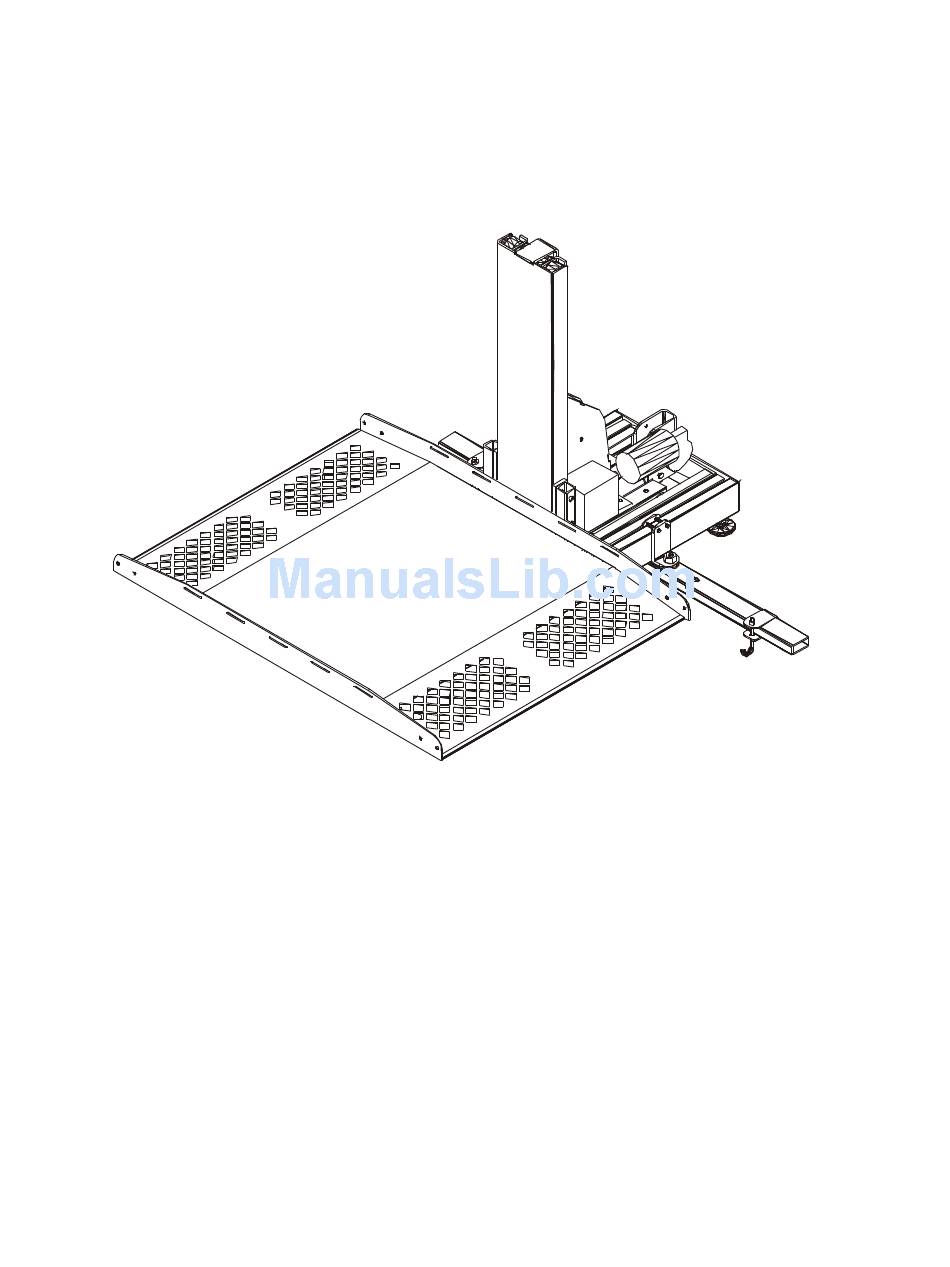

AL600 Pioneer
Advertisement
Related Manuals for Harmar Mobility AL600 Pioneer
Summary of Contents for Harmar Mobility AL600 Pioneer
- Page 1 Hybrid Platform Lift (HPL) Installation Guide & Owner’s Manual Congratulations on your new lift purchase. The AL600 Pioneer is one of the easiest and most trouble free ways to transport your chair or scooter. This manual is written to be used both as an installation guide as well as an operation guide for the end user Refer to the index below for the sections that apply to your lift and options.
-
Page 2: Unpacking The Lift
Applications: The Pioneer in its factory setup is intended for the transport of power chairs. With a minor change to the platform the Pioneer can easily be adapted for the transport of three or four wheel scooters. The maximum weight that can be safely lifted by the Pioneer in either setup is 350 LBS. - Page 3 Installing the Vehicle Wiring Harness Important Note: IMPROPER WIRING IS THE #1 CAUSE OF PROBLEMS IN THE OPERATION OF A VEHICLE LIFT. FOLLOW THE WIRING INSTRUCTIONS CAREFULLY Located in the hardware package is the vehicle wiring harness. The harness is manufactured to, and complies with the SAE J1128 requirements.
- Page 4 Attaching the lift into the vehicle: The leg assembly has two sets of large holes in its upper surface. When installing a Pioneer for use with a scooter, select the holes that will offset the lift to the driver’s side of the vehicle. When...
- Page 5 Attaching the lift into the vehicle: The leg assembly has two sets of large holes in its upper surface. When installing a Pioneer for use with a scooter, select the holes that will offset the lift to the driver’s side of the vehicle.
- Page 6 At this point stop the lift. If you are using the Pioneer to lift power chairs the platform is now ready to be installed. If you are using the Pioneer to transport scooters, follow the instructions on the Page 8 for how to modify the platform for use with a Scooter.
- Page 7 Preparing the Power Chair or Scooter for the Pioneer There are 2 options on how to attach the strap hooks to the chair that are included with the lift. Anchor Plate: The Anchor Plate is a flat plate that is 20” long with 2 slots in each end. This plate will work with any chair or scooter that has a center seat post that attaches to the bottom of the seat.
- Page 8 Securing the Chair to the Platform: The Pioneer platform has a restraint attached to each corner of the platform. Each restraint has a hook at the end. Place each hook in either the anchor plate slot, or in each U-bolt.
- Page 9 Platform Preparation for Use with Scooters Modifying the Platform for use with Scooters: Contained in the lift box will be the front wheel scooter adapter. This must be attached to the platform for all scooter applications. Attach the front wheel scooter adapter using the provided hardware to the platform end plates on the passenger's side of the platform.
- Page 10 Securing the Scooter to the Pla tform: The Pioneer platform has a restraint attached to each corner of the platform. Each restraint has a hook at the end. Place each hook in either the anchor plate slot, or in each U-bolt.
-
Page 11: Maintenance
SAFETY: Caution: Do not operate this lift until your dealer has satisfactorily instructed you in the proper operation of the lift. · Your Harmar lift has been engineered and designed for years of trouble free use. Although, with everyday use, ·...
