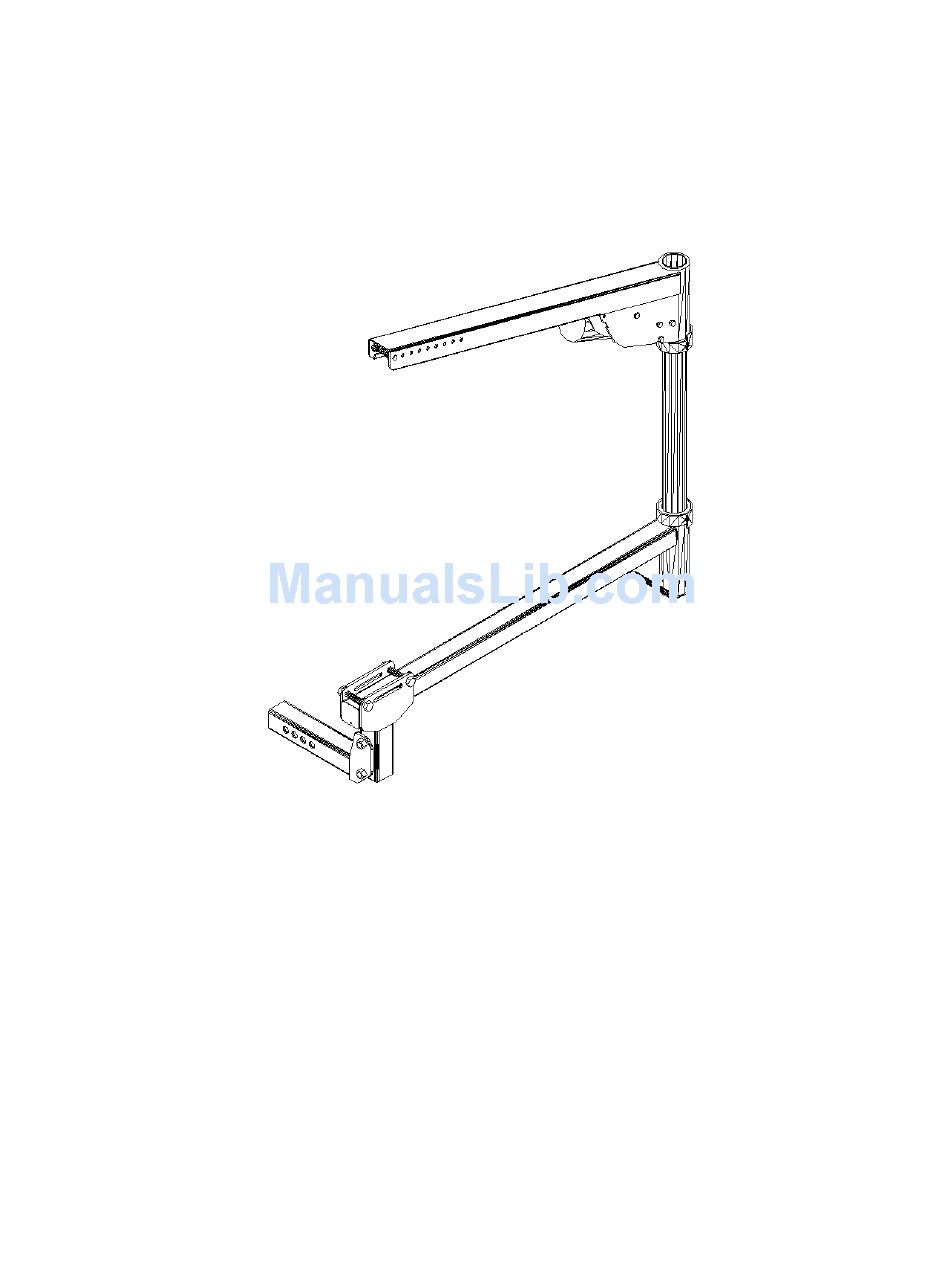

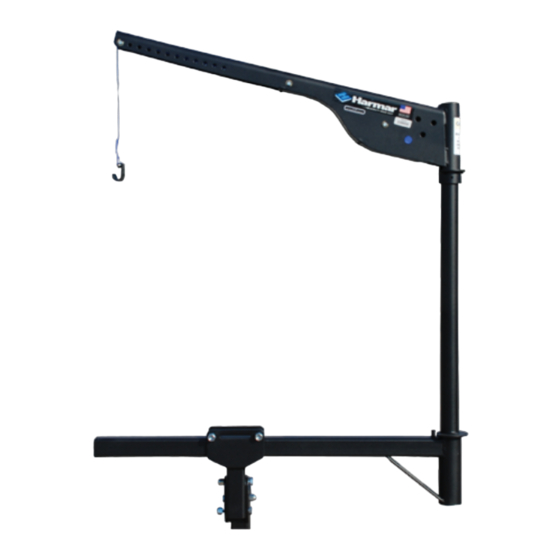

Quick Install Lift
AL065
Installation Guide & Owners Manual
Congratulations on your new lift purchase. The Quick Install Lift line is one of the easiest and most trouble free ways
to transport your scooter or power chair. This manual is written to be used both as an installation guide as well as an
operation guide for the end user. Please read the manual thoroughly BEFORE attempting any installation,
adjustment or use of the lift.
Both installers and operators should familiarize themselves with this entire manual.
If you have any questions or comments concerning the installation or operation of your scooter lift, please contact
your local distributor for additional technical information. Only authorized dealers should install this lift.
Caution: Some scooters and power chairs may be unsuitable for transport in or on a motor
vehicle. Please contact the manufacturer of your mobility device to determine its transportability.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Harmar Mobility AL065
Summary of Contents for Harmar Mobility AL065
- Page 1 Quick Install Lift AL065 Installation Guide & Owners Manual Congratulations on your new lift purchase. The Quick Install Lift line is one of the easiest and most trouble free ways to transport your scooter or power chair. This manual is written to be used both as an installation guide as well as an operation guide for the end user.
-
Page 2: Unpacking The Lift
Tailgate applications for SUV’s, Station Wagons and Trucks Hardware Pack Contents: Owners Manual 1/2-13 x 3-1/2 Bolt 1/2-13 Lock Nut Vehicle Wiring Harness Hand Control Al065 Wiring Harness Black Adhesive Clips Pinch Bolt Tube Vehicle Wiring Harness Hand Control AL065 Wiring Harness Pinch Bolt Tube... - Page 3 Installing the Vehicle Wiring Harness Important Note: IMPROPER WIRING IS THE #1 CAUSE OF PROBLEMS IN THE OPERATION OF A VEHICLE LIFT. FOLLOW THE WIRING INSTRUCTIONS CAREFULLY Located in the hardware package is the vehicle wiring harness. The harness is manufactured to, and complies with the SAE J1128 requirements.
- Page 4 1. Unpack the AL065’s shipping box and identify the Arm Assembly with hitch adapter bolted to it hitch. 2. Insert the Hitch Adapter into the vehicles trailer hitch.
- Page 5 Do not add any additional holes to the post or modify any part of the lift. 8. Plug the AL065 Wiring Harness into the black plug on the Vehicle Wiring Harness. Route the Al065 Wiring Harness along the bottom of the Arm Assembly to the base of the Post.
- Page 6 The purpose of the Hitch Sincher is to prevent vertical play in the trailer hitch. Attach the two 5/8” diameter steel rods together with the supplied 1/4-20 x 4” bolts and 1/4” nuts (Figure 1). Slip this assembly over the trailer hitch and attach it as shown in Figure 2.
-
Page 7: Operation Instructions
• Inspect the Lifting Strap prior to each use. Contact your distributor if it shows signs of wear or fraying. • Do not operate this lift until you dealer has satisfactorily instructed you in the proper operation of this lift. •... - Page 8 • If preparations needed to be made to secure the scooter or chair for transport, such as parking brakes or wheel chocks, do these now. Dealers should instruct operators on how, if necessary, to secure the scooter or chair for transport.
-
Page 9: Maintenance
• Caution: Do not operate this lift until your dealer has satisfactorily instructed you in the proper operation of the lift. • Your Harmar Lift has been engineered and designed for years of trouble free use. Although, with everyday use, some parts may become loose or worn. -
Page 10: Troubleshooting
TROUBLESHOOTING: PROBLEM: The lift will not operate or operates slowly. Possible Causes: Bad Connection—Verify the vehicle wiring harness is tightly attached to the battery and that there is no build up on the terminals. Battery—Check to see if the battery needs to be replaced or if the terminals are corroded. Clean the terminals if any corrosion is present.
