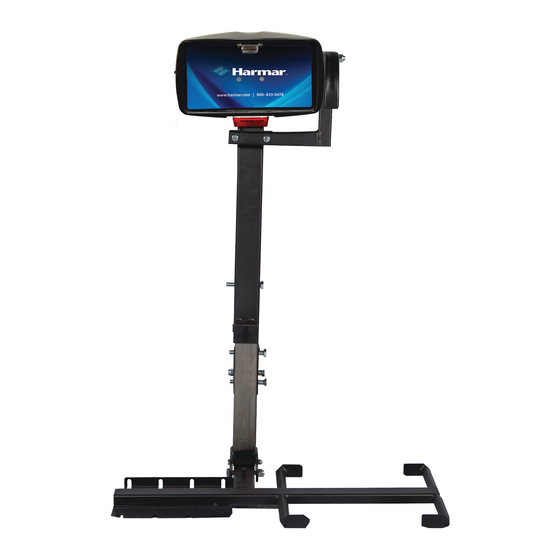

AL030 POWER TOTE MANUAL WHEELCHAIR LIFT
INSTALLATION GUIDE & OWNER'S MANUAL
AL010 Micro Scooter Lift
Congratulations on your new lift purchase. The Micro Scooter Lift and Power Tote are two of the easiest
and most trouble free ways to transport your chair or scooter. This manual is written to be used both as an installation
guide as well as an operation guide for the end user for both the AL010 Micro Scooter Lift and AL030 Manual Wheel-
chair Lift. Refer to the index below for the sections that apply to your lift and options.
Please read the manual thoroughly BEFORE attempting any installation, adjustment or use of the lift.
Both installers and operators should familiarize themselves with this entire manual.
The manual will be divided into the following sections for easy reference;
Section 1 - Unpacking the Lift
Section 2 - Wiring the Vehicle
Section 3 - Vehicle Preparation
Section 4 - Installing the Lift ( No Swing Away )
Section 5 - Installing the Lift ( with Swing Away Option )
Section 6 - Operating the AL105 Swing Away Option
Section 7 - Operating the AL010 Micro Scooter Lift
Section 8 - Operating the AL030 Power Tote Lift
Section 9 - Adjusting the AL010 and AL030
Section 10 - Safety & Maintenance
Section 11 - Troubleshooting Guide
If you have any questions or comments concerning the installation or operation of your scooter/chair lift, please
contact your local distributor for additional technical information. Only authorized dealers should install this lift.
Caution: Some scooters and chairs may be unsuitable for transport in or on a motor
vehicle. Please contact the manufacturer of your mobility device to determine its transportability.
AL010 MICRO SCOOTER LIFT
M O B I L I T Y
AL030 Power Tote for Manual Wheelchairs

Advertisement

Table of Contents
loading

Related Manuals for Harmar Mobility AL030

Summary of Contents for Harmar Mobility AL030

  • Page 1 This manual is written to be used both as an installation guide as well as an operation guide for the end user for both the AL010 Micro Scooter Lift and AL030 Manual Wheel- chair Lift.

  • Page 2: Section 1 - Unpacking The Lift

    AL030 - Manual Wheelchair Lift Each AL010 is packaged standard with a standard Class 2 hitch adapter. Each AL030 is packaged with a standard Class 1 flat bar style hitch adapter and stabilizer. If a Class 2 or Class 3 hitch adapter or Swing Away option is required, separate parts must be ordered.

  • Page 3: Section 2 - Wiring The Vehicle

    Section 2 - Wiring the Vehicle Important Note: IMPROPER WIRING IS THE #1 CAUSE OF PROBLEMS IN THE OPERATION OF A VEHICLE LIFT. FOLLOW THE WIRING INSTRUCTIONS CAREFULLY Located in the hardware package is the vehicle wiring harness. The harness is manufactured to, and complies with the SAE J1128 requirements.

  • Page 4: Section 3 - Vehicle Preparation

    The AL010 Micro Scooter Lift weighs 70 lbs, and the AL030 Manual Wheelchair Lift weighs 60 lbs. Add 40 lbs. when using a swing away.

  • Page 5: Section 4 - Installing The Lift ( No Swing Away Option )

    Section 4 - Installing the Lift ( no Swing Away option ) Your lift will come shipped to you factory pre-assembled. To prepare the lift for installation you must attach the lift to the Hitch Post and Hitch Adapter that are shipped with the lift (See parts list in section 1).

  • Page 6: Section 5 - Installing The Lift ( With Swing Away Option )

    Section 5 - Installing the Lift ( with Swing Away option ) Your lift will come shipped to you mostly pre-assembled. To prepare the lift for installation you must attach the lift to the Swing Away and Hitch Adapter. The proper attachment place is determined by the height of the installed hitch on the vehicle.

  • Page 7: Section 6 - Operating The Swing Away Option

    Section 6 - Operating the Swing Away Option Many scooter and chair owners require access to the rear of a vehicle. To accomplish this a Swing Away option is added to the lift installation. This allows the complete lift to be conveniently and easily swung away from the back of the vehicle and allow easy access to the trunk or lift gate.

  • Page 8: Section 7 - Operating The Al010 Micro Scooter Lift

    Section 7 - Operating the AL010 Micro Scooter Lift Insert Key and switch to "ON" position Press down on Toggle switch momentarily. Drive scooter onto platform as shown. Raise platform until hold down foot depresses scooter's deck or until lift's motor ratchets. "PLATFORM KEEPER"...
  • Page 9 Section 7 - Operating the AL010 Micro Scooter Lift LOADING YOUR SCOOTER ON THE LIFT Turn ON the power switch with the key furnished with your lift. Lower the platform using the UP/DOWN toggle switch. Pushing the switch downward will cause the platform to lower. Unfold the platform, then continue lowering to the ground. Release the UP/DOWN switch just as the platform reaches the ground;...

  • Page 10: Section 8 - Operating The Al030 Manual Wheelchairlift

    Section 8 - Operating the AL030 Manual WheelchairLift Insert Key and switch to "ON" position Press down on Toggle switch momentarily. Roll folded chair onto platform as shown. To remove the chair and prepare the lift for unloaded travel, follow above steps in reverse order and reverse the direction of the arrows.
  • Page 11 Section 8 - Operating the AL030 Power Tote for Manual Wheelchairs LOADING YOUR WHEELCHAIR ON THE LIFT Turn ON the power switch with the key furnished with your lift. Lower the platform using the UP/DOWN toggle switch. Pushing the switch downward will cause the platform to lower. Unfold the platform, then continue lowering to the ground.

  • Page 12: Section 9 - Adjusting The Al010 And Al030

    Section 9 - Adjusting the AL010 and AL030 AL010 and AL030 HOLD DOWN ARM ADJUSTMENT The hinge points are equipped with tensioning washers. amount of force required to move these parts is determined by the t e n s i o n o f t h e s e w a s h e r s .

  • Page 13: Section 10 - Safety & Maintenance

    Section 10 - Safety & Maintenance SAFETY: Caution: Keep hands away from PINCH POINTS. As with most mechanical objects, the hinge point of a moving part creates a pinch point. Be sure to not to stick fingers or extremities at or near these points. Inspect the condition of your lift often.

  • Page 14: Section 11 Troubleshooting Guide

    Section 11 Troubleshooting guide The lift does not operate Check the power supply. The wiring harness ( both wires ) must be run directly to the battery. Attaching the black ( ground ) wire to the frame of the vehicle is NOT considered a reliable ground. Run the lift from a shop battery and not through the vehicle wiring harness.
  • Page 15 CIRCUIT BREAKER BATTERY VEHICLE HARNESS KEYSWITCH AL010 - MICRO SCOOTER LIFT ITEM # DESCRIP TION SWITCH PLATE TOGGLE SWITCH KEY SWITCH MOTOR COVER ACTUATOR OUTER TUBE - AL010 HOLD DOW N ARM - A L010 HOLD DOW N FOOT INNER TUBE AL010 / A L030 ALA0300 HITCH POST CLASS 2 HITCH ADAPTER CLASS 3 HITCH ADAPTER...
  • Page 16 DESCRIPTION SWITCH PLATE TOGGLE SWITCH KEY SWITCH MOTOR COVER ACTUATOR OUT ER TUBE - AL030 HOLD DOWN ARM - AL030 HOLD DOWN ARM MOUNT HOLD DOWN ARM BACK PLATE ALA03020 INNER TUBE AL010 / AL030 HITCH POST CLASS 1 HIT CH ADAPTER...
