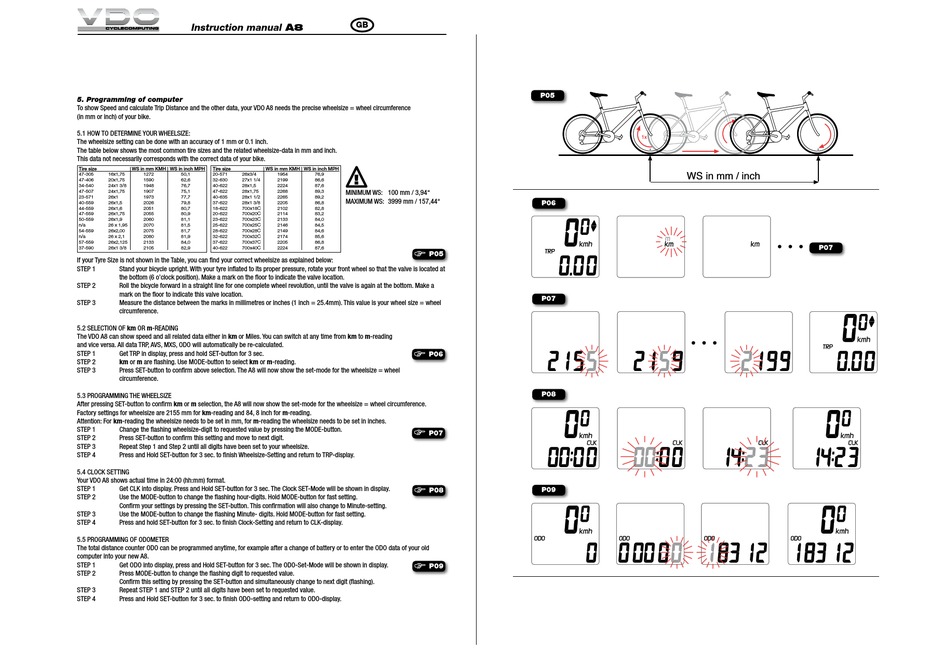

5. Programming of computer

To show Speed and calculate Trip Distance and the other data, your VDO A8 needs the precise wheelsize = wheel circumference
(in mm or inch) of your bike.
5.1 HOW TO DETERMINE YOUR WHEELSIZE:
The wheelsize setting can be done with an accuracy of 1 mm or 0.1 inch.
The table below shows the most common tire sizes and the related wheelsize-data in mm and inch.
This data not necessarily corresponds with the correct data of your bike.
Tire size WS in mm KMH WS in inch MPH Tire size
47-305 16x1,75 1272 50,1 20-571 26x3/4
47-406 20x1,75 1590 62,6 32-630 27x1 1/4
34-540 24x1 3/8 1948 76,7 40-622 28x1,5
47-507 24x1,75 1907 75,1 47-622 28x1,75
23-571 26x1 1973 77,7 40-635 28x1 1/2
40-559 26x1,5 2026 79,8 37-622 28x1 3/8
44-559 26x1,6 2051 80,7 18-622 700x18C
47-559 26x1,75 2055 80,9 20-622 700x20C
50-559 26x1,9 2060 81,1 23-622 700x23C
n/a 26 x 1,95 2070 81,5 25-622 700x25C
54-559 26x2,00 2075 81,7 28-622 700x28C
n/a 26 x 2,1 2080 81,9 32-622 700x32C
57-559 26x2,125 2133 84,0 37-622 700x37C
37-590 26x1 3/8 2105 82,9 40-622 700x40C
If your Tyre Size is not shown in the Table, you can find your correct wheelsize as explained below:
STEP 1 Stand your bicycle upright. With your tyre inflated to its proper pressure, rotate your front wheel so that the valve is located at
the bottom (6 o'clock position). Make a mark on the floor to indicate the valve location.
STEP 2 Roll the bicycle forward in a straight line for one complete wheel revolution, until the valve is again at the bottom. Make a
mark on the floor to indicate this valve location.
STEP 3 Measure the distance between the marks in millimetres or inches (1 inch = 25.4mm). This value is your wheel size = wheel
circumference.
5.2 SELECTION OF km OR m-READING
The VDO A8 can show speed and all related data either in km or Miles. You can switch at any time from km to m-reading
and vice versa. All data TRP, AVS, MXS, ODO will automatically be re-calculated.
STEP 1 Get TRP in display, press and hold SET-button for 3 sec.
STEP 2 km or m are flashing. Use MODE-button to select km or m-reading.
STEP 3 Press SET-button to confirm above selection. The A8 will now show the set-mode for the wheelsize = wheel
circumference.
5.3 PROGRAMMING THE WHEELSIZE
After pressing SET-button to confirm km or m selection, the A8 will now show the set-mode for the wheelsize = wheel circumference.
Factory settings for wheelsize are 2155 mm for km-reading and 84, 8 inch for m-reading.
Attention: For km-reading the wheelsize needs to be set in mm, for m-reading the wheelsize needs to be set in inches.
STEP 1 Change the flashing wheelsize-digit to requested value by pressing the MODE-button.
STEP 2 Press SET-button to confirm this setting and move to next digit.
STEP 3 Repeat Step 1 and Step 2 until all digits have been set to your wheelsize.
STEP 4 Press and Hold SET-button for 3 sec. to finish Wheelsize-Setting and return to TRP-display.
5.4 CLOCK SETTING
Your VDO A8 shows actual time in 24:00 (hh:mm) format.
STEP 1 Get CLK into display. Press and Hold SET-button for 3 sec. The Clock SET-Mode will be shown in display.
STEP 2 Use the MODE-button to change the flashing hour-digits. Hold MODE-button for fast setting.
Confirm your settings by pressing the SET-button. This confirmation will also change to Minute-setting.
STEP 3 Use the MODE-button to change the flashing Minute- digits. Hold MODE-button for fast setting.
STEP 4 Press and hold SET-button for 3 sec. to finish Clock-Setting and return to CLK-display.
5.5 PROGRAMMING OF ODOMETER
The total distance counter ODO can be programmed anytime, for example after a change of battery or to enter the ODO data of your old
computer into your new A8.
STEP 1 Get ODO into display, press and Hold SET-button for 3 sec. The ODO-Set-Mode will be shown in display.
STEP 2 Press MODE-button to change the flashing digit to requested value.
Confirm this setting by pressing the SET-button and simultaneously change to next digit (flashing).
STEP 3 Repeat STEP 1 and STEP 2 until all digits have been set to requested value.
STEP 4 Press and Hold SET-button for 3 sec. to finish ODO-setting and return to ODO-display.
GB
WS in mm KMH WS in inch MPH
!
1954 76,9
2199 86,6
2224 87,6
2268 89,3 MINIMUM WS: 100 mm / 3,94"
2265 89,2
MAXIMUM WS: 3999 mm / 157,44"
2205 86,8
2102 82,8
2114 83,2
2133 84,0
2146 84,5
2149 84,6
2174 85,6
2205 86,8
2224 87,6
F
P05
F
P06
F
P07
F
P08
F
P09
P05
1x
WS in mm / inch
P06
P07
P08
P09
P07
