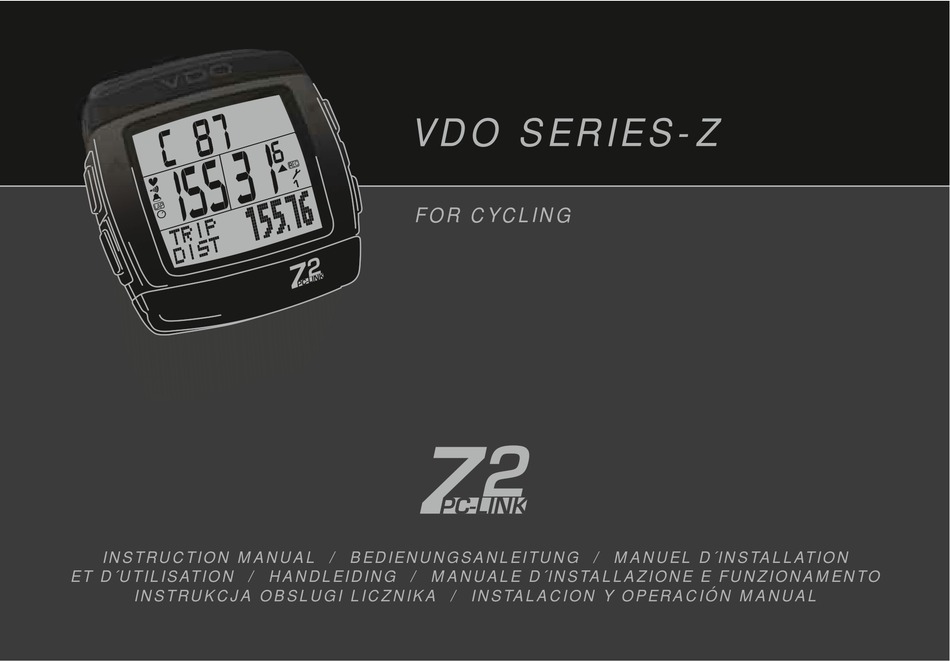

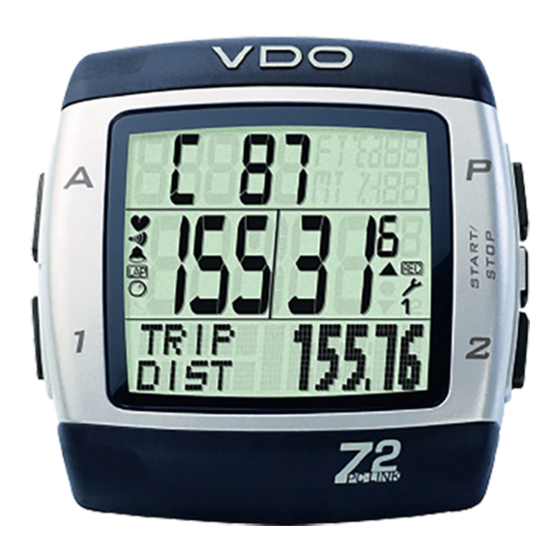

V D O S E R I E S - Z
F O R C Y C L I N G
I N S T R U C T I O N M A N U A L / B E D I E N U N G S A N L E I T U N G / M A N U E L D ´ I N S TA L L AT I O N
E T D ´ U T I L I S AT I O N / H A N D L E I D I N G / M A N U A L E D ´ I N S TA L L A Z I O N E E F U N Z I O N A M E N T O
I N S T R U K C J A O B S L U G I L I C Z N I K A / I N S TA L A C I O N Y O P E R A C I Ó N M A N U A L
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VDO Cyclecomputing Z2 PC-LINK
Summary of Contents for VDO Cyclecomputing Z2 PC-LINK
- Page 1 V D O S E R I E S - Z F O R C Y C L I N G I N S T R U C T I O N M A N U A L / B E D I E N U N G S A N L E I T U N G / M A N U E L D ´ I N S TA L L AT I O N E T D ´...
- Page 2 ✍ My Settings AGE: WEIGHT: MAX HEARTRATE: LIMIT 1: LOW: HIGH: LIMIT 2: LOW: HIGH: LIMIT 3: LOW: HIGH: RECOVERY TIME: RECOVERY PULSE: BIKE 1 WEIGHT: BIKE 2 WEIGHT: BIKE 1 WHEELSIZE: BIKE 2 WHEELSIZE: BIKE 1 SERVICE INTERVALL: BIKE 2 SERVICE INTERVALL: HOME ALTITUDE: FURTHER SETTINGS:...
- Page 3 Picturebook ONLY FOR MODELS Z2 PC-LINK / Z3 PC-LINK CD-ROM PC-Sport Watch out: old batteries require special disposal Please read instructions for end-off-life disposal treatment...
- Page 4 Picturebook Picturebook OPEN OPEN CLOSE CLOSE OPEN CLOSE...
- Page 5 Picturebook ONLY FOR MODELS Z2/Z2 PC-LINK Z3/Z3 PC-LINK CLOSE OPEN...
- Page 6 Picturebook P04/05 90°...
- Page 7 Picturebook LOCK UNLOCK 2.CLICK 1.LOCK 2.UNLOCK...
- Page 8 Picturebook...
- Page 9 Picturebook ONLY FOR MODELS Z2/Z2 PC-LINK Z3/Z3 PC-LINK...
- Page 10 Picturebook P09-2 CLOSE OPEN...
- Page 11 Picturebook WS in mm / inch Tire size WS in mm KMH WS in inch MPH Tire size WS in mm KMH WS in inch MPH 47-305 16x1,75 1272 50,1 20-571 26x3/4 1954 76,9 47-406 20x1,75 1590 62,6 32-630 27x1 1/4 2199 86,6 34-540...
- Page 12 Picturebook ONLY FOR MODELS Z2 PC-LINK Z3 PC-LINK...
- Page 13 >>> P01 Congratulations Package contents With your selection of a VDO Z2 PC-Link you have opted for high-quality First, please ensure that the contents of this package are complete: sports information computer. In order to fully benefit from the potential 1 VDO computer Z2 PC-Link of the computer, we recommend that you carefully read this manual.
-
Page 14: Table Of Contents
INSTRUCTION MANUAL TABLE OF CONTENTS 4. GENERAL SETTINGS 1.1. General 4.1. Setting the language 1.2. Important instructions for the digital 4.2. Setting time & date wireless system 4.3. Setting the alarm, alarm clock 1.3. Control system - operation 1.3.1. Operating mode 5. - Page 15 8. RESET MODE 12. THE TIMING FUNCTIONS 8.1. Resetting trip data 12.1. Selecting the timing function 8.2. Reset total ride time 12.2. Setting the timer (when selecting timer 1 or timer 2 or 8.3. Resetting the total distance meter timer 1 + 2) 8.4.
-
Page 16: General
1.1. GENERAL 1.2 IMPORTANT INSTRUCTIONS FOR THE DIGITAL WIRELESS SYSTEM Daily distance Ride time Your VDO Z2 PC-Link works entirely without cable; it works with triple Average speed digital wireless transmission based on well-established ANT+Sport® Navigator wireless protocol. The ANT+Sport® wireless protocol has already... -
Page 17: Operating Mode
Not used in Operation Mode Manual start/stop of the stopwatch and of all other timers Displaying the bike Displaying the bike TIMER functions 1 functions 2 Z2 PC-LINK AVG PULSE MAX PULSE CLOCK PULSE MAX% TRIP DIST RIDE TIME LIMIT... -
Page 18: Setting Mode
1.3.2. SETTING MODE - use this mode to make all settings. The assignment of buttons is on the buttons To go to setting mode: Press button ç for 3 seconds SETTING MODE LANGUAGE SELECT Chap. 4.1. Z2 PC-LINK NAVIGATOR SET Chap. 11.1. WHEELSIZE SET Chap. 5.1. WHEELSIZE CHANGE Chap. -
Page 19: The Display
1.4. THE DISPLAY The display of your VDO computer is comprised of three large areas. * If the computer is worn as a sport watch then the temperature can be The following information is displayed in operation mode: falsifi ed by body warmth. MIDDLE BAR Header - Actual heart rate... -
Page 20: Extension Options & Accessories
Average cadence Maximum cadence Universal mount kit art. no. 6601 When purchasing look for the VDO Cyclecomputing original equipment ORIGINAL In addition you can also get the following original VDO logo. Only products bearing this logo are authorized by VDO Cyclecom-... - Page 21 >>> P06 2, and the altitude difference walked. Reprogram this information after b. Computer inserting the new batteries. The VDO twist-click system securely connects the computer to the handlebar holder. >>> P03 2.1.2 BATTERY INSTALLATION PULSE-CHEST BELT step 1 Insert the computer, turned to the left approximately 45 Your VDO is shipped with the battery installed in the pulse-chest belt.
-
Page 22: Putting On The Pulse-Chest Belt
INSTRUCTION MANUAL >>> P08 2.3. PUTTING ON THE PULSE-CHEST BELT 3. INITIAL OPERATION >>> P09-2 step 1 First connect the one side of the pulse transmitter with the 3.1. INITIAL OPERATION, AC-BUTTON elastic strap, as shown. Press the ends of the pulse-chest belt After inserting the batteries we recommend that you first reset the de- into the plastic holder of the elastic strap vice to factory settings to ensure that no residual data from the quality... -
Page 23: Initial Operation - Pulse Transmitter
ensure that the electrodes of the pulse transmitter belt are wet, or that ∂ ƒ Select SPEED SEARCH the distance between the magnets and the speed/cadence transmitter ‚ SPEED PAIRING is not greater than 5 mm. Now turn the front wheel (both magnet and transmitter must be already ATTENTION: Your computer can save the codes of up to 5 transmitters mounted) 1. -
Page 24: General Settings
INSTRUCTION MANUAL IMPORTANT NOTE / Re-open of transmitter search for the receive ‚ SET MONTH ?CONTINUE? channel after interruption ∂ ƒ Setting the month If no signal is received from an already paired transmitter after 15 ‚ SET DAY ?CONTINUE? minutes (for example riding without chest belt for Z2 and Z3, also ∂... -
Page 25: Changing Wheel Size
etc. will be wrong. To use your VDO computer on two different bikes ‚ WHEELSIZE 1 ?SET OK? e.g. mountain bike and road bike you can enter two different wheel ‚ WHEELSIZE 1 SET DONE sizes. Measuring the wheel circumference: Automatic change to step 1 Align the valve of the front wheel so that it is precisely vertical ∂... -
Page 26: Setting Total Kilometers
INSTRUCTION MANUAL Wheel size set done 5.4. BIKE CHECK / SERVICE INTERVAL Display of the actual wheel size in the center bar of the display, right Your VDO Computer allows you to set the service interval to any interval bottom (1 or 2) for both of your bikes independently. -
Page 27: Personal Settings With Manual Max. Pulse Entry
if you know it from earlier measurements (e.g. at the doctor‘s office ∂ ƒ Setting the maximum pulse or from a performance test). If you do not know it then you can select ‚ PERSON DATA ?SET OK? automatic calculation of your maximum pulse. ‚... -
Page 28: Pulse Function Settings
INSTRUCTION MANUAL 7.PULSE FUNCTION SETTINGS ‚ AUTO LIMIT 1 HIGH…LOW The pulse functions of your VDO computer are based on the specifica- Shows AUTO LIMIT 1 for 3 sec., go to AUTO LIMIT 2 tion of three training programs each with 3 training ranges. AUTO LIMIT 2 HIGH…LOW Limit 1 = program 1: for recovery training (high 70%, Shows AUTO LIMIT 2 for 3 sec., go to AUTO LIMIT 3... -
Page 29: Reset Mode
7.3. SELECT TRAINING PROGRAM b. Setting the recovery pulse 3 sec. ç Setting mode LANGUAGE SELECT 3 sec. ç Setting mode LANGUAGE SELECT ∂ ƒ PULSE LIMIT SETTINGS ∂ ƒ RECOVERY SET ‚ PULSE LIMIT ?SET? ‚ RECOV TIME SET ∂... -
Page 30: Reset Total Ride Time
INSTRUCTION MANUAL 8.1 TRIP DATA 8.3. RESETTING THE TOTAL DISTANCE METER ATTENTION: When resetting the trip data the following day trip data will ATTENTION: When resetting the total distance the following data is be deleted: deleted: - Daily distance - Total distance - Trip ride time - Total distance bike 1 - Average speed... -
Page 31: Operation Mode Selection
step 1 Use a sharp pencil respective function in the display. To re-open all receive channels press step 2 Press the AC button on the back of the computer for 2 sec the ç and ¥ buttons at the same time: Reset to factory settings done. - Page 32 INSTRUCTION MANUAL BICYCLE FUNCTIONS (button ç ) ‚ TRIP DATA RESET DONE With the exception of the CLOCK function NO bicycle functions are Automatic return to operation mode for TRIP DIST. available in walk mode. The ç button has no function in walk mode. Accuracy: 2 decimal places.
- Page 33 BICYCLE FUNCTIONS (button √ ) Maximum value: 99,999 km or mi IMPORTANT NOTE: NO bicycle functions except the CLOCK function are available in walk mode. The √ button in walk mode automatically 10.3.9. ¬ ODOTOTAL = total distance bike 1 and bike 2 shows the actual time.
- Page 34 INSTRUCTION MANUAL 10.3.13. ¬ £ STOPWATCH = manual stopwatch 10.3.15. ¬ £ COUNTDOWN = countdown timer Prerequisite: Only after selecting stopwatch, chapter 12.1. Prerequisite: Only after selection of countdown timer, chapter 12.1. Display ≈ STOPWATCH Display ≈ Start measuring ∫ Press Start measuring ∫...
- Page 35 10.3.18. ¬ £ MAX PULSE = maximum pulse of the actual timing Reset: ∫ Press button for 4 sec. period 10.3.22. ¬ £ CALORIE = calorie consumption of the actual timing Prerequisite: Capture only with running or stopped and not deleted stopwatch/timer/countdown/lap timer function period Displaying the information ≈...
-
Page 36: Riding With The Navigator
INSTRUCTION MANUAL 11. RIDING WITH THE NAVIGATOR through) With the VDO Navigator you can complete trips according to Roadbooks ‚ „ NAVIGATOR NEXT DIGIT (e.g. Moser Guide). Roadbooks are offered by many publishing houses ... repeat for all digits from back to front for fantastic trips (for road bikes as well as mountain bikes) by many ‚... -
Page 37: Selecting The Timing Function
TIMER 1: You can program a time e.g. for interval training. TIMER 1 - Average speed on the lap counts from zero forward. At the end of TIMER 1 there is a single beep. The lap values can be called at any time if time measurement is Timer 1 only functions if you have set a time. -
Page 38: Setting Timer 1 + 2 Repeats (When Selecting Timer 1 + 2)
INSTRUCTION MANUAL ‚ TIMER ?SELECT? pressed for fast run-through) ∂ TIMER ?SET? ‚ TIMER 1+2 ?SET OK? ‚ TIMER 1 ?SET? ‚ TIMER 1+2 SET DONE ∂ TIMER 2 ?SET? Automatic return to the operation mode for TIMER 1/2. If you have not Select ‚... -
Page 39: Lap Timer
12.5. LAP-TIMER 13.1. TRAINING WITH THE STOPWATCH The LAP timer must first be started with the ∫ button. To save the LAP The stopwatch offers the easiest possibility for capturing pulse data. data press buttons ≈ + ¥ at the same time on the desired points of When the stopwatch is running pulse data is recorded. -
Page 40: Training With Timer 1 / Timer 2 / Timer 1+2
INSTRUCTION MANUAL TIP: At the end of the training unit measure the recovery time or the - Select training program limit 1, limit 2, limit 3, chapter 7.3 recovery pulse to determine your training status. See 7.4. Recovery - In the TIMER SETTINGS setting menu select the desired timer time and recovery pulse Note: All bicycle altitude and pulse function can also be called up during step 2 Beginning of the recording:... -
Page 41: Training With The Countdown Timer
13.3. TRAINING WITH THE COUNTDOWN TIMER: - Time under the low limit The countdown timer is a programmable timer with reverse counting. This is particularly well-suited for use in time trials. At the end of the step 5 Deleting recorded data COUNTDOWN time there is a single beep. - Page 42 INSTRUCTION MANUAL display in recall mode after concluding the measurement. Center bar left: Average pulse on the lap Center bar right: Average speed on the lap (IMPORTANT: no display in 2. If the lap timer is running the residence period of the pulse frequency walk mode) in the selected training ranges is recorded (compare 12.1) Footer:...
-
Page 43: The Data Recording Function & Transfer Of Data To The Pc
14. THE DATA RECORDING FUNCTION & TRANSFER OF DATA TO THE PC writes the oldest data in the memory. Your VDO computer is designed for recording data and transferring data c. A manual delete of training data is not possible. to your PC. -
Page 44: Transferring Data To Your Pc
INSTRUCTION MANUAL TIP: Leave your VDO computer on the handlebar holder so that sleep Please see the PC Sport electronic user manual on the CD-ROM for all mode is activated and recording is interrupted automatically after 5 additional information relative to planning and analysis of training units minutes (see chapter 15 Sleep mode). -
Page 45: Sleep Mode
15. SLEEP MODE 16. TROUBLESHOOTING Your VDO computer has a two-stage sleep mode. Sleep mode is activa- Here is a list of possible errors, their causes, and what you can to ted automatically if the computer no longer receives data. correct the error: Phase 1 after 5 minutes: - The display goes into sleep mode Problem when pairing the speed... - Page 46 INSTRUCTION MANUAL No speed display - Check the magnet position No speed display (dash in the The receive channel for speed is (distance between magnet display) switched off (a 15-minute period and transmitter, position of the has elapsed without receiving a magnet to the transmitter point speed signal) on the transmitter)
- Page 47 Data download from Z3 PC-Link/ - Ensure that the computer LAP data cannot be displayed/ The LAP data have been deleted Z2 PC-Link to the PC does not is correctly mounted on the are no longer present prior to LAP RECALL...
-
Page 48: Guarantee Conditions
INSTRUCTION MANUAL 17. GUARANTEE CONDITIONS 18. TECHNICAL SPECIFICATIONS VDO Cycle Parts offers a 5-year guarantee on your VDO computer, Computer: Approximately 49.6 x 46.6 x 16.5 mm, weight: starting from date of purchase. The guarantee extends to material and Approximately 45 g manufacturing defects on the computer itself, on the docking station, Handlebar holder: Weight approximately 15 g on the transmitters and on the handlebar and wrist band holder. - Page 49 INSTALACION Y OPERACIÓN MANUAL 18. ESPECIFICACIONES TECNICAS Ciclocomputador: Aproximadamente 49,6 x 46,6 x 16,5mm, peso: Aproximadamente 45g Soporte manillar: Peso aproximado 15g Transmisor de velocidad: Peso aproximado 20g Transmisor de pulso: Peso aproximado 80 g Baterías: 3V, tipo 2032 (ciclocomputador); tipo 2032 (transmisor de velocidad);...
- Page 51 Правилно отстранување на овој производ...
- Page 52 Изхвърляйте правилно този продукт...
- Page 55 Ιωστή Διάθεση αυτού του Προϊόντος...
- Page 57 EU-Konformitätserklärung Wir, CYCLE PARTS GmbH, Grosse Ahlmuehle 33, D-76865 Rohrbach erklären, dass die VDO Fahrradcompu- ter mit Funkübertragung VDO Z1, Z2, Z3, Z2 PC-Link, Z3 PC-Link und alle Sender Z-CAD, Z-PULSE, Z-SENDER, Dockingstation bei bestimmungsgemäßer Verwendung den grundlegenden Anforderungen gemäß Artikel 3 der R&TTE-Richtlinie 1999/5/EG entsprechen. Die Konformitäts-Erklärung finden Sie unter www.vdocyclecomputing.com.
- Page 58 ADDENDUM TO USER MANUAL NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital 66023 device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable 66023 protection against harmful interference in a residential installation.
- Page 59 ADDENDUM TO USER MANUAL NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital 6604 device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable 6604 protection against harmful interference in a residential installation.
- Page 60 V D O S E R I E S - Z F O R R U N N I N G / H I K I N G CYCLECOMPUTING w w w. v d o c y c l e c o m p u t i n g . c o m...
