V D O S E R I E S - Z
F O R C Y C L I N G
I N S T R U C T I O N M A N U A L / B E D I E N U N G S A N L E I T U N G / M A N U E L D ´ I N S TA L L AT I O N
E T D ´ U T I L I S AT I O N / H A N D L E I D I N G / M A N U A L E D ´ I N S TA L L A Z I O N E E F U N Z I O N A M E N T O
I N S T R U K C J A O B S L U G I L I C Z N I K A / I N S TA L A C I O N Y O P E R A C I Ó N M A N U A L
Advertisement
Table of Contents
Related Manuals for VDO Cyclecomputing Z3 PC-LINK
Summary of Contents for VDO Cyclecomputing Z3 PC-LINK

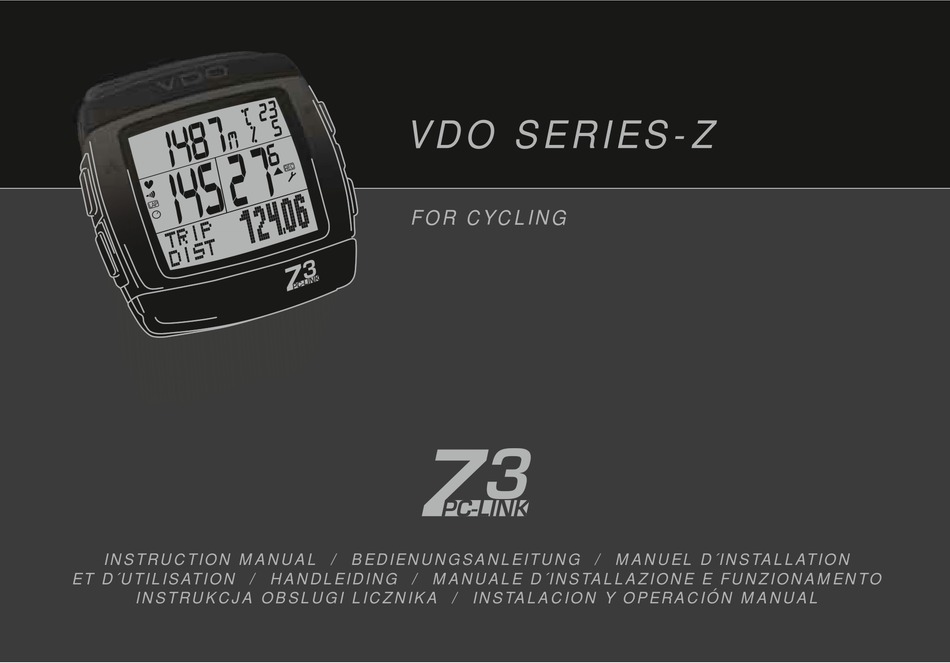

- Page 1 V D O S E R I E S - Z F O R C Y C L I N G I N S T R U C T I O N M A N U A L / B E D I E N U N G S A N L E I T U N G / M A N U E L D ´ I N S TA L L AT I O N E T D ´...
- Page 2 My Settings AGE: LIMIT 1: LOW: LIMIT 2: LOW: LIMIT 3: LOW: RECOVERY TIME: BIKE 1 WEIGHT: BIKE 1 WHEELSIZE: BIKE 1 SERVICE INTERVALL: HOME ALTITUDE: FURTHER SETTINGS: WEIGHT: HIGH: HIGH: HIGH: RECOVERY PULSE: BIKE 2 WEIGHT: BIKE 2 WHEELSIZE: BIKE 2 SERVICE INTERVALL: ✍...
- Page 3 Watch out: old batteries require special disposal Please read instructions for end-off-life disposal treatment Picturebook ONLY FOR MODELS Z2 PC-LINK / Z3 PC-LINK CD-ROM PC-Sport...
- Page 4 Picturebook Picturebook OPEN OPEN CLOSE CLOSE OPEN CLOSE...
- Page 5 Picturebook ONLY FOR MODELS Z2/Z2 PC-LINK Z3/Z3 PC-LINK CLOSE OPEN...
- Page 6 Picturebook P04/05 90°...
- Page 7 Picturebook LOCK UNLOCK 2.CLICK 1.LOCK 2.UNLOCK...
- Page 8 Picturebook...
- Page 9 Picturebook ONLY FOR MODELS Z2/Z2 PC-LINK Z3/Z3 PC-LINK...
- Page 10 Picturebook P09-2 CLOSE OPEN...
- Page 11 WS in mm / inch Tire size WS in mm KMH WS in inch MPH 47-305 16x1,75 1272 50,1 47-406 20x1,75 1590 62,6 34-540 24x1 3/8 1948 76,7 47-507 24x1,75 1907 75,1 23-571 26x1 1973 77,7 40-559 26x1,5 2026 79,8 44-559 26x1,6 2051...
- Page 12 Picturebook ONLY FOR MODELS Z2 PC-LINK Z3 PC-LINK...
- Page 13 Congratulations With your selection of a VDO Z3 PC-Link you have opted for high-quality sports information computer. In order to fully benefit from the potential of the computer, we recommend that you carefully read this manual. It contains all operating instructions and many useful tips.
-
Page 14: Table Of Contents
INSTRUCTION MANUAL TABLE OF CONTENT 1.1. GENERAL 1.2. IMPORTANT INSTRUCTIONS FOR THE DIGITAL WIRELESS SYSTEM 1.3. Control system - operation 1.3.1. Operating mode 1.3.2. Setting mode 1.4. The display 1.5. Extension options & accessories 2. INSTALLATION 2.1. Battery installation 2.1.1. Battery installation - computer and speed/cadence transmitter 2.1.2. - Page 15 8. ALTITUDE FUNCTION SETTINGS 8.1. Setting the home altitude (starting altitude) 8.2. Setting the actual altitude 8.3. Annual uphill altitude difference bike 1 and bike 2 and walk mode 8.4. Annual downhill altitude difference bike 1 and bike 2 and walk mode 9.
-
Page 16: General
INSTRUCTION MANUAL 18. GUARANTEE CONDITIONS 19. TECHNICAL SPECIFICATIONS 1.1. GENERAL 1.2 IMPORTANT INSTRUCTIONS FOR THE DIGITAL WIRELESS SYSTEM Your VDO series Z works entirely without cable; it works with triple digital wireless transmission based on well-established ANT+Sport® wireless protocol. The ANT+Sport® wireless protocol has already been successfully implemented by manufacturers such as Garmin, Specialized, and Suunto. -
Page 17: Operating Mode
Not in walk mode ! OPERATION MODE Displaying all pulse measurement functions and interval data stored Manual start/stop of the stopwatch and of all other timers Displaying the bike functions 2 Z3 PC-LINK CLOCK NAVIGATOR ODO BIKE 1 ODO BIKE 2 ODOTOTAL TIME BIKE1... -
Page 18: Setting Mode
1.3.2. SETTING MODE - use this mode to make all settings. The assignment of buttons is on the buttons To go to setting mode: Press button ç for 3 seconds SETTING MODE Z3 PC-LINK å (Once) = last step, or back one menu level (Hold) = return to start menu ‚: Select/confi rm displayed option... -
Page 19: The Display
1.4. THE DISPLAY The display of your VDO computer is comprised of three large areas. The following information is displayed in operation mode: Header - Actual altitude - Actual temperature - Actual ascending gradient/ descending gradient 3. Footer: DOT matrix full-text - display of the selected/displayed function - In setting mode menu prompting... -
Page 20: Extension Options & Accessories
Cadence kit Wrist band Wrist band lock Universal mount kit When purchasing look for the VDO Cyclecomputing original equipment logo. Only products bearing this logo are authorized by VDO Cyclecom- puting for use with your computer. 2. INSTALLATION 2.1. BATTERY INSTALLATION 2.1.1 BATTERY INSTALLATION - COMPUTER AND SPEED/CADENCE... - Page 21 2, and the altitude difference walked. Reprogram this information after inserting the new batteries. 2.1.2 BATTERY INSTALLATION PULSE-CHEST BELT Your VDO is shipped with the battery installed in the pulse-chest belt. Proceed as follows when later inserting a replacement battery: step 1 Insert the battery into the chest-belt housing with the +pole up.
-
Page 22: Mounting The Computer On The Wrist Band
INSTRUCTION MANUAL the elastic strap over your back to the other end of the pulse transmitter step 3 Connect the second end of the plastic strap to the pulse transmitter step 4 Use the size adjustment of the elastic strap to adjust the chest belt to your chest size Please note: - Do not adjust the chest belt too loose;... -
Page 23: Initial Operation - Pulse Transmitter
1. Speed transmitter of bike 1 2. Speed transmitter of bike 2 3. Cadence transmitter of bike 1 (optional) 4. Cadence transmitter of bike 2 (optional) 5. Pulse transmitter 3.3.1. INITIAL OPERATION - PULSE TRANSMITTER Put the pulse transmitter belt on and moisten the electrodes (chapter 2.3) 3sec. -
Page 24: General Settings
INSTRUCTION MANUAL In this case your VDO computer will show dashes for the respective function in the display. To re-open all receive channels press the ç and ¥ buttons at the same time: Now your VDO computer will again receive all previously paired transmitters that are in range. 4. -
Page 25: Changing Wheel Size
to the ground step 2 Mark this point on the ground with a line (use chalk for example) step 3 Push the bike one wheel rotation forward until the valve is again vertical to the ground. step 4 Mark this point on the ground as well. step 5 Measure the distance between the two marks. -
Page 26: Setting Total Kilometers
INSTRUCTION MANUAL 5.3. SETTING TOTAL KILOMETERS You can program the total distances into your VDO computer that get lost when changing batteries or that you have previously counted with a different device. This function is available for both wheel sizes (both bikes). -
Page 27: Personal Settings With Manual Max. Pulse Entry
WARNING: Automatic calculation is based on average values for people that are athletic and healthy. The actual value can deviate from this average value for people who have not been athletically active for some time, or who after illness, are going through a rehabilitation program. Strictly ensure that you speak with your doctor before starting to train, so that he can confirm that training would not be associated with any adverse effects. -
Page 28: Pulse Function Settings
INSTRUCTION MANUAL 7.PULSE FUNCTION SETTINGS The pulse functions of your VDO computer are based on the specifica- tion of three training programs each with 3 training ranges. Limit 1 = program 1: for recovery training (high 70%, low 50% of max. pulse) Limit 2 = program 2: program for endurance training (high 80%, low 70% of max. - Page 29 7.3. SELECT TRAINING PROGRAM 3 sec. ç Setting mode LANGUAGE SELECT ∂ ƒ PULSE LIMIT SETTINGS ‚ PULSE LIMIT ?SET? ∂ PULSE LIMIT ?SELECT? ‚ LIMIT 1 ?SELECT? or ∂ LIMIT 2 ?SELECT? or ∂ LIMIT 3 ?SELECT? ‚ LIMIT 1/2/3 SET DONE Automatic return to operation mode for the selected timer.
-
Page 30: Altitude Function Settings
INSTRUCTION MANUAL Power is calculated in WATT via a mathematical algorithm. Deviations from a real WATT measurement system are possible, particularly if there is a strong headwind or tailwind. The more precise the setting of the bicycle used, (its weight as well as your seat position), the more precise the displayed value will be. -
Page 31: Setting The Home Altitude (Starting Altitude)
8.1. SETTING THE HOME ALTITUDE (STARTING ALTITUDE) 3 sec. ç Setting mode LANGUAGE SELECT ∂ ƒ HOME ALTI SET ‚ ∂ ƒ Setting the home altitude ‚ HOME ALTI ?SET OK? ‚ HOME ALTI SET DONE Automatic return to the operation mode for ALTI UP. The set home altitude will be displayed as actual altitude. -
Page 32: Reset Mode
INSTRUCTION MANUAL ∂ ƒ ALTI DOWN SET ‚ ALTI DOWN 1 SET (for bike 2 or walking ƒ ALTI DOWN 2 SET / WALK DOWN SET) ‚ ALTI DOWN 1 NEXT DIGIT / ALTI DOWN 2 NEXT DIGIT / WALK DOWN NEXT DIGIT ∂... -
Page 33: Resetting The Total Distance Meter
Automatic return to the operation mode for TOTAL TIME Reset total time done 9.3. RESETTING THE TOTAL DISTANCE METER ATTENTION: When resetting the total distance the following data is deleted: - Total distance - Total distance bike 1 - Total distance bike 2 3 sec. -
Page 34: Operation Mode
INSTRUCTION MANUAL 11. OPERATION MODE 11.1. An overview of mode functions is provided in section 1.3.1. 11.2 FAST PAIRING after transmission interruption If no signal is received from one of your already paired transmitters for more than 15 minutes (e.g. cycling without pulse-chest belt, magnet moved unintentionally) the receive channel for this transmitter will be closed. - Page 35 Note: The minimum altitude change for the correct distance measure- ment must be 1 m 11.3.3. ¬ £ TRIP MAX = maximum altitude of the actual trip Display ¥ TRIP MAX Reset: 3 sec. √ TRIP DATA ?RESET? ‚ TRIP DATA ?RESET? <<?RESET?>> flashing ‚...
- Page 36 INSTRUCTION MANUAL 11.3.10. ¬ AVG DOWN = average downhill slope in percent Display ¥ „Dschn down“ Reset: 3 sec. √ TRIP DATA ?RESET? ‚ TRIP DATA ?RESET? <<?RESET?>> flashing ‚ TRIP DATA RESET DONE This resets all data of the functions marked by Automatic return to operation mode for TRIP DIST 11.3.11.
- Page 37 11.3.16. ¬ MAX SPEED = maximum speed of the actual trip Display ç MAX SPEED Reset: 3 sec. √ TRIP DATA ?RESET? ‚ TRIP DATA ?RESET? <<?RESET?>> flashing ‚ TRIP DATA RESET DONE Automatic return to operation mode for TRIP DIST Maximum value 120 km/h or mph.
- Page 38 INSTRUCTION MANUAL 11.3.20. ¬ ODO BIKE 2 = total distance bike 2 Shows the total of all distances ridden with bike 2 in km or mi (auto- matic conversion of all values when switching to mi) Display √ ODO BIKE 2 Maximum value: 99,999 km or mi 11.3.21.
- Page 39 Reset: ∫ Press button for 4 sec. Compare chapter 14. Training with recording of the residence times in the pulse ranges 11.3.27. ¬ £ COUNTDOWN = countdown timer Prerequisite: Only after selection of countdown timer, chapter 13.1. Display ≈ Start measuring ∫...
-
Page 40: Riding With The Navigator
INSTRUCTION MANUAL 11.3.33. ¬ £ RECOV TIME or RECOV PULSE = recovery time and recovery pulse measurement Prerequisite: Only if recovery time/recovery pulse is defined, chapter Starting the measurement ç + √ press simultaneously Displaying the information ≈ RECOV TIME or RECOV PULSE Reset: ∫... -
Page 41: Resetting The Navigator At The Orientation Point
through) ‚ „ NAVIGATOR NEXT DIGIT ... repeat for all digits from back to front ‚ NAVIGATOR ?SET OK? ∂ ƒ Set first digit (keep button depressed for fast run- through) ‚ NAVIGATOR SET DONE Automatic return to the operation mode for NAVIGATOR 12.2. -
Page 42: Selecting The Timing Function
INSTRUCTION MANUAL - Duration of the lap - Average heart rate on the lap - Average speed on the lap The lap values can be called at any time if time measurement is stopped. STOPWATCH: With the manual stopwatch you can manually capture the plus values of training units. -
Page 43: Setting Timer 1 + 2 Repeats (When Selecting Timer 1 + 2)
13.3. SETTING TIMER 1 + 2 REPEATS (when selecting timer 1 + 2) 3 sec. ç Setting mode LANGUAGE SELECT ∂ ƒ TIMER SETTINGS ‚ TIMER ?SELECT? ∂ TIMER 1 ?SELECT? ∂ ƒ TIMER 1 + 2 ?SELECT? ‚ TIMER 1+2 REPEATS ?SELECT? ∂... -
Page 44: Training With The Pulse Functions
INSTRUCTION MANUAL 14. TRAINING CONTROL WITH THE PULSE FUNCTIONS See chapter 13 for information on making the settings. For focused training control it is necessary to keep the pulse in certain ranges through specific stress, see chapter 7.2. The different training programs are defined by a low limit and high limit. -
Page 45: Training With The Countdown Timer
Combination timer 1+2: The combination of timer 1+2 can be set optimally for interval training: Timer 1 = active phase, timer 2 = rest phase. When timer 1 elapses a single beep sounds, when timer 2 elapses a double beep sounds. For timer 1+2 you can set the number of repeats. -
Page 46: Training With The Lap Timer
INSTRUCTION MANUAL step 2 Beginning of the recording: ∫ Start the recording 4sec. ≈ Switch on/switch off the acoustic pulse signal step 3 End/interruption of the recording: AUTOMATIC after the countdown time elapses ∫ Manual interruption = stop recording step 4 Display of the values (even during recording) ≈... -
Page 47: The Data Recording Function & Transfer Of Data To The Pc
Press concurrently: ¥ + ≈ End lap 1 and start lap 2 concurrently Start next lap: ¥ + ≈ End lap 2 and start lap 3 concurrently... Interrupt: ∫ Interrupt lap measuring (e.g. for recovery lap or break) You can interrupt each lap as often as desired, or end the lap and record up to 50 individual laps. -
Page 48: Starting/Stopping Data Recording
INSTRUCTION MANUAL - All pulse data (only under certain conditions in walk mode) - Lap data if lap timer is used - All cadence data (if the cadence kit is installe Note: If you are using the lap timers the lap data will have a flag. When trans- ferring data from the computer to the PC the lap data are identified via this flag and are displayed and analyzed separately in the PC-Sport program. -
Page 49: Transferring Data To Your Pc
15.2. TRANSFERRING DATA TO YOUR PC Install the PC-Sport software on your PC. Insert your VDO computer into the docking station as shown (Fig. xxx) and connect the USB cable to one of your computer‘s USB ports. Now start PC Sport - Under „FILE“... -
Page 50: Sleep Mode
INSTRUCTION MANUAL 16. SLEEP MODE Your VDO computer has a two-stage sleep mode. Sleep mode is activated automatically if the computer no longer receives data. Phase 1 after 5 minutes: - The display goes into sleep mode - DATA RECORDING is interrupted Now the display shows temperature, time, date, and day of the week. - Page 51 Problem when pairing the pulse- - Check the battery in the chest chest belt belt - Check the battery in the computer (if battery voltage is insufficient then the receiver cannot receive the signals) No speed display - Check the magnet position (distance between magnet and transmitter, position of the magnet to the transmitter point...
- Page 52 INSTRUCTION MANUAL No pulse display (dash in the The receive channel for pulse is display) switched off (a 15-minute period has elapsed without receiving pulse data) Press buttons ¥ same time No average pulse Timer has not been started Start timer No maximum pulse Timer has not been started Start timer...
- Page 53 Data download from Z3 PC-Link/ - Ensure that the computer Z2 PC-Link to the PC does not is correctly mounted on the function docking station - Ensure that the docking station is correctly connected to the PC via USB connector...
- Page 54 INSTRUCTION MANUAL 19. TECHNICAL SPECIFICATIONS Computer: Approximately 49.6 x 46.6 x 16.5 mm, weight: Approximately 45 g Handlebar holder: Weight approximately 15 g Speed transmitter: Weight approximately 20 g Pulse transmitter: Weight approximately 80 g Battery: 3V, type 2032 (computer); type 2032 (speed transmitter); type 2032 (pulse transmitter) Battery service life: Computer: Approximately 300 hours, approximately 8000 KM (5000 M)
- Page 56 Правилно отстранување на овој производ...
