OVEN AND ACCESSORIES

8

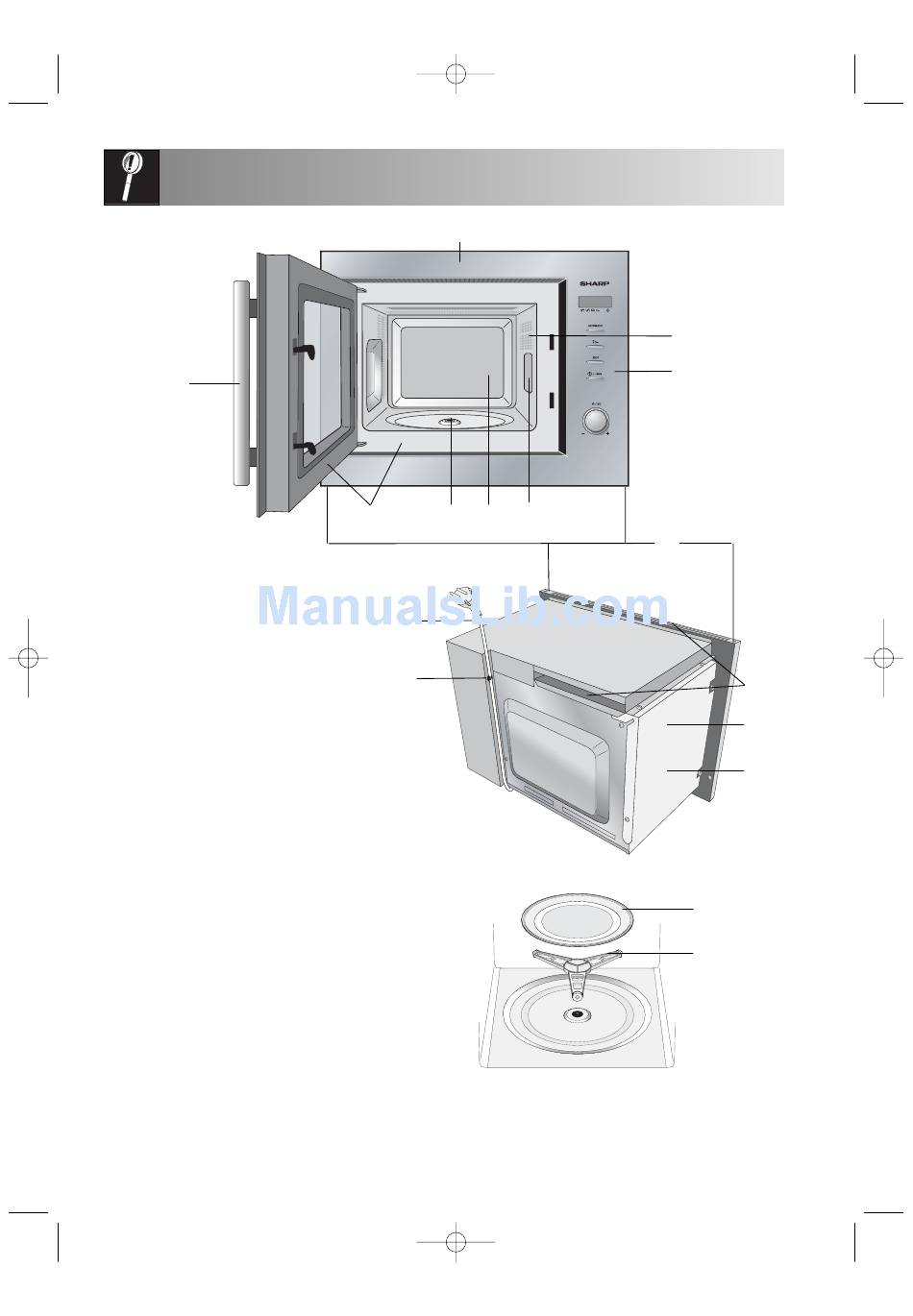

1 Front trim
2 Oven lamp
3 Control panel
4 Waveguide cover
5 Oven cavity
6 Seal packing
7 Door seals and sealing surfaces
8 Door opening handle
9 Fixing points (4 points)
10 Ventilation openings
11 Outer cover
12 Rear cabinet
13 Power supply cord support clip
14 Power supply cord
ACCESSORIES:
Check to make sure the following accessories are
provided:
(15) Turntable (16) Roller stay
(17) 4 fixing screws (not shown).
• Place the roller stay in the seal packing on the floor
of the cavity.
• Then place the turntable on the roller stay.
• To avoid turntable damage, ensure dishes or
containers are lifted clear of the turntable rim when
removing them from the oven.
NOTE: When you order accessories, please mention
two items: part name and model name to your dealer
or SHARP authorised service agent.
