CONNECTING THE APPLIANCE TO THE POWER SUPPLY
• The electrical outlet should be readily accessible so that
the unit can be unplugged easily in an emergency.
• The socket should not be postioned behind the cupboard.

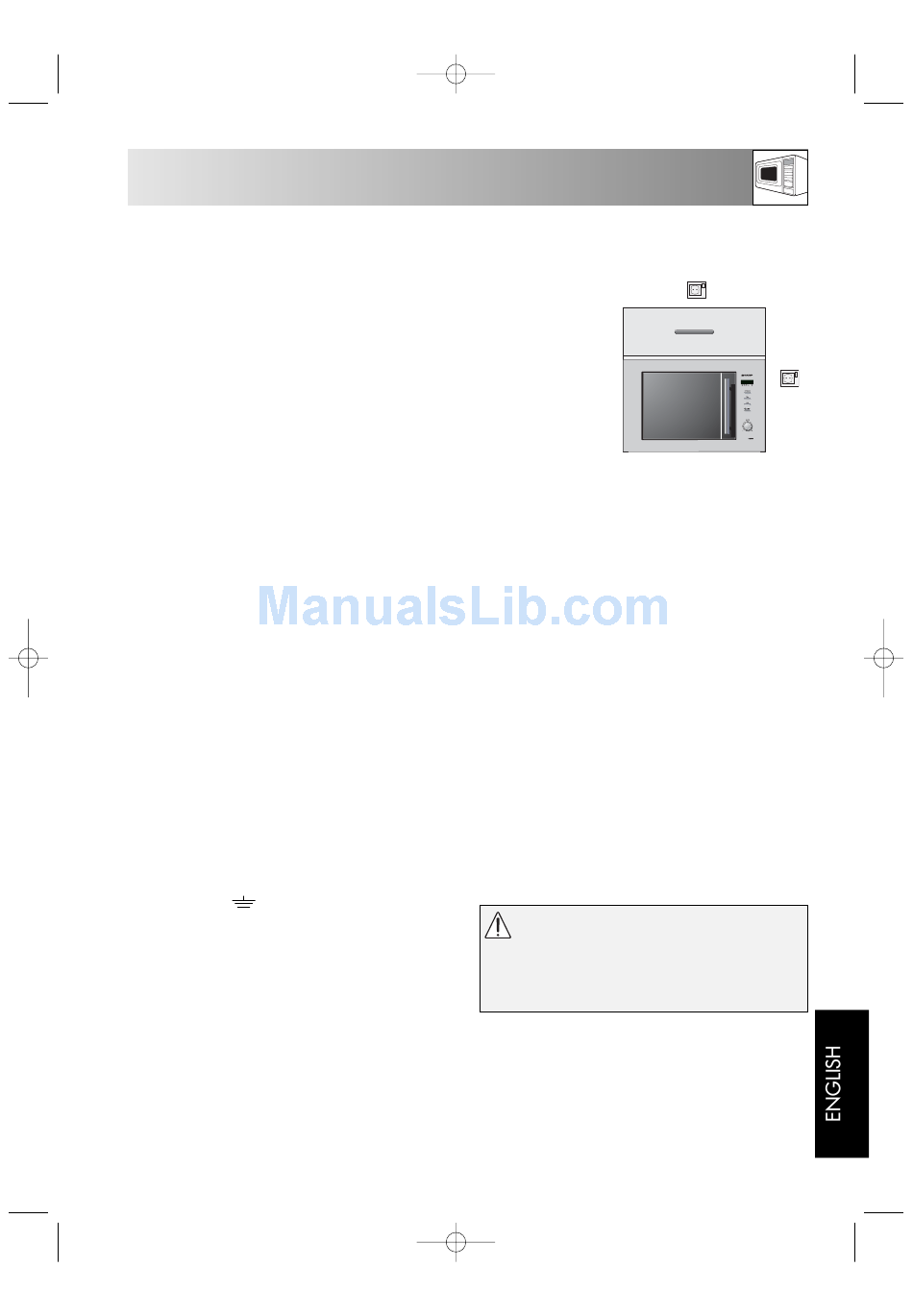

• The best position is above the cupboard, see (A).
When not connecting the power supply cord to position (A) it should
be removed from the support clip (see diagram, item 13, on page 2)
and routed under the oven.
• Connect the appliance a single phase 230V/50Hz alternating
current via a correctly installed earth socket.
The socket must be fused with a ≥10A fuse.
• The power supply cord may only be replaced by an electrician.
• Before installing, tie a piece of string to the power supply cord to facilitate connection to point (A) when
the appliance is being installed.
• When inserting the appliance into the high-sided cupboard, DO NOT crush the power supply cord.
• Do not immerse the power supply cord or plug in water or any other liquid.
TO REPLACE THE MAINS PLUG
The wires in the power supply cord are colour
coded as shown:
Green and yellow stripes =
Blue
Brown
As the colours in the power supply cord of your
oven may not correspond with the coloured
marking identifying the terminals in your plug,
connect the wires as described:
• The green and yellow wire to the plug terminal
marked E or
green and yellow.
• The blue wire to the plug terminal marked N or
coloured black or coloured blue.
• The brown wire to the plug terminal marked L or
coloured red or coloured brown.
11:41 Page 7
EARTH
= NEUTRAL
= LIVE
or coloured green or coloured
INSTALLATION
Make sure the terminal screws are tight and the
cord is held securely by the cable grip where it
enters the plug.
Like most appliances in your home, your oven must
be connected to a single phase 230V, 50Hz
alternating current supply.
If you do not make the proper electrical
connections you might damage the oven or injure
yourself. Neither SHARP nor the supplier will be
liable if this happens.
WARNING: THIS APPLIANCE MUST BE
EARTHED
If you have any doubts about your
electrical supply ask a qualified
electrician.
7
(A)
