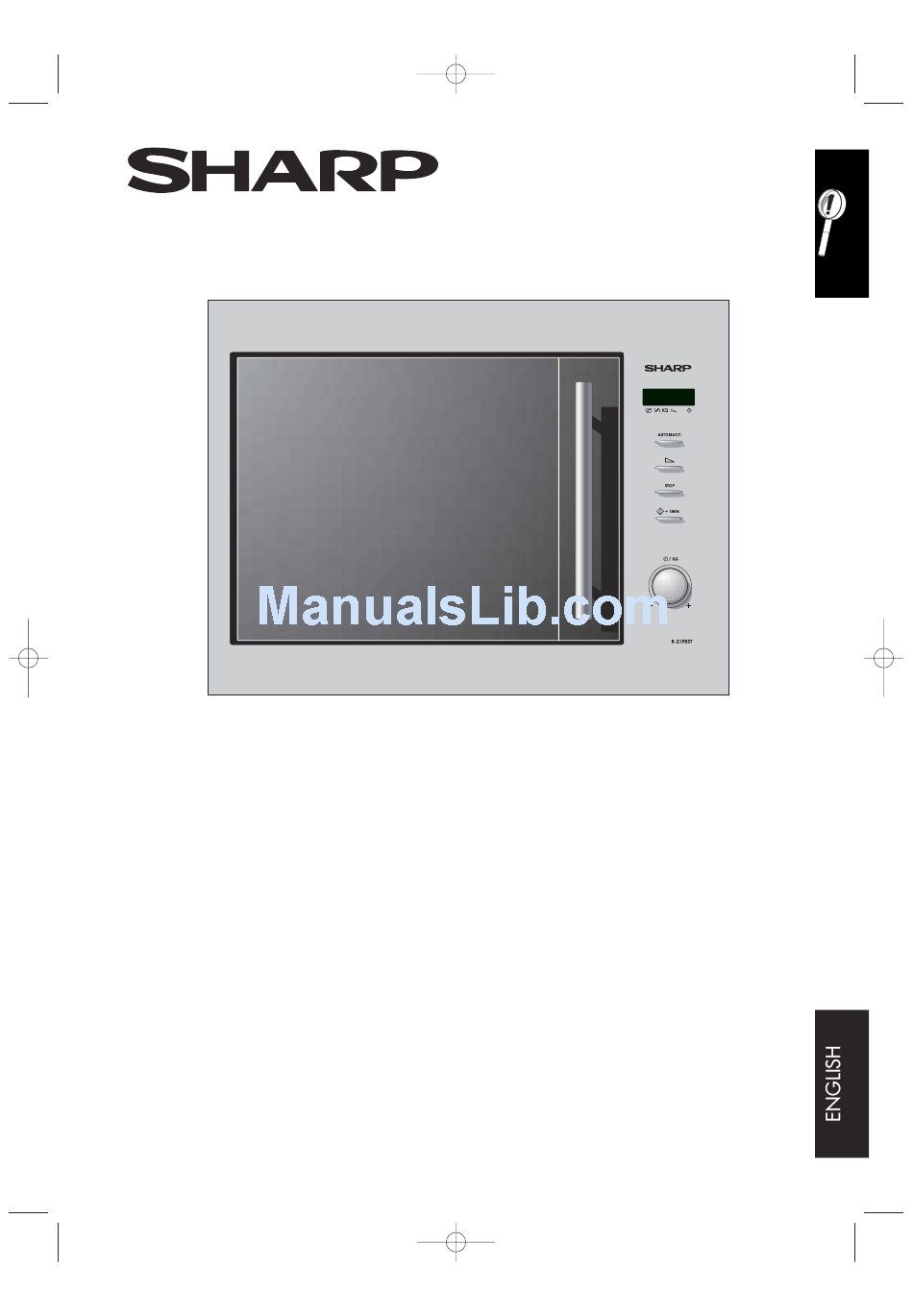

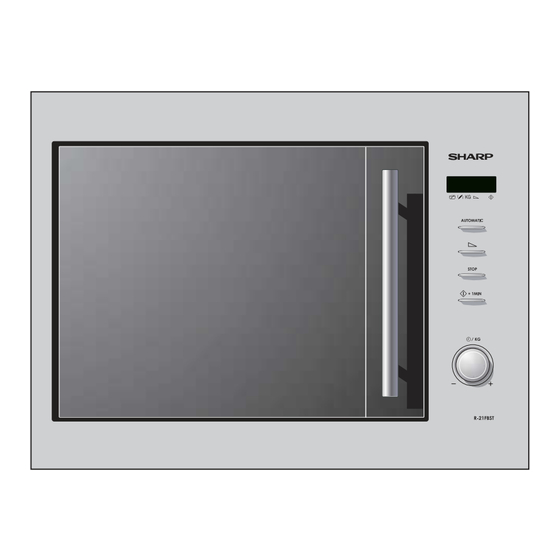

Sharp R-21FBST Operation Manual With Cookbook

800 w built-in microwave oven
Hide thumbs
Table of Contents

Advertisement

Quick Links

R-21+22FBST ENGLISH
17/10/2003
09:15
Page A
Important
R-21FBST / R-22FBST
BUILT-IN MICROWAVE OVEN
OPERATION MANUAL WITH COOKBOOK
OPERATION MANUAL
This operation manual contains important information which you should read carefully before using
your microwave oven.
IMPORTANT: There may be a serious risk to health if this operation manual is not followed or if the oven
is modified so that it operates with the door open.
800 W (IEC 60705)
