INSTALLATION INSTRUCTIONS
1. Remove all packing materials from the oven cavity, (do not remove the waveguide cover), and
the feature sticker from the outside of the door, if there is one. Check the unit for any damage, such
as a misaligned door, damaged door seals around the door or dents inside the oven cavity or on the
door. If there is any damage, please do not operate the oven until it has been checked by a SERVICE
CENTRE APPROVED BY SHARP and repaired, if necessary.
2. Accessories provided
1)
Turntable tray
2)
Roller stay
3)
Rack
4)
Operation manual
5)
2 Cook books
6)
Warranty card
3. Since the door may become hot during cooking, and in order to avoid its accidental touch, the oven
should be placed at least 80 cm or more above floor. You should also keep Children away from the
door to prevent them burning themselves.
4. Place the roller stay in the coupling on the oven floor, then place the turntable on to the roller stay,
ensuring it is located firmly. Refer to OVEN DIAGRAM below. NEVER OPERATE THE OVEN WITHOUT
THE ROLLER STAY AND TURNTABLE.
5. This oven is designed to be used on a countertop only. It should not be installed in any area where
excessive heat and steam are generated, for example, next to a conventional oven unit. The oven
should be installed so as not to block ventilation openings.
Allow at least 40 cm on the top of the oven for adequate air circulation. This oven is not designed to
be built-in to a wall or cabinet.
6. Neither the manufacturer nor the distributors can accept any liability for damage to the machine or
personal injury for failure to observe the correct electrical connecting procedure.
The A.C. voltage must be single phase 220- 230V, 50Hz, with a minimum 10A distribution line fuse,
or a minimum 10A distribution circuit breaker.
7. THIS APPLIANCE MUST BE EARTHED.

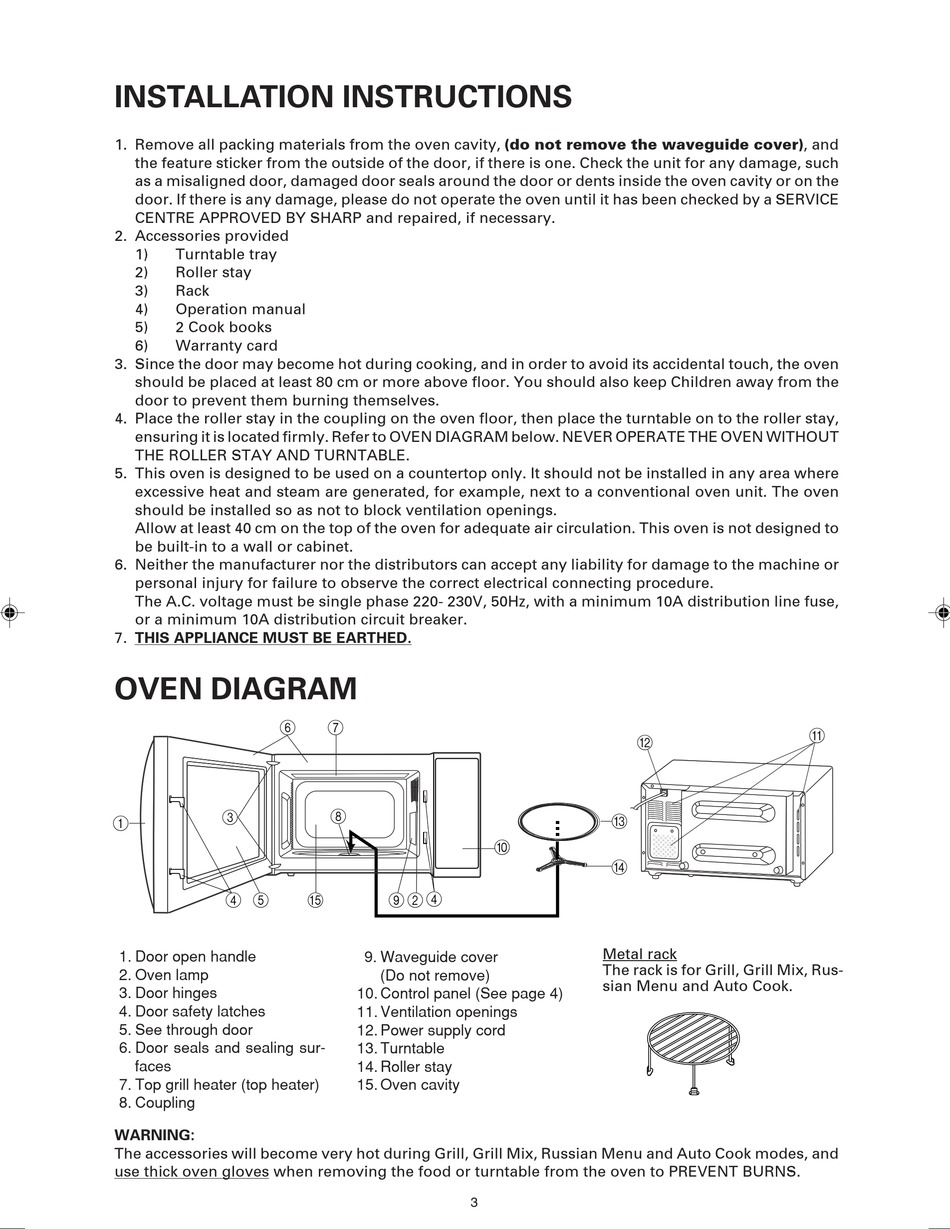

OVEN DIAGRAM
3
1
5
4
1. Door open handle
2. Oven lamp
3. Door hinges
4. Door safety latches
5. See through door
6. Door seals and sealing sur-
faces
7. Top grill heater (top heater)
8. Coupling
WARNING:
The accessories will become very hot during Grill, Grill Mix, Russian Menu and Auto Cook modes, and
use thick oven gloves when removing the food or turntable from the oven to PREVENT BURNS.
6
7
8
4
E
9
2
9. Waveguide cover
(Do not remove)
10. Control panel (See page 4)
11. Ventilation openings
12. Power supply cord
13. Turntable
14. Roller stay
15. Oven cavity
C
0
D
Metal rack
The rack is for Grill, Grill Mix, Rus-
sian Menu and Auto Cook.
3
B
A
