Strong SRT 5220 User Manual

Digital terrestrial twin tuner receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

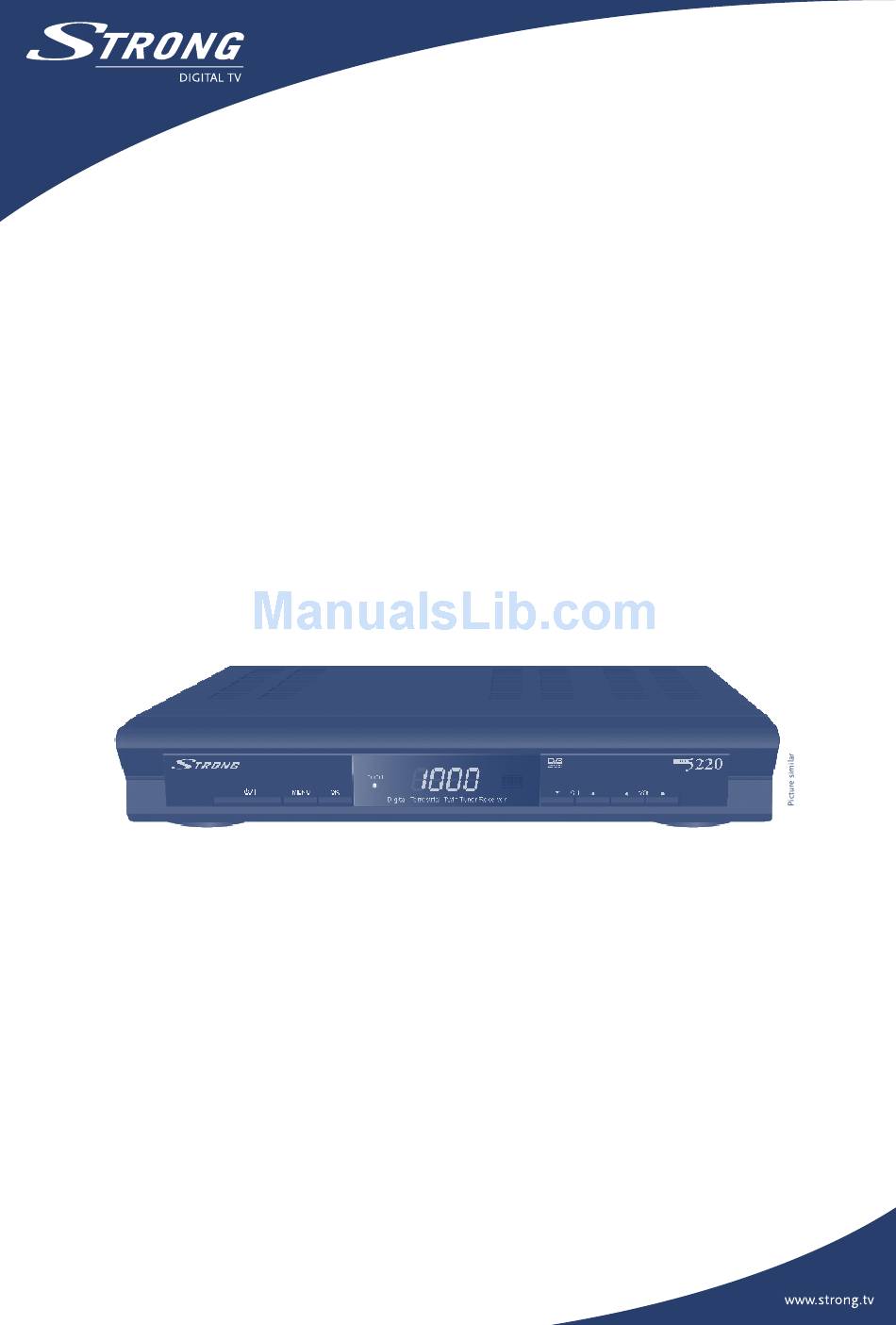

Digital Terrestrial Twin Tuner
Receiver SRT 5220
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Strong SRT 5220

Summary of Contents for Strong SRT 5220

  • Page 1 Digital Terrestrial Twin Tuner Receiver SRT 5220 User Manual...

  • Page 4: Table Of Contents

    PART 1 • English TABLE OF CONTENTS 1.0 INSTRUCTION 1.1 Safety Instructions 1.2 Storage 1.3 Equipment Set-up 1.4 Features & Accessories 2.0 CONNECTION 2.1 Connecting to Terrestrial Antenna 2.2 Connecting to TV with SCART cable 2.3 Connecting to Video/DVD Recorder with SCART cable 2.4 Connecting to TV with S-VIDEO cable 2.5 Connecting to a Digital Audio Amplifier 2.6 Connecting to PC...

  • Page 5: Instruction

    PART 1 • English 1.0 INSTRUCTION 1.1 Safety Instructions DO NOT INSTALL YOUR RECEIVER: In a closed or poorly ventilated cabinet; directly on top of or under any another equipment; on a surface which might obstruct the ventilation slots DO NOT EXPOSE THE RECEIVER OR ITS ACCESSORIES: To direct sunlight or near any other equipment that generates heat;...

  • Page 6: Storage

    PART 1 • English 1.2 Storage Your receiver and its accessories are stored and delivered in a packaging, protected against electric damage and moisture. When unpacking, make sure all parts are included. Keep packaging away from children. For transportation from one place to another or if you are returning the receiver under warranty make sure it is repacked in its original packaging with all accessories.

  • Page 7: Features & Accessories

    PART 1 • English 1.4 Features & Accessories For all digital Free-To-Air TV and Radio programmes (with outdoor- or indoor* antenna) Twin Tuner Technology: Watch one programme while simultaneously recording another one on your Video or DVD Recorder 1 000 channels memory capacity Display showing channel number or time Favourite list for TV and Radio programmes Quick and easy installation &...

  • Page 8: Connection

    PART 1 • English 2.0 CONNECTION 2.1 Connecting to Terrestrial Antenna Fig. 1 To receive the broadcast signal, the terrestrial antenna cable should be connected to the ANT IN connector at the back of the receiver. Connect the LOOP OUT to the LOOP IN with the short RF-Coax cable. 2.2 Connecting to TV with SCART cable Fig.

  • Page 9: Your Receiver

    PART 1 • English 3.0 YOUR RECEIVER 3.1 Front Panel Fig. 6 1. Power ON/STAND-BY button 2. MENU By pressing this button you’ll open the OSD menu 3. OK By pressing this button, you’ll confirm a selection 4. Mode indicator The RED light indicates that the receiver is in STAND-BY mode.

  • Page 10: Remote Control

    PART 1 • English 8. RS-232 Serial Port Connect a PC to your receiver to download new software versions. 9. S-VIDEO To connect to your TV set 10. Main power switch 11. Power Cord Your receiver requires a voltage of 90 ~ 240 V AC (Auto-selectable), 50 ~ 60 Hz +/-5 %. Make sure to check the power specification before connecting your receiver to the wall outlet.

  • Page 11: First Time Installation

    PART 1 • English Shows the EPG (Electronic Program Guide) during No-menu state only Channel selection 0 ~ 9 MOSAIC Show pictures up to 9 channels on the screen( depends on Broadcaster support) Toggle between TV and AV mode 4.0 FIRST TIME INSTALLATION Make sure your terrestrial receiver is connected correctly to your TV and terrestrial antenna and the signal quality is good enough.

  • Page 12: Main Menu

    PART 1 • English 5.0 MAIN MENU All the important settings and features of your receiver can be operated in Main Menu. With Menu off, press MENU key. The MAIN MENU screen will appear. It consists of five sub-menus: "Channel Organiser", "Channel Search", "Installation", "Timer"...

  • Page 13: Channel Search

    PART 1 • English 5.2 Channel Search There are 2 items in the Channel Search menu: Automatic Search and Manual Search 5.2.1 Automatic Search Press OK over the Automatic Search. The warning message “Do you want to start Automatic Search?” will appear. Press LEFT/RIGHT to move the cursor and OK to continue.
  • Page 14 PART 1 • English 5.3.1.3 Country Press OK/RIGHT to select your country, press OK to confirm. If your country is not in the list, select Other. It will apply the most common frequency plan for European countries. 5.3.1.4 Channel Numbering Here you can set the channel list by different number format: Appearing order or Operator defined.
  • Page 15 1. Connect Computer to receiver (receiver must be power off) with a 9-pin cross cable (two females) 2. Download the specially STBload tool for SRT 5220 from www.strong.tv website. 3. Read the instructions how to load new software it to your receiver.

  • Page 16: Timer

    PART 1 • English 5.4 Timer Timer functions control only the VCR SCART output/ 2nd tuner. The TV SCART output/ 1st tuner is “Free” to use during Timer is running. Timer starts 2nd tuner while 1st tuner is in Stand-by mode. Use UP/DOWN buttons to select a timer.

  • Page 17: Other Operations

    PART 1 • English 6.0 OTHER OPERATIONS 6.1 Mosaic In no-menu state, press MOSAIC button. Screen will be divided into nine pictures. Press UP / DOWN/ LEFT / RIGHT keys to choose one of current programs Press P+ / P- keys to view another nine programs Press OK key to return to normal play state and play the selected program Press EXIT key to return normal play state and change nothing 6.2 EPG...

  • Page 18: Troubleshooting

    PART 1 • English A.1 TROUBLESHOOTING Before requesting service, please check the table for a possible cause of the problem. Some simple checks or minor adjustments may restore proper operation. The most common problems are related to cable connections, please disconnect and connect all cables again. If none of the below indicated remedies solve the problem, consult your vendor.

  • Page 19: Specifications

    PART 1 • English Symptom Remedy Audio & video issues TV Picture changes This may happen after a power-cut or disconnection from the power source. colour Your receiver has lost some software settings. Switch off your receiver and on again after a few seconds. If the problem persists, contact your vendor. Blocks in the TV picture The signal is too weak or defective due to e.g.

  • Page 20: Glossary Of Terms

    PART 1 • English Connectors ANT input: IEC Female LOOP IN LOOP OUT TO TV: IEC Male TV SCART: supports RGB, CVBS, Audio Left/Right Output with Volume Control VCR SCART: supports CVBS, Audio Left/Right Output S-VIDEO output (1nd tuner) Coax S/PDIF (Black) Data Interface- serial port: RS-232, 9-Pin D-Sub Male type General Data...
  • Page 21 Environmental Issues ENVIRONMENTAL ISSUES STRONG is committed to reducing the impact of its products on the environment. To maximise the benefits of our design enhancements, your co-operation is required. Electronic product recycling Packaging Do not dispose of this product with your When disposing of this domestic rubbish.
