Hardware Installation SY-6VBA133-B
2. Reset
Plug the Reset push-button cable into the 2-pin Reset header on the
Motherboard. Pushing the Reset button on the front panel will cause the
system to restart the boot-up sequence.

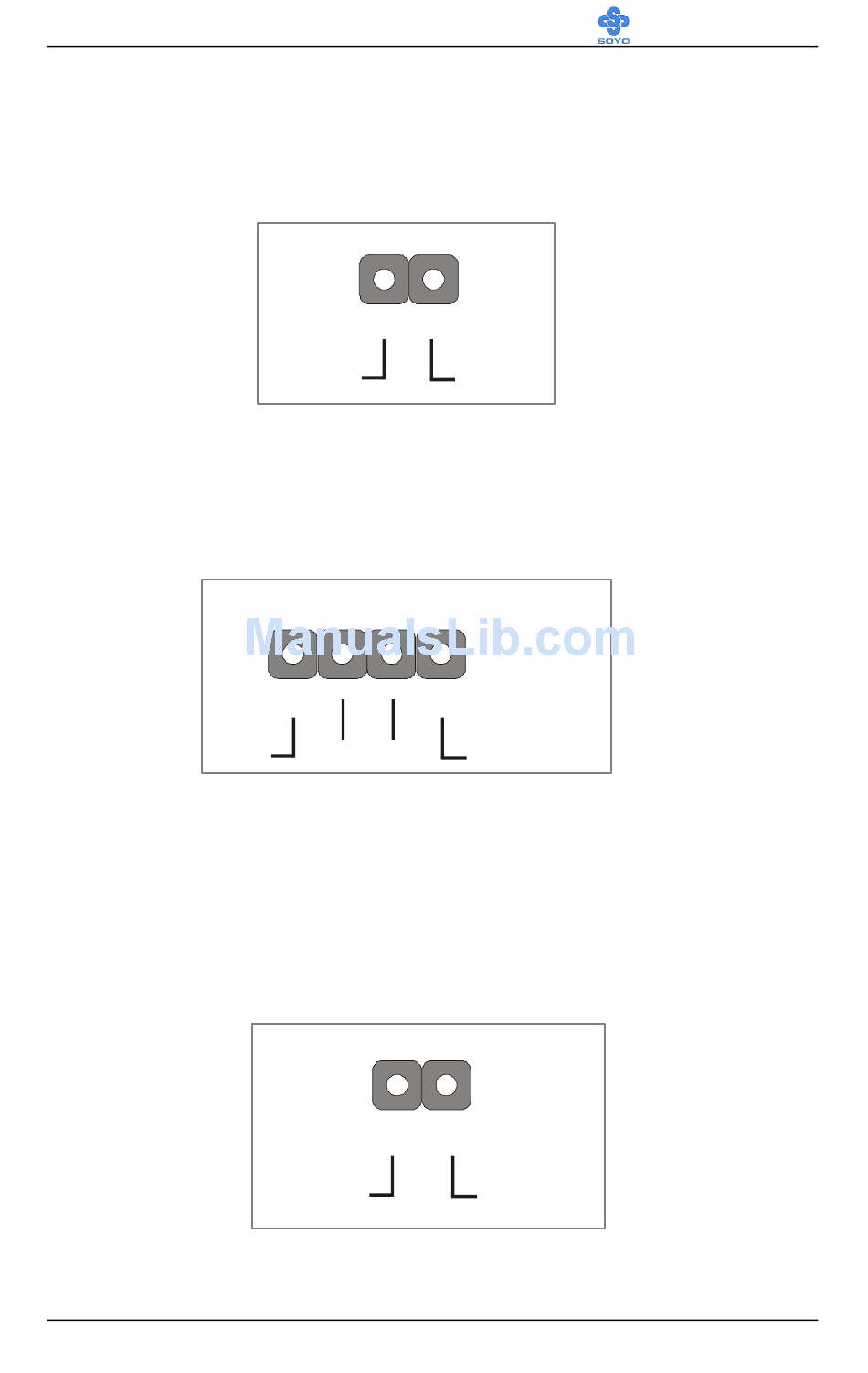

Reset Pin Assignment
1
Power Good GND
3. Speaker
Attach the 4-pin PC speaker cable from the case to the Speaker header on
the Motherboard.
Speaker Pin Assignment
_
+
Speaker out
+5V NC NC
4. Turbo LED
Connecting the 2-pin Turbo LED cable to the corresponding Turbo LED
header will cause the LED to light whenever the system is in Turbo mode.
The manufacturer has permanently set this Motherboard in Turbo mode
due to most hardware and software compliance to turbo mode.
Turbo LED Pin Assignment
_
+
LED Cathode GND
