UBI EasyCoder 201 II – User's Manual
PAPER LOAD, cont'd.

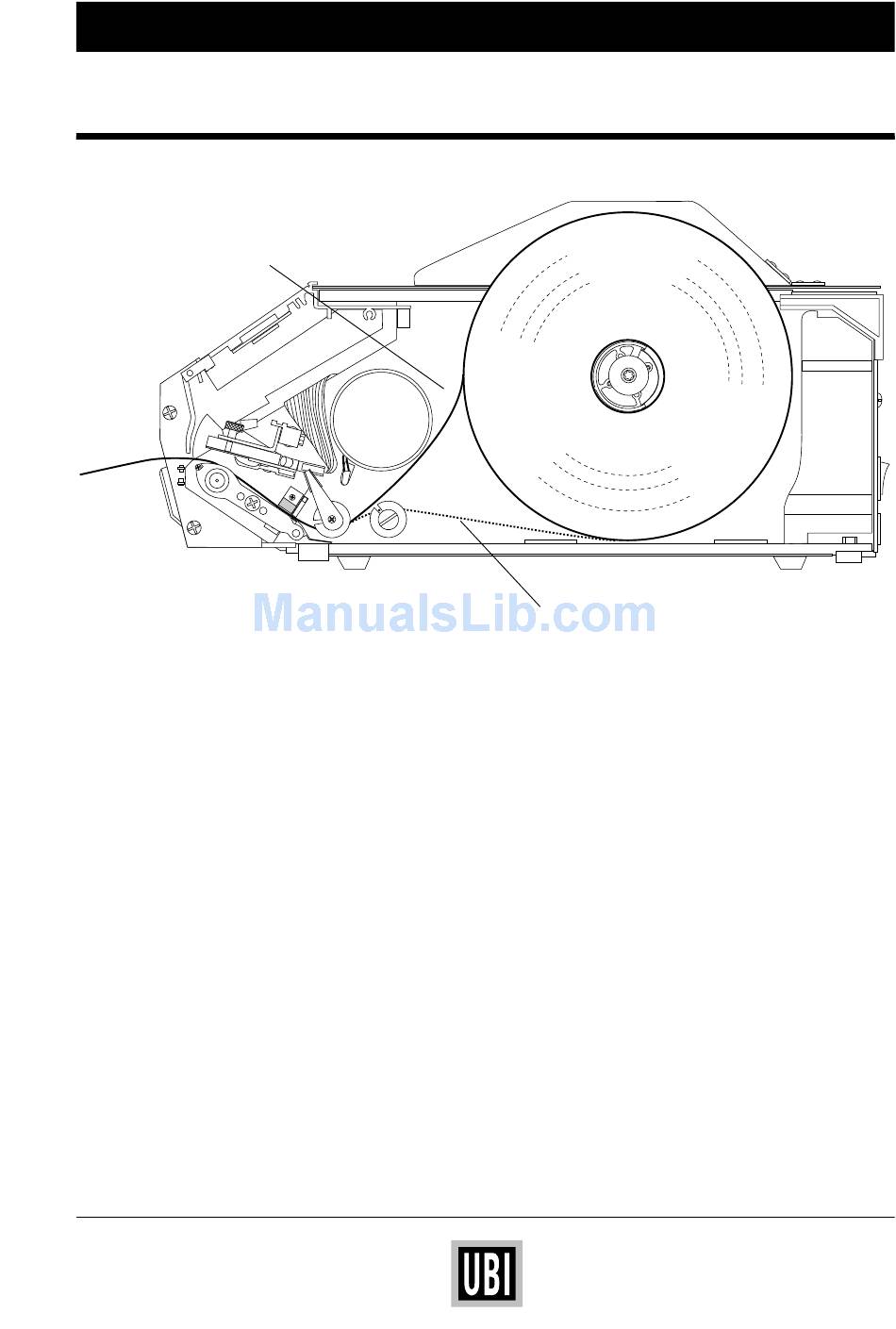

Big Roll

Roll with thermal layer facing outwards
Roll with thermal layer facing inwards
Turn the printhead lift lever counter-clockwise as far as it goes.
1
Fit a new paper roll on the paper supply spool and push the roll
2
inwards as far as it will go. (If necessary, fit the 3" bobbin adapter
onto the paper supply spool and secure it with the screw before
fitting the paper roll).
In case of a paper roll with the thermal layer facing inwards,
3
thread the paper above the guide shaft immediately to the rear of
the printhead lift lever.
Thread the paper underneath shaft of the printhead lift lever and
4
under the upper leg of the label stop sensor.
Thread the paper past the print roller.
5
Adjust the green guide rings on the shafts so that the paper is
6
guided with a minimum of play.
Turn the printhead lift lever clockwise until it snaps into locked
7
position.
Feed out at least one label. To tear off the paper, pull it upwards.
8
8
