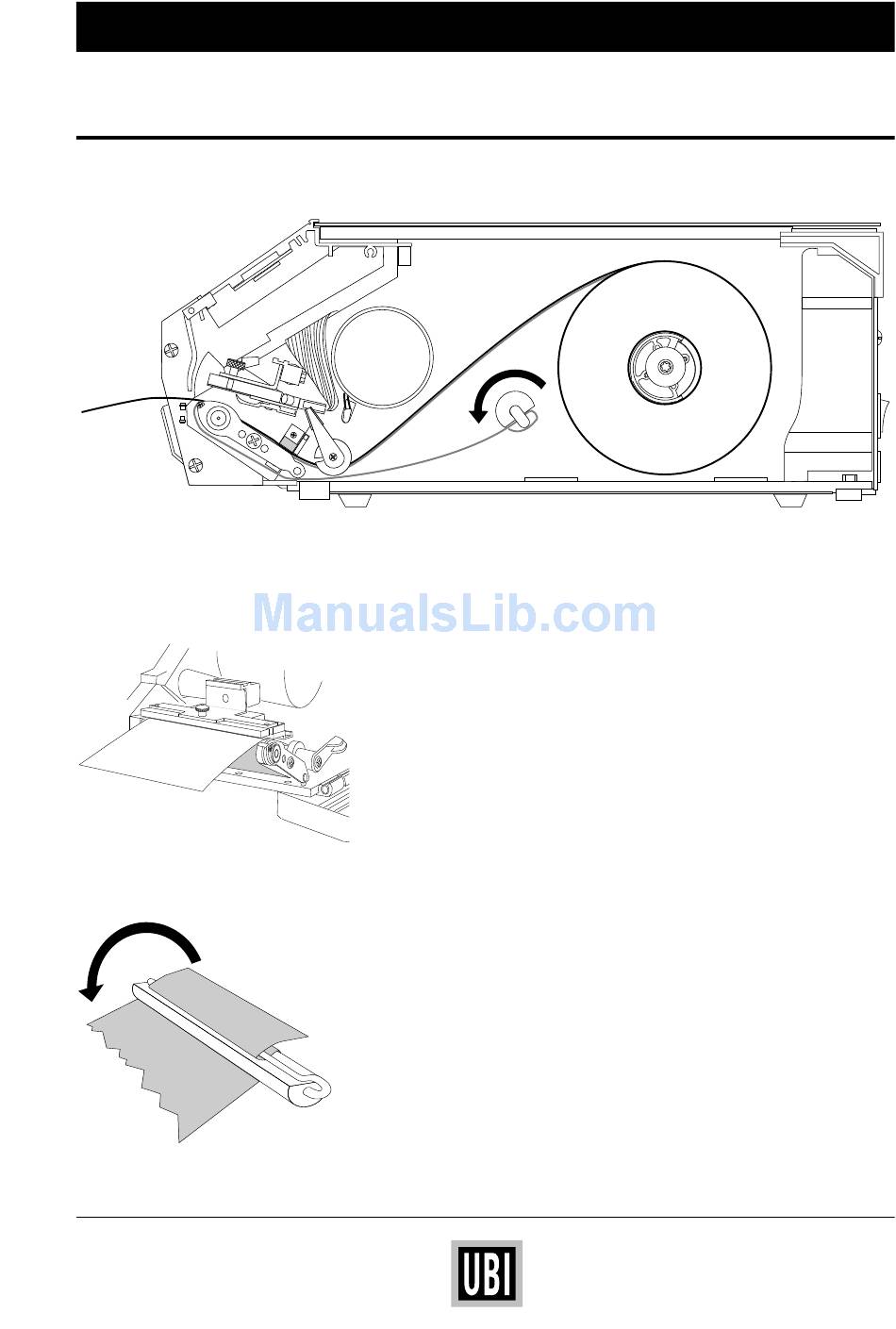

Peel-Off

The dispenser shaft separates the labels
from the backing paper.
Attach the backing paper to the take-up
shaft like this. Then rotate the shaft
c.c.w. a few turns.
Turn the printhead lift lever counter-clockwise as far as it goes.
1
Pull out the green clip on the backing paper take-up and dispose
2
of all wound-up backing paper.
Fit a new paper roll on the paper supply spool and push the roll
3
inwards as far as it will go.
Thread the paper underneath the shaft of the printhead lift lever
4
and under the upper leg of the label stop sensor.
Thread the paper past the print roller.
5
Remove the labels from the first 25 cm (10") of the paper web.
6
Wrap the backing paper around the print roller and dispenser
shaft, as illustrated to the left. Then thread it back under the print
mechanism and the shaft of the printhead lift lever.
Fold the backing paper around the clip on the backing paper
7
take-up as illustrated to the left. The rotate the shaft counter-
clockwise a few turns until the backing paper is firmly attached.
Tighten the paper web and adjust the green guide ring so that the
8
paper is guided with a minimum of play.
Turn the printhead lift lever clockwise until it snaps into locked
9
position.
Feed out at least one label.
10
