GET TO KNOW YOUR PRINTER, cont'd.
Thermal
Printhead
Dispenser Shaft
(optional)
Label Stop Sensor

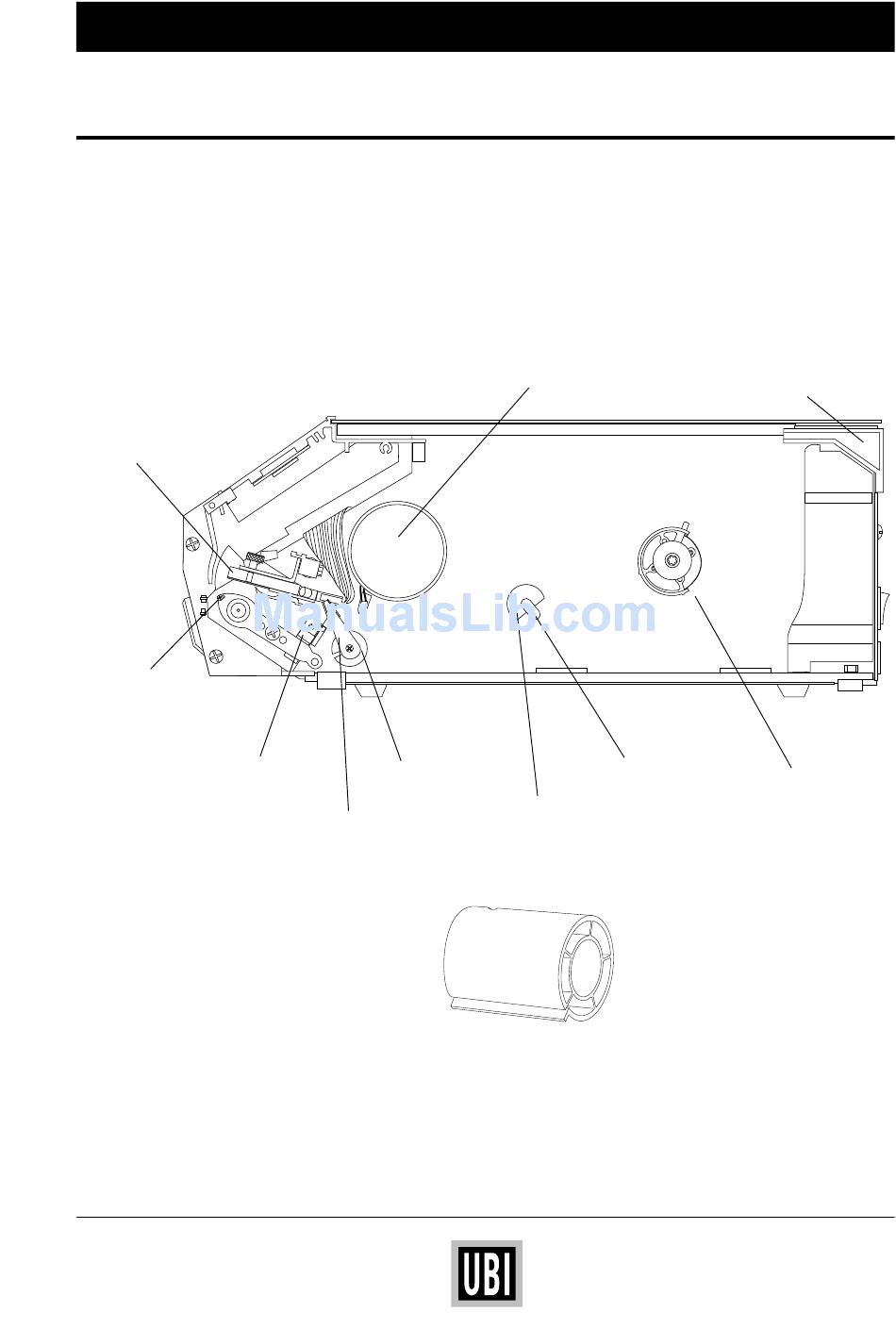

The paper stock compartment becomes accessible when the right-
hand door is swung open. Although the printer is operable when this
door is left opened or completely removed, you are strongly
recommended to keep it closed during normal operation, so as to
prevent the printer mechanism from being exposed to dust.
Guide Ring
Backing Paper Take-Up
Printhead Lift Lever
Adapter for 76 mm (3") core
Motor
Clip
(optional)
External Paper Intake
Paper Supply Spool
5
