UBI EasyCoder 201 II – User's Manual
PAPER LOAD
Tear-Off

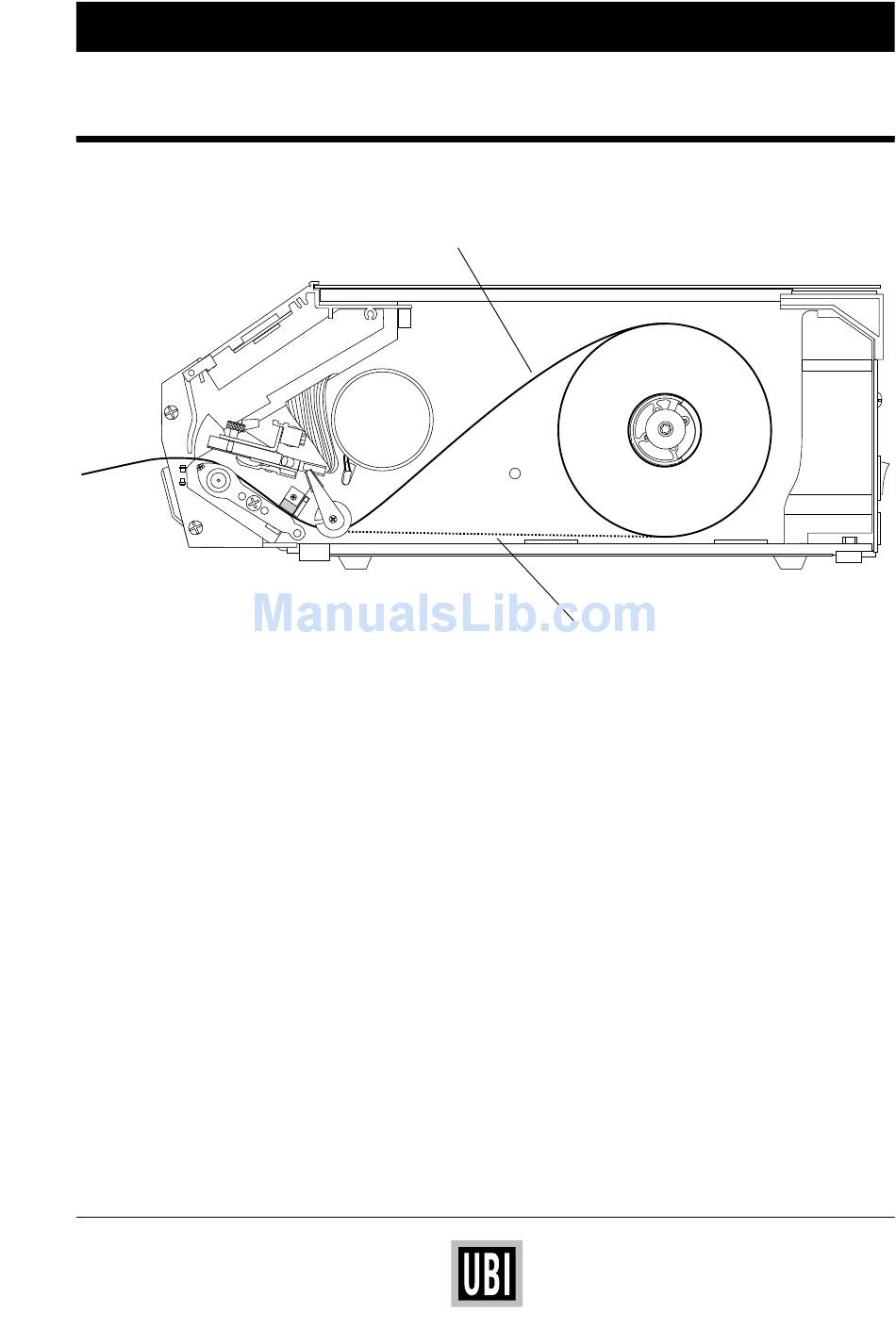

Roll with thermal layer facing outwards
Roll with thermal layer facing inwards
Turn the printhead lift lever counter-clockwise as far as it goes.
1
Fit a new paper roll on the paper supply spool and push the roll
2
inwards as far as it will go.
Thread the paper underneath shaft of the printhead lift lever and
3
under the upper leg of the label stop sensor.
Thread the paper past the print roller.
4
Adjust the green guide ring on the shaft so that the paper is guided
5
with a minimum of play.
Turn the printhead lift lever clockwise until it snaps into locked
6
position.
Feed out at least one label. To tear off the paper, pull it upwards.
7
