Connecting the system
Rear Connectors
Powering up the system
At the front of the case, you can find the neccessary controls like power button, reset button
and the HDD Leds. Press the power button onte time briefly in order to boot the system.
8

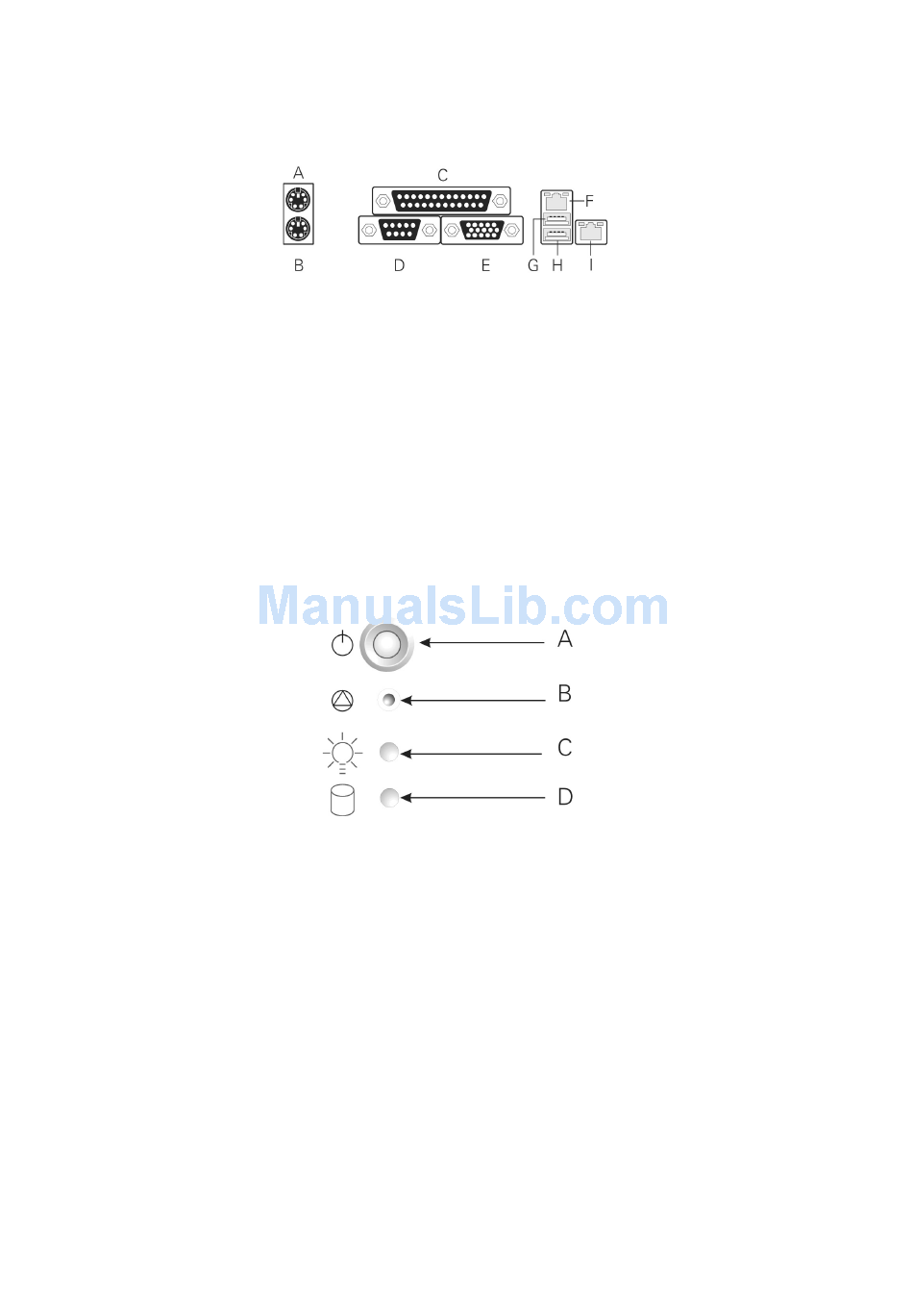

Figure 1. Rear connectors
A. PS/2-Mouse
B. PS/2-Keyboard
C. Parallel port (Parallelport)
D. Serial port A (Serieller Port A)
E. VGA port
Figure 2. The Controls
A. Power switch
B. Reset switch
C. Power LED
D. HDD LED
F.
NIC 1
G. USB-Connector 1
H. USB-Connector 2
I.
NIC 2
Setting up the system
