System Board Connector and Component Locations

A.
PCI expansion slots
B. ATI Rage XL Video Controller
C. Chassis intrusion connector
D. AGP connector
E. Back panel connectors
F.
System fan (fan 2)
G. 12 V auxiliary power connector
H.
µPGA478 processor socket
I. Intel 82845E memory controller hub (MCH)
®
J.
Chassis fan
K. DIMM1 socket
L. DIMM0 socket
M. Serial port B connector
N. Main power connector
10

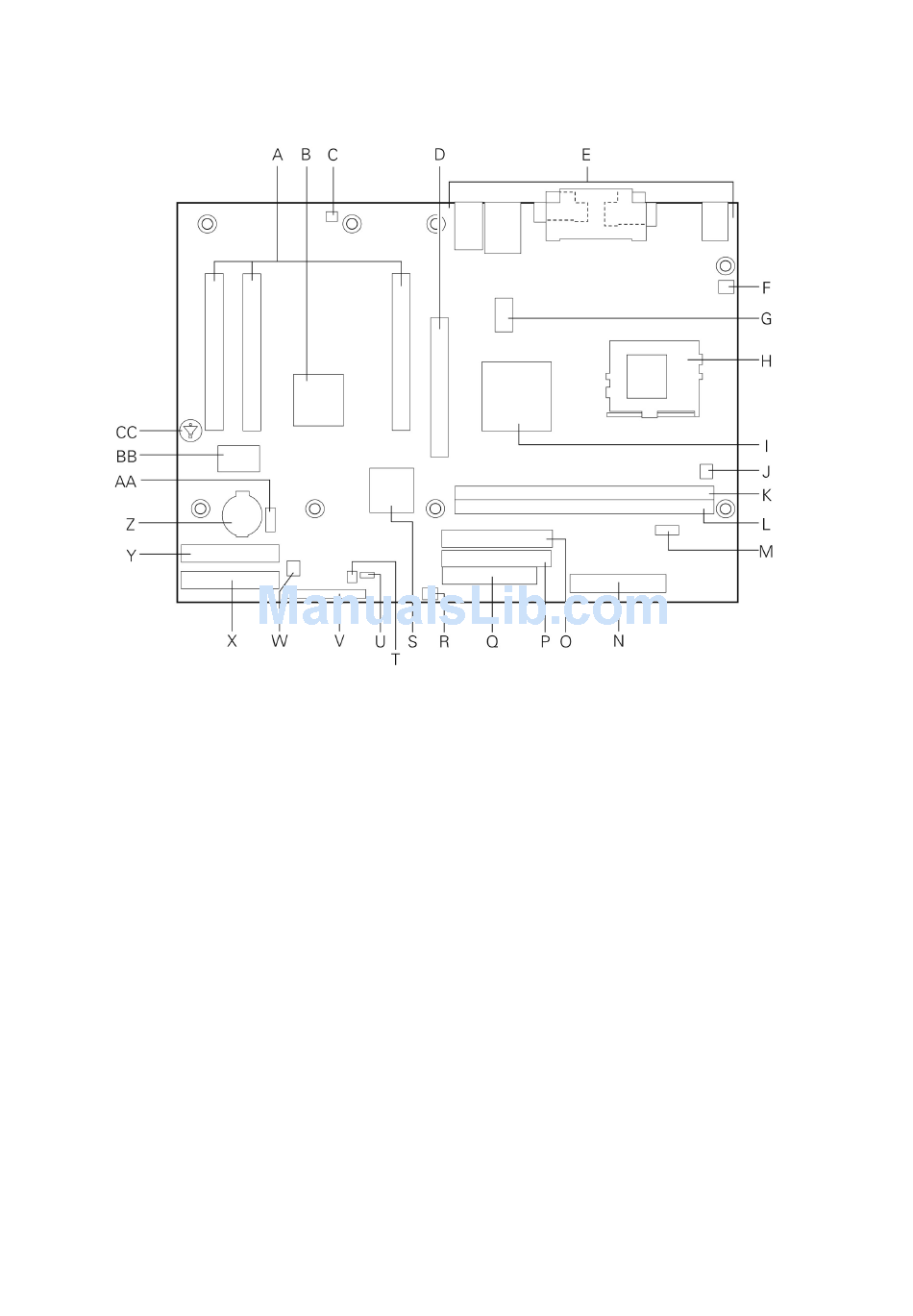

Figure 3. System Board Components
P.
Q.
R.
S.
T.
U.
V.
W.
X.
Y.
Z.
AA. Front panel USB connector
BB.
CC.
Primary IDE connector
Floppy drive connector
System fan (fan 3)
Intel 82801BA I/O controller hub (ICH2)
®
HDD LED connector
Configuration jumper block
Front panel header
System fan (fan 1)
Secondary RAID IDE connector
Primary RAID IDE connector
Battery
Promise ATA RAID controller connector
Speaker
Description
