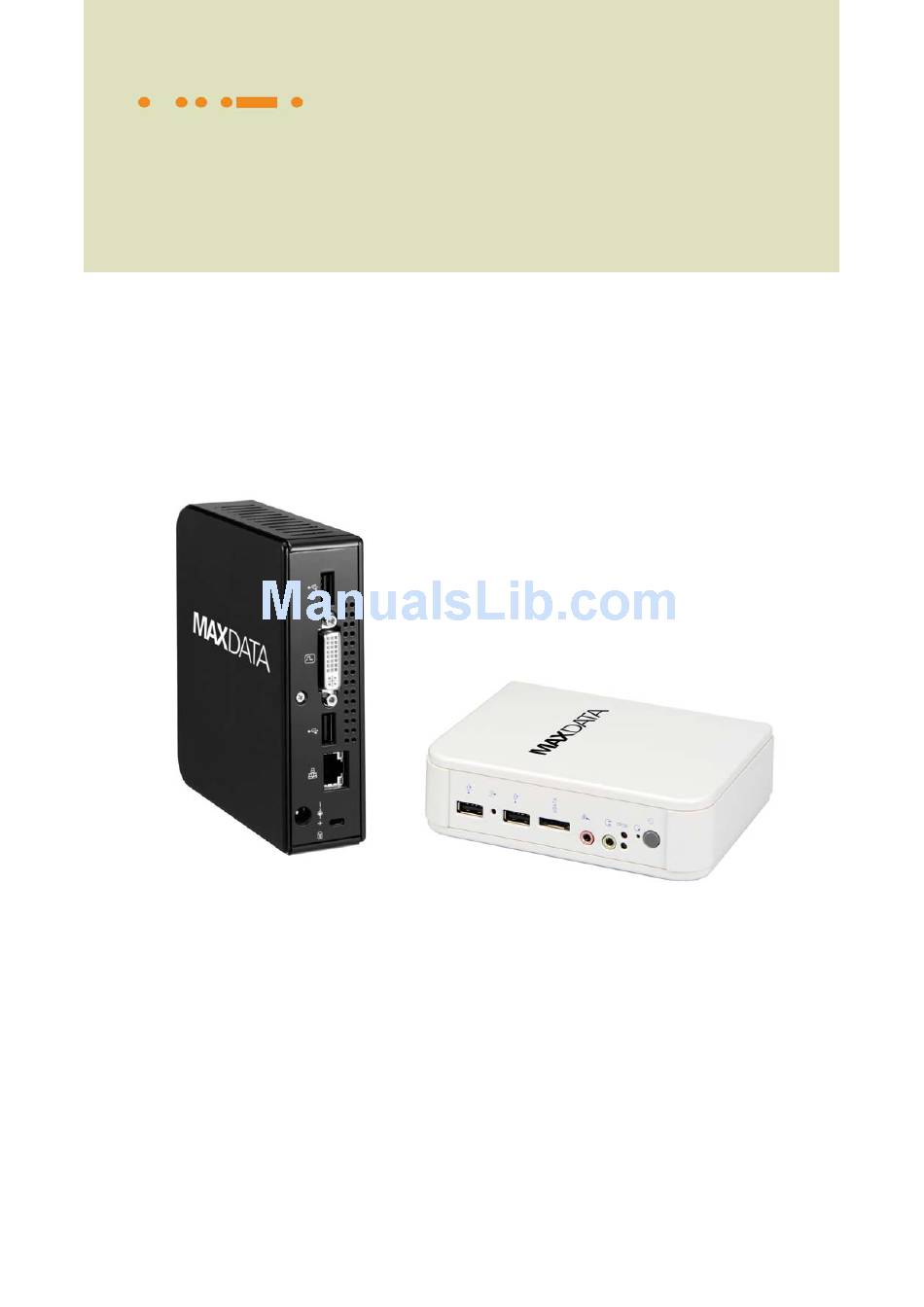

- Page 1 QutePC‐1000 0.6‐Liter mini‐PC with Intel® Atom Processor N270 User’s Guide QutePC‐1000 User’s Manual ...
- Page 2 Contact Info: Quanmax Inc. 5F, No. 415, Ti‐Ding Blvd. Sec. 2, NeiHu District, Taipei, Taiwan 114 Tel: +886‐2‐2799‐2789 Fax: +886‐2‐2799‐7399 Visit our site at: www.quanmax.com © 2009 Quanmax Inc. All rights reserved. The information in this user’s guide is provided for reference only. Quanmax does not assume any liability arising out of the application or use of the information or products described herein. This user’s guide may contain or reference information and products protected by copyrights or patents and does not convey any license under the patent rights of Quanmax, nor the rights of others. Quanmax and MAXDATA are registered trademarks of Quanmax. All trademarks, registered trademarks, and trade names used in this user’s guide are the property of their respective owners. All rights reserved. This user’s guide contains information proprietary to Quanmax. Customers may reprint and use this user’s guide in other publications. Customers may alter this user’s guide and publish it only after they remove the Quanmax name, cover, and logo. Quanmax reserves the right to make changes without notice in product or component design as warranted by evolution in user needs or progress in engineering or manufacturing technology. Changes which affect the operation of the unit will be documented in the next revision of this user’s guide. Revision Date Edited by Changes 1.0 09/07/2009 SLee Initial Release (MAXDATA) ...
-
Page 3: Table Of Contents
Content Content Content............................3 Figures & Tables ......................... 4 Safety Instructions ........................5 Before You Begin ....................5 When Working Inside a Computer..............5 Preventing Electrostatic Discharge ..............6 Instructions for Lithium Battery.................7 Voltage Ratings....................7 Preface ............................8 How to Use This Guide..................8 Unpacking ......................8 Regulatory Compliance Statements..............8 Warranty Policy ....................9 Maintaining Your Computer................10 Chapter 1 Introduction ......................13 Overview ......................13 ... -
Page 4: Figures & Tables
Figures & Tables Figures & Tables Figure 1 Front Panel ....................15 Figure 2 Rear Panel ....................17 Figure 3 Connect the DVI cable................19 Figure 4 Connecting USB mouse & keyboard ............20 Figure 5 Network cable with RJ45 connector ............20 Figure 6 Turing on the system .................21 Figure 7 VESA mounting (1) ..................21 Figure 8 VESA mounting (2) ..................22 Figure 9 Use a Kensington lock ................23 Figure 10 Computer Stand ..................23 Table 1 QutePC‐1000 product specifications ............14 Table 2 BIOS Main Menu..................26 Table 3 IDE Device Setting Menu ................26 Table 4 System Information ..................27 Table 5 Advanced Menu...................27 Table 6 OnBoard Peripherals Configuration Settings ..........28 Table 7 Hardware Health Configuration..............29 Table 8 Boot Menu....................29 Table 9 Chipset Menu ....................30 Table 10 Power Menu ....................31 ... -
Page 5: Safety Instructions
Safety Instructions Safety Instructions Before You Begin Before handling the product, read the instructions and safety guidelines on the following pages to prevent damage to the product and to ensure your own personal safety. Refer to the “Advisories” section in the Preface for advisory conventions used in this user’s guide, including the distinction between Warnings, Cautions, Important Notes, and Notes. Always use caution when handling/operating a computer. Only qualified, experienced, authorized electronics service personnel should access the interior of a computer. The power supplies produce high voltages and energy hazards, which can cause bodily harm. Use extreme caution when installing or removing components. Refer to the installation instructions in this user’s guide for precautions and procedures. If you have any questions, please contact Quanmax Post‐Sales Technical Support. Access can only be gained by service persons or by users who have been instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken; and access is through the use of a tool or lock and key, or other means of security, and is controlled by authority responsible for the location. WARNING High voltages are present inside the chassis when the unit’s power cord is plugged into an electrical outlet. Turn off system power, turn off the power supply, and then disconnect the power cord from its source before removing the chassis cover. Turning off the system power switch does not remove power to components. When Working Inside a Computer Before taking covers off a computer, perform the following steps: Turn off the computer and any peripherals. Disconnect the computer and peripherals from their power sources or subsystems to prevent electric shock or system board damage. This does not apply when hot QutePC‐1000 User’s Manual ... -
Page 6: Preventing Electrostatic Discharge
Safety Instructions swapping parts. Follow the guidelines provided in “Preventing Electrostatic Discharge” on the following page. Disconnect any telephone or telecommunications lines from the computer. In addition, take note of these safety guidelines when appropriate: To help avoid possible damage to system boards, wait five seconds after turning off the computer before removing a component, removing a system board, or disconnecting a peripheral device from the computer. When you disconnect a cable, pull on its connector or on its strain‐relief loop, not on the cable itself. Some cables have a connector with locking tabs. If you are disconnecting this type of cable, press in on the locking tabs before disconnecting the cable. As you pull connectors apart, keep them evenly aligned to avoid bending any connector pins. Also, before connecting a cable, make sure both connectors are correctly oriented and aligned. CAUTION Do not attempt to service the system yourself except as explained in this user’s guide. Follow installation and troubleshooting instructions closely. Preventing Electrostatic Discharge Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. Quanmax strongly encourages you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment. You can also take the following steps to prevent damage from electrostatic discharge (ESD): When unpacking a static‐sensitive component from its shipping carton, do not remove the component’s antistatic packing material until you are ready to install the component in a computer. Just before unwrapping the antistatic packaging, be sure you are at an ESD workstation or grounded. This will discharge any static electricity that may have built up in your body. When transporting a sensitive component, first place it in an antistatic container or packaging. Handle all sensitive components at an ESD workstation. If possible, use antistatic floor pads and workbench pads. Handle components and boards with care. Don’t touch the components or contacts QutePC‐1000 User’s Manual ... -
Page 7: Instructions For Lithium Battery
Safety Instructions on a board. Hold a board by its edges or by its metal mounting bracket. Do not handle or store system boards near strong electrostatic, electromagnetic, magnetic, or radioactive fields. Instructions for Lithium Battery WARNING Danger of explosion when battery is replaced with incorrect type. Only replace with the same or equivalent type recommended by the manufacturer. Do not dispose of lithium batteries in domestic waste. Dispose of the battery according to the local regulations dealing with the disposal of these special materials (e.g. to the collecting points for disposal of batteries) Voltage Ratings The external power adaptor of the QutePC‐1000 has the following voltage ratings: Input: 100‐240 VAC, 50‐60 Hz Output: 30W, +19Vdc, 1.58A Power Supplies: Lite‐On Technology Corp / PA‐1300‐014XX ( X can be A‐Z, 0‐9,”‐“ or blank) Delta Electronics Inc / ADP‐30MH B QutePC‐1000 User’s Manual ... -
Page 8: Preface
Preface Preface How to Use This Guide This guide is designed to be used as step‐by‐step instructions for installation, and as a reference for operation, troubleshooting, and upgrades. NOTE Driver downloads and additional information are available under Downloads on our web site: www.quanmax.com. Unpacking When unpacking, follow these steps: After opening the box, save it and the packing material for possible future shipment. Remove all items from the box. If any items listed on the purchase order are missing, notify Quanmax customer service immediately. Inspect the product for damage. If there is damage, notify Quanmax customer service immediately. Refer to “Warranty Policy” for the return procedure. Regulatory Compliance Statements This section provides the FCC compliance statement for Class B devices. FCC Compliance Statement: This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason able protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radiofrequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to QutePC‐1000 User’s Manual ... -
Page 9: Warranty Policy
Preface try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by Quanmax could void the user's authority to operate the equipment. NOTE The assembler of a personal computer system may be required to test the system and/or make necessary modifications if a system is found to cause harmful interference or to be noncompliant with the appropriate standards for its intended use. Warranty Policy Limited Warranty Quanmax Inc.’s detailed Limited Warranty policy can be found under Support at www.quanmax.com. Please consult your distributor for warranty verification. The limited warranty is void if the product has been subjected to alteration, neglect, misuse, or abuse; if any repairs have been attempted by anyone other than Quanmax or its authorized agent; or if the failure is caused by accident, acts of God, or other causes beyond the control of Quanmax or the manufacturer. Neglect, misuse, and abuse shall include any installation, operation, or maintenance of the product other than in accordance with the user’s guide. No agent, dealer, distributor, service company, or other party is authorized to change, modify, or extend the terms of this Limited Warranty in any manner whatsoever. Quanmax reserves the right to make changes or improvements in any product without incurring any obligation to similarly alter products previously purchased. Return Procedure For any Limited Warranty return, please contact Support at www.quanmax.com and login to obtain a Return Material Authorization (RMA) Number. If you do not have an account, send an email to support@quanmax.com to apply for one. All product(s) returned to Quanmax for service or credit must be accompanied by a Return QutePC‐1000 User’s Manual ... -
Page 10: Maintaining Your Computer
Preface Material Authorization (RMA) Number. Freight on all returned items must be prepaid by the customer who is responsible for any loss or damage caused by common carrier in transit. Returns for Warranty must include a Failure Report for each unit, by serial number(s), as well as a copy of the original invoice showing the date of purchase. To reduce risk of damage, returns of product must be in a Quanmax shipping container. If the original container has been lost or damaged, new shipping containers may be obtained from Quanmax Customer Service at a nominal cost. Quanmax owns all parts removed from repaired products. Quanmax uses new and reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Quanmax repairs or replaces a product, its warranty term is not extended. Shipments not in compliance with this Limited Warranty Return Policy will not be accepted by Quanmax. Limitation of Liability In no event shall Quanmax be liable for any defect in hardware, software, loss, or inadequacy of data of any kind, or for any direct, indirect, incidental, or consequential damages in connection with or arising out of the performance or use of any product furnished hereunder. Quanmax’s liability shall in no event exceed the purchase price of the product purchased hereunder. The foregoing limitation of liability shall be equally applicable to any service provided by Quanmax or its authorized agent. Maintaining Your Computer Environmental Factors Temperature The ambient temperature within an enclosure may be greater than room ambient temperature. Installation in an enclosure should be such that the amount of air flow required for safe operation is not compromised. Consideration should be given to the maximum rated ambient temperature. Overheating can cause a variety of problems, including premature aging and failure of chips or mechanical failure of devices. If the system has been exposed to abnormally cold temperatures, allow a two‐hour warm‐up period to bring it up to normal operating temperature before turning it on. Failure to do so may cause damage to internal components, particularly the hard disk drive. Humidity High‐humidity can cause moisture to enter and accumulate in the system. This QutePC‐1000 User’s Manual ... - Page 11 Preface moisture can cause corrosion of internal components and degrade such properties as electrical resistance and thermal conductivity. Extreme moisture buildup inside the system can result in electrical shorts, which can cause serious damage to the system. Buildings in which climate is controlled usually maintain an acceptable level of humidity for system equipment. However, if a system is located in an unusually humid location, a dehumidifier can be used to maintain the humidity within an acceptable range. Refer to the “Specifications” section of this user’s guide for the operating and storage humidity specifications. Altitude Operating a system at a high altitude (low pressure) reduces the efficiency of the cooling fans to cool the system. This can cause electrical problems related to arcing and corona effects. This condition can also cause sealed components with internal pressure, such as electrolytic capacitors, to fail or perform at reduced efficiency. Power Protection The greatest threats to a system’s supply of power are power loss, power spikes, and power surges caused by electrical storms, which interrupt system operation and/or damage system components. To protect your system, always properly ground power cables and one of the following devices. Surge Protector Surge protectors are available in a variety of types and usually provide a level of protection proportional with the cost of the device. Surge protectors prevent voltage spikes from entering a system through the AC power cord. Surge protectors, however, do not offer protection against brownouts, which occur when the voltage drops more than 20 percent below the normal AC line voltage level. Line Conditioner Line conditioners go beyond the overvoltage protection of surge protectors. Line conditioners keep a system’s AC power source voltage at a fairly constant level and, therefore, can handle brownouts. Because of this added protection, line conditioners cost more than surge protectors. However, line conditioners cannot protect against a complete loss of power. Uninterruptible Power Supply Uninterruptible power supply (UPS) systems offer the most complete protection against variations on power because they use battery power to keep the server QutePC‐1000 User’s Manual ...
- Page 12 Preface running when AC power is lost. The battery is charged by the AC power while it is available, so when AC power is lost, the battery can provide power to the system for a limited amount of time, depending on the UPS system. UPS systems range in price from a few hundred dollars to several thousand dollars, with the more expensive unit s allowing you to run larger systems for a longer period of time when AC power is lost. UPS systems that provide only 5 minutes of battery power let you conduct an orderly shutdown of the system, but are not intended to provide continued operation. Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved. QutePC‐1000 User’s Manual ...
-
Page 13: Chapter 1 Introduction

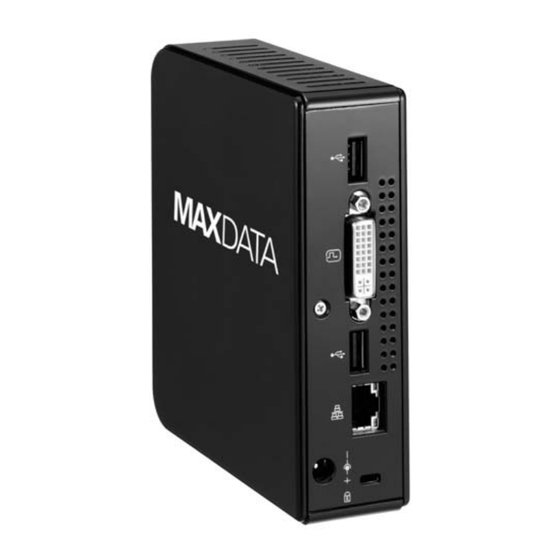

Chapter 1 Chapter 1 Introduction Overview The QutePC‐1000 is a mini PC with a volume of just 0.6‐liter that is ideal for space critical applications. This system is designed with Intel® Atom N270 Processor which provides with excellent performance enabled by next‐ generation 45nm Process Technology. The system is supported with Intel® 945GSE / ICH7‐M chipset, and DDR2 SO‐DIMM up to 2GB. Featured are a 2.5” SATA hard drive bay, eSATA, Audio out, MIC in, GbE, USB 2.0 and DVI‐I. Checklist QutePC‐1000 Power Adapter Power Cord Desktop Stand Driver CD Quick installation Guide Optional VESA Mounting Kit (with 4x M4X6 flat head screws) Features Ultra Quiet, Ultra Small, Ultra‐Low Power Intel® Atom Processor N270 Intel® 945GSE + ICH7‐M Support DDR2 533 SODIMM up to 2GB Support 1x DVI‐I, 1x GbE, 1x 2.5” SATA HDD, 1x eSATA, 4x USB and Audio QutePC‐1000 User’s Manual ... -
Page 14: Product Specifications
Chapter 1 Product Specifications Dimensions 39 x 130 x 115 mm (WxHxD), Weight 650 g CPU/ Chipset Intel® Atom N270 Processor , 945GSE / ICH7‐M RAM 1 x DDR2 533 SO‐DIMM up to 2GB Storage 1 x 2.5” SATA HDD 1x Line‐Out, 1x MIC‐In 1x Push button for power on/off 1x Push button for reset 1x POWER LED Front IO 1x HDD LED 1x Wifi LED 2x USB2.0 1x eSATA connector 1x DC JACK 1x DVI‐I connector for CRT & DVI output Rear IO 2x USB2.0 1x RJ‐45, GbE port Wireless LAN Optional Mini PCIe WI‐FI Card Cooling System Fan Input: 100‐240 VAC, 50‐60 Hz Power Unit Output: 30W, +19Vdc, 1.58A Mounting Desktop, VESA‐mount Certifications CE, FCC Class B ... -
Page 15: System Tour
Chapter 1 System tour Refer to the diagrams below to identify the components of the system. Front Panel Figure 1 Front Panel USB The USB (Universal Serial Bus) port is compatible with USB devices such as keyboards, mouse devices, cameras, and hard disk drives. USB allows many devices to run simultaneously on a single computer, with some peripheral acting as additional plug‐in sites or hubs. WiFi LED When the data is transferring, the WiFi LED will blink. eSATA The eSATA connector provides an external connectivity for mass storage devices. QutePC‐1000 User’s Manual ... - Page 16 Chapter 1 CAUTION This connector do not support hot‐swapping. Users should not connect or disconnect their eSATA devices from PC when the system is working. MIC‐IN The microphone jack is designed to connect the microphone used for video conferencing, voice narrations, or simple audio recordings. Headphone Jack The stereo headphone jack (3.5mm) is used to connect the system’s audio out signal to amplified speakers or headphones. Power LED The power LED will light when the PC is power‐on. HDD LED The hard disk LED blinks when data is being written into or read from the HDD. Reset Button To reset the computer, use the tip of a pen to press the Reset button briefly (for less than three seconds). Power Switch The power switch allows powering ON and OFF the system. QutePC‐1000 User’s Manual ...
-
Page 17: Figure 2 Rear Panel
Chapter 1 Rear Panel Figure 2 Rear Panel USB The USB (Universal Serial Bus) port is compatible with USB devices such as keyboards, mouse devices, cameras, and hard disk drives. USB allows many devices to run simultaneously on a single computer, with some peripheral acting as additional plug‐in sites or hubs. DVI Port The Digital Visual Interface (DVI‐I) port supports a high quality VGA‐compatible device such as a monitor or LCD TV to allow viewing on a larger external display. Ethernet The eight‐pin RJ‐45 LAN port supports a standard Ethernet cable for connection to a local network. QutePC‐1000 User’s Manual ... - Page 18 Chapter 1 DC Jack The supplied power adapter converts AC power to DC for use with this jack. Power supplied through this jack supplies power to the PC. To prevent damage to the PC, always use the supplied power adapter. Kensington Lock Slot The slot is used for attaching a lock‐and‐cable apparatus. Locks are generally secured in place with a key or combination lock attached to a rubberized metal cable. QutePC‐1000 User’s Manual ...
-
Page 19: Chapter 2 Getting Started
Chapter 2 Chapter 2 Getting Started Setting up your PC Connecting the monitor Connect the DVI cable from your display to the DVI port. Figure 3 Connect the DVI cable NOTE To connect a VGA display, you need the DVI to VGA adapter to connect a display with a VGA connector. NOTE When the system reboots without connecting the DVI, there might be no image on screen when you insert the DVI cable. Please pressing <Ctrl>+<Alt>+<F4> simultaneously to show the image on screen. QutePC‐1000 User’s Manual ... -
Page 20: Figure 4 Connecting Usb Mouse & Keyboard
Chapter 2 Connecting USB mouse & keyboard Your QutePC‐1000 does not come with a keyboard and mouse, but you can use any USB keyboard or mouse with your computer. Figure 4 Connecting USB mouse & keyboard NOTE Using a third‐party USB mouse or keyboard may require software drivers. Check the manufacturer’s website for the latest software drivers. Connecting to a network device Connect one end of a network cable to the LAN port on the system rear panel and the other end to a hub or switch. Figure 5 Network cable with RJ45 connector QutePC‐1000 User’s Manual ... -
Page 21: Mounting Your Pc To A Monitor
Chapter 2 Turning on the system Connect the power adapter cable to the DC jack (DC IN) of the QutePC‐1000 Connect the power cable to the power adapter Connect the power cable to a power outlet Press the power switch on the front panel to turn on the system Figure 6 Turing on the system Mounting your PC to a monitor Secure the VESA mounting kit to your monitor with four screws. Figure 7 VESA mounting (1) NOTE To fasten the metal shelf, your monitor must comply with VESA75 or VESA100 standard. The VESA mounting kit is optional. QutePC‐1000 User’s Manual ... -
Page 22: Figure 8 Vesa Mounting (2)
Chapter 2 Place the QutePC‐1000 on the VESA mounting bracket. Make sure the air vents are hooked by the VESA mounting bracket and QutePC‐1000 is solidly secured to the display. Figure 8 VESA mounting (2) NOTE When mounting the unit on the wall with a display. The total weight of the unit and display won’t exceed 7 Kg. VESA Mounting Kit Dimension QutePC‐1000 User’s Manual ... -
Page 23: Anti-Theft Protection With A Kensington Lock
Chapter 2 Anti‐theft protection with a Kensington Lock The QutePC‐1000 has a Kensington lock slot for the Kensington MicroSaver. With the Kensington MicroSaver, a sturdy steel cable, you can attach your QutePC‐1000 to a stationary object and protect your PC from theft. Figure 9 Use a Kensington lock Computer Stand Use the stand to position the computer to your preference and for stability to the computer. Please do not block the ventilation holes and be sure to leave sufficient space around the unit for ventilation. Figure 10 Computer Stand QutePC‐1000 User’s Manual ... - Page 24 Chapter 2 Computer Stand Dimension QutePC‐1000 User’s Manual ...
-
Page 25: Chapter 3 Ami Bios Setup
Chapter 3 Chapter 3 AMI BIOS Setup Overview This chapter provides a description of the AMI BIOS. The BIOS setup menus and available selections may vary from those of your product. For specific information on the BIOS for your product, please contact Quanmax. NOTE: The BIOS menus and selections for your product may vary from those in this chapter. For the BIOS manual specific to your product, please contact Quanmax AMI's ROM BIOS provides a built‐in Setup program, which allows the user to modify the basic system configuration and hardware parameters. The modified data will be stored in a battery‐backed CMOS, so that data will be retained even when the power is turned off. In general, the information saved in the CMOS RAM will not need to be changed unless there is a configuration change in the system, such as a hard drive replacement or when a device is added. It is possible for the CMOS battery to fail, which will cause data loss in the CMOS only. If this happens you will need to reconfigure your BIOS settings. QutePC‐1000 User’s Manual ... -
Page 26: Main Menu
Chapter 3 Main Menu The BIOS Setup is accessed by pressing the DEL key after the Power‐On Self‐Test (POST) memory test begins and before the operating system boot begins. Once you enter the BIOS Setup Utility, the Main Menu will appear on the screen. The Main Menu provides System Overview information and allows you to set the System Time and Date. Use the “<” and “>” cursor keys to navigate between menu screens. Table 2 BIOS Main Menu BIOS SETUP UTILITY A d v a n c e d B o o t C h i p s e t P o w e r S e c u r i t y E x i t M a i n System Date... -
Page 27: Advanced Menu
Chapter 3 previously formatted with LBA mode disabled. Options: Disabled, Auto DMA Mode [Auto] Options: Auto S.M.A.R.T [Auto] SMART stands for Smart Monitoring, Analysis, and Reporting Technology. It allows AMIBIOS to use the SMART protocol to report server system information over a network. Options: Auto, Disabled, Enabled Table 4 System Information BIOS SETUP UTILITY A d v a n c e d B o o t C h i p s e t P o w e r S e c u r i t y E x i t M a i n... -
Page 28: Table 6 Onboard Peripherals Configuration Settings
Chapter 3 Table 6 OnBoard Peripherals Configuration Settings BIOS SETUP UTILITY M a i n B o o t C h i p s e t P o w e r S e c u r i t y E x i t A d v a n c e d OnBoard Peripherals Configuration Settings Options USB Controller... -
Page 29: Boot Menu
Chapter 3 Table 7 Hardware Health Configuration BIOS SETUP UTILITY M a i n B o o t C h i p s e t P o w e r S e c u r i t y E x i t A d v a n c e d Hardware Health Configuration Disabled 80°C/176°F... -
Page 30: Chipset Menu
Chapter 3 Bootup Num‐Lock [On] Allow you to select the power‐on state for the NumLock. Options: Off, On Wait for ‘F1’ If Error [Enabled] When set to Enabled, the system waits for F1 key to be pressed when error occurs. Options: Disabled, Enabled Hit ‘DEL’ Message Display [Enabled] When set to Enabled, the system displays the message ‘Press DEL to run Setup’ during POST. Options: Disabled, Enabled Chipset Menu Table 9 Chipset Menu BIOS SETUP UTILITY M a i n A d v a n c e d B o o t P o w e r S e c u r i t y E x i t C h i p s e t Chipset Settings... -
Page 31: Power Menu
Chapter 3 Power Menu Table 10 Power Menu BIOS SETUP UTILITY M a i n A d v a n c e d B o o t C h i p s e t S e c u r i t y E x i t P o w e r Power Management Setting... -
Page 32: Security Menu
Chapter 3 Security Menu Table 11 Security Menu BIOS SETUP UTILITY M a i n A d v a n c e d B o o t C h i p s e t P o w e r E x i t S e c u r i t y Security Setting Install or Change the password. - Page 33 Chapter 3 Save Changes and Exit Exit system setup after saving the changes. Once you are finished making your selections, choose this option from the Exit menu to ensure the values you selected are saved to the CMOS RAM. The CMOS RAM is sustained by an onboard backup battery and stays on even when the PC is turned off. When you select this option, a confirmation window appears. Select [Yes] to save changes and exit. Discard Changes and Exit Exit system setup without saving any changes. Select this option only if you do not want to save the changes that you made to the Setup program. If you made changes to fields other than system date, system time, and password, the BIOS asks for a confirmation before exiting. Discard Changes Discards changes done so far to any of the setup values. This option allows you to discard the selections you made and restore the previously saved values. After selecting this option, a confirmation appears. Select [Yes] to discard any changes and load the previously saved values. Load Optimal Defaults Load Optimal Default values for all the setup values. This option allows you to load optimal default values for each of the parameters on the Setup menus, which will provide the best performance settings for your system. The F9 key can be used for this operation. Load Failsafe Defaults Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation. QutePC‐1000 User’s Manual ...
-
Page 34: Chapter 4 Driver Installation
Chapter 4 Chapter 4 Driver Installation If your QutePC‐1000 does not come with an operating system pre‐installed, you will need to install an operating system and the necessary drivers to operate it. After you have finished assembling your system and connected the appropriate power source, power it up using the power supply and install the desired operating system. You can download the drivers for the QutePC‐1000 from the Quanmax website at www.quanmax.com and install as instructed there. For other operating systems, please contact Quanmax. QutePC‐1000 User’s Manual ... -
Page 35: Chapter 5 Faq & Troubleshooting
Chapter 5 Chapter 5 FAQ & Troubleshooting Frequently asked questions Q1: How to change Boot device from HDD to other bootable devices? A1: When seeing POST message, press “F11” to load BBS table then to select the bootable device you plug in. Q2: How to use the e‐SATA device in QutePC‐1000? A2: The e‐SATA connector for QutePC‐1000 is not support hot‐plug device, you have to plug in before you boot the system. Please note if you’re using 3.5” HDD, please provide extra power input for the HDD. Q3: How to set the WOL (Wake on LAN) function? A3: WOL function is the default support in QutePC‐1000 so you don’t do any modification setting in QutePC‐1000 BIOS. Q4: How much current provided from QutePC‐1000 USB ports? A4: 500mA QutePC‐1000 User’s Manual ... -
Page 36: Troubleshooting
Chapter 5 Troubleshooting 1. System could not power on or power off by pressing power button 1.1. Check all power connections. 1.2. Make sure DC input existed but Status‐LED of adapter didn’t be lighted, the adapter NG. 1.3. If you could not press the power button, its function is fail. 1.4. If power button could be pressed but Power‐LED of QutePC‐1000 didn’t be lighted, the power button fail. 1.5. If Power‐LED of QutePC‐1000 lighted and the system could not power off after keep pressing the power button 4 seconds, the power button fail. 2. When system boot and you could hear the beep sound, you couldn’t see the any image. 2.1. Check the display power is in “Power On” status. 2.2. Check the display connector type. 2.3. Check the display connection between system and display device 2.4. If you used the DVI‐I to D‐Sub Adapter, check the connection and its status. 2.5. If you could see POST message but you couldn’t see any image on display when entering Microsoft OS. Make sure already login OS. Press “Ctrl+Alt+F1” for D‐Sub connector Display (Using DVI‐I to D‐Sub Adapter), Press “Ctrl+Alt+F4” for DVI‐I connector Display (Please make sure your system runs in auto‐login mode!) 3.
