Connecting The System; Rear Connectors; Rear Connectors; Powering Up The System - MAXDATA Workstation Fusion 7000 User Manual

Connecting the system

Rear Connectors

A.
B.
C.
D.
E.

Powering up the system

At the front of the case, you can find the neccessary controls like power button, reset button and the
HDD Leds. Press the power button onte time briefly in order to boot the system.
8
�
� �

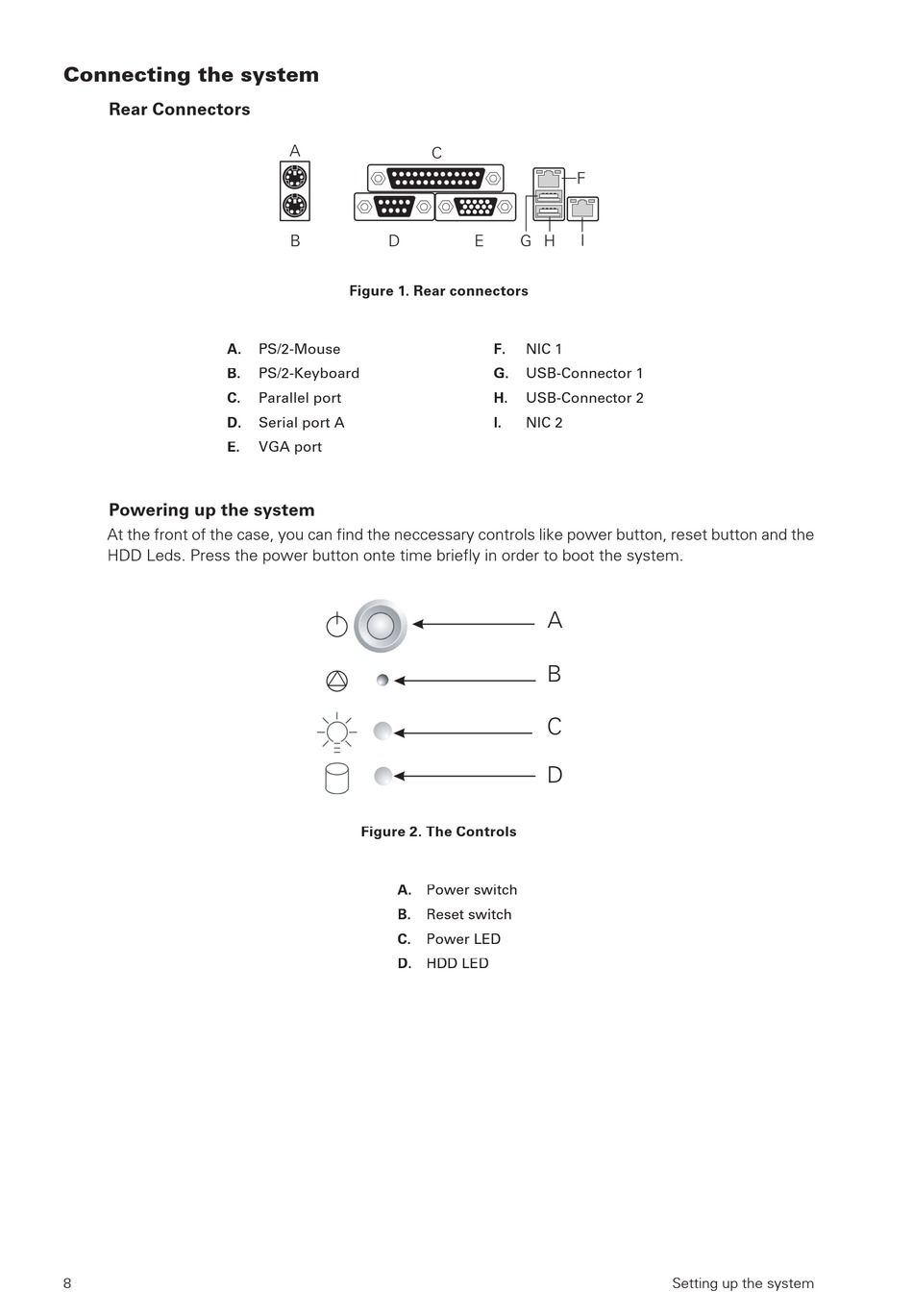

Figure 1. Rear connectors
PS/2-Mouse
PS/2-Keyboard
Parallel port
Serial port A
VGA port
Figure 2. The Controls
A. Power switch
B. Reset switch
C. Power LED
D. HDD LED
�
�
� � � �
F. NIC 1
USB-Connector 1
G.
H. USB-Connector 2
I. NIC 2
�
�
�
�
