SYSTEM OVERVIEW

THE DATA / FAX MODEM

The system automatically sets up the integrated analog modem. To use
the modem functions, connect the modem socket to an analog
telephone socket (not ISDN) using the telephone cable.
Proper Use:
The modem can be connected to all analog sockets (TBR 21) in Europe.
It is to be used solely for data communication purposes.
Do not attempt to connect the
modem to an ISDN telephone
socket! This would result in serious
damage to the device.

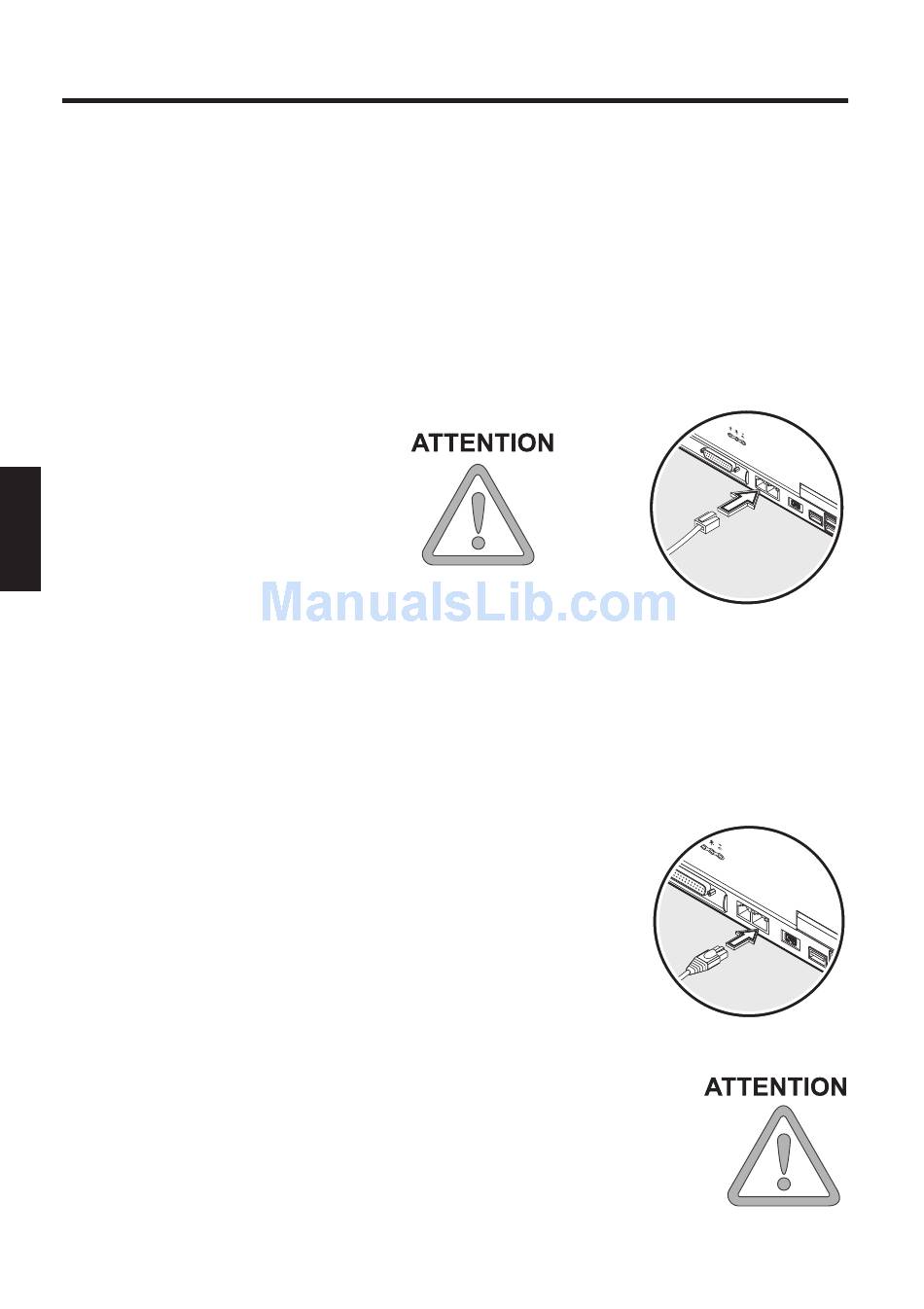

Fig. 21

THE LAN-PORT

The built-in network adapter enables your
computer to connect to the Internet via a 10/100
Mbps network or DSL.
The connection is made via an Ethernet network
cable and RJ45 connectors. These are inserted
on the back of the computer and into an available
Fig.22
network hub or DSL socket.
Under no circumstances should you confuse a network cable RJ45
connector with an ISDN connector! NEVER attempt to connect the
LAN adapter to an ISDN telephone socket!
This would result in serious damage to the device.
