Installation Instructions / Warranty
Raindance Showerpanel
27005XX1

Advertisement

Table of Contents
loading

Related Manuals for Hans Grohe Raindance S 27005XX1

Summary of Contents for Hans Grohe Raindance S 27005XX1

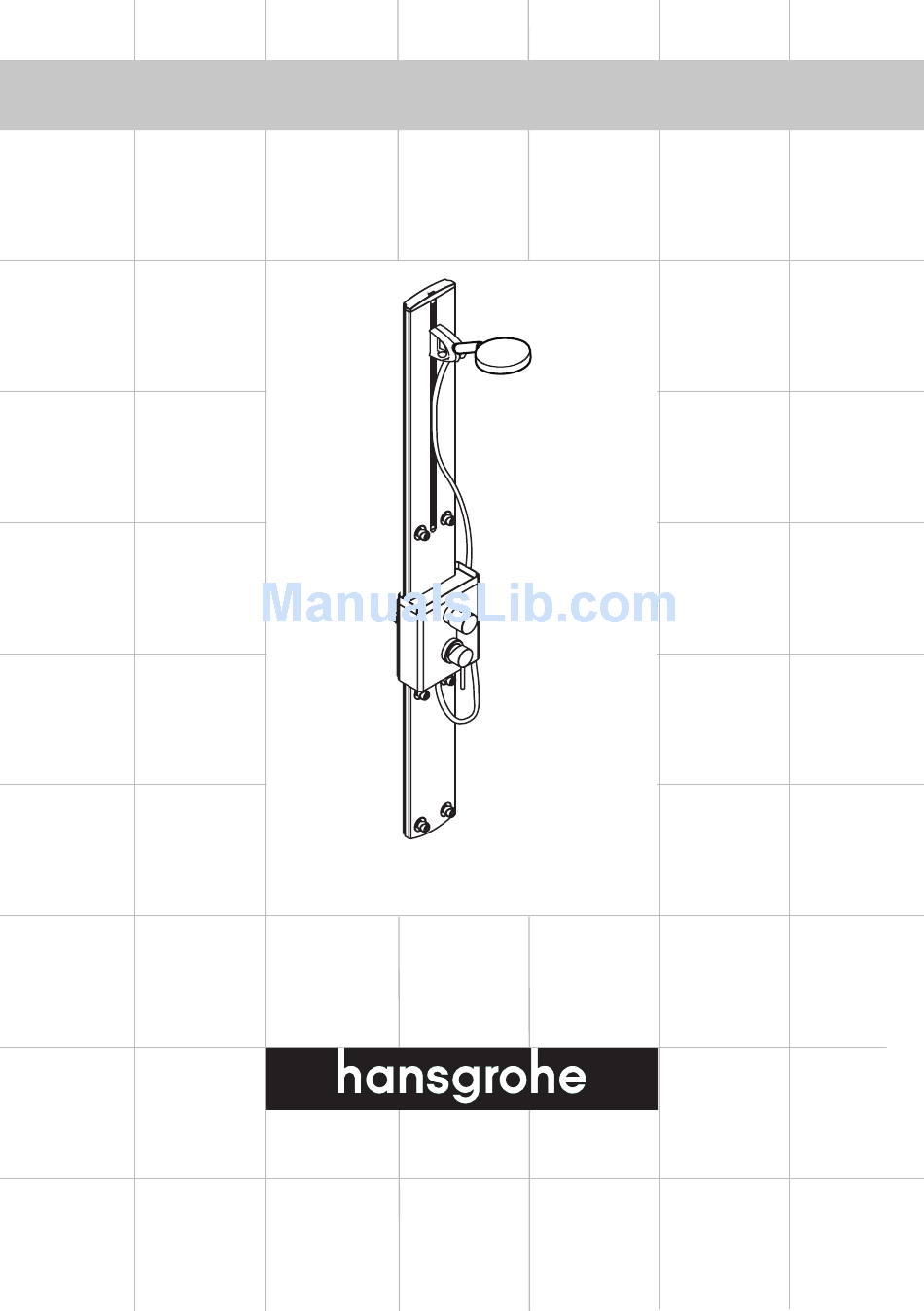

  • Page 1 Installation Instructions / Warranty Raindance Showerpanel 27005XX1...
  • Page 2 Raindance Showerpanel 27005XX1...

  • Page 3: Technical Data

    Technical Data Operating pressure: Recommended pressure: Test pressure: Max. hot water temp.: Recommended hot water temp.: 120°F - 140°F* Flow rate @ 45 psi Handshower Bodysprays Protection against back siphonage is provided by check valves in the hot and cold supply elbows.

  • Page 4: Preparation For Installation

    Preparation for Installation Install 1/2” IPS nipples for the hot and cold water supplies at the locations shown on the diagram. The nipples should extend 5/8” outside the surface of the finish wall. For proper operation of the unit, the hot supply should be on the left, and the cold supply should be on the right.

  • Page 5: Installation

    Installation Wrap the nipples with several layers of Teflon tape. Install the elbows included with the panel. The outlets should point downwards. The elbow should extend no more than 1 1/4” from the surface of the finished wall. With a helper holding the panel in place, mark the positions of the screw holes.
  • Page 6 Drill the screw holes with a 6 mm bit suitable for the wall surface. Install the anchors. Seal the wall around the anchors with water- proof sealant. Hold the panel against the wall. Install the gray plastic insert. Insert the top screw through the front of the panel, the washer and the insert.
  • Page 7 Install the center and bottom screws and washers. Connect the supply hoses to the hot and cold supply elbows. Connect the supply hoses to the hot and cold inlet ports on the valve. Turn the water on at the main. Push the diverter stem up to turn the water on to the panel.
  • Page 8 Once you ensure that the connections are water- tight, push the diverter stem down to turn the water off to the panel. Install the side seals on the front cover. Trim off any excess. Push the front cover into place. Install the diverter sleeve.
  • Page 9 Install the diverter handle. Tighten the set screw with a 4 mm Allen wrench. Place a black rubber washer in one end of the handshower hose. Screw this end of the hose to the handshower outlet port. Place the screen washer in the other end of the hose. Screw this end of the hose to the handshower.
  • Page 10 Justify the Thermostatic Mixer Handle Turn the water on to the handshower. Turn the thermostatic mixer handle until the output water measures 100 on a ther- mometer. Turning the handle clockwise makes the water cooler, counter-clockwise makes the water warmer. Turn the water off.

  • Page 11: User Instructions

    Turn the water on to the handshower. Turn the temperature control stem until the output water is the desired maximum high temperature -- usually 110 *. Turn the water off. *Please know and follow all applicable local plumbing codes when setting the high temperature limit stop.
  • Page 12 Using the Diverter Pull the lever upward to turn the water on. Pivot the handle to the desired function. There are five functions: Alll-around shower (handshower and 4 lower bodysprays) 2 upper bodysprays Handheld shower 4 lower bodysprays Full-body massage (all 6 bodysprays)

  • Page 13: Scale Removal

    Using the 3-Jet Handshower To change spray modes, push the selector lever until the desired spray is achieved. selector lever Scale Removal The Raindance Air -jet handshower incorporates the Rubit cleaning system. If scale deposits are noticed in the spray channels, turn the water on lightly and rub the spray channels with a finger or a sponge.
  • Page 14 Rinse the handshower with clear water. Reinstall the handshower. Turn on the water and allow the handshower to flush for at least one minute.

  • Page 15: Troubleshooting

    Troubleshooting Problem Insufficient water Crossflow, hot water being forced into cold water pipe, or vice versa, when mixer is closed Output temperature does not cor- respond with temperature set Temperature regulation not pos- sible Safety stop override button not operating Diverter control stiff Possible Cause - Supply pressure inadequate...
  • Page 16 2x2 2x2,5 25x2...

  • Page 17: Replacement Parts

    Replacement Parts handshower slider handshower hose, 6” upper cover escutcheon body shower diverter handle thermostatic mixer handle flange 10 front cover 11 sleeve 12 adapter for handle 1 thermostat cartridge 14 nut 15 diverter cartridge 16 sealing set 17 connection hose 18 fixing set for hose connection 1 mounting set 20 elbow (2)

  • Page 18: Limited Lifetime Consumer Warranty

    Cleaning Recommendation for Hansgrohe Products Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning.
  • Page 19 including, without limitation, a commercial purpose, this warranty extends only (i) for 1 year, with respect to Hansgrohe and Commercial products, and (ii) for 5 years, with respect to AXOR products. THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR: Conditions, malfunctions or damage not resulting from defects in material or workmanship.
  • Page 20 Hansgrohe, Inc. • 140 Bluegrass Lakes Parkway • Alpharetta, GA 0004 Tel. 770 60-880 • Fax 770 60 887 www.hansgrohe-USA.com...
