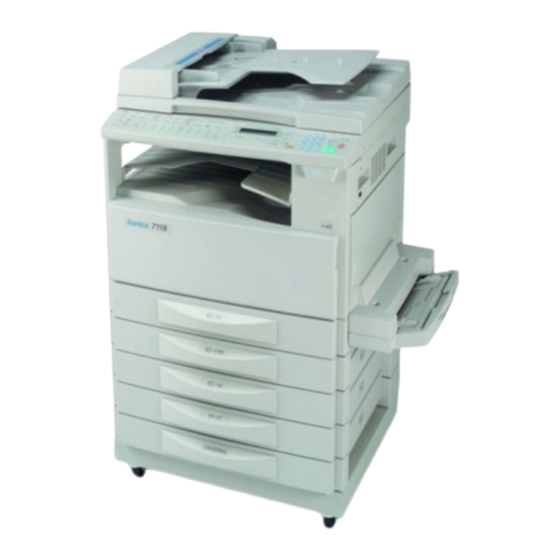

Konica Minolta 7115 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Konica Minolta Manuals
  4. Copier
  5. 7115
  6. Operating instructions manual

Konica Minolta 7115 Operating Instructions Manual

Hide thumbs Also See for 7115:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , User Manual
Contents
Contents
1
1.1
We Want You to Be a Satisfied Customer ..................................1-1
CE Marking (Declaration of Conformity) .........................................1-1
1.2
SAFETY INFORMATION................................................................1-2
Warning and Precaution Symbols...................................................1-2
Meaning of Symbols........................................................................1-2
WARNING.......................................................................................1-3
CAUTION ........................................................................................1-4
Precautions for Routine Use ...........................................................1-5
1.3
Safety Information.........................................................................1-6
Laser Safety ....................................................................................1-6
Internal Laser Radiation ..................................................................1-6
LED Radiation Safety......................................................................1-8
Ozone Release ...............................................................................1-8
Acoustic Noise ................................................................................1-8
1.4
About the User Manual .................................................................1-9
Explanation of Manual Conventions................................................1-9
[ ] key...............................................................................................1-9
1.5
Explanation of Basic Concepts and Symbols ..........................1-10
Paper Feeding...............................................................................1-10
Paper Orientation ..........................................................................1-11
2
2.1
Installation Precautions................................................................2-1
Installation site ................................................................................2-1
Power source ..................................................................................2-1
Space Requirements.......................................................................2-2
2.2
Operation Precautions..................................................................2-3
Operating Environment ...................................................................2-3
Proper Use ......................................................................................2-3
Transporting the Copier ..................................................................2-4
Care of Copier Supplies ..................................................................2-4
2.3
Legal Restrictions on Copying ....................................................2-5
3
Konica 7115/7118
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7115 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Konica Minolta 7115

Summary of Contents for Konica Minolta 7115

  • Page 1: Table Of Contents

    Paper Orientation ................1-11 Precautions Installation Precautions..............2-1 Installation site ................2-1 Power source ..................2-1 Space Requirements...............2-2 Operation Precautions..............2-3 Operating Environment ..............2-3 Proper Use ..................2-3 Transporting the Copier ..............2-4 Care of Copier Supplies ..............2-4 Legal Restrictions on Copying ............2-5 Before Making Copies Konica 7115/7118...
  • Page 2 Mixed Originals................4-4 Place the Original on the Original Glass ........4-6 Precautions for Placing the Original on the Original Glass..... 4-6 How to position a sheet original............4-7 Highly Transparent Originals ............4-8 Books....................4-9 Making Copies Konica 7115/7118...
  • Page 3 Output Priority .................7-7 Crisscross Mode ................7-7 4in1 Copy Order................7-7 Book Binding Position ..............7-7 Margin Setting .................7-7 Erase Setting (Left, Top, and Frame)..........7-8 Auto Panel Reset ................7-8 Power Save..................7-8 Auto Shut OFF ................7-8 Density (ADF)..................7-8 Printer Density.................7-8 Paper Auto Detection ..............7-9 Konica 7115/7118...
  • Page 4 When This Type of Copy is Produced ........9-1 When the Copier is not Operating Correctly......9-4 10 Appendix 10.1 Specifications ................10-1 Copier Konica 7115/7118 ............. 10-1 Automatic Document Feeder DF-217........... 10-3 Paper Feed Unit PF-121............... 10-3 Shifting Unit IS-101............... 10-4 Job Separator IT-102..............10-4 Multiple Bypass Tray MT-102............
  • Page 5 Contents Function Combination Table ............10-6 Conditions for Combined Functions..........10-6 10.4 List of Paper Sizes and Zoom Ratios ........10-7 Paper Sizes...................10-7 Zoom Ratios (Original Size to Paper Size) ........10-8 Konica 7115/7118...
  • Page 6 Contents Konica 7115/7118...

  • Page 7: Introduction

    Thank you for choosing a Konica 7115/7118. This User Manual describes the functions, operating procedures, precautions, and basic troubleshooting for the Konica 7115/7118 copier. Before using this copier, be sure to read the User Manual thoroughly in order to ensure that you use the copier efficiently. After you have gone through the manual, store it in the holder on the rear side of the copier and keep it handy at all times.

  • Page 8: Safety Information

    This symbol warns against possible electrical shock. A diagonal line indicates a prohibited course of action. This symbol warns against dismantling the device. A black circle indicates an imperative course of action. This symbol indicates you must unplug the device. Konica 7115/7118...

  • Page 9: Warning

    Do not throw the toner cartridge or toner into an open flame. The hot toner may scatter and cause burns or other damage. Connect the power cord only to an electrical outlet that is equipped with a grounding terminal. Konica 7115/7118...

  • Page 10: Caution

    Dust that accumulates between the plug terminals could cause a fire. • When unplugging the power cord, be sure to hold onto the plug. Pulling on the power cord could damage the cord, resulting in fire or electrical shock. Konica 7115/7118...

  • Page 11: Precautions For Routine Use

    Do not touch or scratch the surface of the toner unit developing roller or the PC drum, as poor image quality could result. Use the supplies and consumables recommended by the dealer. Use of any supply or consumable not recommended could result in poor image quality or breakdown. Konica 7115/7118...

  • Page 12: Safety Information

    The laser diode and the scanning polygon mirror are incorporated in the print head unit. The print head unit is NOT A FIELD SERVICE ITEM: Therefore, the print head unit should not be opened under any circumstances. Print Head Konica 7115/7118...
  • Page 13 Use of controls, adjustments or performance of procedures other than those specified in this manual may result in hazardous radiation exposure. This is a semiconductor laser. The maximum power of the laser diode is 5 mW and the wavelength is 770-795 nm. Konica 7115/7118...

  • Page 14: Led Radiation Safety

    Acoustic Noise For European Users Machine Noise Regulation 3 GSGV, 18.01.1991 : The sound pressure lev- el at the operator position according to EN 27779 is equal to or less than 70dB(A). Konica 7115/7118...

  • Page 15: About The User Manual

    Text formatted in this style pro- vides additional assistance. ➜ Text formatted in this style describes the action that will ensure the desired results are achieved. [ ] key The names of keys on the control panel are written as shown above. Konica 7115/7118...

  • Page 16: Explanation Of Basic Concepts And Symbols

    During printing, paper is supplied from the right side of the copier and fed into the Exit Tray on top with the printed surface of the page facing down. The paper feed direction is shown by the arrows in the diagram below. 1-10 Konica 7115/7118...

  • Page 17: Width" And "Length

    “L” or Crosswise ( If the width (A) of the paper is longer than the length (B), the paper has a horizontal or landscape orientation, indicated by either “C” or Konica 7115/7118 1-11...
  • Page 18 Introduction 1-12 Konica 7115/7118...

  • Page 19: Precautions

    A location that is not near any kind of heating devices Power source The power source requirements are as follows. Voltage Fluctuation: Within±10% Frequency Fluctuation: Within ± 3Hz ❍ Use a power source with as few voltage or frequency fluctuations as possible. Konica 7115/7118...

  • Page 20: Space Requirements

    Precautions Space Requirements To ensure easy copier operation, supply replacement, and maintenance, adhere to the recommended space requirements detailed below. <Konica 7115> 1038 <Konica 7118> 1038 Unit: mm Note Be sure to allow a clearance of 100 mm or more at the back of the copier for the ventilation duct and 150 mm or more at the right of the copier for the removal of the misfed papers.

  • Page 21: Operation Precautions

    A negligible amount of ozone is generated during normal operation of this copier. An unpleasant odor may, however, be detected in poorly ventilated rooms during extensive copier operations. ➜ For a comfortable operating environment, it is recommended that the room be well ventilated. Konica 7115/7118...

  • Page 22: Transporting The Copier

    Keep all supplies out of the reach of children. CAUTION Be careful not to spill toner inside the copier or get toner on your clothes or hands. ➜ If your hands become soiled with toner, immediately wash them with soap and water. Konica 7115/7118...

  • Page 23: Legal Restrictions On Copying

    Copyrighted works without permission of the copyright owner In addition, it is prohibited under any circumstances to copy domestic or foreign currencies, or works of art, without permission of the copyright owner. When in doubt about the nature of a document, consult with legal counsel. Konica 7115/7118...
  • Page 24 Precautions Konica 7115/7118...

  • Page 25: Before Making Copies

    Before Making Copies Available Features The main copy settings available with this copier are listed below. For details on their operation, refer to the pages indicated. Copies 1-sided copies (p.6-1) 2in1 copies (p.6-1) 4in1 copies (p.6-1) Dual Page copies (p.6-2) Konica 7115/7118...
  • Page 26 Before Making Copies Zoom Ratio Reduced/Full Size/Enlarge (p.5-11) Output Sort (p.6-6) Group (p.6-8) Note The Output functions available are limited according to the options equipped to the copier. Konica 7115/7118...
  • Page 27 Before Making Copies Applications Erase (p.6-10) Reverse Image (p.6-13) X/Y Zoom (p.5-14) Image Shift (p.6-14) Mixed Orig. Detection Mixed Originals (p.4-4) Note The Mixed Orig. Detection function is available when the copier is equipped with an Automatic Document Feeder (option). Konica 7115/7118...

  • Page 28: Components And Their Functions

    Copier Konica 7115/7118 Platen Cover CV-117 (option) Presses down on an original placed on the Original Glass. Standard on Konica 7115. Automatic Document Feeder DF-217 (option) Automatically feeds originals one page after another for scanning. Paper Feed Unit PF-121 (option) Capable of holding up to 250 sheets of paper.
  • Page 29 Pedestal (option) Adjusts the height when a Paper Feed Unit is mounted. Fax unit for Konica 7115/7118 FK-117 (option) Permits fax transmission using this copier. Printer Controller IP-413 (option) A built-in type printer controller that allows the copier to be used as a printer with the copier connected to a personal computer.

  • Page 30: Parts Names And Their Functions

    Before Making Copies Parts Names and Their Functions Copier * The above illustrations represent a copier mounted with the optional Platen Cover. Konica 7115/7118...
  • Page 31 Holds the original against the Original Glass. Original Glass Place your original on this glass to allow the copier to scan it. The original is to be placed face down. (p.4-6) Control Panel Use to start a copy cycle and make necessary settings. (p.3-12) Konica 7115/7118...

  • Page 32: Inside The Copier

    Forms a copy image. The Imaging Unit is to be replaced only by your Tech. Rep. Toner Bottle Holder Open to replace the Toner Bottle. Pressure Lever Use to clear a misfed sheet of paper at the Fusing Unit. (p.8-12) Konica 7115/7118...

  • Page 33: Options

    Bypass Tray Up to 50 sheets of plain paper or 20 sheets of special paper can be loaded on this tray. (p.8-7) Bypass Tray Extender Slide this Bypass Tray Extender out to load paper of a large size. Konica 7115/7118...
  • Page 34 2nd Tray Up to 250 sheets of plain paper can be loaded. (p.8-6) Konica 7118 accepts a Paper Feed Unit of four trays. 3rd Tray Konica 7115 accepts a Paper Feed Unit of one tray. 4thTray 5thTray Side Cover Open to clear a misfed sheet of paper. (p.8-15)
  • Page 35 Part Name Description Copy Tray Lamp Lights up when paper is fed into the Upper Copy Tray. Upper Copy Tray Receives printed pages produced via the personal computer or faxes received. Lower Copy Tray Receives copies made. Konica 7115/7118 3-11...

  • Page 36: Control Panel

    REVERSE IMAGE • Press to copy an original with the original tonal arrangements reversed. ORIGINAL • Press to select the Mixed Org. or Dual Page function. COMBINATION • Press to select the 2in1 or 4in1 function. 3-12 Konica 7115/7118...
  • Page 37 • Press to select a zoom ratio from among those fixed ratios available as standard. APS/AMS • Press to select either APS or AMS. PAPER SIZE • Press to select the paper size. DENSITY SET • Press to adjust the image density of the copy. Konica 7115/7118 3-13...

  • Page 38: Icons On The Control Panel

    Blinks or lights up when the time approaches that copier needs maintenance service. Call your Tech. Rep. Add Paper indicator Lights up when the paper source currently selected for use runs out of paper. Add Toner indicator Lights up when toner will soon run out. 3-14 Konica 7115/7118...

  • Page 39: Turning On And Off And The Initial Mode

    Automatic Document Feeder and pressing the [START] key. Pressing the [START] key at this time will not immediately start the copy cycle. Rather, you are going to have to wait for about 30 seconds (at an ambient temperature of 23°C). Konica 7115/7118 3-15...

  • Page 40: Default Settings

    Default settings Number of copies: 1 Density: Auto RE: 100% (full size) Paper Size: APS (When Automatic Document Feeder is mounted) Output: Non-Sort The default settings can be customized by selecting User’s Choice. (p.7-2) 3-16 Konica 7115/7118...

  • Page 41: Useful Functions

    The length of time before the copier automatically resets itself can be set between 1 min and 5 min, in addition to 30 seconds. The Auto Panel Reset function can even be disabled. For more details, refer to “User’s Choice” (p.7-2, p.7-8). Konica 7115/7118 3-17...

  • Page 42: Power Save

    If a document is loaded and the [START] key is pressed during the period after the copier has been turned ON but before it is ready to make copies, the copier will automatically start the copy cycle as soon as it completes the warm-up cycle. 3-18 Konica 7115/7118...

  • Page 43: Interrupting Copy Jobs

    If the current tray runs out of paper during a copy cycle and there is another tray loaded with paper of the same size and in the same direction, the copier will automatically select that tray to continue copying. Konica 7115/7118 3-19...

  • Page 44: Account Number

    The account number entry screen changes to the default setting indication, indicating that the copier is ready to make copies. Run the desired copy cycle. When the copy cycle is completed, press the [ID] key a second time. 3-20 Konica 7115/7118...

  • Page 45: Printing From The Personal Computer

    For details of operation, refer to the Printer Controller User Manual. Sending and Receiving Faxes Using the Copier When the optional Fax unit is mounted, fax transmission can be made using this copier. For details of operation, refer to the Fax unit User Manual, separately available. Konica 7115/7118 3-21...

  • Page 46: Copy Paper

    157 g/m ), OHP transparencies, postcards, labels Paper Size • Width: 90 mm to 297 mm • Length: 140 mm to 432 mm Capacity • Plain paper, recycled paper: 50 sheets • Special paper: 20 sheets 3-22 Konica 7115/7118...
  • Page 47 When loading paper of any FLS size other than the default setting (210 mm × 330 mm), setting by your Tech. Rep. is necessary. Consult your Tech. Rep. for this setting. For how to load paper, refer to “When the Add Paper Indicator Lights”. (p.8-4) Konica 7115/7118 3-23...
  • Page 48 Before Making Copies 3-24 Konica 7115/7118...

  • Page 49: Loading Originals

    432 mm mixed sizes: 60 g/m 90 g/m Original Glass Max. weight of sheet A3L to A5 originals, books, or three- • Original width: Up to 297 mm dimensional objects: 3 kg • Original length: Up to 432 mm Konica 7115/7118...

  • Page 50: Loading Originals In The Automatic Document Feeder

    When the original are loaded into the Automatic Document Feeder the original sizes that can be detected in the APS mode are A3L•B4L•A4L•A4C•B5L•B5C, LetterL, LetterC and FLS. The copier may not be able to detect, or may detect of any other size or irregular size. Konica 7115/7118...
  • Page 51 Automatic Document Feeder. Refer to “Mixed Originals”. (p.4-4) Make the necessary settings. ❍ Making Copies (p.5-1) ❍ Advanced Copying (p.6-1) Press the [START] key to start feeding and copying the originals from the top page. Konica 7115/7118...

  • Page 52: Mixed Originals

    Making Copies from Originals of Mixed Sizes Slide the front adjustable Document Guide Plate to the front of the copier. Load the originals face up in the Document Feeder Tray so that their rear edges are in correct alignment with the Document Guide Plate. Konica 7115/7118...
  • Page 53 Press the [ORIGINAL] key to light the MIXED ORIGINAL lamp. Press the [APS/AMS] key to light the APS lamp. Press the [START] key to start feeding and copying the originals from the top page. Konica 7115/7118...

  • Page 54: Place The Original On The Original Glass

    Let the copier scan the contents of the original with the Original Cover or the Automatic Document Feeder raised. Do not attempt to push the Original Glass with excessive force, as a malfunction could result. (The maximum load resistance of the Original Glass is 3 kg.) Konica 7115/7118...

  • Page 55: How To Position A Sheet Original

    Gently lower the Automatic Document Feeder or Original Cover. Make the necessary settings. ❍ Making Copies (p.5-1) ❍ Advanced Copying (p.6-1) Press the [START] key to start the copy cycle. Konica 7115/7118...

  • Page 56: Highly Transparent Originals

    Place a blank sheet of paper of the same size over the original. Gently lower the Automatic Document Feeder or Original Cover. Make the necessary settings. ❍ Making Copies (p.5-1) ❍ Advanced Copying (p.6-1) Press the [START] key to start the copy cycle. Konica 7115/7118...

  • Page 57: Books

    Original Glass surface during a scanning sequence since a strong beam of light is emitted. This light beam is not, however, a laser beam and is not as dangerous. Make the Dual Page setting. ❍ Dual Page (p.6-3) Konica 7115/7118...
  • Page 58 Loading Originals 4-10 Konica 7115/7118...

  • Page 59: Making Copies

    The following procedure describes how to place an original and make a basic copy of it. Making a Basic Copy Position the original. ❍ Original Loading (p.4-1) Make the necessary control panel settings. ❍ Selecting the Paper (p.5-3) ❍ Zoom Ratio (p.5-11) ❍ Image Density (p.5-16) Konica 7115/7118...
  • Page 60 Enter the number of copies to be made from the Key Pad. Any number from 1 to 99 can be entered. Press the [START] key. This will start the copy cycle. To stop the copy cycle in mid- operation, press the [STOP] key. Konica 7115/7118...

  • Page 61: Selecting The Paper

    [START] key has been pressed, the paper size indicator on the control panel starts blinking. Load the paper whose paper size indicator is blinking or press the [PAPER SIZE] key and select another desired paper size before pressing the [START] key again. Konica 7115/7118...
  • Page 62 User’s Choice. Details: OHP transparencies Cards and postcards Plain paper If plain paper is set in User’s Choice, the “1” mark will not be displayed even if cards or postcards, or OHP transparencies, are loaded in the tray. Konica 7115/7118...

  • Page 63: Feeding Paper Manually

    Insert one sheet of paper at a time when using the Manual Bypass Tray to make a copy. If the optional Multiple Bypass is mounted, the Bypass Tray can hold up to 50 sheets of paper, or 20 sheets of cards, postcards, or OHP transparencies. Konica 7115/7118...

  • Page 64: Making Copies By Using The Bypass Tray

    Do you know which FLS size has been set? ➜ The FLS size has been set to 210 mm × 330 mm. Ask your Tech. Rep. if you want to change the FLS size. Press the [ENTER] key. Konica 7115/7118...
  • Page 65 Bypass Tray: This will automatically start the new copy cycle. To make copies continuously on cards, OHP transparencies, or postcards, load the paper in the 1st Tray. Refer to “Copy Paper” (p.3- 22) and “Adding Paper” (p.8-4). Konica 7115/7118...
  • Page 66 The FLS size has been set to 210 mm × 330 mm. Ask your Tech. Rep. if you want to change the FLS size. Press the [ENTER] key. Make any other necessary settings. ❍ Zoom Ratio (p.5-11) ❍ Image Density (p.5-16) Press the [START] key. Konica 7115/7118...
  • Page 67 Bypass Tray location indicator on the control panel lights. Press the [BYPASS TRAY] key until the Custom Size indicator blinks. Press the [ENTER] key. Press the [CLEAR] key to clear the old value shown on the Display. Konica 7115/7118...
  • Page 68 ➜ The width can range from 90 mm to 297 mm. Do you want to change the value just entered? ➜ Press the [CLEAR] key and then re-enter the new value. Press the [ENTER] key. 5-10 Konica 7115/7118...

  • Page 69: Specifying The Zoom Ratio

    (100%). X/Y Zoom This setting allows the zoom ratio to be set independently for X (horizontal) and Y (vertical) directions. The ratios can be set directly from the Key Pad, in the range between 50% and 100%. Konica 7115/7118 5-11...

  • Page 70: Setting The Zoom Ratio

    Press the [PAPER SIZE] key on the control panel until the desired paper size indicator lights. Make any other necessary settings. ❍ Image Density (p.5-16) Enter the number of copies to be made from the Key Pad and then press the [START] key. 5-12 Konica 7115/7118...
  • Page 71 1% increments. Make any other necessary settings. ❍ Paper (p.5-3) ❍ Image Density (p.5-16) Enter the number of copies to be made from the Key Pad and then press the [START] key. Konica 7115/7118 5-13...
  • Page 72 Press the [CLEAR] key and then re-enter the new value. What happens when a value outside the specified range is entered? ➜ The Display shows “Err”. Press the [CLEAR] key and re-enter a new value that falls within the Y (width) range. (length) 5-14 Konica 7115/7118...
  • Page 73 Y in X/Y Zoom? ➜ The ratio can range from 50% to 100%. Make any other necessary settings. ❍ Image Density (p.5-16) Enter the number of copies to be made from the Key Pad and then press the [START] key. Konica 7115/7118 5-15...

  • Page 74: Adjusting The Image Density

    Position the original. ❍ Original Loading (p.4-1) Press the [DENSITY SET] key on the control panel to select the desired mode. Do you know how to select Auto? ➜ Light the density lamp as shown on the right. Auto 5-16 Konica 7115/7118...
  • Page 75 (Level 0) Darker (Level 1) Darkest (Level 2) Make any other necessary settings. ❍ Paper (p.5-3) ❍ Image Density (p.5-16) Enter the number of copies to be made from the Key Pad and then press the [START] key. Konica 7115/7118 5-17...

  • Page 76: Interrupting A Copy Job

    When the [INTERRUPT] key is pressed, all functions and settings indicated on the control panel are reset to their defaults. Remove the original of the interrupted copy job and then position the new one that you want to copy. 5-18 Konica 7115/7118...
  • Page 77 The Interrupt indicator will go out and the settings will be recovered for the interrupted copy job. Reposition the original for the interrupted copy job that has been removed in step 2. Press the [START] key. The interrupted copy job will be resumed. Konica 7115/7118 5-19...
  • Page 78 Making Copies 5-20 Konica 7115/7118...

  • Page 79: Advanced Copying

    4in1: Important) ✔ This setting is available only when the copier is equipped with an Au- tomatic Document Feeder. ➜ The copier copies four different Originals Copy 1-sided originals onto one side of a single sheet of paper. Konica 7115/7118...
  • Page 80 Original Loading (p.4-1) Press the [COMBINATION] key to light either the 2in1 or 4in1 indicator. Make any other necessary settings. Enter the number of copies to be made from the Key Pad and then press the [START] key. Konica 7115/7118...
  • Page 81 Erases a given width along the outside edges. ➜ Center Erase: Original Copies Erases a given width down the center. ➜ Frame + Center Erase: Original Copies Erases a given width along the outside edges as well as down the center. Konica 7115/7118...
  • Page 82 To change the setting for the frame erase width, use “Erase Set- ting” of User’s Choice. (p.7-8) Make any other necessary settings. Enter the number of copies to be made from the Key Pad and then press the [START] key. Konica 7115/7118...

  • Page 83: Output Copies (Sort And Group)

    The copies are automatically divid- Originals Copies ed into sets with each set containing a copy of each page. Group: ➜ The copies are automatically divid- Originals Copies ed into stacks with each stack con- taining copies of the same page. Konica 7115/7118...

  • Page 84: Sorting

    The copier must be equipped with an Automatic Document Feeder and a Shifting Unit. ➜ The sorted copy sets are stacked in the same direction, but in a saw- tooth manner by shifting the tray for each set. Konica 7115/7118...
  • Page 85 Note To enable crisscross sorting, the copier must be loaded with paper of the same size and same paper type, but in two different directions. Note Crisscross sorting cannot be effected if a Shifting Unit is mounted. Konica 7115/7118...

  • Page 86: Grouping

    Note To enable crisscross grouping, the copier must be loaded with paper of the same size and same paper type, but in two different directions. Konica 7115/7118...
  • Page 87 Sort and Group lamps are off? ➜ It means that Non-Sort is cur- rently selected for use. Make any other necessary settings. Enter the number of copies to be made from the Key Pad and then press the [START] key. Konica 7115/7118...

  • Page 88: Erasing Part Of Original Image (Erase)

    A given width along all four edges is Original Copy erased. What is Center Erase? ➜ A given width is erased down the Original Copies center. Note This setting is available only when Dual Page is selected. (p.6-3) 6-10 Konica 7115/7118...

  • Page 89: Precautions For Erase Position

    Precautions for Erase Position Note the correct direction of positioning the original when making copies in the Erase mode. For more details, refer to the table given below. Automatic Document Result Original Glass Feeder Left Erase Top Erase Frame Erase Konica 7115/7118 6-11...
  • Page 90 To change the erase width, change the setting for “Erase Setting” of User’s Choice. (p.7-8) Make any other necessary settings. Enter the number of copies to be made from the Key Pad and then press the [START] key. 6-12 Konica 7115/7118...

  • Page 91: Reversing Original Tonal Arrangements

    Press the [REVERSE IMAGE] key and make sure that the Reverse Image lamp lights. Make any other necessary settings. Enter the number of copies to be made from the Key Pad and then press the [START] key. Konica 7115/7118 6-13...

  • Page 92: Providing A Image Shift

    To change the file margin width, change the setting for “Margin Setting” of User’s Choice. (p.7-7) Make any other necessary settings. Enter the number of copies to be made from the Key Pad and then press the [START] key. 6-14 Konica 7115/7118...

  • Page 93: Using The Utility Mode

    Hold down the [AUTO RESET] key for 3 seconds. Check that “U--” appears on the Display. Using the Key Pad, enter the code corresponding to the desired subfunction. E.g.: Enter “1” to make a setting for User’s Choice. Press the [START] key. Konica 7115/7118...

  • Page 94: User's Choice

    Mixed Orig. enabled Mixed Orig. disabled Paper Priority FLS L 11×17L 11×14L Legal L Letter L 5-1/2×8-1/2L Letter C 5-1/2×8-1/2C 1st Tray 2nd Tray 3rd Tray *1 4th Tray *1 5th Tray *1 Multiple Bypass Tray Copy Priority Manual Konica 7115/7118...
  • Page 95 Output Priority Non-Sort Sort Group Crisscross Mode Crisscross stacking enabled Crisscross stacking disabled 4in1 Copy Order Pattern A Pattern B Book Binding Position Left-bound Right-bound Margin Setting 10mm 20mm Erase Setting (Left) 10mm 20mm Erase Setting (Top) 10mm 20mm Konica 7115/7118...
  • Page 96 15 min 240 min Auto Shut OFF Auto Shut OFF disabled 15 min 30 min 240 min Density (ADF) Mode 1 Mode 2 Print Density Paper Auto Detection Inch (1st Tray) Metric Paper Auto Detection Inch (2nd Tray) Metric Konica 7115/7118...

  • Page 97: Paper Sizes

    (Special Paper Setting OFF) APS disabled, Auto Tray Switching enabled APS disabled, Auto Tray Switching disabled Special Paper Setting APS enabled (4thTray) *1 (Special Paper Setting OFF) APS disabled, Auto Tray Switching enabled APS disabled, Auto Tray Switching disabled Konica 7115/7118...

  • Page 98: Mixed Orig

    (Special Paper Setting OFF) APS disabled, Auto Tray Switching enabled APS disabled, Auto Tray Switching disabled *1: Konica 7118 Only Mixed Orig. Select whether to enable Mixed Orig. as the default setting. The default value is “Mixed Orig. disabled”. Paper Priority Select a paper size or paper source that will be selected automatically when AMS is selected.

  • Page 99: Density Level Priority (Manual)

    The default value is “Left-bound”. Margin Setting Choose the width of the image shift to be set in the copy in the range between 0 mm and 20 mm (in 1-mm increments). The default value is “10 mm”. Konica 7115/7118...

  • Page 100: Erase Setting (Left, Top, And Frame)

    Select the image density level of copies and printed pages from among “-2”, “-1”, “0”, “1”, or “2”. The smaller the value, the lighter the image, and the greater the value, the darker the image with “0” as the central value. The default value is “0”. Konica 7115/7118...

  • Page 101: Paper Auto Detection

    Select this option in cases where “you give priority to plain paper for use”, but “you want an uninterrupted copy cycle to use recycled paper even when plain paper runs out”. The default value is “APS enabled (special paper setting OFF)”. Konica 7115/7118...

  • Page 102: Making The User's Choice Settings

    Press the [START] key. Check that “c--” appears on the Display. Enter the code assigned to the desired function from the Key Pad. E.g.: Enter “3” to change the setting for “Copy Priority”. Press the [START] key. 7-10 Konica 7115/7118...
  • Page 103 Press the [CLEAR] key and then enter the new setting. Press the [START] key. To further change the setting for another function, repeat steps 4 through 9. Press the [AUTO RESET] key to return to the default settings. Konica 7115/7118 7-11...

  • Page 104: Drum Dehumidify

    Running the Drum Dehumidify Sequence Call the Utility Mode to the Display. ❍ Calling the Utility Mode to the Display (p.7-1) Making sure that “U--” appears on the Display, enter “2” from the Key Pad. Press the [START] key. 7-12 Konica 7115/7118...

  • Page 105: Toner Replenisher (Auxiliary Toner Replenishing)

    Running the Toner Replenisher Sequence Call the Utility Mode to the Display. ❍ Calling the Utility Mode to the Display (p.7-1) Making sure that “U--” appears on the Display, enter “3” from the Key Pad. Press the [START] key. Konica 7115/7118 7-13...

  • Page 106: Custom Size Input

    Custom Size Input Procedure (1st Tray) Call the Utility Mode to the Display. ❍ Calling the Utility Mode to the Display (p.7-1) Making sure that “U--” appears on the Display, enter “4” from the Key Pad. Press the [START] key. 7-14 Konica 7115/7118...
  • Page 107 Press the [CLEAR] key and then enter the new value. Do you know the range for the paper width of custom size? ➜ The width can range from 90 mm to 297 mm. Press the [ENTER] key. Konica 7115/7118 7-15...

  • Page 108: Administrator Mode

    Settings for the Administrator Mode Call the Utility Mode to the Display. ❍ Calling the Utility Mode to the Display (p.7-1) Making sure that “U--” appears on the Display, enter “5” from the Key Pad. Press the [START] key. 7-16 Konica 7115/7118...
  • Page 109 Do you know the code for Copy Track? ➜ To select Copy Track, enter “1”. Do you know the code for Disable Auto Shut OFF? ➜ To select Disable Auto Shut OFF, enter “2”. Press the [START] key. Konica 7115/7118 7-17...

  • Page 110: Copy Track

    Copy Track Setting Procedure (A-1) Call the Administrator Mode to the Display. ❍ Calling the Administrator Mode to the Display (p.7-16) Making sure that “Ad-” appears on the Display, enter “1” from the Key Pad. Press the [START] key. 7-18 Konica 7115/7118...
  • Page 111 Key Pad. Do you know the code for “enabling” Copy Track? ➜ To enable Copy Track, enter “0”. Do you know the code for “disabling” Copy Track? ➜ To disable Copy Track, enter “1”. Press the [START] key. Konica 7115/7118 7-19...
  • Page 112 ➜ If an account number entered already exists, the entry will be rejected. Enter a different number. Press the [START] key. This stores the account number. To program another account number successively, repeat steps 4 through 7. 7-20 Konica 7115/7118...
  • Page 113 Press [ ] or [ ] key to select the account number to be deleted. Press the [START] key. The selected account number will be deleted. Do you know what to do to delete another account number? ➜ Repeat steps 4 through 7. Konica 7115/7118 7-21...
  • Page 114 Press [ ] or [ ] key to select the account number to be changed. Press the [START] key to delete the old account number. Enter the new account number from the Key Pad. Press the [START] key. This stores the new account number. 7-22 Konica 7115/7118...
  • Page 115 Display, enter “5” from the Key Pad. Press the [START] key. Press [ ] or [ ] key to select the account number for which you want to check the Total Counter value. Press the [START] key. Konica 7115/7118 7-23...
  • Page 116 Then, the Display returns to the status that allows you to select the account number, in step 6. Do you know how to check or reset the Total Counter of another account successively? ➜ Repeat steps 6 through 9. 7-24 Konica 7115/7118...
  • Page 117 Making sure that “A--” appears on the Display, enter “6” from the Key Pad. Press the [START] key. Check that the Display shows “CLr”. Press the [START] key. This clears the Total Counter values of all accounts, resetting them to “0”. Konica 7115/7118 7-25...

  • Page 118: Disable Auto Shut Off

    Call the Administrator Mode to the Display. ❍ Calling the Administrator Mode to the Display (p.7-16) Making sure that “Ad-” appears on the Display, enter “2” from the Key Pad. Press the [START] key. Press the [CLEAR] key. This clears the current setting. 7-26 Konica 7115/7118...
  • Page 119 Using the Utility Mode Enter the new setting from the Key Pad. Do you know the number for “authorize” Disable Auto Shut OFF? ➜ Enter “0”. Press the [START] key. This validates the new setting. Konica 7115/7118 7-27...

  • Page 120: Checking The Total Number Of Copies/Prints Produced

    Using the [COUNTER] Key Press the [COUNTER] Key. Make sure that “tc” appears on the Display. The Total Counter value is then displayed. E.g.: The Display looks like the one shown on the right when the value is 1,234. 7-28 Konica 7115/7118...
  • Page 121 The Size Counter value is then displayed. E.g.: The Display looks like the one shown on the right when the value is 123. After you have checked the counter value or values, press the [COUNTER] key. Then the original display reappears. Konica 7115/7118 7-29...

  • Page 122: Storing A Job

    Each time the [JOB STORE] key is pressed, the Display alternates between “Jb1” and “Jb2”. Do you know what happens if another job has already been stored in the job number selected? ➜ Storing a new job will erase the old one. 7-30 Konica 7115/7118...
  • Page 123 Using the Utility Mode Press the [ENTER] key. The Display changes as shown on the right, indicating that the job has been stored in Jb1. Konica 7115/7118 7-31...
  • Page 124 Do you know how to change the contents of the Display? ➜ Each time the [JOB RECALL] key is pressed, the Display alternates between “Jb1” and “Jb2”. Press the [ENTER] key. Press the [START] key. 7-32 Konica 7115/7118...

  • Page 125: Error Displays And Other Indicators

    “Clearing a Paper Misfeed” (p.8-12) A paper (original) misfeed has Identify the misfeed location on occurred in the Automatic the control panel and remove the Document Feeder. sheet of misfed paper. “Clearing a Paper Misfeed” (p.8-18) Konica 7115/7118...
  • Page 126 The Plug-In Counter is not Plug in the Plug-In Counter. plugged in. The numerical value entered Check the value and enter the falls outside the setting range. correct one as necessary. The scheduled maintenance Call your Tech. Rep. time has arrived. Konica 7115/7118...
  • Page 127 Turning OFF, then ON, the copier the copier. will reset a minor malfunction. If this does not reset the minor malfunction, call your Tech. Rep. and give him or her the malfunction code being shown on the Display. E.g.: C0510 Fusing malfunction Konica 7115/7118...

  • Page 128: When The Add Paper Indicator Lights Up

    ➜ Be careful not to touch the surface of the Paper Take-Up Roll. Press down on the Paper Lifting Paper Lifting Plate Plate until it clicks into the locked position. Konica 7115/7118...
  • Page 129 Do you know the special precautions to be used when loading paper? ➜ Be sure that the Edge Guide and Trailing Edge Stop are pressed tightly up against the edges of the paper stack. Slide the tray back into the copier. Konica 7115/7118...
  • Page 130 Do you know the special precautions to be used when loading paper? ➜ Be sure that the Edge Guide and Trailing Edge Stop are pressed tightly up against the edges of the paper stack. Slide the tray back into the copier. Konica 7115/7118...
  • Page 131 Ä mark. ➜ Be sure to smooth any curl in the paper before loading it. Adjust the Paper Guides and the Bypass Tray Extender to the size of the paper. Konica 7115/7118...

  • Page 132: When The Add Toner Indicator Lights Up

    Do not throw away, but keep, the used Toner Bottle, which will be collected by your Tech. Rep. Replacing the Toner Bottle Open the Front Cover. Pull the Toner Bottle Holder to the front and gently pull out the used Toner Bottle. Konica 7115/7118...
  • Page 133 Do you know how much you need to insert the bottle? ➜ Fit the protrusion on the Toner Bottle all the way into the recess in the holder as illustrated. Tap the bottom of Toner Bottle three to four times. Konica 7115/7118...
  • Page 134 Cover is closed. Do you know what to do if the copy image density is still low immediately after the Toner Bottle has been replaced with a new one? ➜ Run “Toner Replenisher” of Utility Mode. (p.7-13) 8-10 Konica 7115/7118...

  • Page 135: When The Paper Misfeed Indicator Lights

    Please refer to the corresponding pages. Automatic Document Feeder Bypass Tray Inside the Copier: p.8-12 p.8-16 p.8-18 1st Tray p.8-12 2nd Tray p.8-15 3rd Tray 4thTray 5thTray Konica 7115/7118 8-11...

  • Page 136: Clearing A Paper Misfeed

    Open the Side Cover of the copier. Unlock the Pressure Lever of the Fusing Unit. Do you know how to unlock the Pressure Lever? ➜ Grasp the green lever to unlock the Pressure Lever. Pressure Lever 8-12 Konica 7115/7118...
  • Page 137 Do you know which part to grasp to turn the roller? ➜ Be sure to grasp the green knob to turn the roller. Lock the Pressure Lever into position. Konica 7115/7118 8-13...
  • Page 138 ➜ Be sure that the Edge Guide and Trailing Edge Stop are pressed tightly up against the edges of the paper stack. Slide the 1st Tray back into the copier. 8-14 Konica 7115/7118...
  • Page 139 Error Displays and Other Indicators <Paper Feed Unit> Open the Side Cover of the Paper Feed Unit. Gently pull out the sheet of misfed paper. Close the Side Cover of the Paper Feed Unit. Konica 7115/7118 8-15...
  • Page 140 Error Displays and Other Indicators <Multiple Bypass Tray> Unload the paper stack from the Bypass Tray. Open the Side Cover of the copier. Gently pull out the sheet of misfed paper. Close the Side Cover. 8-16 Konica 7115/7118...
  • Page 141 Error Displays and Other Indicators Load the paper stack back in the Bypass Tray. Konica 7115/7118 8-17...
  • Page 142 Error Displays and Other Indicators <Automatic Document Feeder> Open the Document Feeder Cover. Unload the document from the Document Feeder Tray. Raise the Automatic Document Feeder. 8-18 Konica 7115/7118...
  • Page 143 Error Displays and Other Indicators Turning the document feed knob in the direction of the arrow, gently pull out the original. Close the Document Feeder Cover. Konica 7115/7118 8-19...
  • Page 144 Reload the document which has been unloaded in step 2. Do you know what to do if “-1” is shown on the Display? ➜ Merge the original which has been misfed with the remaining pages of the document for reloading. 8-20 Konica 7115/7118...

  • Page 145: Troubleshooting Tips

    The copy is blurry. The paper is damp. Change the paper. (p.8-4) The original is not placed Place the original in position firmly against the Original so that it is placed firmly Glass. against the Original Glass. (p.4-6) Konica 7115/7118...
  • Page 146 Select the zoom ratio is not in accord with the according to the paper size. paper size (when the copy is (p.5-13) Or, use AMS to made at a manually adjusted reduce the copy to the reduction ratio). appropriate size. (p.5-12) Konica 7115/7118...
  • Page 147 Trailing Edge Stop up up against the paper stack in against the edges of the the tray. paper stack. The paper has an excessive Smooth out curl in the paper curl. and reload the paper stack in the tray. Konica 7115/7118...

  • Page 148: When The Copier Is Not Operating Correctly

    [INTERRUPT] key to leave the interrupt mode. (p.3-19) The copier cannot be turned The power cord is unplugged Plug the power cord into the from the power outlet. power outlet. The room’s circuit breaker is Close the room’s circuit tripped. breaker. Konica 7115/7118...

This manual is also suitable for:

7118

Table of Contents
