Identifying External Hardware

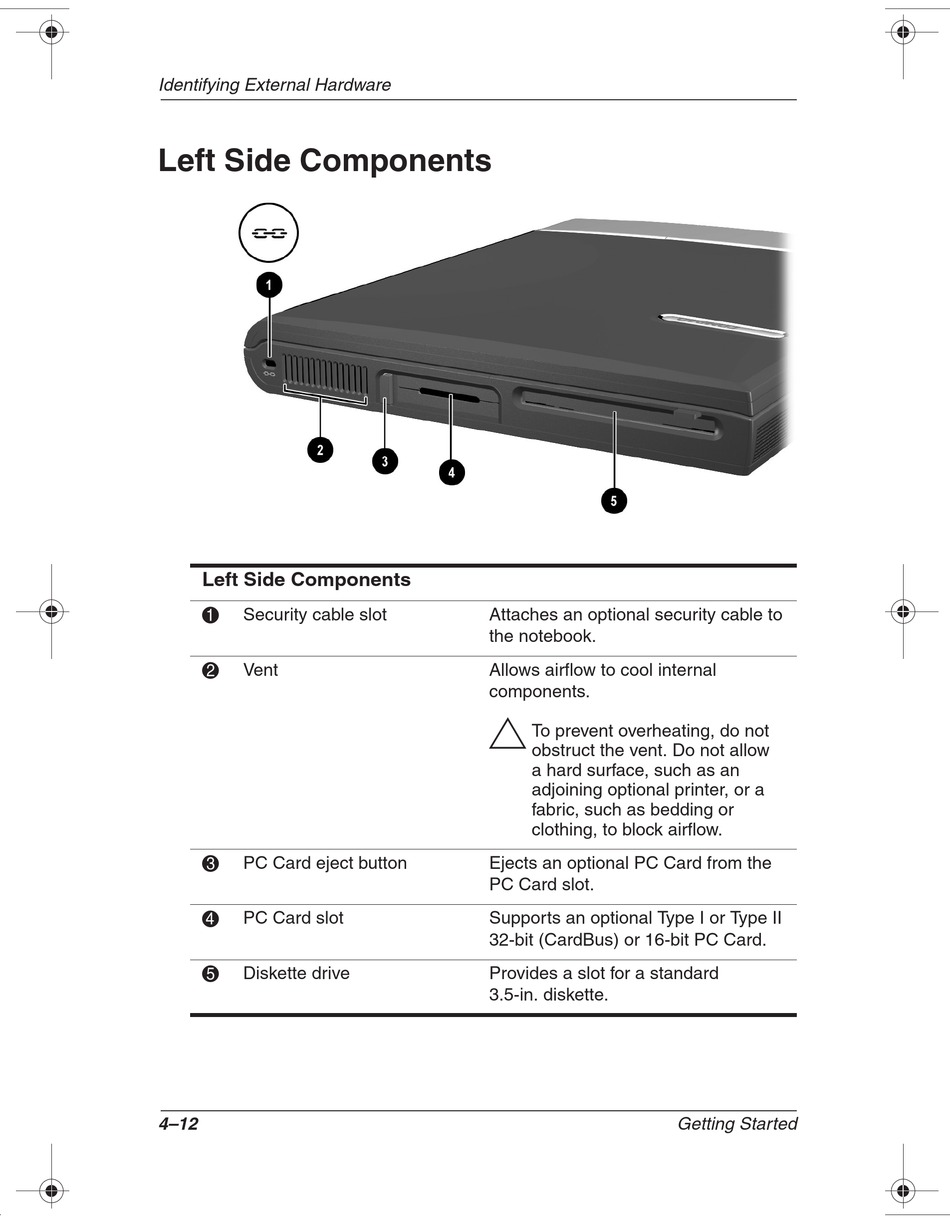

Left Side Components

Left Side Components
1
Security cable slot
2
Vent
3
PC Card eject button
4
PC Card slot
5
Diskette drive
4–12
Attaches an optional security cable to
the notebook.
Allows airflow to cool internal
components.
Ä
To prevent overheating, do not
obstruct the vent. Do not allow
a hard surface, such as an
adjoining optional printer, or a
fabric, such as bedding or
clothing, to block airflow.
Ejects an optional PC Card from the
PC Card slot.
Supports an optional Type I or Type II
32-bit (CardBus) or 16-bit PC Card.
Provides a slot for a standard
3.5-in. diskette.
