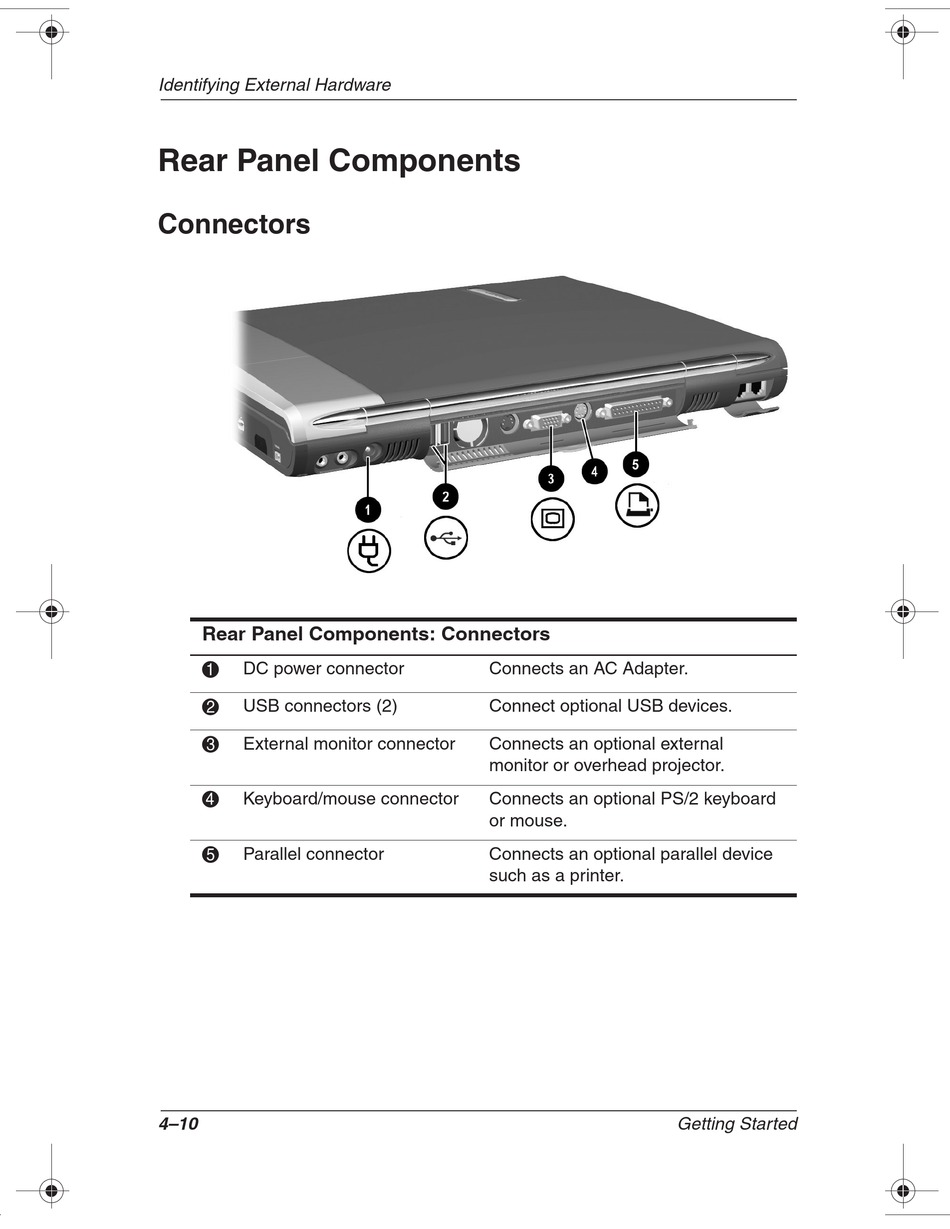

Identifying External Hardware
Rear Panel Components
Connectors
Rear Panel Components: Connectors
1
DC power connector
2
USB connectors (2)
3
External monitor connector
4
Keyboard/mouse connector
5
Parallel connector
4–10
Connects an AC Adapter.
Connect optional USB devices.
Connects an optional external
monitor or overhead projector.
Connects an optional PS/2 keyboard
or mouse.
Connects an optional parallel device
such as a printer.
