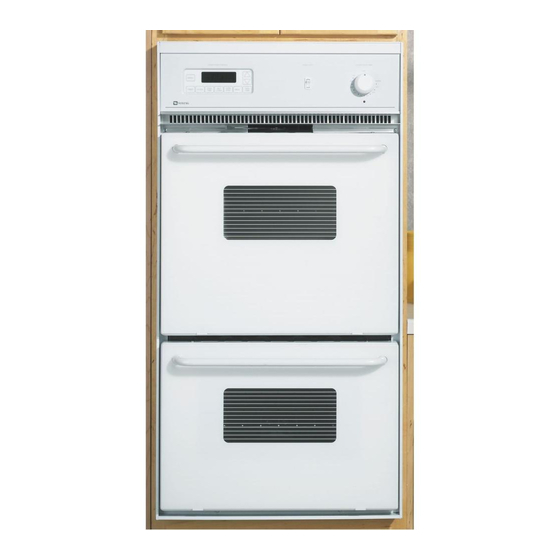

Maytag CWE5800ACS Installation Instructions Manual

24" electric built-in double cavity wall ovens
Hide thumbs

Advertisement

YT_&(3
®
INSTALLATION
INSTRUCTIONS
24" ELECTRIC
BUILT-IN DOUBLE CAVITY WALL OVENS
READ
"SAFETY
PRECAUTIONS"
IN CARE
& USE BOOK
BEFORE
USING OVEN
NOTICE
TO OWNER:
In order to assure the best results in service, proper operation and maximum efficiency, the original
installation and adjustment should be made by your dealer, his authorized agent, or by your local
utility company before you attempt to operate the oven.
IMPORTANT
- SAVE FOR LOCAL ELECTRICAL
INSPECTOR'S
USE.
INSTALLER:
LEAVE THESE INSTRUCTIONS
WITH THE HOMEOWNER.
HOMEOWNER"
RETAIN THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
8101 P539-60
(01-03-00)
