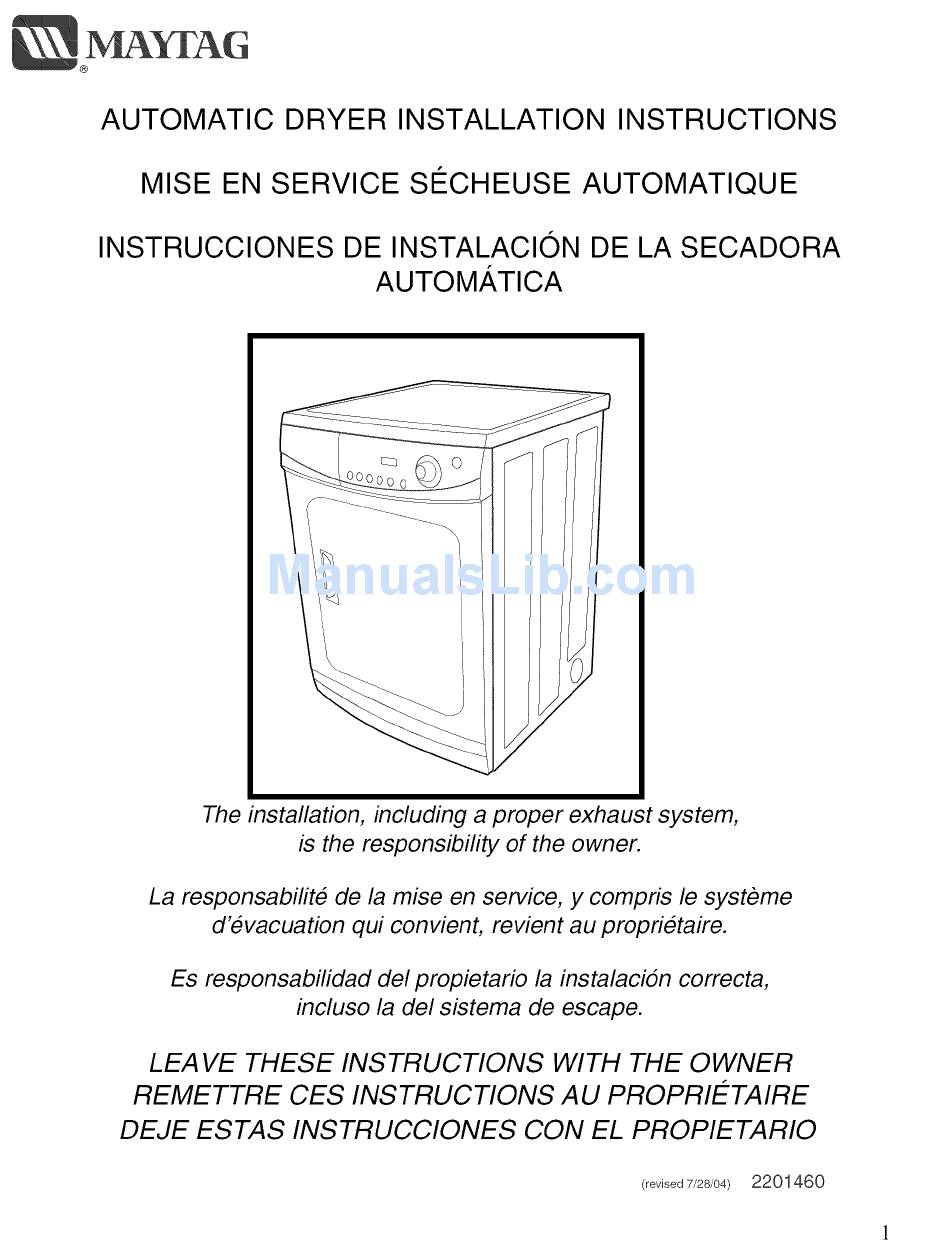

AUTOMATIC
DRYER INSTALLATION
INSTRUCTIONS
MISE EN SERVICE S¢:CHEUSE
AUTOMATIQUE
INSTRUCCIONES
DE INSTALACION
DE LA SECADORA
AUTOM,4,TICA
The installation,
including a proper exhaust system,
is the responsibility
of the owner.
La responsabifit#
de la mise en service, y compris le systeme
d'#vacuation
qui convient, revient au propri#taire.
Es responsabifidad
del propietario
la instalaciSn correcta,
incluso la del sistema de escape.
LEA VE THESE INSTRUCTIONS
WITH THE OWNER
REMETTRE
CES INSTRUCTIONS
A U PROPRIETAIRE
DEJE ESTAS
INSTRUCCIONES
CON EL PROPIETARIO
(revised 7/28/04)
2201460
Advertisement
Table of Contents
Related Manuals for Maytag MDE2400AZW
Summary of Contents for Maytag MDE2400AZW
- Page 1 AUTOMATIC DRYER INSTALLATION INSTRUCTIONS MISE EN SERVICE S¢:CHEUSE AUTOMATIQUE INSTRUCCIONES DE INSTALACION DE LA SECADORA AUTOM,4,TICA The installation, including a proper exhaust system, is the responsibility of the owner. La responsabifit# de la mise en service, y compris le systeme d'#vacuation qui convient, revient au propri#taire.
-
Page 2: Cabinet Dimensions
Tools needed for instamiation Cutting knife ,, Nut drivers Level Duct tape o Crescent wrench Proper installation is the responsibility of the owner. HOWEVER, SERVICE CALLS PERFORMED AS A RESULT OF POOR SET-UP, ADJUSTMENT AND CONNECTION ARE THE RESPONSIBILITY OF THE INSTALLER. Make sure you have everything necessary for proper installation. -
Page 3: Important To Installer
IMPORTANT TO INSTALLER Please Read The Following Instructions Carefully Before Starting To Install The Dryer. These Instructions Should Be Retained For Future Reference. REMOVE THE DOOR FROM ALL DISCARDED APPLIANCES SUCH AS DRYERS TO AVOID THE DANGER OF A CHILD SUFFOCATING. LOCATION CONSIDERATIONS The dryer should be located to permit adequate room in front for loading the dryer, and sufficient... -
Page 4: Mobile Home Installation
MOBILE HOME INSTALLATION The installation of the dryer in mobile homes must conform to the Manufactured Home Construction and Safety Standard Title 24 CFR, Part 32-80 {formerly the Federal standard for Mobile Home Construction and Safety, Title 24, HUD (Part 280), 1975} for the United... - Page 5 • Secure joints with duct tape. Do not use screws. • DO NOT EXHAUST DRYER INTO ANY WALL, CEILING, CRAWL SPACE OR A CONCEALED SPACE OF A BUILDING, GAS VENT, ANY OTHER COMMON DUCT OR CHIMNEY. THIS COULD CREATE A FIRE HAZARD FROM LINT EXPELLED BY THE DRYER.
-
Page 6: Electrical Requirements
The static pressure in any exhaust system must not exceed 0.48 inches of water column, or be less than 0. This can be measured with the dryer running with a manometer at the point where the exhaust duct connects to the dryer. A no heat setting should be used. The dryer tumbler should be empty and the lint filter clean. -
Page 7: Before Operating
If a power cord is not used and the electric dryer is to be permanently wired, the dryer must be connected to a grounded metal, permanent wiring system; or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal. -
Page 8: Electric Models
REPLACEMENT PARTS AND ACCESSORIES If your dryer requires replacement parts or accessories, contact the dealer from whom purchased your dryer or Maytag Customer Service, Box 2370, Cleveland, Tennessee 37320- 2370, phone 423-472-3333, for information on the nearest authorized Maytag Parts... -
Page 9: Installation
INSTALLATION Parts and literature are packaged inside of dryer drum. To Install... Move dryer to an appropriate location for installation. Consider installing the dryer before the washer in side-by-side installations, to allow access to gas, electrical and exhaust connections. Lay two of the carton corner posts on the floor. Tip the dryer forward on its front so it will lay across both corner posts. - Page 10 3-WIRE SYSTEM CONNECTIONS 1. Loosen or remove center terminal block screw. 2. Connect neutral wire (white or center wire) of power supply cord to the center, silver coF ored terminal screw of the terminaW block. Tighten screw. 3. Connect the other wires to outer terminal block screws.
-
Page 11: Export Models
EXPORT MODELS Refer to last page of installation instructions. 6. Level The Dryer: With a level, check the dryer, and make necessary adjustments to the leveling legs. 7. Check All Connections: At this time, make sure all gas connections (on gas models), exhaust and electrical connections... -
Page 12: Additional Instructions
Maytag dryer models manufactured for operation on 60 Hz AC are not designed for use on 50 Hz AC electrical service and conversion of the product from 60 to 50 Hz operation is not recommended.
