Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to wall behind range.
Reconnect the anti-tip bracket,
if the range is moved.
Failure to follow
these instructions can result
in death or serious burns to children and adults.

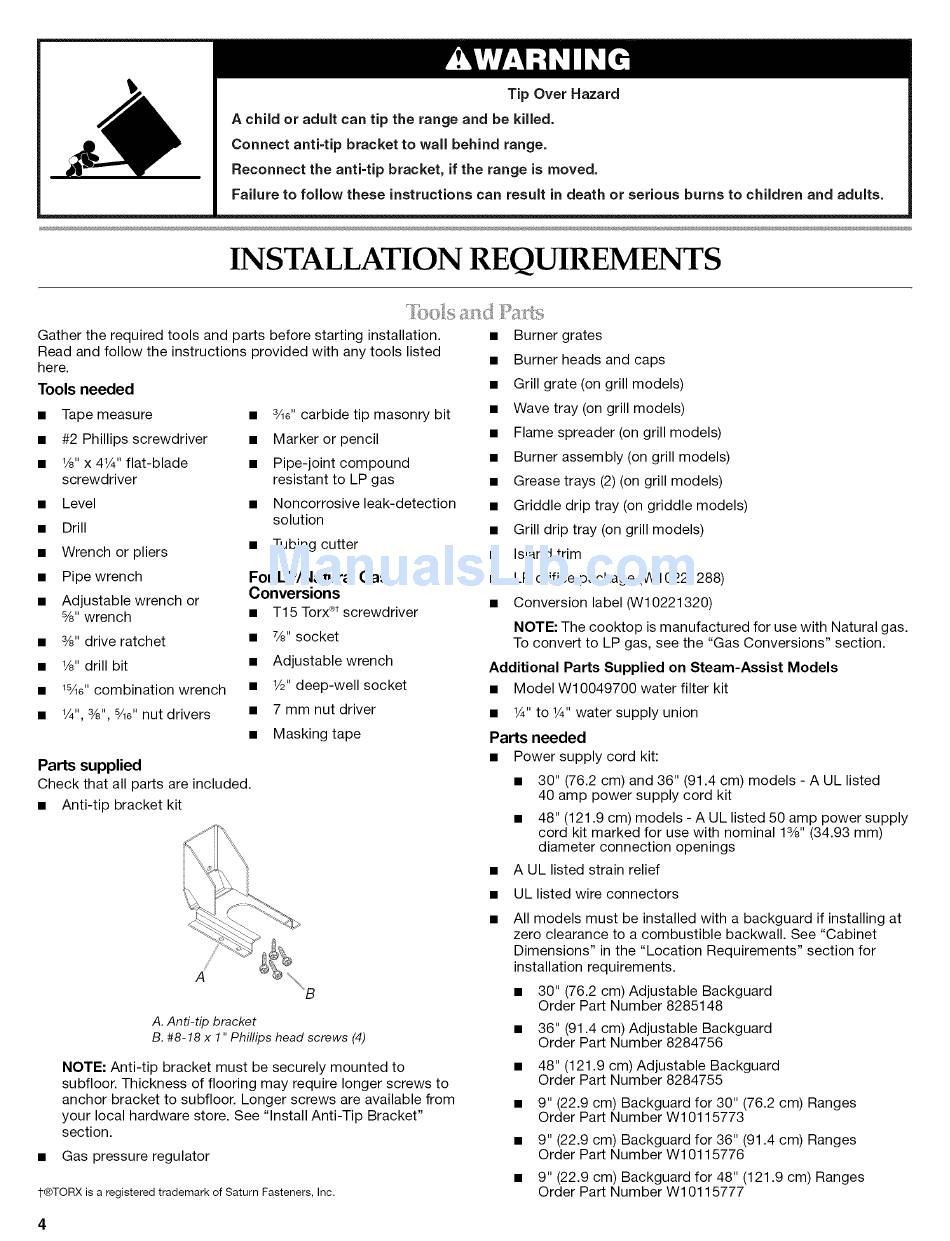

INSTALLATION REQUIREMENTS
Gather the required tools and parts before starting installation.
Read and follow the instructions
provided with any tools listed
here.
Tools needed
•
Tape measure
•
#2 Phillips screwdriver
•
Vs" x 4W' flat-blade
screwdriver
•
Level
•
Drill
•
Wrench or pliers
•
Pipe wrench
•
Adjustable wrench or
%" wrench
•
3/8"drive ratchet
•
Vs" drill bit
•
15/16"
combination
wrench
•
V4", 3/8", 8/W' nut drivers
Parts supplied
Check that all parts are included.
•
Anti-tip bracket kit
•
3/le" carbide tip masonry bit
•
Marker or pencil
•
Pipe-joint compound
resistant to LP gas
•
Noncorrosive leak-detection
solution
•
Tubing cutter
For LP/Natural
Gas
Conversions
•
T15 Torx ®tscrewdriver
•
7/8"socket
•
Adjustable wrench
•
1/2"deep-well socket
•
7 mm nut driver
•
Masking tape
•
Burner grates
•
Burner heads and caps
•
Grill grate (on grill models)
•
Wave tray (on grill models)
•
Flame spreader (on grill models)
•
Burner assembly (on grill models)
•
Grease trays (2) (on grill models)
•
Griddle drip tray (on griddle models)
•
Grill drip tray (on grill models)
•
Island trim
•
LP orifice package (W10221288)
•
Conversion label (VV10221320)
NOTE: The cooktop is manufactured
for use with Natural gas.
To convert to LP gas, see the "Gas Conversions"
section.
Additional
Parts Supplied on Steam-Assist
Models
•
Model W10049700 water filter kit
•
1¼,, t o 1¼,, w ater supply union
Parts needed
•
Power supply cord kit:
•
30" (76.2 cm) and 36" (91.4 cm) models - A UL listed
40 amp power supply cord kit
•
48" (121.9 cm) models - A UL listed 50 amp power supply
cord kit marked for use with nominal 13/8 '' (34.93 mm)
diameter connection openings
•
A UL listed strain relief
•
UL listed wire connectors
A
\
\B
A. Anti-tip bracket
B. #8-18 x 111 Phillips head screws (4)
All models must be installed with a backguard if installing at
zero clearance to a combustible
backwall. See "Cabinet
Dimensions"
in the "Location Requirements"
section for
installation requirements.
•
30" (76.2 cm) Adjustable Backguard
Order Part Number 8285148
•
36" (91.4 cm) Adjustable Backguard
Order Part Number 8284756
NOTE: Anti-tip bracket must be securely mounted to
subfloor. Thickness of flooring may require longer screws to
anchor bracket to subfloor. Longer screws are available from
your local hardware store. See "Install Anti-Tip Bracket"
section.
•
Gas pressure regulator
I"®TORX is a registered trademark
of Saturn Fasteners,
Inc.
48" (121.9 cm) Adjustable Backguard
Order Part Number 8284755
9" (22.9 cm) Backguard for 30" (76.2 cm) Ranges
Order Part Number W10115773
9" (22.9 cm) Backguard for 36" (91.4 cm) Ranges
Order Part Number W10115776
9" (22.9 cm) Backguard for 48" (121.9 cm) Ranges
Order Part Number W10115777
