KitchenAid KDRP407HSS11 Parts List

30" free standing range dual fuel
Hide thumbs


Advertisement

OVEN PARTS
30" KITCHENAID
FREE STANDING RANGE
For Model: KDRP407HSS11
DUAL FUEL
(Stainless Steel)
Part No. 8186191 Rev.B
6−05 Litho in U.S.A. (cre)
1

Advertisement

loading

  Also See for KitchenAid KDRP407HSS11

  Related Manuals for KitchenAid KDRP407HSS11

  Summary of Contents for KitchenAid KDRP407HSS11

  • Page 1 OVEN PARTS 30" KITCHENAID FREE STANDING RANGE For Model: KDRP407HSS11 DUAL FUEL (Stainless Steel) Part No. 8186191 Rev.B 6−05 Litho in U.S.A. (cre)
  • Page 2: Oven Parts

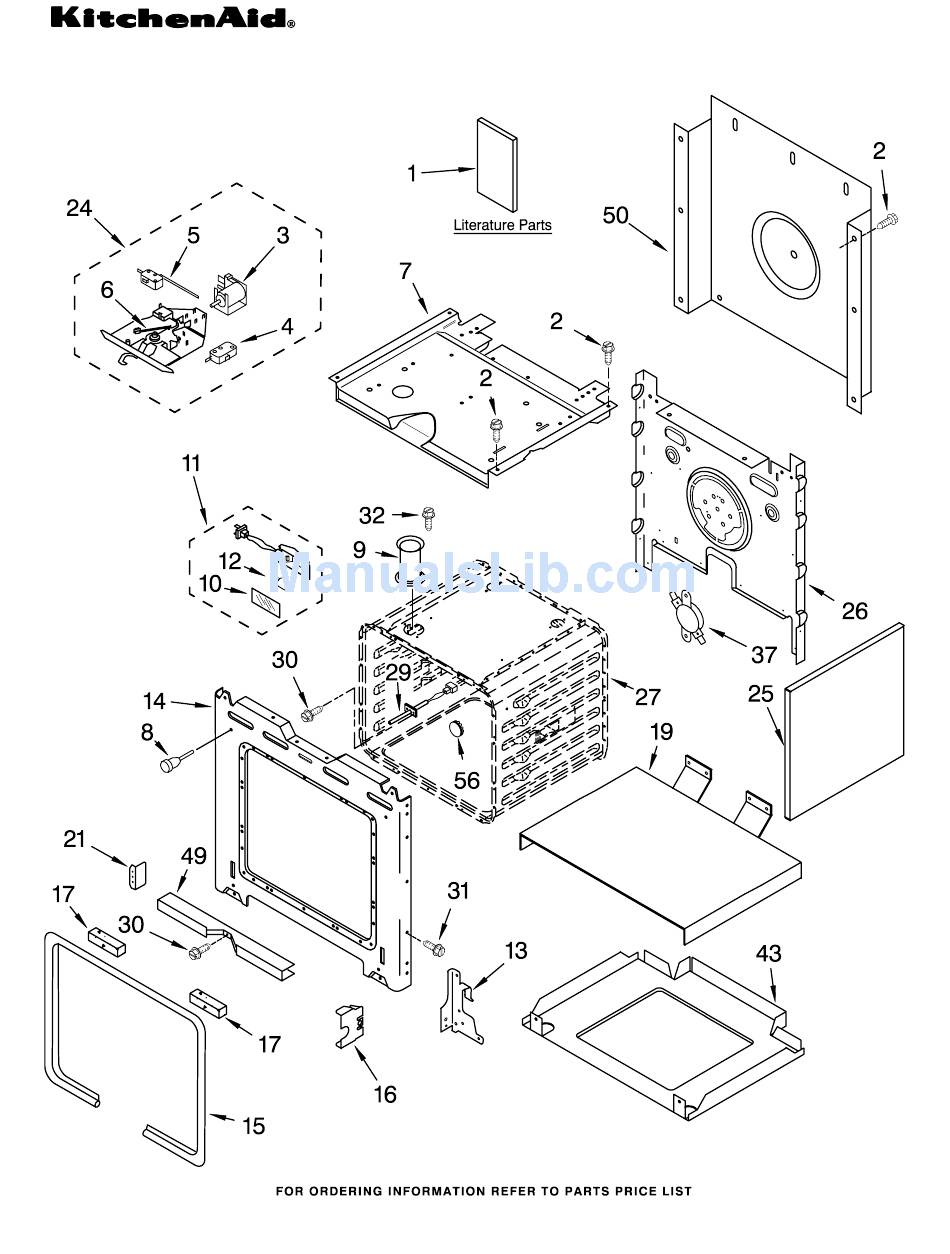

    OVEN PARTS For Model: KDRP407HSS11 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3196176 Screw, 8−18 x 1/2 Literature Parts 4452164 Bulb, Light 4451442 Thermostat (TOD) 9759121 Installation Hinge Receiver (Temp.) SPST Instructions 4455605 Left Hand 4455649 Base, Chassis 4456611 Use &...
