Summary of Contents for Digital Watchdog B3252DIR

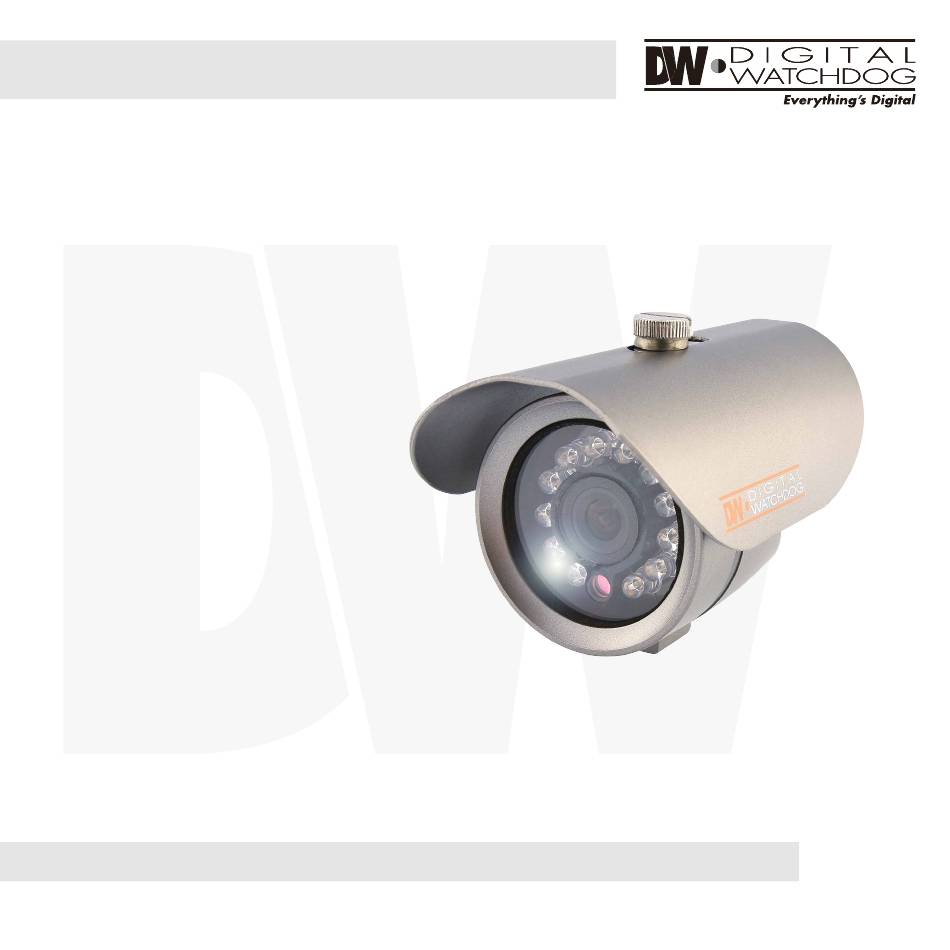

- Page 1 B3252DIR Bullet Camera ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 07132012...
- Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenence and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
- Page 3 TABLE OF CONTENTS Introduction Features Dimensions Installation Mount Installation Instructions Connecting to Monitors Troubleshooting Warranty Information 9-10 Specifications...
- Page 4 FEATURES * 1/3" Samsung CCD ■ 420 TV Lines ■ 3.6mm Fixed Lens ■ 35ft Range IR with Intelligent Camera Sync ■ AWB (Auto White Balance) ■ Clear Image ■ Wide Operating Voltage (8VDC~18VDC) ■ Low Power Consumption ■ Weatherproof Design ■...
- Page 5 DIMENSIONS IN MILLIMETERS * 110.0 66.0 54.0 120.0° 49.0...
- Page 6 INSTALLATION * 1. Mark and drill the holes on the surface where the screw holes of the Bracket [F] will be mounted. 2. Mount the Bracket [F] onto the wall using the Screws [D]. 3. Assemble the Camera [C] and the Bracket [F].
- Page 7 CONNECTION * 110.0 VIDEO(YELLOW) BNC JACK 81.1 VCC(RED) CAUTION : CHECK FOR POLARITY WHEN USING A DC12V POWER SUPPLY.
- Page 8 TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the camera’s OSD menu. Check the power supply and make sure the camera has the proper voltage and current.
-
Page 9: Warranty Information
WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants Camera Series against defects in materials or workmanship as follows. LABOR : For the initial five (5) years and one (1) year on LED from the date of original purchase, if the camera is determined to be defective, the Warrantor will repair or replace the unit, with new or refurbished product at its option, at no charge. - Page 10 LIMITS AND EXCLUSIONS* There are no express warranties except as listed above. The Warrantor will not be liable for incidental or consequential damages (including without limitation and damage to recording media) resulting from the use of these products, or arising out of any breach of the warranty.
-
Page 11: Specifications
SPECIFICATIONS* Model B3252DIR Camera TYPE Color/BW Bullet camera Mount Bracket Image Device 1/3” Samsung CCD Pixels-Total 537 (H) x 505 (V) 510 (H) x 492 (V) Scanning System 525 line, 2:1Interlace Horizontal Frequency Internal Mode 15,734Hz Vertical Frequency Internal Mode 59.94Hz... - Page 12 5436 W Crenshaw St. Tampa, FL 33634 Tel : 866-446-3595 / 813-888-9555 Fax : 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours : Monday-Friday 8:30am to 8:00pm EST...
