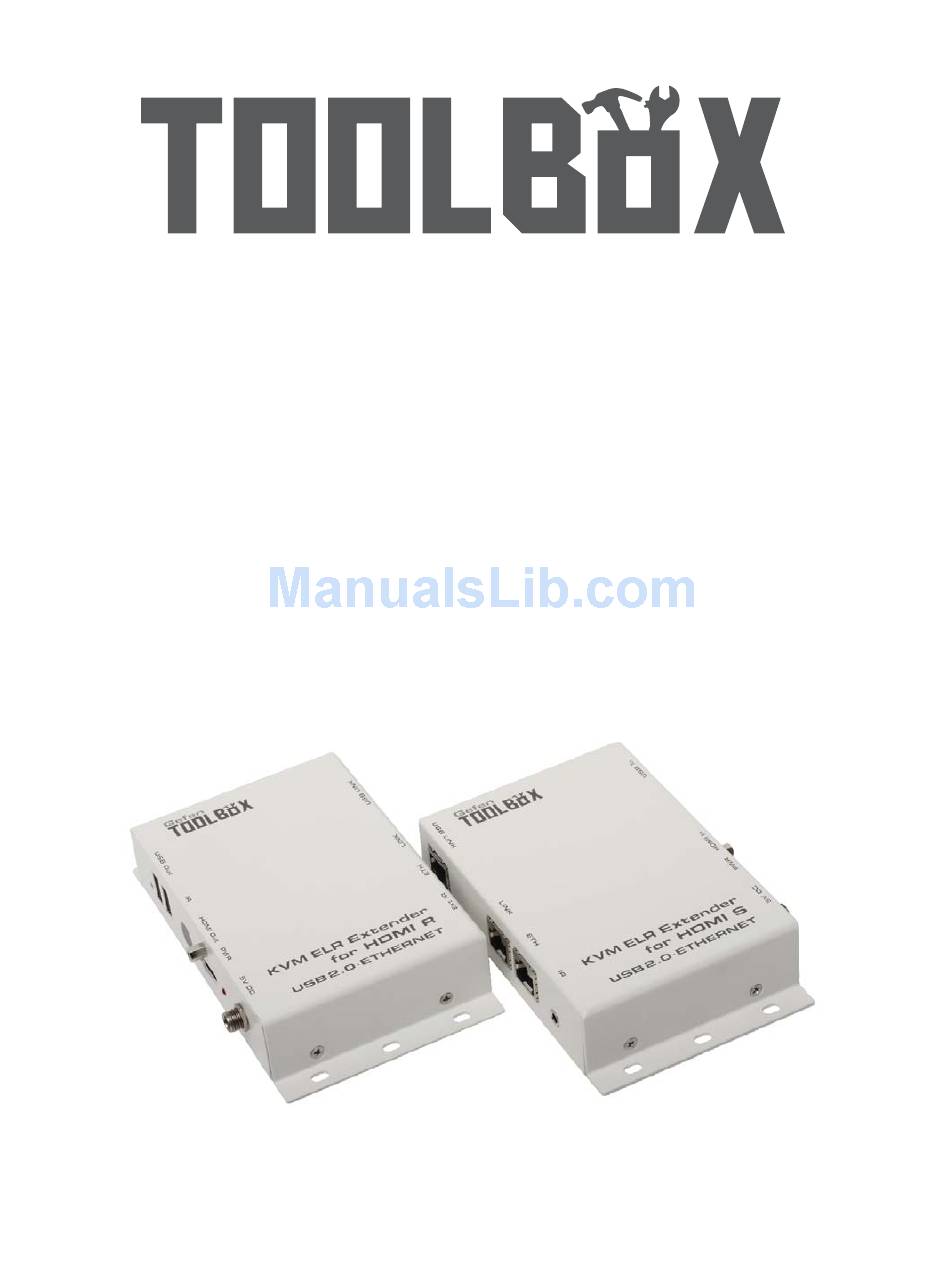

- Page 1 Gefen HDKVM Extra Long Range Extender GTB-HDKVM-ELR GTB-HDKVM-ELR-BLK User Manual www.gefentoolbox.com...
- Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. HDKVM Extra Long Range Extender is a trademark of Gefen, LLC HDMI, the logo, and High-Defi...
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Sender Unit Layout Sender Unit Descriptions Receiver Unit Layout Receiver Unit Descriptions Connecting the HDKVM Extra Long Range Extender Wiring Diagram 10 DIP Switch Confi guration 12 Network Cable Wiring Diagram 13 Wall Mounting Instructions 14 Specifi... -
Page 4: Introduction
We invite you to explore our distinct product line. Please visit http://www.gefen.com for the latest offerings in High-Defi nition signal solutions or call us between the hours of 8:00 am and 5:00 pm Monday-Friday, Pacifi c Standard Time for assistance with your A/V needs. -
Page 5: Operation Notes
OPERATION NOTES PLEASE READ THESE NOTES BEFORE INSTALLING OR OPERATING THE HDKVM EXTRA LONG RANGE EXTENDER • CAT-5 or CAT-6 cables should not exceed 330 feet (100 meters). • Shielded (STP) CAT-5 or CAT-6 is recommended. However, un-shielded (UTP) CAT-5 or CAT-6 is acceptable. NOTE: The shielded cable has an advantage by providing immunity to Electromagnetic Interference (EMI), cell phones and A/C motors. -
Page 6: Features
FEATURES Features • Supports 1080p Full HD and 3DTV at 330 feet (100 meters) • Extends USB 2.0 up to 330 feet (100 meters) • Supports USB 2.0 480 Mbps • Backward-compatible with USB 1.1 devices • IR backchannel • Ethernet support •... -
Page 7: Sender Unit Layout
SENDER UNIT LAYOUT Left Side Right Side... -
Page 8: Sender Unit Descriptions
Connect a CAT-5 cable from a port on a local Ethernet switch to this jack. The HDKVM Extra Long Range Extender supports 10/100BaseT Ethernet. Connect an IR Blaster cable (Gefen part no. EXT-2IREMIT) from this port to the Hi-Def source to control the source from the viewing location. -
Page 9: Receiver Unit Layout
RECEIVER UNIT LAYOUT Left Side Right Side... -
Page 10: Receiver Unit Descriptions
RECEIVER UNIT DESCRIPTIONS Ext IR Connect an IR Extender (Gefen part no. EXT-RMT-EXTIR) cable from this port to the Hi-Def source to extend the IR control. Connects an Ethernet cable from this port to a network device. LINK Transmits the HDMI, Ethernet, and IR signals from the Sender Unit to the Receiver Unit using CAT-5e / CAT-6 cable. -
Page 11: Connecting The Hdkvm Extra Long Range Extender
CONNECTING THE HDKVM EXTRA LONG RANGE EXTENDER How to Connect the HDKVM Extra Long Range Extender Connect the Hi-Def source to the Sender Unit using the included HDMI cable. Use an HDMI cable to connect the Receiver Unit to an HDTV display. Connect the USB host device to the Sender Unit. -
Page 12: Wiring Diagram
CONNECTING THE HDKVM EXTRA LONG RANGE EXTENDER Wiring Diagram for the HDKVM Extra Long Range Extender CAT-5 LINK CABLE / ETHERNET (Up to 330 ft) HDMI CABLE USB CABLE Router Receiver Router Home Theater Multimedia PC Sender Sender HDMI Display USB Printer GTB-HDKVM-ELR Attention: This product should always be connected to a grounded... -
Page 13: Dip Switch Confi Guration
DIP SWITCH CONFIGURATION Receiver Unit The Gefen HDKVM Extra Long Range Extender contains four (4) DIP switches on the bottom of the Receiver Unit (the Sender Unit does not contain DIP switches). Each of these DIP switches performs a different function. - Page 14 DIP SWITCH CONFIGURATION Receiver Unit DIP Switch 2 - Hot Plug Detect (Default = OFF)* • ON - HPD Pass-Through HPD follows upstream HPD towards the source. The HPD signal will refl ect the connection status between the display device and the source device. If the source or monitor is temporarily disconnected then reconnected, there will be a delay of 20 - 30 seconds before the content is restored to the monitor.
-
Page 15: Network Cable Wiring Diagram
NETWORK CABLE WIRING DIAGRAM Gefen recommends the TIA/EIA-568-B wiring option. Please adhere to the table below when fi eld terminating cable for use with Gefen products. Color Orange / White Orange Green / White Blue Blue / White Green Brown / White... -
Page 16: Wall Mounting Instructions
WALL MOUNTING INSTRUCTIONS The GefenToolBox HDKVM Extra Long Range Extender Sender Unit and Receiver Unit may be mounted vertically on a wall or in a cabinet with wood/ drywall screws as shown in the diagram above. There should be an inch or two of clearance between the edges of the unit and any walls or vertical surfaces to allow for enough clearance for insertion and retraction of all input and output cables. -
Page 17: Specifications
SPECIFICATIONS Maximum Pixel Clock................225 MHz Input Video Signal................1.2 Volts p-p Input DDC Signal................5 Volts p-p (TTL) HDMI Connector (Sender / Receiver)........Type A, 19-pin, female USB Connector (Sender).................(1) Type B USB Connector (Receiver)..............(2) Type A Ethernet Connector (Sender / Receiver)...........(1) RJ-45 Link Connector (Sender / Receiver)............(2) RJ-45 Power Supply (Sender / Receiver)...............5 V DC Power Consumption..............10 W per unit (max.) -
Page 18: Specifi Cations
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 19 Rev A1 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefentoolbox.com support@gefentoolbox.com This product uses UL listed power supplies.
