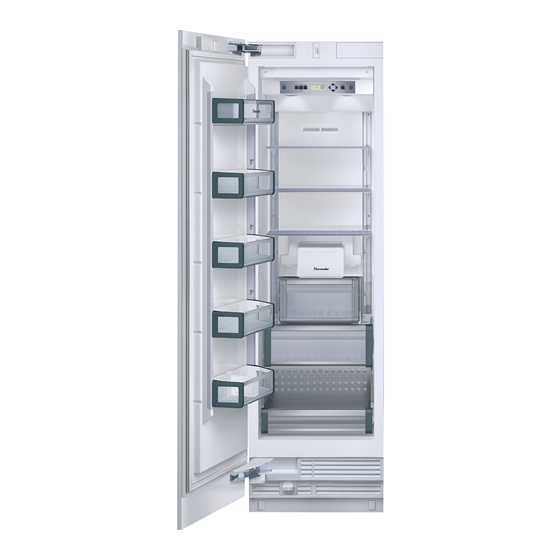

- Page 1 INSTALLATION INSTRUCTIONS Single Door Models For Built-in Refrigerators, Modeles A une porte Freezers and Wine units Modelos de una puerta INSTRUCTIONS D'INSTALLATION Pour r_frig6rateurs, congelateurs caves 6 vin encastres INSTRUCCIONES DE INSTALACION Para los refrigeradores, congeladores y unidades de vino empotrados Thermedor _ 9000222885...
-
Page 3: Table Of Contents
Contents Before you Begin ................Definitions ................Important information ..............Installation options ................Individual unit ................Side-by-Side ................Individual appliances with partition ............At the end of the kitchen units ............... Installation location Installation room Installation cavity Furniture/fixtures Base ..................Connecting the power ............... - Page 4 Installation instructions ..............Checking the installation cavity ............Transoort of the appliance .............. Removing the packaging ............... Prepanng the appliance ..............Changrng over the door hinges ............Prepanng the installation cavity ............Attaching an alternative anti-tip device ............ Prepanng to connect the water ............
-
Page 5: Before You Begin
Before you Begin Read these instructions completely and carefully. IMPORTANT These installation instructions are intended for use by qualified installers. All connections for water, electrical Save these instructions for local inspector's use. power and grounding must comply with local codes and Observe all governing codes and ordinances. -
Page 6: Installation Options
Installation options Individual There are many different installation options. appliances with partition These are limited only by the design of the kitchen and the function of the finger guard. Individual unit Side-by-Side Note When dimensioning the partition for model 4, note the thickness of the furniture fronts to prevent damage... -
Page 7: Installation Location
Installation location r_The side walls of the cavity must be flush. The minimum thickness of side walls and the top wall Do not install the appliance: must be 5/8" (16 mm). - outdoors, The minimum thickness of toe kick panel must be - in an environment with dripping water,... -
Page 8: Connecting The Power
Grounding instruction This appliance must be grounded. In the event of Connecting the power a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for the electric current. Electrical Shock Hazard - Plug into a grounded 3 prong outlet. -
Page 9: Installation Dimensions
Installation dimensions Single installation 90° iiil (46) (25) 25/16" (59) 133/4" (350) Legend: Appliance A Areafor installation of the water connection 18" 24" 30" B Areafor installation of the powerconnection 18" (457 mm) 24" (610 mm) 30" (762 mm) D Openingdepthof niche,depending on kitchendesign (seeDESIGN GUIDE) 9"... -
Page 10: Side-By-Side Installation
Example: Side-by-Side installation Freezer 18" / Refrigerator 30" The cavity dimensions indicated above for the respective appliance apply to a Side-by-Side installation of two appliances. The total width of the cavity results from the addition the cavity widths indicated for the two appliances. (1219) 30"... -
Page 11: Water Connection
Water connection The supply pipe can be located at the side on the right, at the side on the left or underneath. 3%2" . 2 5/16" max, 13/32 ,, (lO) (1o) i¸¸ 113/1 " 1..6 "? (46} 2 2 it8°' (54) (54}... -
Page 12: Appliance Dimensions
Appliance dimensions 18" Appliance (Freezer/Freezer with Ice and Water dispenser) 1_" 24" (457) (610) Frontview (withoutdoor panel) i15/16" (287,4) 14_ 6" (360) b) f) 14_5" 797/8" 84" (2029} (2i33,6) 14_6" (36O) _ii_!_ _iiii_iiii_ : __ _ 115't6" (287,4) 131/8" ..(71 _7 - 106,7) 24"... - Page 13 18" Appliance (Wine unit) 24" 1i 8 ¸'` (81_o) (457) Frontview (withoutdoor panel) b) f) 797/8" 84" (2029) (2i33,6) i!iii_!_!_:i!_ii_i!!i:!;_i:il;; _¸! _i_iii !!iii 131/8" 71/8 (18_) / (71,7 - 106,7) 24" (510) e) (451,2) 2o22 132" ,6) c) Note: Legend: a) Adjustmentin levellinglegs+13/8"...
- Page 14 24" Appliance (Refrigerator/Freezer/Freezer with Ice and Water dispenser) Frontview (withoutdoor panel) b) f) 84" (2133,61 115/16" (287,41 (291 (_91 233/4 ° (603,6) 2621/32" (677) Note: Legend: a) Adjustmentin levellinglegs+13/8" (35 mm)/ 1/2"(13 mm). Onedesignof the woodenpaneldisplayed,Forfurther information about b) Dimensions may vary. the differentstylescheckthe DESIGN GUIDE, c) Thicknessof door panelmayvary.
-
Page 15: Appliance (\Nine Unit)
24" Appliance (Wine unit) 24" 1/8"¸ Frontview (withoutdoor panel) i15/16" (2874) b) f) 797;8" 84" (2029) (213&6} (360) 115/16" (287,4) (29) 3/4 ° (_9) 23%° (60&6) 90 ° 2621/32" 115 ° Note: Legend: a) Adjustmentin levellinglegs+13/8" (35 mm)/ 1/2"(13 mm). Onedesignof the woodenpaneldisplayed,Forfurther information about b) Dimensions may vary. - Page 16 30" Appliance (Refrigerator/Freezer/Freezer with Ice and Water dispenser) 30 '_ (762) " (610) _" 1/8" Frontview (withoutdoor panel) 11N6" (287,4) b) f) 797/8,, 84,_ (2029) (2133,6) 14_6" (360} i¸ i_ 115h 6" (287,4) i3i/8 Note: Legend: a) Adjustmentin levellinglegs+13/8" (35 mm)/ 1/2"(13 mm).
-
Page 17: Required Accessories And Tools
tools Required accessories Supplied accessories Cutter with adjustable blade Metal tape measure Installation instructions Square Operating instructions Spirit level length 2' (60 cm) and 4' (1,2 m) Installation Marking-out level, length at least 4' (1.2 m) for Optional accessories individual appliances or 7' (2.0 m) for Side-by-Side installation... -
Page 18: Installation Instructions
Installation instructions 2.. Transport of the appliance The following installation instructions describe the installation steps for various appliance types: The appliance is very heavy. Be careful, otherwise - Refrigerator units people who are helping may be injured or the - Freezer units appliance may be damaged. -
Page 19: Removing The Packaging
Removing the packaging Preparing the appliance Remove the side brackets and fixing plates which attach the furniture fronts. To do this, loosen the fastening screws and remove - The appliance may tip over while it is being the stop parts. unpacked. -
Page 20: Changrng Over The Door Hinges
Changing over the door hinges Before working on the hinge, release the spring - risk of injury[ The door hinges may have to be changed over depending on the installation situation. IT]If it is not necessary to change over the door hinges, continue with the next installation step. - Page 21 Fix the hinges on the appliance. Change the hinges crosswise! Change over the hinge angle. Fixthe door. Fit the plastic part of the grill. Mount the grill completely. Span the spring on the hinge. Tighten the screw from 0 to I. Change over the fixation parts on the door.
-
Page 22: Prepanng The Installation Cavity
Preparing the installation cavity 2 anti-tip-brackets are required for each appliance or appliance combination (Side-by-Side). Specify the attachment points of the anti-tip-brackets. Specify the detailed dimensions according to the section on "Installation dimensions" starting on page 9. Assure that there are no electrical wires or plumbing in the area which the screws could penetrate - risk of injury and damage! - Page 23 Wood floor application Use the wooden screws provided, see overview diagram "Use the screws in the screws set". Drill pilot holes: 1/s" (3 ram) for the (5 x 60 ram) wooden screws 5/G4" (2 ram) for the (4 x 15 ram) wooden screws Being certain the screws penetrate through the flooring and into the wall plate a minimum...
-
Page 24: Attaching An Alternative Anti-Tip Device
Locate wall studs near the rear panel of the cavity Attaching an alternative anti-tip and mark drill holes in the beam. device Predrill the wooden beam. Attach the wooden beam to the rear panel of the cavity. If possible, always screw the wooden beam to existing studs on the rear panel of the cavity. -
Page 25: Attaching The Edge Protection
Attaching the edge protection 10.Side-by-Side installation IT]If a side-by-side installation is intended, now connect the two appliances together. See the Installation Manual for the Side-by-Side kits. To protect the corners of the installation cavity, attach the supplied protective brackets with adhesive tape. -
Page 26: Installing And Aligning The Appliance
12. Installing Put the mains plug into the socket. aligning the appliance IT]In the case of Side-by-Side appliances a separate socket must be used for each appliance. Prevent the power cord from becoming caught. Tie a piece of string to the middle of the power cord and feed forwards under the appliance. -
Page 27: Attaching The Appliance To The Top Of The Cavity
The height-adjustable feet at the front and rear can all Note: be adjusted from the front. Do not twist or jam the appliance inside the cavity! Front: with open-ended wrench 1/2" (SW13) When unscrewing the height-adjustable feet, Rear: with 5/16" (8 mm) hex nut driver proceed gradually: Always alternate between left... -
Page 28: Attaching The Individual Appliance To The Side Of The Cavity
Attaching the individual appliance to the side of the cavity Fix the attachment plate side lugs (top) depending on the installation situation. If there is no gap or only a slight gap, it is not necessary to fix the side lugs. If there is a fairly large gap above the appliance, fit a Screw the attachment... -
Page 29: Attaching The Toe Kick Panel
16. Attaching the toe kick pane[ The maximum height of the toe kick panel is 4" from the top of the floor. Do not cover ventilation slots in the base panel. Risk of damage to the appliance. If required, cut the toe kick panel to the required length. -
Page 30: Commissioning The Appliance
Put on the base panel (do not screw on) and measure the difference in depth Y between the base panel and toe kick panel of the adjacent furniture. Attach the base panel. Remove the base panel. [-i-] If required, the toe kick panel can be screwed to the Loosen the brackets for attaching the base panel base panel. -
Page 31: Preparing The Furniture Doors
18. Preparing the furniture doors When performing any work on the furniture doors, always observe the following: Always screw into the best load-bearing material of the furniture door. Never screw into fillers, decorative strips or similar. Select a screw length which is always shorter than the thickness of the furniture front. -
Page 32: Loading The Appliance Door
In the case of 30" and 36" wide appliances 2 adjacent 20. Attaching the adjusting rail furniture doors can be attached instead of one large to the furniture door door. These furniture doors must be connected a metal strip on the rear. [-i-] The adjusting rail is the most important means of... -
Page 33: Attaching And Aligning The Furniture Door
21. Attaching and aligning the furniture door The double threaded bolts are responsible adjusting the height of the furniture front. Hang the furniture door on the double threaded 4x15 bolt. Mark this amount X on the rear of the furniture door. Determine and mark the centerline of the furniture... -
Page 34: Attaching The Furniture Door
Remove the furniture door. 22. Attaching the furniture door Now fit the furniture handles which are screwed from behind! Using the positioning aid, set both longitudinal sides Hang the furniture door with adjusting rail over the of the furniture door parallel. double threaded bolts. - Page 35 Tighten the nuts on the adjusting rail. This will fix the side alignment of the door. Attach the bracket: Lift the furniture door slightly away from the appliance door. Push the side bracket ((_!}.)on the left and right over the screws. Insert the side bracket ({2}.) on the left and right into the fixing plate and slide over the screw.
-
Page 36: 23. Shorten The Finger Guard
24. Attaching the finger guard 1× ]]]The number of lower brackets depends on the width and the design of the furniture door. 23. Shorten the finger guard Insert the finger guard into the gap between the appliance and adjacent furniture (1.). Clamp the finger guard under the brackets (2.). -
Page 37: Attaching The Covers
Attach the finger guard under the lower hinge with Place the cover strips on the door. the angle. Slide the cover on the angle. 25. Attaching the covers Attach the light switch cover. [-i-] The cover for 24", 30" and 36" appliances can be screwed to the door. -
Page 38: Aligning The Ice-Water Dispenser
Side-by-Side installation only: !i ¸ Insert the cover strip into the space between the Insert the cover strip into the space between the appliances. appliance and the wooden panel. Individual appliances only: 26. Aligning the ice-water dispenser (for freezer unit with ice-water dispenser only) The depth of the ice-water... -
Page 39: Attaching The Cover Frame And The Shelf
Re-attach covers. Insert shelf. Attaching the cover frame and 28. Attaching the cover strips the shelf (for wine storage cupboard only) (for freezer unit with ice-water dispenser only) Note: (19 ram) / 19 mm thick furniture doors: 3/4" If the frame width is narrow, the cover strip side piece may have to be shortened. -
Page 40: Mounting Of Air Separator
29. Mounting of air separator Screw the air separator to the furniture door in order to separate the supply and waste air. Push cover strips on the longitudinal side into the gap between the furniture door and glass pane. Cut the cover strips on the short sides to the required length. -
Page 41: Adjusting The Door Opening Angle
30. Adjusting the door opening 31. Changing the door spring angle To adjust the door spring: Depending on the installation situation, it may be necessary to adjust the door opening angle. A door opening angle of 115 ° has been set at the factory. To adjust the door opening angle to 90°: Open door to 90 °... - Page 42 ThermadoW reserves the right to make changes in modeJs, features, and specifications without prior notice. AIJ rights reserved. Todos los derechos reservados. Thermador _ se reserva el derecho de hacer cambios en los modelos, caracteristicas y especificaciones sin previo aviso. Tous droits reserves.
