71-2052-250
6/12
Lionel

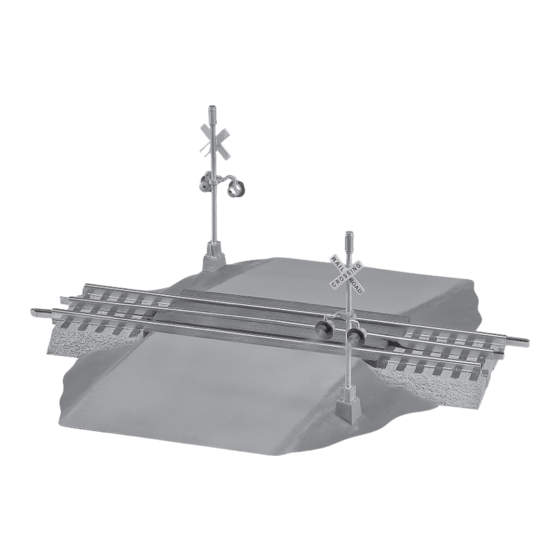

Grade Crossing with Flashers
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FasTrack Grade Crossing with Flashers and is the answer not in the manual?

Questions and answers

Related Manuals for Lionel FasTrack Grade Crossing with Flashers

Summary of Contents for Lionel FasTrack Grade Crossing with Flashers

  • Page 1 71-2052-250 6/12 Lionel Grade Crossing with Flashers Owner’s Manual...

  • Page 2: Table Of Contents

    Joining the track sections Installing the flashers Operating the Grade Crossing and Flashers Notes Limited Warranty/Lionel Service The following Lionel marks are used throughout this Owner’s Manual and are protected under law. All rights reserved. Lionel ® , LEGACY ™...

  • Page 3: Placing The Grade Crossing With Flashers On Your Layout

    Placing the Grade Crossing with Flashers on your layout hoose a location on your layout for the grade crossing. When you assemble the track sections, be sure that the “broken” rails on the Isolated Track sections (included) are on the same side (i.e., locate both “breaks” inside the track loop or outside the track loop). Be sure that the switch on the grade crossing is located on the same side as the breaks in the Isolated Track sections.

  • Page 4: Joining The Track Sections

    Joining the track sections asTrack track sections join together easily. With interlocking roadbed sections and large rail tabs, the track fits together securely so you always get good electrical contact. Refer to Figure 2 to join the track sections. 1. Line up your two sections of track. 2.

  • Page 5: Installing The Flashers

    Installing the flashers our grade crossing includes two flashers. To install the flashers, snap the two bases into place and plug in the flashers. Refer to Figure 3. Flasher Base Figure 3. Flasher installation...

  • Page 6: Operating The Grade Crossing And Flashers

    Operating the Grade Crossing and Flashers hen the track is powered up and your train crosses over a “break” in the Isolated Track sections, the Grade Crossing will operate. Use the bell ON/OFF switch to control the operation of the bell sounds. The switch is illustrated in Figure 4. When the switch is in the OFF position, the bell sounds will not operate when the train triggers the flashers.

  • Page 7: Notes

    Notes...

  • Page 8: Product Description

    (or copy) from an Authorized Lionel Retailer*, will at the discretion of Lionel LLC, be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a suitable replacement is not available, Lionel will offer to replace the product with a comparable model (determined by Lionel LLC), if available.
