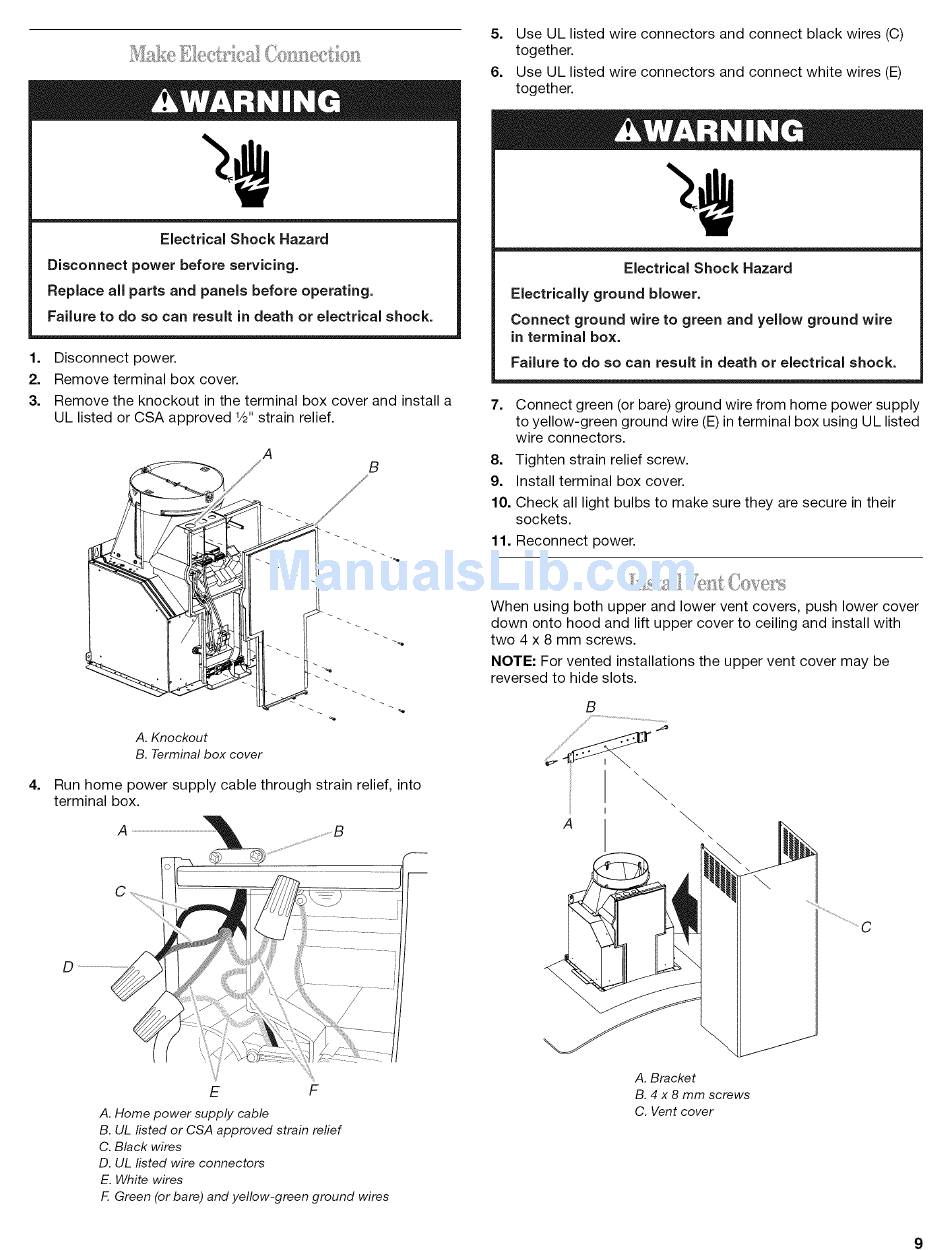

Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
1. Disconnect
power.
2. Remove terminal box cover.
3. Remove the knockout in the terminal box cover and install a
UL listed or CSA approved 1/2"strain relief.
4.
A
A. Knockout
B. Terminal box cover
Run home power supply cable through strain relief, into
terminal box.
A
D
5. Use UL listed wire connectors
and connect black wires (C)
together.
6. Use UL listed wire connectors
and connect white wires (E)
together.
Electrical Shock Hazard
Electrically ground blower.
Connect ground wire to green and yellow ground wire
in terminal
box.
Failure to do so can result
in death or electrical
shock.
7. Connect green (or bare) ground wire from home power supply
to yellow-green
ground wire (E) in terminal box using UL listed
wire connectors.
8. Tighten strain relief screw.
9. Install terminal box cover.
10. Check all light bulbs to make sure they are secure in their
sockets.
11. Reconnect power.
When using both upper and lower vent covers, push lower cover
down onto hood and lift upper cover to ceiling and install with
two 4 x 8 mm screws.
NOTE: For vented installations the upper vent cover may be
reversed to hide slots.
\
\
A
'
E
F
A. Home power supply cable
B. UL listed or CSA approved strain refief
C. Black wires
D. UL listed wire connectors
E. White wires
F. Green (or bare) and yellow-green
ground wires
A. Bracket
B. 4 x 8 mm screws
C. Vent cover
