LP-176 User’s Manual Copyright Copyright 2016, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
Packing List: Please check the package content before you starting using the board. 1 x SATA Cable (OALSATA22B-PM15SH15) / (1040512) 1 x LP-176 Motherboard 1 xDC Input Power Cable 1 x PS/2 Keyboard & Mouse cable (OALDC-B / 1040513) (OALPS2/KM / 1040131) 1 x Dual COM cable 1 xUSB2.0 cable...

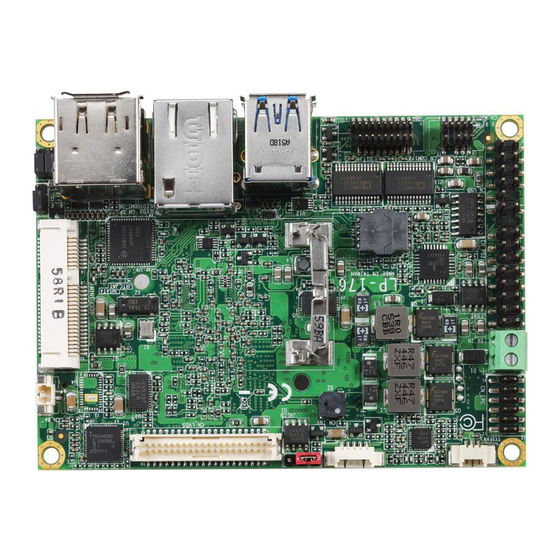

LP-176 User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LP-176 is pico Motherboard which is design based on Intel® Pentium® Processor N3000 Series Processor(Braswell SoC), delivering outstanding compute, graphical, and media performance while operating in an extended range of thermal conditions. The SoC bases on the Silvermont microarchitecture, utilizing Intel’s industry-leading 14nm process technology...
LP-176 User’s Manual 1.2 <Product Specification> System Intel® Braswell Series Processor N3710/X5-E8000, Processor FCBGA1170 package Chipset Braswell SoC 1 x DDR3L DIMM 1600 MHz up to 8GB, Memory Support Non-ECC, unbuffered memory only Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s...
LP-176 User’s Manual 2.2 <Jumper Location and Reference> JVLCD JMSATA 2.2.1 <Jumper list> JRTC Jumper Function Power mode select JRTC CMOS Normal/Clear Setting JVLCD Panel Voltage Setting JMSATA MiniCard mSATA Setting 2.2.2 <Clear CMOS and Power on type selection> JRTC: Clear CMOS data jumper...
LP-176 User’s Manual 2.3 <Installing the Memory> In the process, the board must be powered off. 1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key. 2. Then press down till lock into the mounting notch.
LP-176 User’s Manual 2.4 <I/O interface> 2.4.1 <Serial ATA interface> CN_SATA: SATA3 10-pin connector Signal CN_SATA 2.4.2 <Ethernet interface> The board provide I210-AT Gigabit Ethernet which supports WOL on rear I/O. Find the setting from Advanced-----> Power Management-- Wake on LAN Enable [Disable] (default) I210-AT 2.4.3 <Display interface>...
Page 15
LP-176 User’s Manual JVLCD CN_INV CN_LVDS JVLCD: LVDS panel power select jumper Jumper settings Function 3.3V (Default) Effective patterns of connection: 1-2 / 2-3 Other may cause damage CN_LVDS: LVDS 40-pin connector ( Model: HIROSE DF13-40DP-1.25V compatible Signal Signal Set by JVLCD...
LP-176 User’s Manual LVDS_DDCSCL LVDS_DDCSDA Note: Pin4 only need to be connected to GND CN_INV: LVDS 5-pin Backlight power connector Signal 3.3V Backlight Control Enable Backlight 2.4.4 <Serial Port interface> CN_COM1/2 CN_COM1/2: RS232 20-pin header (Pitch 1.27mm x 2.54mm) Signal...
LP-176 User’s Manual 2.4.5 <USB interface> CN_USB USB3.0 CN_USB: Front panel USB2.0 10-pin header (Pitch 2.54mm) Signal Signal 5VSB 5VSB DATA0- DATA1- DATA0+ DATA1+ Install USB3.0 Driver If you want to use CN_USB in Windows7. 2.4.6 <Audio interface> CN_AUDIO -16-...
LP-176 User’s Manual CN_AUDIO: Front panel audio 10-pin header (Pitch 1.27mm x 2.54mm) Signal Signal MIC_L MIC_R FP_OUT_R MIC_DETECT SENSE FP_OUT_L FP_OUT_DETECT 2.4.7 <Expansion slot> JMSATA MINI_CARD support mSATA by JMSATA MINI_CARD have some special design to compatible our mini-PCIe card.
LP-176 User’s Manual CPUFAN: CPU cooler fan 3-pin connector Signal Sensor SYSFAN: System cooler fan 3-pin connector Signal Sensor 2.5 <Power supply> 2.5.1 <Power input> 5V_IN 5V_IN: Terminal Block 2-pin power connector Signal Signal Power in (5V ONLY) -20-...
LP-176 User’s Manual Appendix A <Flash BIOS> A.1 BIOS Auto Flash Tool The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: LP-176 reflash tool A.2 Flash Method...
Page 24
LP-176 User’s Manual then input the “fs0:” command to switch to the root of the USB flash drive. 4. Type the ” fpt64.efi -y -f xxxxx.bin” command to start flash BIOS processes. ( xxx.bin means the BIOS file that you want to update) 5.
LP-176 User’s Manual Appendix B <LCD Panel Type select> According your panel, it need to select the correct resolution in the BIOS. If there is no fit your panel type, please feedback for us to make OEM modol. Find the setting from Advanced----->...
Page 26
LP-176 User’s Manual Appendix C <Programmable Watch Dog Timer> Timeout value range 1 to 255 Minute and Second Program sample Watchdog timer setup as system reset with 5 second of timeout -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 08 ;select Logical Device...
Page 27
LP-176 User’s Manual Appendix D <Install Heat Spreader > 1.Install DDR3L SO-DIMM memory 2.Tear two plastic films carefully -26-...
Page 28
LP-176 User’s Manual 3.Put LP-176 on the heat spreader 4.Align the screw holes -27-...
Page 29
LP-176 User’s Manual 5.Tighten two screws. The washer is easy broken, so don’t lock too tight. Appendix E <Setup ADP-3355> LP-176NXIT and LP-176EXIT series has a VGA, it’s no need install extra driver.Here is ADP-3355 Setup manual Link -28-...
Page 30
Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 +886-2-26963911 Website www.commell.com.tw info@commell.com.tw (General infomation) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc. -29-...
