- Page 1 LP-175 Pico-ITX Motherboard User’s Manual Edition 1.0 2016/09/07...
- Page 2 LP-175 User’s Manual Copyright Copyright 2016, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
LP-175 User’s Manual Packing List: Please check the package content before you starting using the board. 1 x LP-175 Pico-ITX Motherboard (include Heat Spreader) 1 x SATA & SATA Power Cable 1 x PS/2 Keyboard & Mouse cable (OALSATA22B-PM15SH15 / 1040512) - Page 4 LP-175 User’s Manual Index Chapter 1 <Introduction>............... 4 1.1 <Product Overview> ................. 4 1.2 <Product Specification> ................5 1.3 <Mechanical Drawing> ................6 1.4 <Block Diagram> ..................10 Chapter 2 <Hardware setup> ............11 2.1 <Connector Location and Reference> ........... 11 2.1.1 <Internal connectors list>...

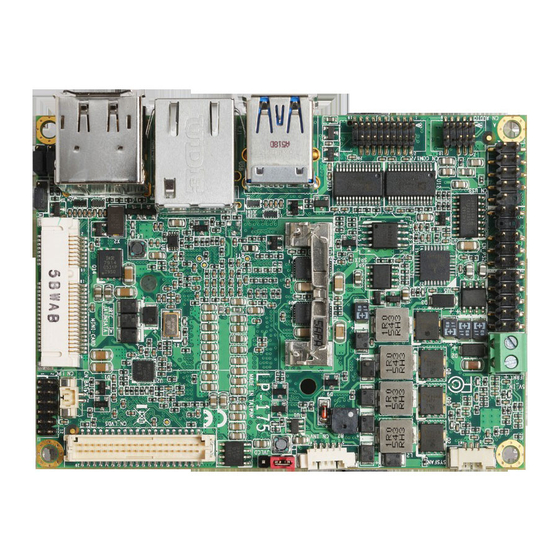

- Page 5 LP-175 User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> Generation Intel® Core™ U-series i7, i5, LV-175 is Pico-ITX Motherboard which supports 6 i3, Celeron Mobile Processor with Sunrise Point PCH-LP, integrated HD Graphics, DDR4 memory, Realtek High Definition Audio, Intel Gigabit LAN, Serial ATA3 with AHCI function for a system.
-
Page 6: Product Specification
Relative Humidity 10%~90%, non-condensing Note1: If you need to change DisplayPort to VGA, it requires Commell ADP-3355 DP to VGA module, LP-175T series not attached ADP-3355 and DisplayPort I/O not retain. Note1: If you need a wider power input, please refer Commell DC-DC3-5V power module.(input voltage 5~35V) -
Page 7: Mechanical Drawing
LP-175 User’s Manual 1.3 <Mechanical Drawing> Positive... - Page 8 LP-175 User’s Manual Back...
- Page 9 LP-175 User’s Manual LP-175P LP-175T...
-
Page 10: Block Diagram
LP-175 User’s Manual 1.4 <Block Diagram> DDR4 PTN3460 Channel A SO-DIMM 1 x LVDS PCIe x1 I219-LM Gen Processor 1 x DisplayPort PCIe x1 ADP3355 MiniCard SATA3 SATA3 1 x VGA 1 x SATA3 1 x HDMI SPI Flash PCH-LP USB3.0... -
Page 11: Chapter 2
LP-175 User’s Manual Chapter 2 <Hardware setup> 2.1 <Connector Location and Reference> CN_COM1/2 CN_AUDIO CN_USB CN_PS2 MINI_CARD JFRNT DC_IN CN_LPC CN_LVDS CN_INV SYSFAN CN_SMBUS CN_SATA3 SO-DIMM 5V_OUT CN_COM1/2 CPUFAN LAN DisplayPort USB3.0 HDMI -10-... -
Page 12: Internal Connectors List
LP-175 User’s Manual 2.1.1 <Internal connectors list> Connector Function SO-DIMM 260-pin DDR4 SO-DIMM slot CN_SATA3 10-pin Serial ATA3 connector CN_AUDIO 5 x 2-pin audio pin header CN_LPC 6 x 2-pin LPC pin header 20 x 2-pin LVDS connector CN_LVDS CN_INV... -
Page 13: Jumper Location And Reference
LP-175 User’s Manual 2.2 <Jumper Location and Reference> JRTC JMSATA JVLCD 2.2.1 <Jumper list> Jumper Function Power mode select JRTC CMOS Normal/Clear Setting JVLCD Panel Voltage Setting JMSATA MiniCard mSATA Setting 2.2.2 <Clear CMOS and Power on type selection> JRTC: Clear CMOS data jumper... -
Page 14: Installing The Memory
LP-175 User’s Manual 2.3 <Installing the Memory> In the process, the board must be powered off. 1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key. 2. Then press down till lock into the mounting notch. -
Page 15: I/O Interface
LP-175 User’s Manual 2.4 <I/O interface> 2.4.1 <Serial ATA interface> CN_SATA3: SATA3 10-pin connector Signal CN_SATA3 2.4.2 <Ethernet interface> The board provide I219-LM Gigabit Ethernet which supports WOL on rear I/O. It supports Intel® AMT 11.0 feature on I219-LM. (Note that the CPU must support vPro technology, ex: i5-6300U) -
Page 16: Display Interface
LP-175 User’s Manual 2.4.3 <Display interface> Based on the 6th Gen CPU with built-in HD Graphics, the DisplayPort resolution up to 3840x2160 @ 60Hz or 4096x2304 @ 60Hz, the HDMI up to 4096x2304 @ 24Hz and LVDS up to 1920x1200 @ 60Hz support 18/24-bit color depth and dual channel. - Page 17 LP-175 User’s Manual CN_LVDS: LVDS 40-pin connector ( Model: HIROSE DF13-40DP-1.25V compatible Signal Signal Set by JVLCD Set by JVLCD Detect (Active low) A_LVDS_0- B_LVDS_0- A_LVDS_0+ B_LVDS_0+ A_LVDS_1- B_LVDS_1- A_LVDS_1+ B_LVDS_1+ A_LVDS_2- B_LVDS_2- A_LVDS_2+ B_LVDS_2+ A_LVDS_CLK- B_LVDS_3- A_LVDS_CLK+ B_LVDS_3+ A_LVDS_3-...
-
Page 18: Serial Port Interface
LP-175 User’s Manual 2.4.4 <Serial Port interface> CN_COM1/2 CN_COM1/2: RS232 20-pin header (Pitch 1.27mm x 2.54mm) Signal Signal DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 DCD2 RXD2 TXD2 DTR2 DSR2 RTS2 CTS2 2.4.5 <USB interface> USB3.0 CN_USB -17-... -
Page 19: Audio Interface
LP-175 User’s Manual CN_USB: Front panel USB2.0 10-pin header (Pitch 2.54mm) Signal Signal 5VSB 5VSB DATA0- DATA1- DATA0+ DATA1+ 2.4.6 <Audio interface> CN_AUDIO CN_AUDIO: Front panel audio 10-pin header (Pitch 1.27mm x 2.54mm) Signal Signal MIC_L MIC_R FP_OUT_R MIC_DETECT SENSE... -
Page 20: Expansion Slot
LP-175 User’s Manual 2.4.7 <Expansion slot> JMSATA MINI_CARD MINI_CARD have some special design to compatible our MiniPCIe card (ex: MPX-574D2, MPX-210D2 etc) and support mSATA set by JMSATA JMSATA: Setting MINI_CARD to support PCIe/mSATA Jumper settings Function Support mSATA Normal operation (Default) 2.4.8 <Front panel switch and indicator>... -
Page 21: Other Interface
LP-175 User’s Manual 2.4.9 <Other interface> CN_LPC CN_LPC: LPC 12-pin header (Pitch 2.00mm) Signal Signal -LFRAME LAD3 LAD2 LAD1 LAD0 3.3V SERIRQ 3.3VSB Note: Support TPM module. CPUFAN: CPU cooler fan 3-pin connector Signal Sensor SYSFAN: System cooler fan 3-pin connector... -
Page 22: Power Supply
LP-175 User’s Manual 2.5 <Power supply> 2.5.1 <Power input> DC_IN Only supports 5V power input. DC_IN: Terminal Block 2-pin power connector Signal Signal Power in 2.5.2 <Power output> DC_OUT: SATA power 6-pin connector Signal DC_OUT -21-... -
Page 23: Appendix A
LP-175 User’s Manual Appendix A <Flash BIOS> A.1 <Flash tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: LP-175 reflash tool The tool’s file name is “fpt.exe”, it’s the utility that can write the data into the... -
Page 24: Appendix B
LP-175 User’s Manual Appendix B <Win7 Installation Notes> B.1 <ME driver> Before installing, it need to install Microsoft Hotfix KB2685611 first for Win7 32/64 bit. More information please refer https://www.microsoft.com/en-us/download/details.aspx?id=38423 B.2 <USB3.0 driver> The Skylake platform removed EHCI host controller, therefore, before install new Win7 OS, need to embed the USB3.0 driver to Win7 installation image... -
Page 25: Appendix C
LP-175 User’s Manual Appendix C <LCD Panel Type select> According your panel, it need to select the correct resolution in the BIOS. If there is no fit your panel type, please feedback for us to make OEM modol. BIOS panel type selection form (BIOS Version:1.0) -
Page 26: Appendix D
LP-175 User’s Manual Appendix D <Programmable Watch Dog Timer> Timeout value range 1 to 255 Minute and Second Program sample Watchdog timer setup as system reset with 5 second of timeout -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 08 ;select Logical Device... -
Page 27: Contact Information
Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 +886-2-26963911 Website www.commell.com.tw info@commell.com.tw (General infomation) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc. -26-...
