Hold the spray lance fi rmly Do not let children or people tact your Gerni distributor. who have not read the instruc- with both hands. The spray tion manual ope rate the ma-...
Page 4
may adversely affect the WARNING! Water connection Connection to the public safety of the appliance. Inadequate extension cables Disconnect from electrical can be dangerous. If an exten- mains according to regula- power supply before carrying sion cord is used, it shall be tions.

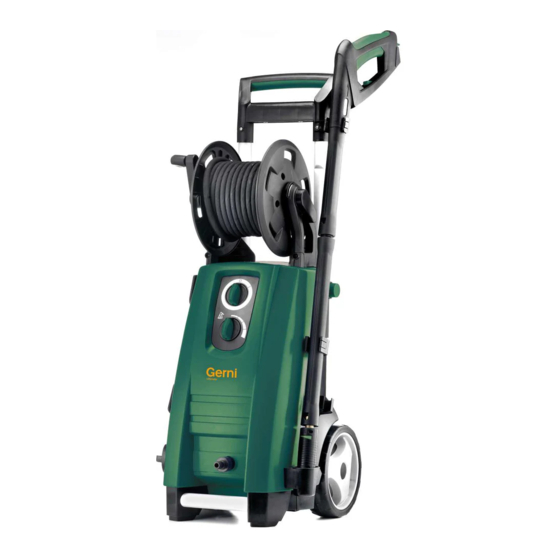

2 Description 2.1 Application This high-pressure washer has Only use the high-pressure been developed for domestic washer for purposes described use for cleaning: in this manual. - Car, motorbike, boat, cara- The safety precautions must be van, trailer, patio/drive/fl ag- observed to prevent damage stones, woodwork, brickwork, to the machine, the surface to...
3 Before you start using your pressure washer Mounting of holders for spray lance Mount the holders for spray lance on the machine. 3.2 Mounting of hose reel 1. Click the hose reel handle handle on to the trolley handle (no screws).
3.4 Mounting of high Unwind the high pressure hose pressure hose completely. Attach the high pressure hose (3) to the spray handle (6). Detach the high pressure hose by pressing the button. 4 Operating your pressure washer 4.1 Mounting of spray lance and nozzles 1.
Page 8
4.3 Telescopic handle The machine features a tele- scopic handle. To raise or lower the handle, press the button (15) and move the handle up- wards or downwards. When a click is heard, the handle is in a locked position. 4.4 Start and stop of the ma- The spray lance is affected Do not cover the machine...
Page 9
4.8 Regulation of pressure / Working pressure and water water volume volume can be regulated on the (only Ultimate 130.2 F) machine by turning the button for regulation of pressure / wa- ter volume (12).
5 Fields of application and working methods 5.1 General Effi cient high presure cleaning is achieved by following a few guidelines, combined with your own personal experience of spe- cifi c cleaning tasks. Accessories and detergents, when correctly chosen, can increase the effi ciency of your pressure washer. Here is some basic information about cleaning.
6 After using your pressure washer 6.1 Storing the washer The machine should be sto- 5. Coil the high pressure hose red in a frost-free room! up on the hose reel. 6. Place spray handle, nozzles Pump, hose and accessories and other ac ces so ries in the should always be emptied of holders of the machine.
7 Maintenance Clean the connectors of dust WARNING! Always disconnect the electrical plug from the and sand. Clean the nozzles. socket prior to maintenance or cleaning. To ensure a long and problem Any repair should always be free working life, please take made in an authorized work- the following advice: shop with original spare parts.
8 Trouble-shooting Please ensure that you check the following before contacting the Gerni service organization: Symptom Cause Recommended action Machine refuses to start Machine not plugged in Plug in machine. Defective socket Try another socket. Fuse has blown Replace fuse. Switch off other machines.
The machine should be for- made on the following con di- warded to one of the service t ions: centres of the Gerni organisa- that defects are attributable tion with description/spe ci fi ca- to fl aws or defects in materi- ti on of the fault.
For removal of paint and rust. Sand available from do-it-your- blasting equip- self shops. ment Patio Plus Equipment for quick cleaning of patio/drive/fl agstones. 10 Main Technical Data Ultimate 130.2 Type Ultimate 130.2 F Rated pressure bar/MPa 120/12 Permissible pressure bar/MPa 130/13 Water flow, low pressure l/min.
11 EU Declaration of Conformity EU Declaration of Conformity Product: High Pressure Washer Type: Gerni Ultimate 130.2 Gerni Ultimate 130.2 F Description: 230 V 1~, 50 Hz - IP X5 The design of the unit corre sponds to the EC Machine Directive 2006/42/EC...
