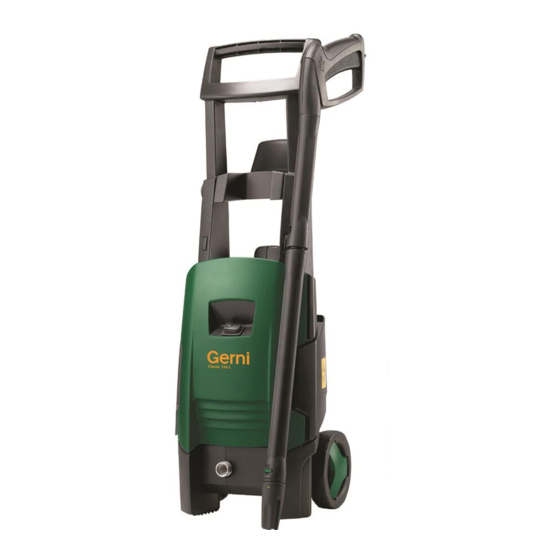

Gerni Classic 125.2 User Manual
  1. Manuals
  2. Brands
  3. Gerni Manuals
  4. Pressure Washer
  5. Classic 125.2
  6. User manual

Gerni Classic 125.2 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Classic 120.2
Classic 125.2
User Guide
128303306 c (03.2014)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Classic 125.2 and is the answer not in the manual?

Questions and answers

Related Manuals for Gerni Classic 125.2

Summary of Contents for Gerni Classic 125.2

  • Page 1 Classic 120.2 Classic 125.2 User Guide 128303306 c (03.2014)

  • Page 3: Table Of Contents

    Contents Introduction ....................4 1.1 Symbols used to mark instruction ...............4 Safety precautions and working techniques ..........4 Description ....................10 Before you start using your pressure washer ........11 3.1 Mounting of trolley handle and hose hook ............11 3.2 Mounting of trolley handle and hose reel (models with hose reel) ....11 3.3 Mounting of quick coupling ................11 3.4 Mounting of high pressure hose ...............11 Operating your pressure washer ................

  • Page 4: Introduction

    • Before starting up your machine please check it care- fully for any defects. If you fi nd any, do not start up your machine, contact your Gerni distributor. The in- sulation of the electric cable should be faultless and without any cracks.
  • Page 5 Any other use is considered as improper use. Gerni ac- cepts no liability for any damage resulting from such use. The risk for such use is borne solely by the user.
  • Page 6 • When transporting the machine in or on a vehicle, it must be secured, e.g. with straps, so that it cannot slip or tip over. • Gerni recommends that the machine is positioned horizontally on the backside, when transported in or on a vehicle.
  • Page 7 • Gerni recommends use of an extension cable drum when cable extension is needed which keeps the socket at least 60 mm above the ground.
  • Page 8 • It is not allowed to clean asbestos-containing surfaces with high pressure. • Never draw in fl uids containing solvents (e.g., gaso- line, heating oil, paint thinner or acetone) These sub- stances damage the materials used in the machine. Their spray is highly combustible, explosive and poi- sonous.
  • Page 9 • Always disconnect the electrical plug from the socket prior to maintenance, cleaning and repair. • Any repair should always be made in Gerni authorized workshop with original Gerni spare parts. • Do not attempt any maintenance not described in the instructions.

  • Page 10: Description

    2 Description 2.1 Application This high-pressure washer has Section 5 describes the use of been developed for domestic the high-pressure washer for use for cleaning: vaious cleaning jobs. - Car, motorbike, boat, cara- Only use the high-pressure van, trailer, patio/drive/fl ag- washer for purposes described stones, woodwork, brickwork, in this manual.

  • Page 11: Before You Start Using Your Pressure Washer

    3 Before you start using your pressure washer 3.1 Mounting of trolley 1. Mount the trolley handle (12) handle and hose hook on the machine. 2. Mount the hose hook (13) on the handle. 3.2 Mounting of trolley 1. Mount the trolley handle (12) handle and hose reel on the machine.

  • Page 12: Operating Your Pressure Washer

    4 Operating your pressure washer 4.1 Connection of high pres- 1. Mount the high pressure sure hose hose on the outlet (3). 4.2 Mounting of spray 1. Push the spray lance (6) into Note: The lance and Click & Clean the spray gun (7) and twist spray lance (6) nozzles...

  • Page 13: Water Connection

    4.4 Water connection An ordinary 1/2" garden hose of IMPORTANT! min. 10 m and max. 25 m will Only use water be suitable. without any im- purities. If there is a risk of silt, sand or sediment in the inlet water (i.e.

  • Page 14: Fields Of Application And Working Methods

    4.5 Start the machine (when The washer can draw water hose in a tank or bucket. To connected to open con- from a rain water tank as an avoid water spillage, crimp tainers (suction mode)) example. The hose for the wa- the water inlet hose inside ter supply must not be too long, the water and then connect...
  • Page 15 5.2 Typical fi elds of application Below you will fi nd a description of a lot of cleaning tasks which can be solved by a pressure washer from Gerni in association with accessories and detergents. Task Accessories Cleaning method ‘Click & Clean’...

  • Page 16: After Using Your Pressure Washer

    6 After using your pressure washer 6.1 Storing the washer The machine should be sto- 3. Stop the machine, unplug red in a frost-free room! and wind up hose and cable.  4. Place spray handle, nozzles Pump, hose and accessories and other accessories in the should always be emptied of holders of the machine.

  • Page 17: Storage Of Accessories

    6.3 Storage of accessories The standard accessories (spray gun, spray lance, noz- zles and foam sprayer) can be stored on the pressure washer. The nozzle cleaning tool can also be stored on the product. 6.4 Wall storage The pressure washer can be stored on a wall on a special wall hook (optional accessory).

  • Page 18: Maintenance

    7 Maintenance  Wash off water hose, high WARNING! Always disconnect the electrical plug from the pressure hose, spray lance socket prior to maintenance or and accessories before cleaning. mounting.  Clean the connectors of dust To ensure a long and problem and sand.
  • Page 19 7.3 Cleaning of machine The machine should be kept vents clean so as to let cooling air pass freely through the ma- chine vents. 7.4 Greasing of couplings To ensure easy connection and that o-rings do not dry up, the couplings should be greased regularly.

  • Page 20: Trouble-Shooting

    8 Trouble-shooting Please ensure that you check the following before contacting the Gerni service organization: Symptom Cause Recommended action Machine refuses to Machine not plugged in Plug in machine. start Defective socket Try another socket. Fuse has blown Replace fuse. Switch off other machines.

  • Page 21: Further Information

     that the high pressure wash- centres of the Gerni organisa- tion. Find your local service er has not been used for agent here: rental nor used com mer cial ly http://www.gerni.com.au/.

  • Page 22: Accessories

    Repairs not covered by the Please phone 1300 733 171 guarantee conditions will be (Australia) or 09 9682610 invoiced. (i.e. malfunctions due (NZ) for service or warranty to Causes men ti o ned in sec- assistance only after check- tion Trouble Shooting of the ing possible causes in the instruction manual).

  • Page 23: Main Technical Data

    10 Main technical data Type Classic 120.2 Classic 125.2 Electrical Specification Rated voltage 230-240 230-240 Rated frequency Rated power consumption Current Class I/ Protection class Class II Class II Class II Protection degree IP xx IPX5 IPX5 Hydraulic specification Rated pressure MPa/bar 10.0/100...

  • Page 24: Declaration Of Conformity

    Hereby solely declare, that the product: Product Description Type HPW - Consumer 230 - 240 V 1~, 50/60 Hz - IP X5 Gerni Classic 120.2, Classic 125.2 and accessory variants of above-men- tioned types Is in compliance with the following standards: Id and Version Title...
  • Page 26 NEW ZEALAND: AUSTRALIA: Accent Tools Ltd Nilfi sk-Advance Pty Ltd 232 Bush Rd Unit 1/13 Bessemer Street Albany Blacktown NSW 2148 Auckland 0632 Phone: 1300 556 710 Phone: 09 968 2610 E-mail: Warranty.au@nilfi sk.com E-mail: sales@accent-tools.co.nz...
